Voodoo13 Toe Arms - Nissan 240sx S13 (89-94) High Clearance Design
High Clearance Rear Toe Arms for Nissan Skyline 89-94 RWD R32

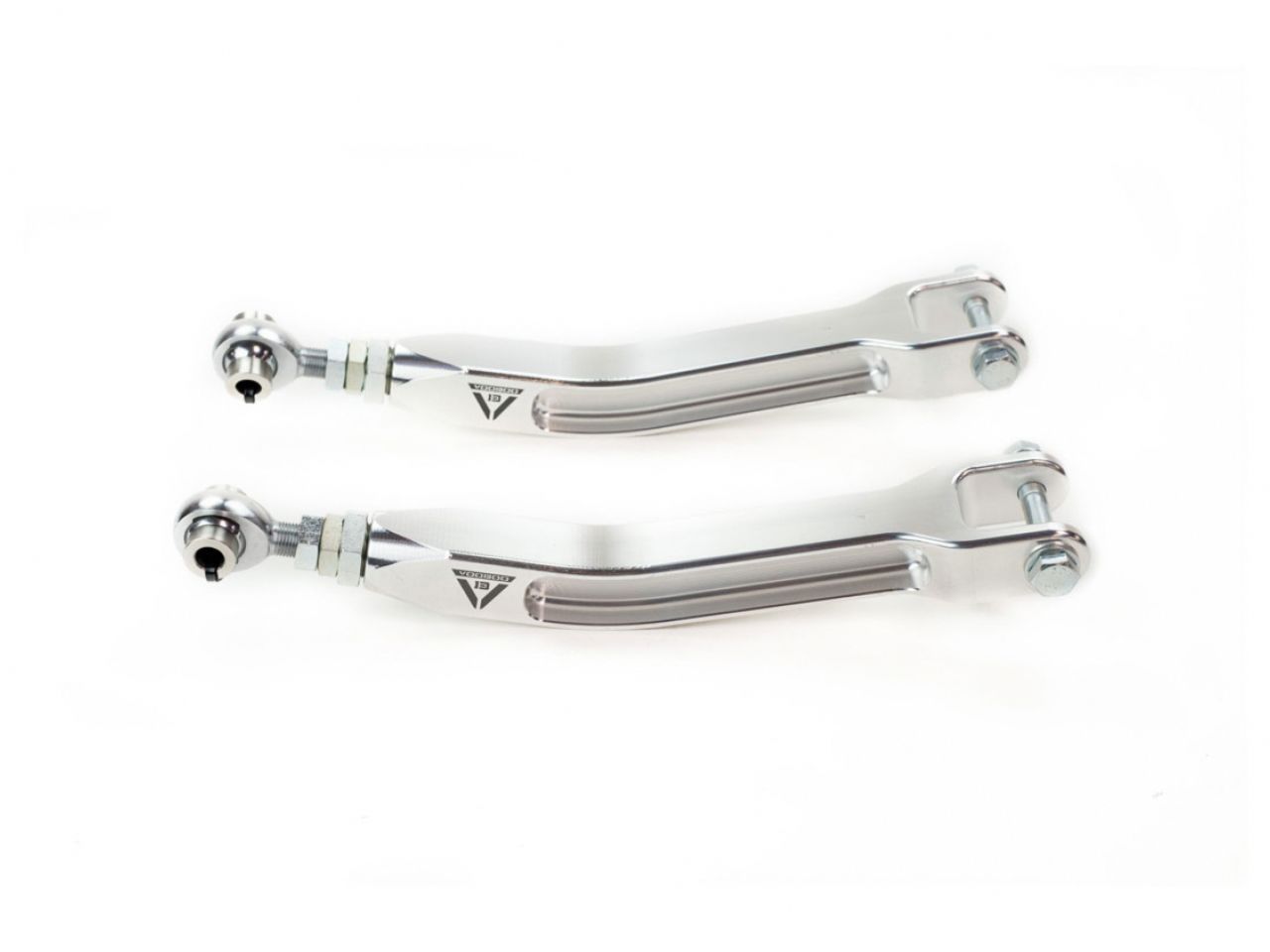

Our new Voodoo13 high clearance rear toe arms offer superior subframe clearance for extremely low cars. Many aftermarket toe rods with a straight profile tend to collide with the subframe at extreme ride heights. Our unique and innovative design features a curvature for increased clearance between the subframe and the arm.
Features:
- 6061-T6 aluminum construction is extremely strong and lightweight
- Voodoo13 signature chromoly adjuster
- Grade 10.9 zinc plated hardware included
- Available in raw metal or anodized finishes
The main body is CNC machined from 6061-T6 aluminum. The mounting location to the hub is integrated into the arm itself to distribute the weight towards the sprung side. This means less unsprung weight and better overall suspension performance. Adjustments are made easily via our signature chromoly adjusters with QA1 rod ends.
USA made QA1 XM series Chromoly Steel heim joints are heat treated for strength and durability. The spherical rod end is completely self-sealing and self-lubricated because of their Nylon/PTFE injection molded race that keeps dirt and debris out.
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1989 - 1993 | Nissan | 240SX | Base |
| 1991 - 1992 | Nissan | 240SX | LE |
| 1989 - 1994 | Nissan | 240SX | SE |
| 1989 - 1990 | Nissan | 240SX | XE |
