Victor Reinz Victor Reinz 14-32125-02 14-32125-02

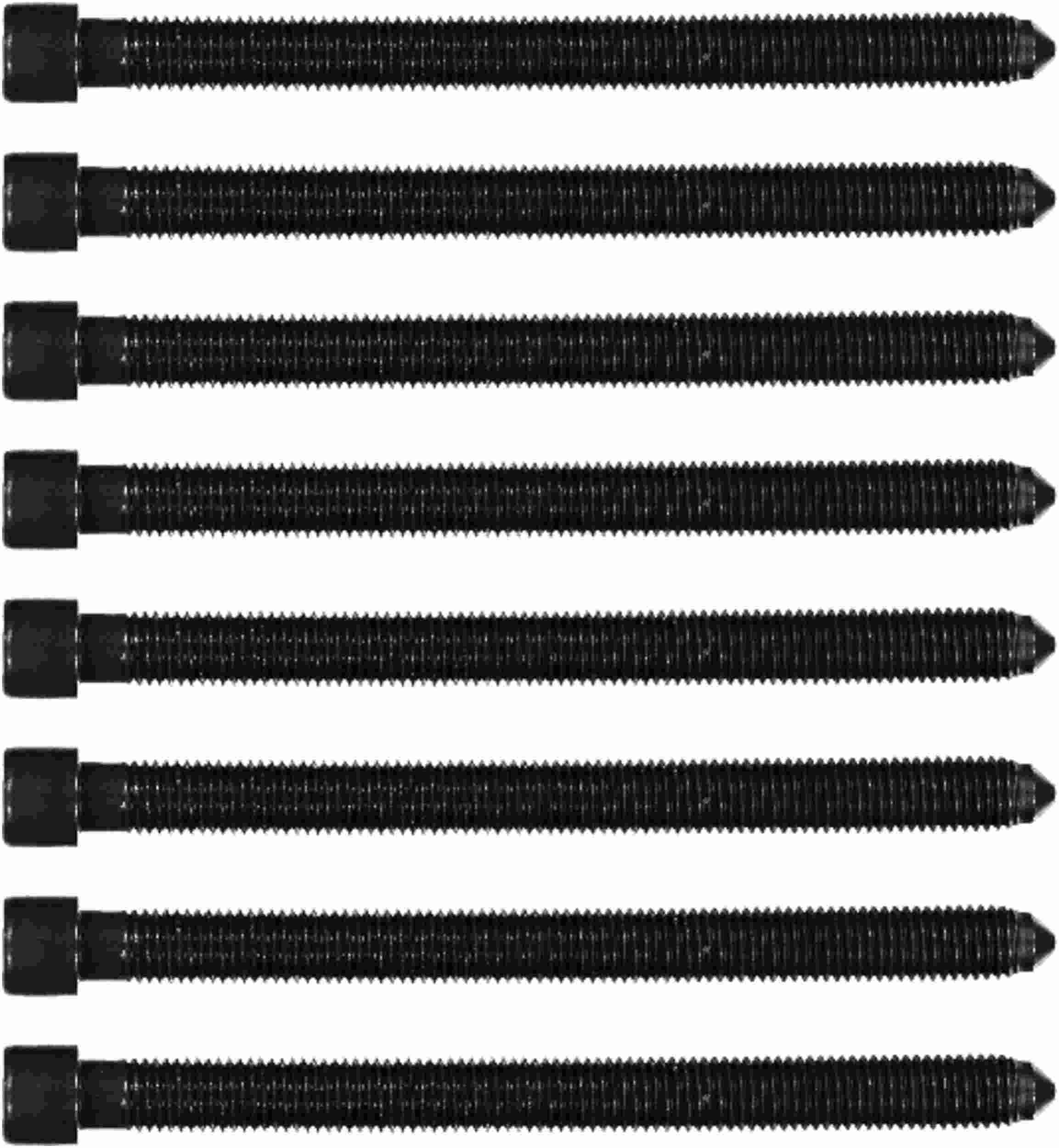

Engine Cylinder Head Bolt Set. (14-32125-02) by Victor Reinz
Using new head bolts when performing a cylinder head installation is always a good idea however, on late-model engines that came from the factory with TTY (torque-to yield) head bolts, replacement is an absolute necessity. TTY bolts are designed to exert the maximum clamping force for a tight head gasket seal, however they permanently stretched and could fail if re-used.
When a specific tightening torque has been reached, the bolts are turned further through a defined angle, which pre-loads them into the plastic region. Consequently, no retorquing is necessary.
Victor Reinz 14-32125-02Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1998 - 2000 | Audi | A4 | Avant |
| 1996 - 2001 | Audi | A4 | Base |
| 2001 | Audi | A4 | Luxury, Basico, Confort, Avant Confort, Sport, Avant Luxury |
| 1998 - 2001 | Audi | A4 Quattro | Avant |
| 1996 - 2001 | Audi | A4 Quattro | Base |
| 2001 | Audi | A4 Quattro | Confort |
| 1996 - 2000 | Audi | A6 | Avant |
| 1996 - 2001 | Audi | A6 | Base |
| 1995 - 2004 | Audi | A6 Quattro | Avant, Base |
| 2001 - 2002 | Audi | A6 Quattro | Luxury |
| 2003 - 2004 | Audi | A6 Quattro | S Line |
| 2001 | Audi | S4 | Avant |
| 2000 - 2001 | Audi | S4 | Base |
| 2000 | Volkswagen | Passat | 4 Motion |
| 2003 - 2005 | Volkswagen | Passat | GL |
| 2001 - 2005 | Volkswagen | Passat | GLS 4 Motion, GLX 4 Motion |
| 2004 - 2005 | Volkswagen | Passat | GLS TDI, GL TDI |
| 2002 - 2005 | Volkswagen | Passat | V6 4Motion |
| 1999 - 2005 | Volkswagen | Passat | V6, 1.8T, GLS, GLX |
| 2002 - 2004 | Volkswagen | Passat | W8 |
Victor Reinz Victor Reinz 14-32125-02 14-32125-02
Sale price$27.65 USD
