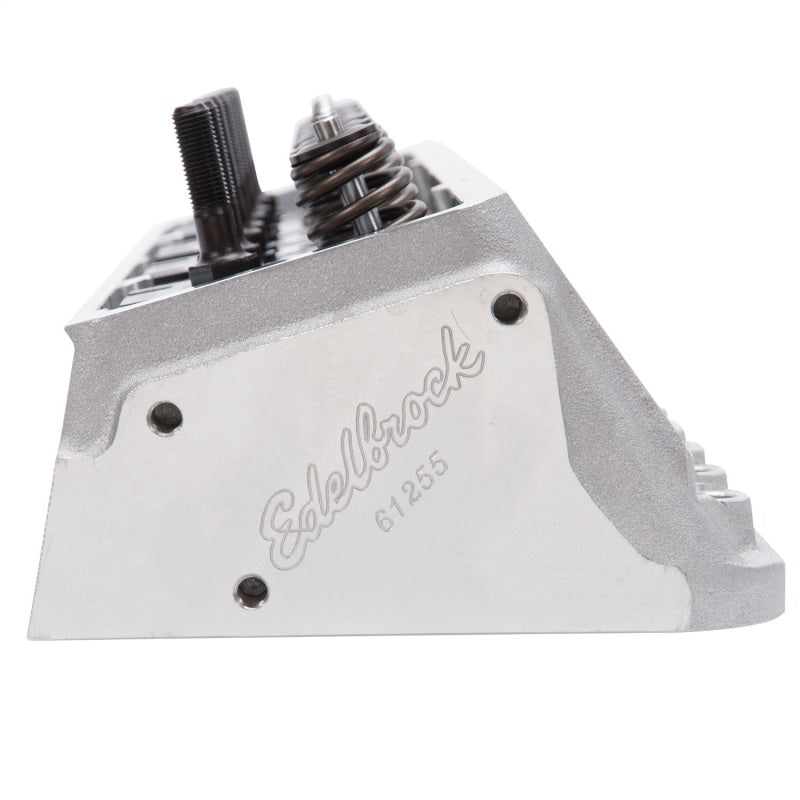

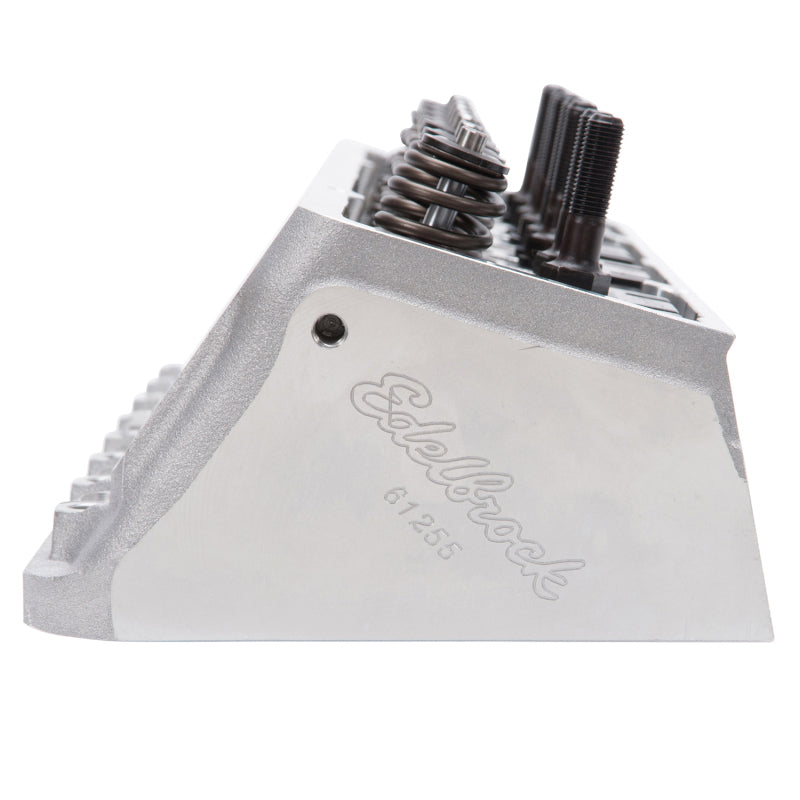

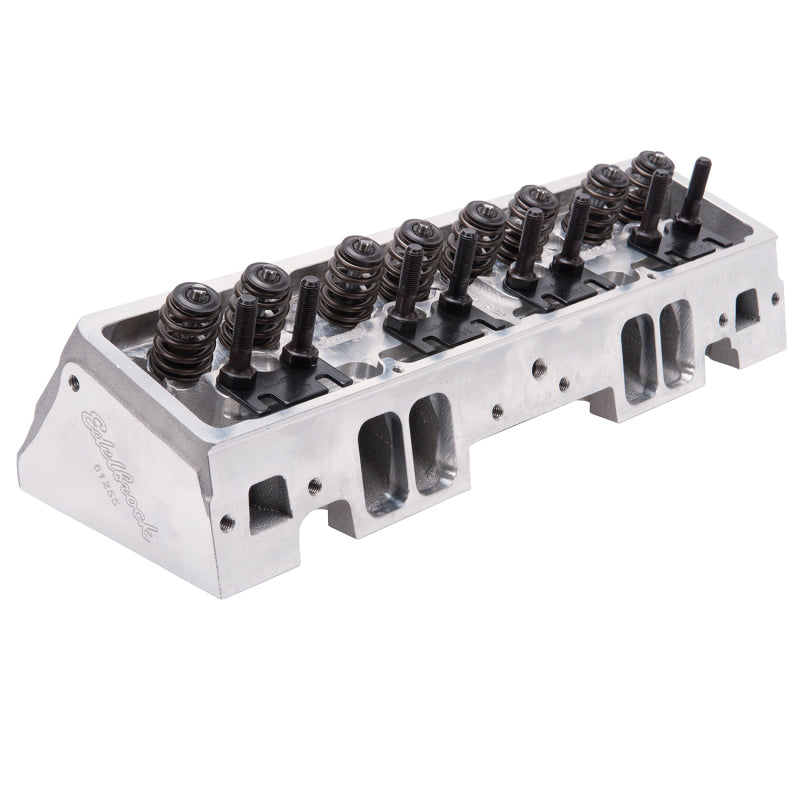

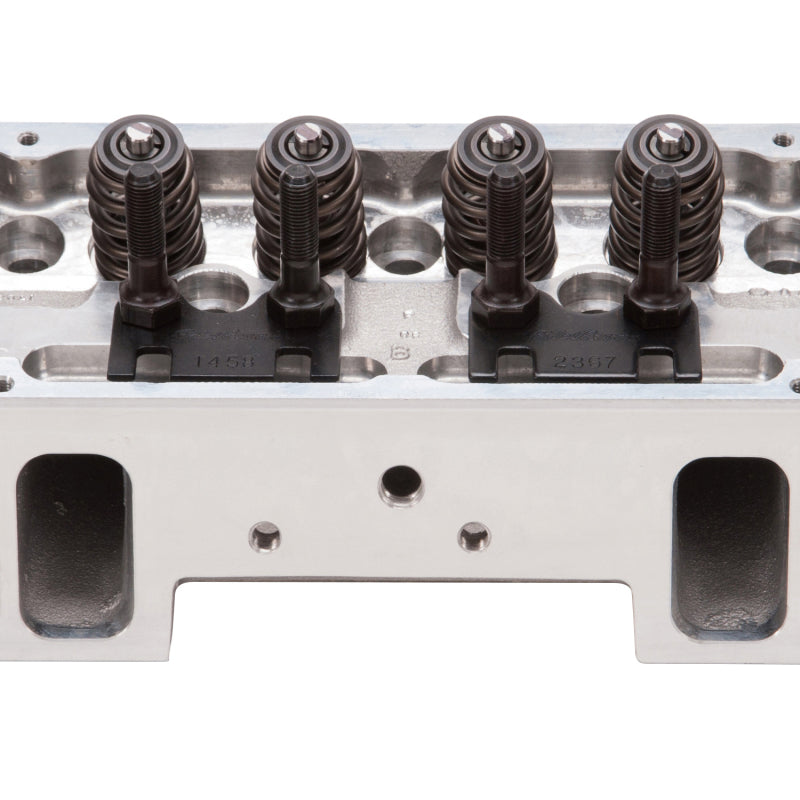

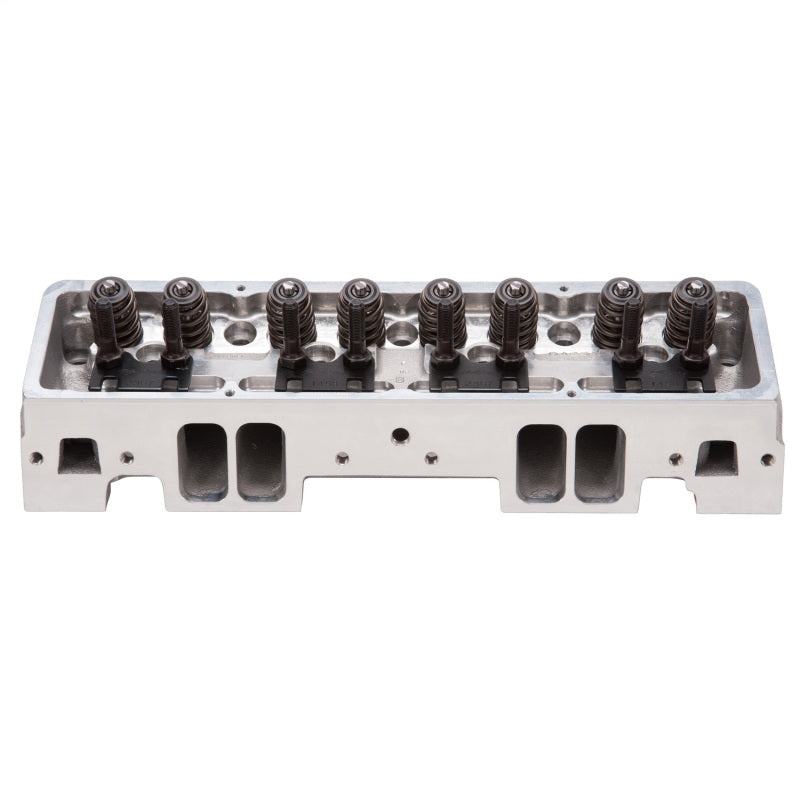

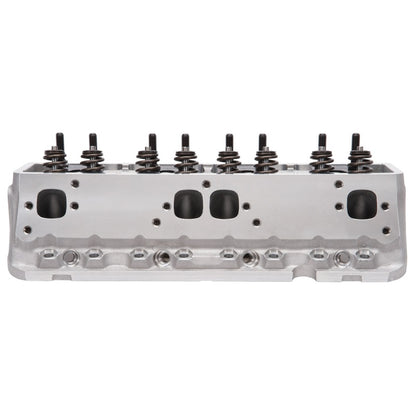

Edelbrock Victor Jr. 23° Cylinder Heads for Small-Block Chevy (220cc)

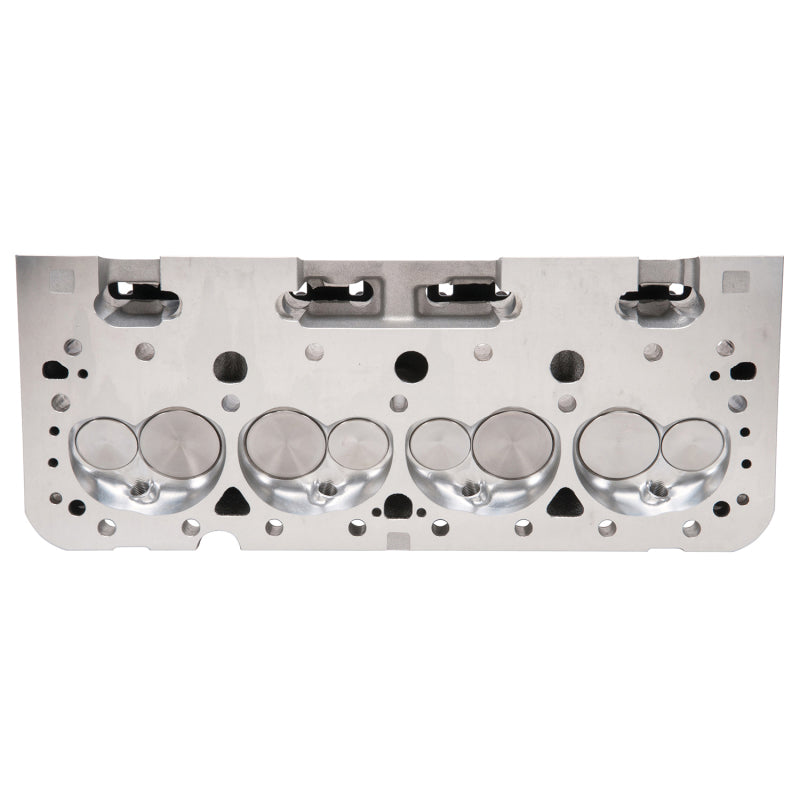

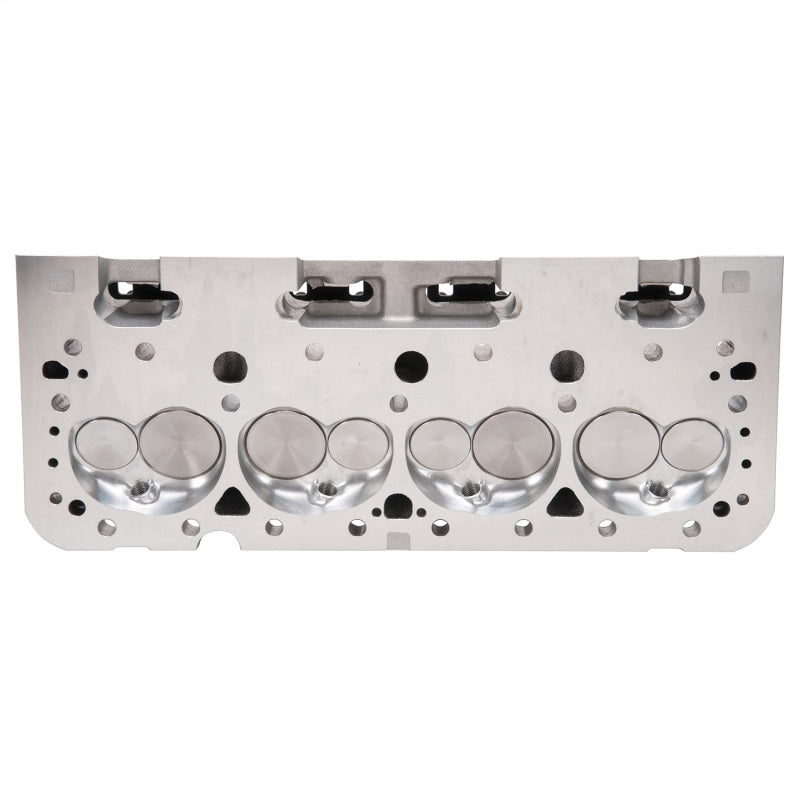

Edelbrock Part # 61255 Victor Jr. 23° 220 cylinder heads are designed for small-block Chevy Its 64cc combustion chamber yields around 10:1 compression ratio in a typical flat-top application and about 12.5:1 when used with some of the most common 12cc dome pistons. One of the key features of the Victor Jr. 23° 220 cylinder heads is the CNC machined chambers and bowls, which result in consistency and improved performance. They also feature angled spark plug holes and maintain the stock 23° valve angle as well as the intake flange bolt pattern for use with 1986 and earlier intake manifolds. All of this allows these cylinder heads to deliver 530-580 hp potential right-out-of-the-box, making them ideal for a budget minded engine build desiring a high quality cylinder head that still uses a stud and guide plate rocker system.Cylinder Head

Specifications:

Finish: Satin

Designed for use with Hydraulic Roller camshafts

Combustion chamber volume: 64cc

Intake runner volume: 220cc

Exhaust runner volume: 85cc

Intake valve diameter: 2.10"

Exhaust valve diameter: 1.60"

Valve stem diameter: 5/16"

Valve guides: Manganese bronze

Deck thickness: 11/16"

Valve spring diameter: 1.55"

Valve spring maximum lift: .630"

Rocker stud: 7/16"

Guide plate: Hardened steel

Pushrod diameter: 5/16"

Valve angle: 23°

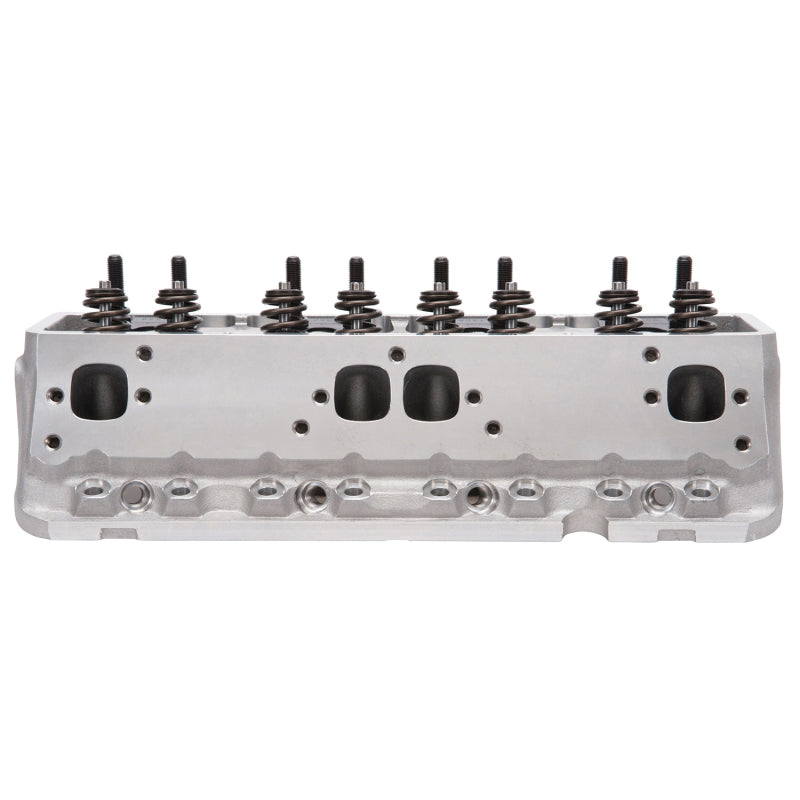

Exhaust port location: Raised .300"

Spark plug fitment: 14mm x .750 reach, gasket seat
