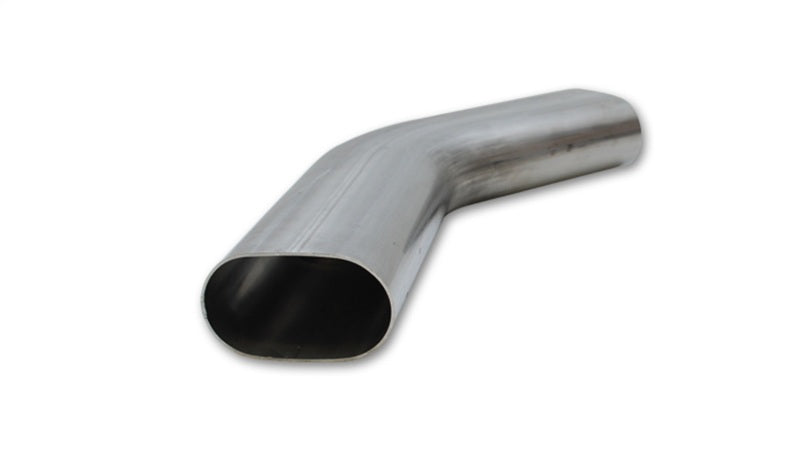

Vibrant Oval Mandrel Bend, 45 Degree (horizontal)

Part Specifications:
Nominal Tube Size - 3"
Centerline Radius - 4.5"
Leg Length A - 6"
Leg Length B - 6"
Bend Angle - 45 degree
Tube Thickness - 0.065" (1.65mm)

Tech Tip: The nominal size listed for oval tubing approximately equals the equivalent diameter for like-size round tubing. Eg. Nominal Size of 3" = Actual Tube Size of 2.125" x 3.5".

- T304 Stainless Steel is a non-magnetic alloy that possesses very high chromium and nickel content, making it much more capable of withstanding acidic, high heat and corrosive conditions than regular (mild) steel.
