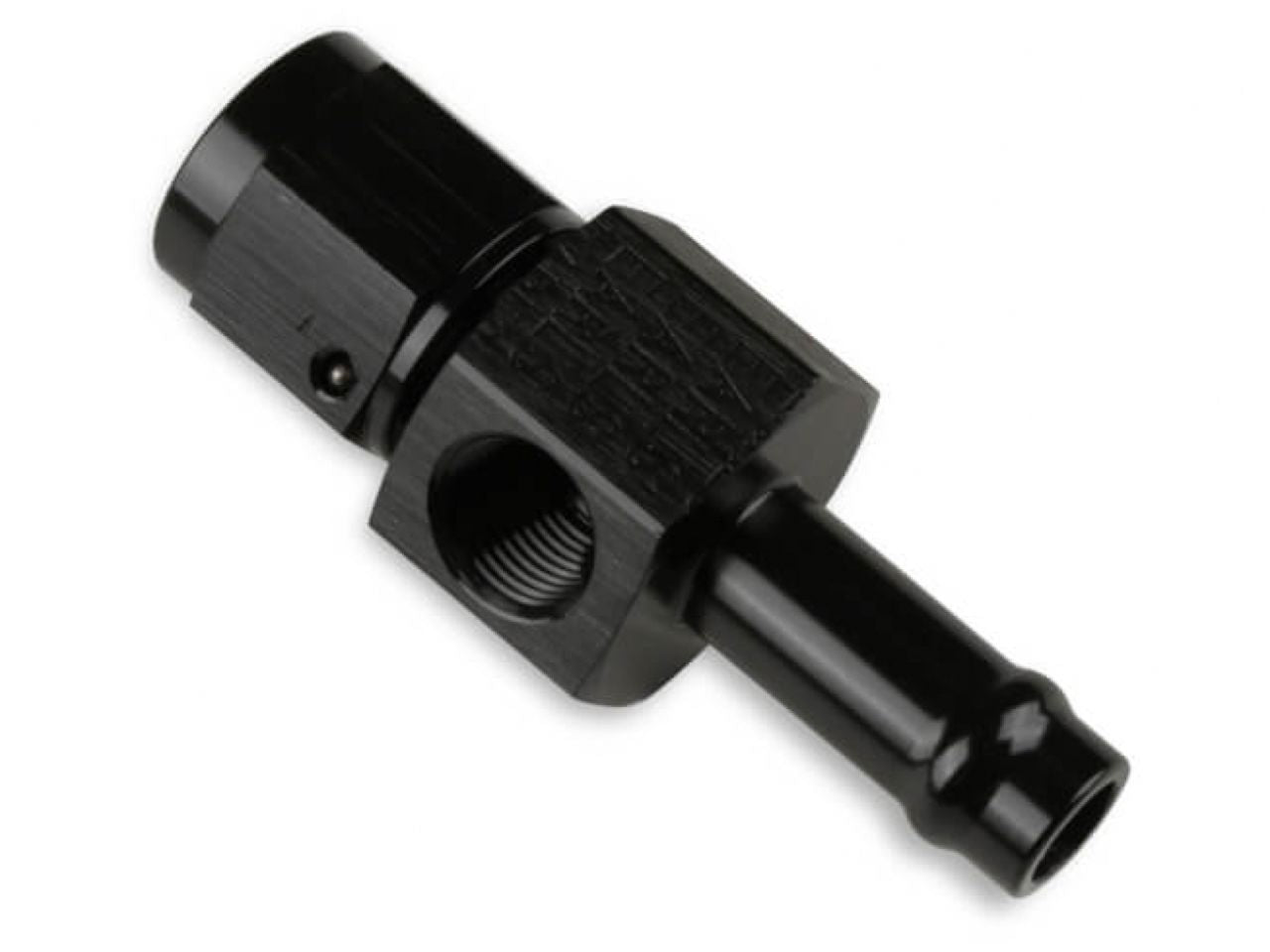

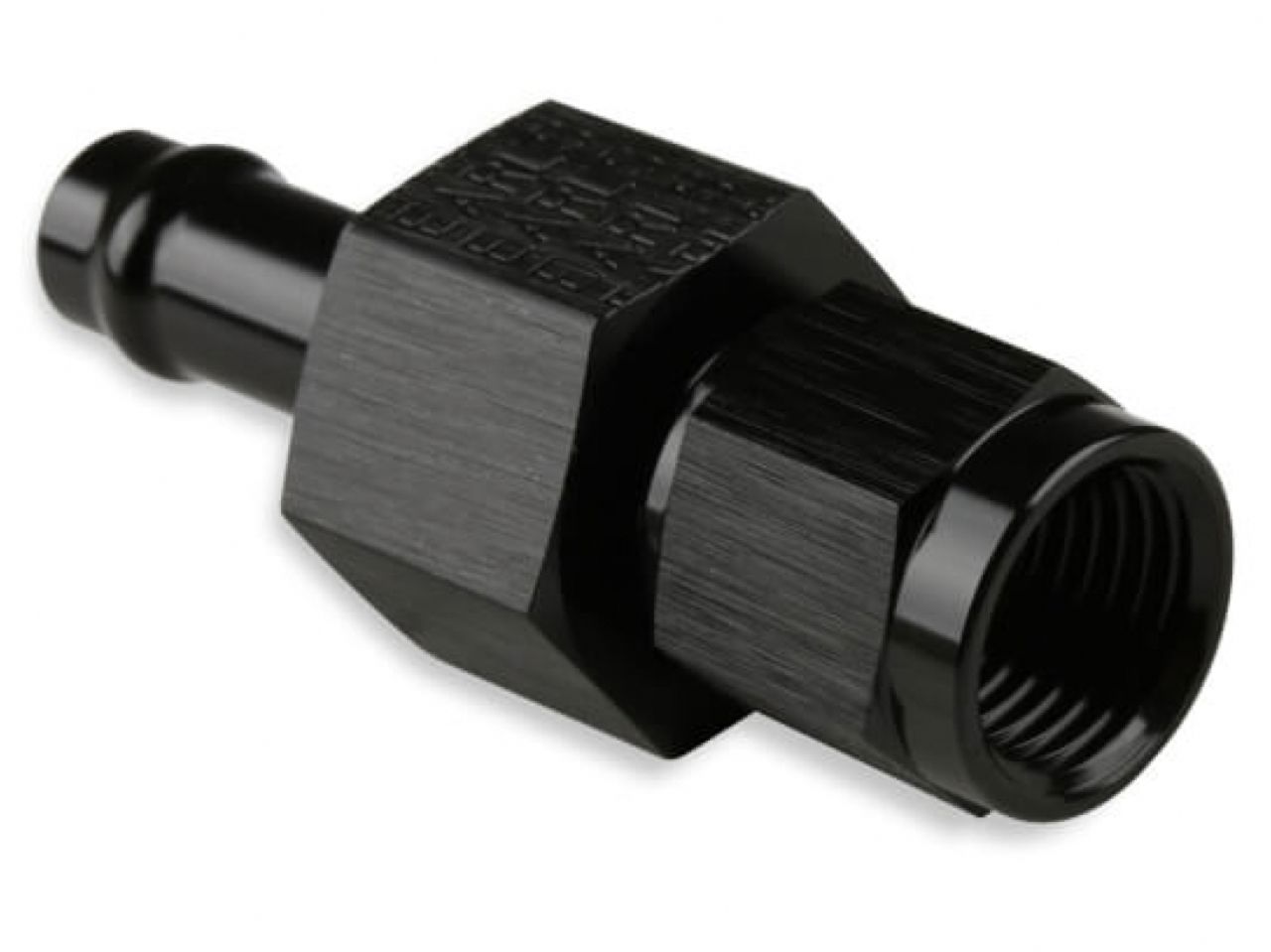

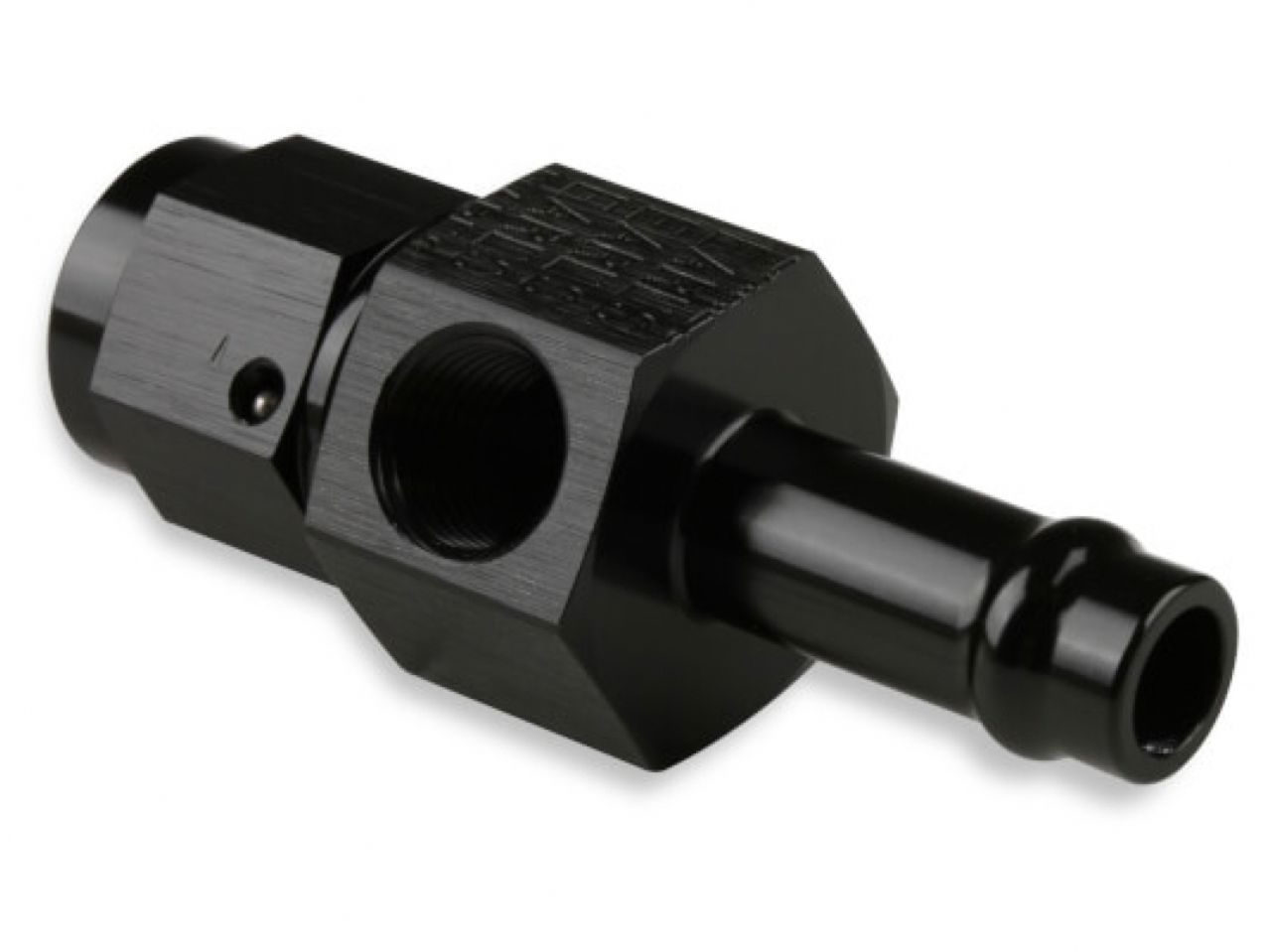

Earl's Vapor Guard Hose End

Several new adapters and fuel filters have been added to the Vapor Guard® product line. Billet aluminum fuel filters are now available for carburetor (30 micron), and EFI (10 micron) applications. New tees and fuel pressure adapters are ideal for adding a fuel pressure gauge to your fuel system – features 1/8" NPT female port. The hose barb to -6 AN male flare adapters allow another option when transitioning from the Earl's Vapor Guard® hose to AN hose ends and fittings. These new parts are available for 5/16" and 3/8" hose, and have a black anodized finish.

Features:

• New Vapor Guard Additions
• Billet Aluminum Fuel Filters for EFI & Carburetor Applications
• Tees w/ 1/8” NPT Port – Ideal for Use w/ Fuel Pressure Gauge
• Pressure Gauge Adapters w/ Hose Barb to -6 AN Female
• Hose Barb to -6 AN Male Adapters
• Special Retention Bead on Hose Barb Retains Hose without Damaging Hose Inner Liner
• Black Anodized Finish

Specification

• Adjustable: Yes
• Assembly Method: Barb & Band Clamp
• Compatible Hose: Vapor Guard
• Emission Code: 5
• Finish: Anodized Black
• Fitting to Hose Mate Type: Barb & Band Clamp
• Hose End Family: Vapor Guard
• Hose End Series: 75/78
• Hose Size: 3/8
• Product Type: Hose End
• Reusable: Yes
• Swivel: Yes
