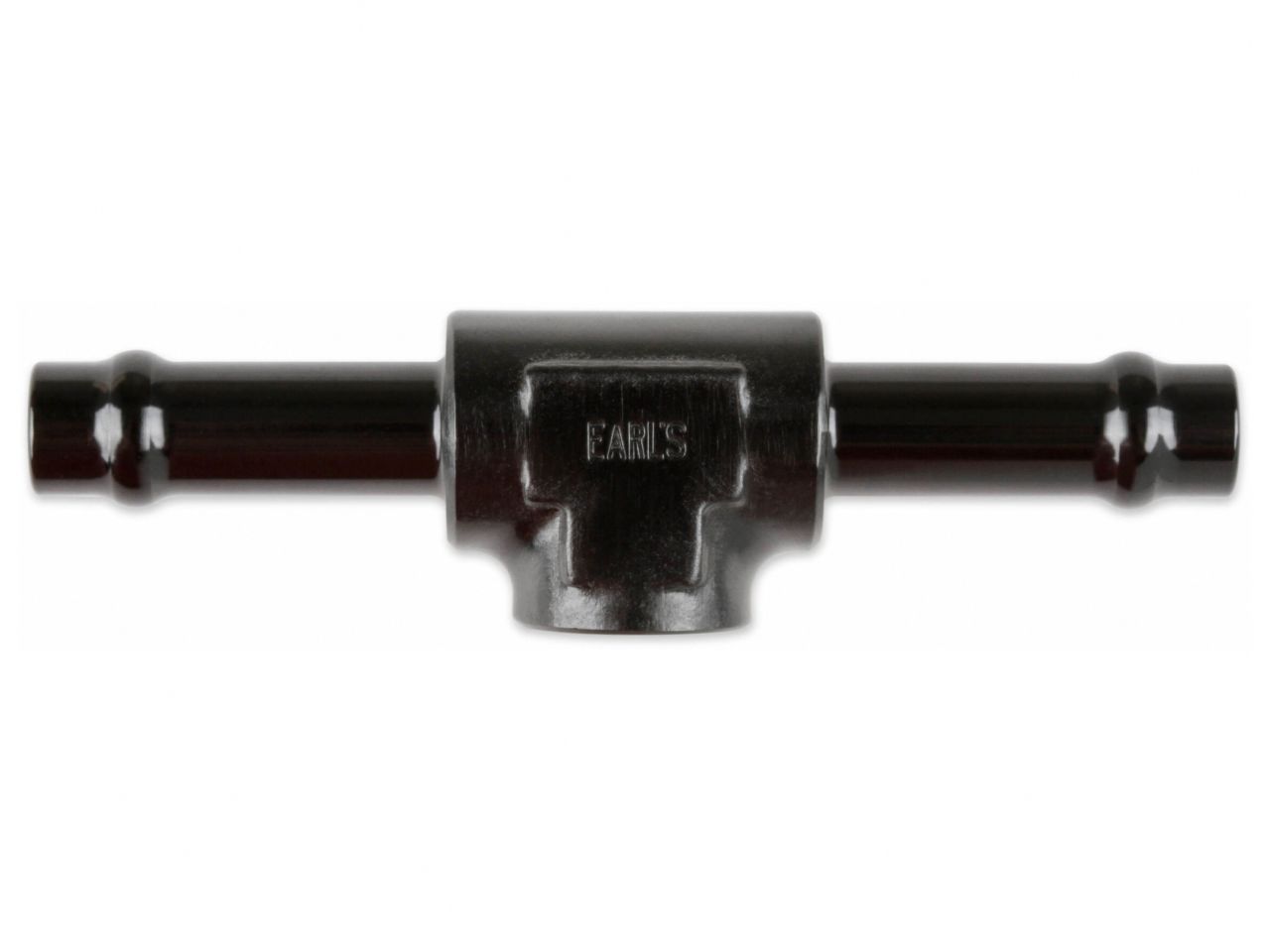

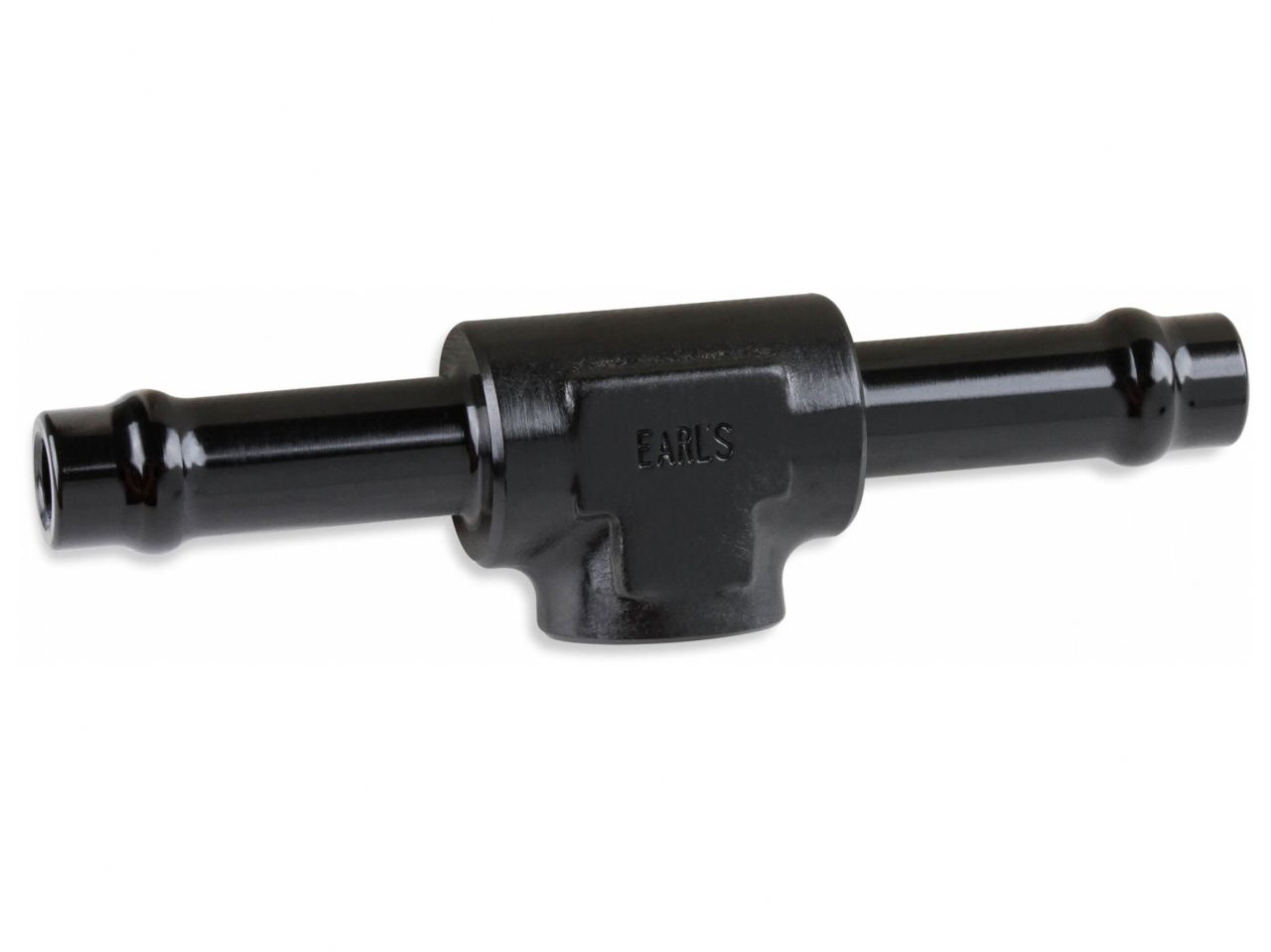

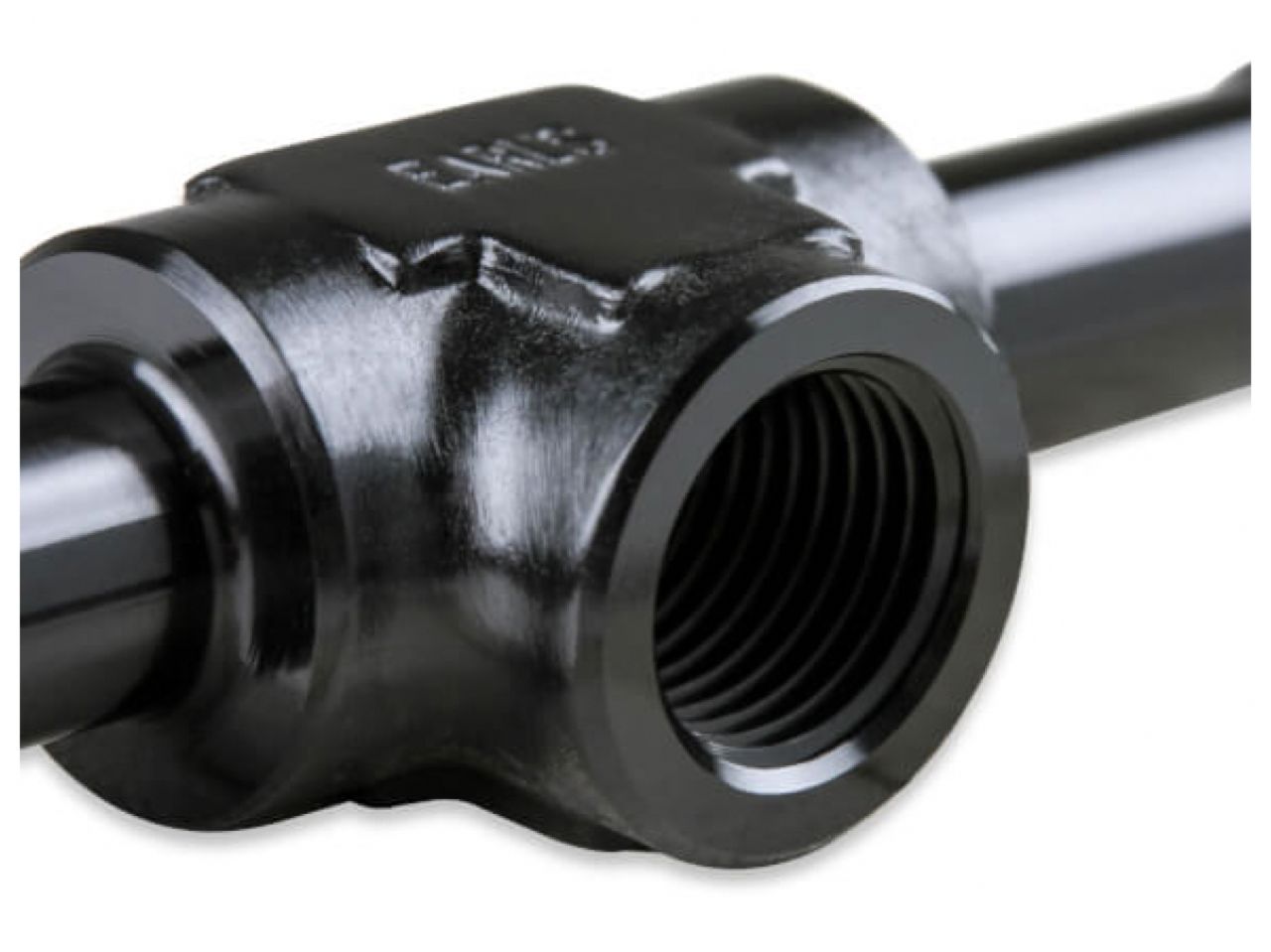

Earl's Vapor Guard Hose End

Earl's Vapor Guard hose ends feature a special smooth retention bead that retains the hose under pressure while assuring the hose liner is not damaged. They're black brite-dip anodized for good looks and corrosion protection. Assembly is a snap! Simply cut the hose, push it on and tighten the clamps! Put Earl's Vapor Guard™ in your arsenal and defend your ride from modern fuels!

Features:

• Aluminum AN style, NPT, and O-ring port hose ends
• Black bright-dip anodizing offers long life even when used with today’s harsh fuels
• Brazed bent tube design provides unsurpassed strength
• Special retention bead retains hose under pressure whileassuring hose liner is not damaged
• Available in 5/16” & 3/8” Sizes
• Easy assembly of hose to hose ends w/ clamps
• Single & dual ear crimp style and screw style stainless steel hose clamps available for a secure assembly

Specification

• Adapter NPT Size ( C ): 1/8 NPT FEMALE
• Adjustable: Yes
• Angle: Straight
• Assembly Method: Barb & Band Clamp
• Compatible Hose: Vapor Guard
• Emission Code: 5
• Finish: Anodized Black
• Fitting to Hose Mate Type: Barb & Band Clamp
• Hose End Family: Vapor Guard
• Hose End Series: 75/78
• Hose Size: 3/8
• Material: Aluminum
• Product Line: Budget
• Product Type: Hose End
• Reusable: Yes
• Swivel: Yes
• Thread Size: 1/8" NPT
