Earl's Vapor Guard Fuel Filter

Several new adapters and fuel filters have been added to the Vapor Guard® product line. Billet aluminum fuel filters are now available for carburetor (30 micron), and EFI (10 micron) applications. New tees and fuel pressure adapters are ideal for adding a fuel pressure gauge to your fuel system – features 1/8" NPT female port. The hose barb to -6 AN male flare adapters allow another option when transitioning from the Earl's Vapor Guard® hose to AN hose ends and fittings. These new parts are available for 5/16" and 3/8" hose, and have a black anodized finish.

Features:

New Vapor Guard Additions

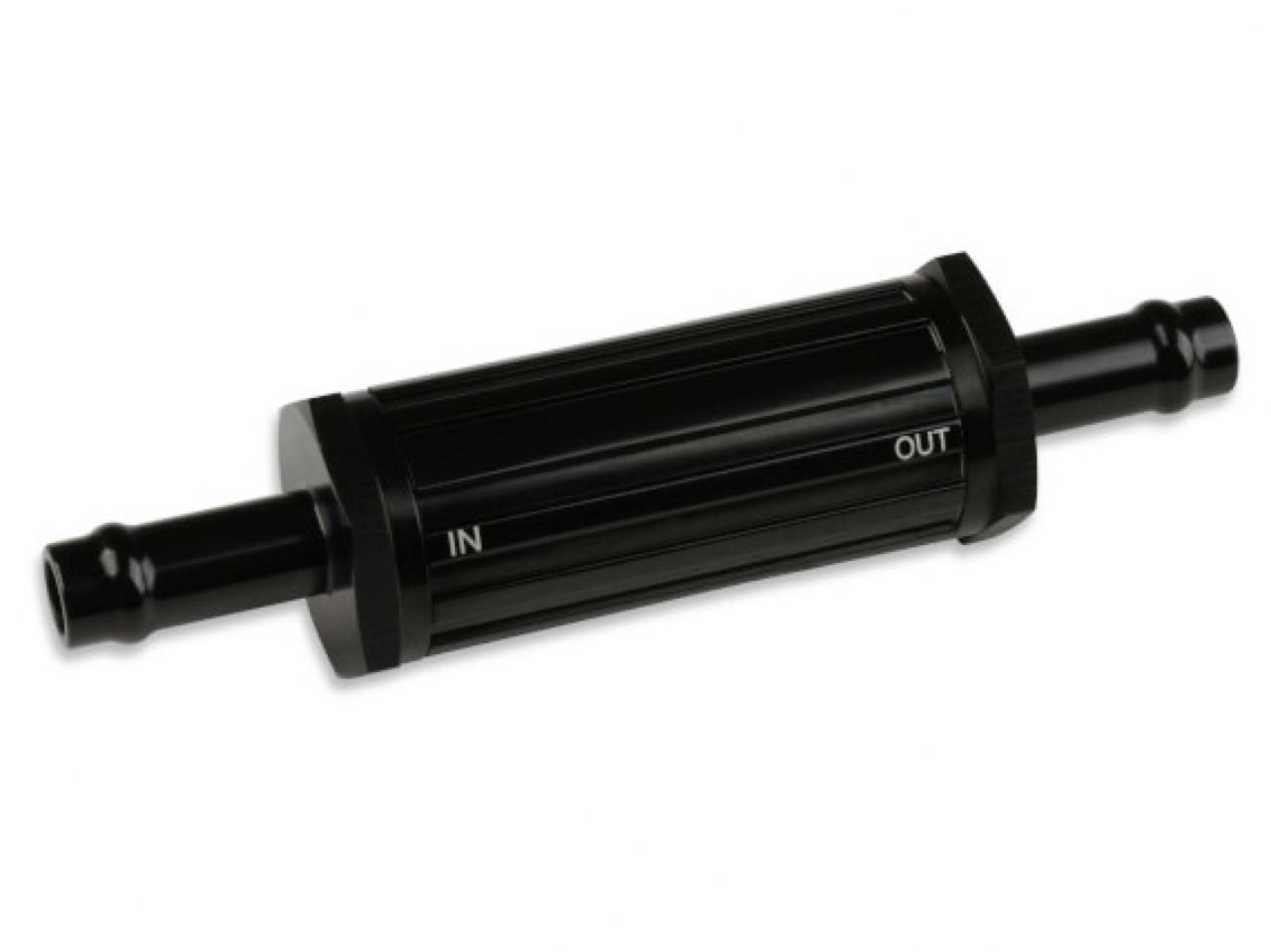

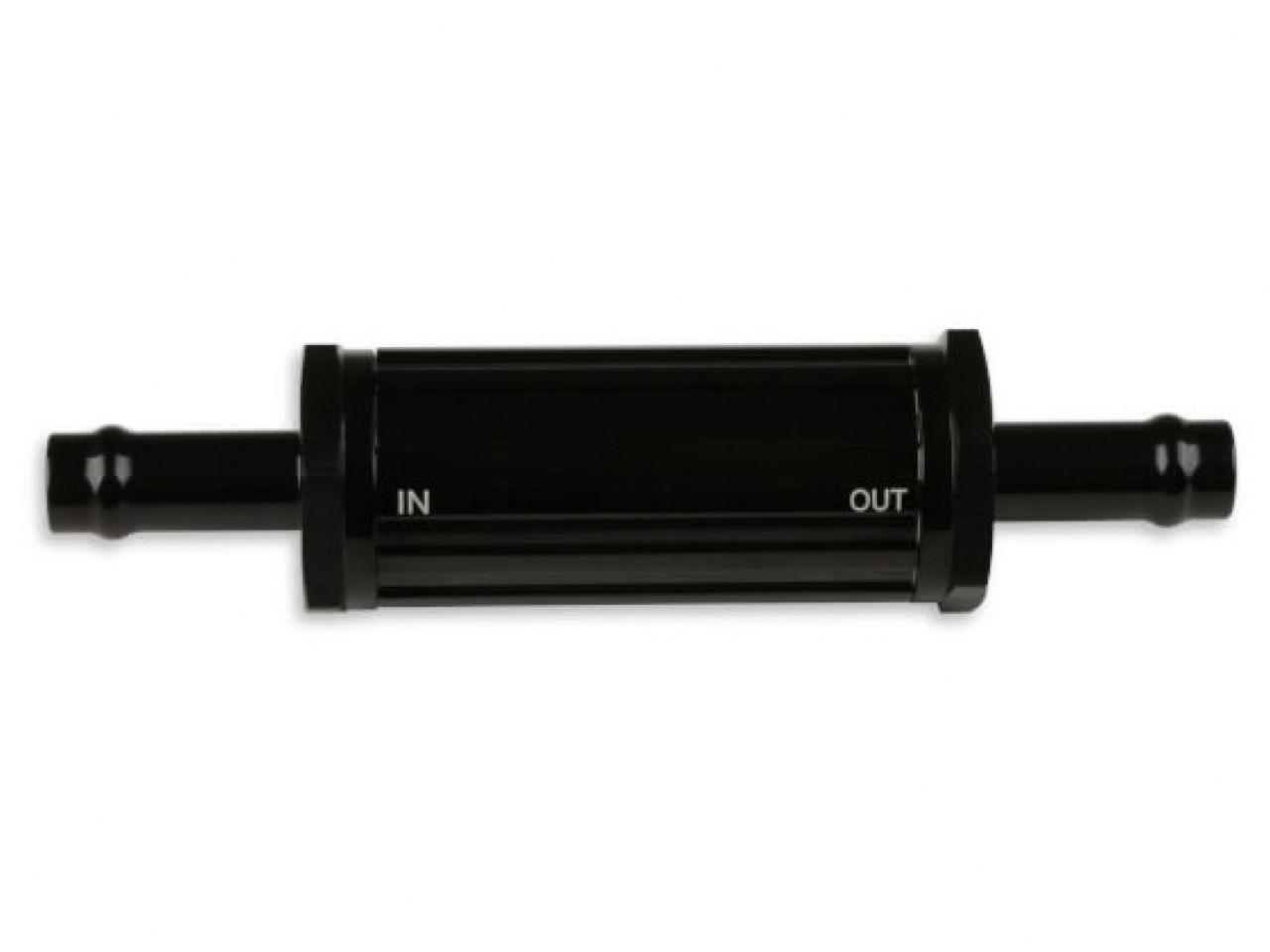

Billet Aluminum Fuel Filters for EFI & Carburetor Applications

Tees w/ 1/8” NPT Port – Ideal for Use w/ Fuel Pressure Gauge

Pressure Gauge Adapters w/ Hose Barb to -6 AN Female

Hose Barb to -6 AN Male Adapters

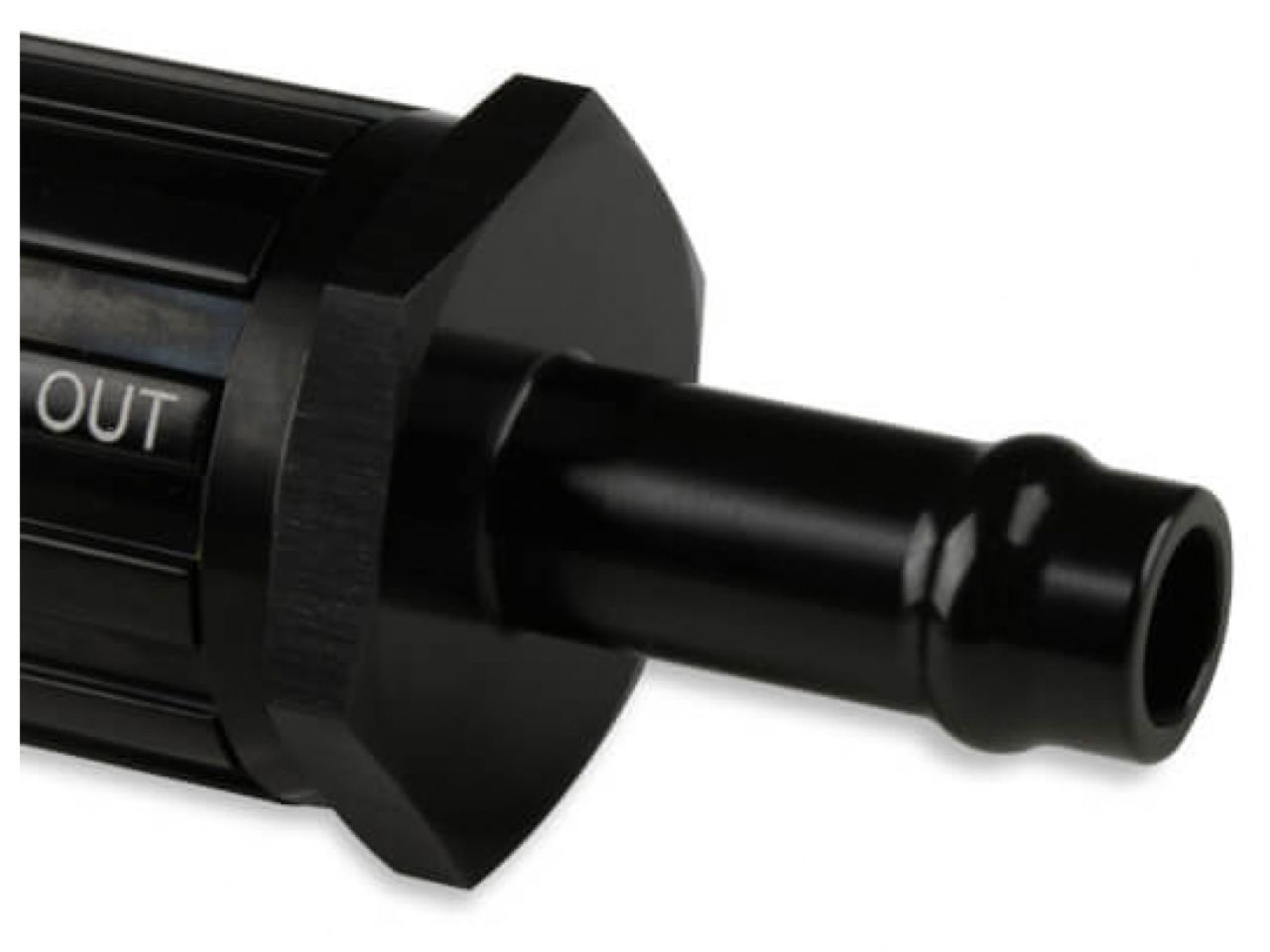

Special Retention Bead on Hose Barb Retains Hose without Damaging Hose Inner Liner

Black Anodized Finish

Filter Flows 125 GPH at 2.5 PSI (Free Flow) & 88 GPH at 61.4 PSI

Specifications:

• Adjustable: Yes
• Assembly Method: Barb & Band Clamp
• Compatible Hose: Vapor Guard
• Diameter: 1.000"
• Emission Code: 5
• Finish: Anodized Black
• Fitting to Hose Mate Type: Barb & Band Clamp
• Fuel System Type: Carburetor
• Fuel Type: Gasoline / Diesel
• Hose Barb: 3/8"
• Hose Barb (A): 3/8 Inch
• Hose End Family: Vapor Guard
• Hose End Series: 75/78
• Hose Size: 3/8
• Inlet / Outlet Size: 3/8" Hose Barb
• Inlet Size: 3/8" Barb
• Installed Length: 2.560"
• Material: 6061 Aluminum
• Micron: 30 Micron
• Outlet Size: 3/8" Barb
• Overall Length: 4.500"
• Product Line: Budget
• Product Type: Fuel Filter
• Reusable: Yes
• Swivel: No
