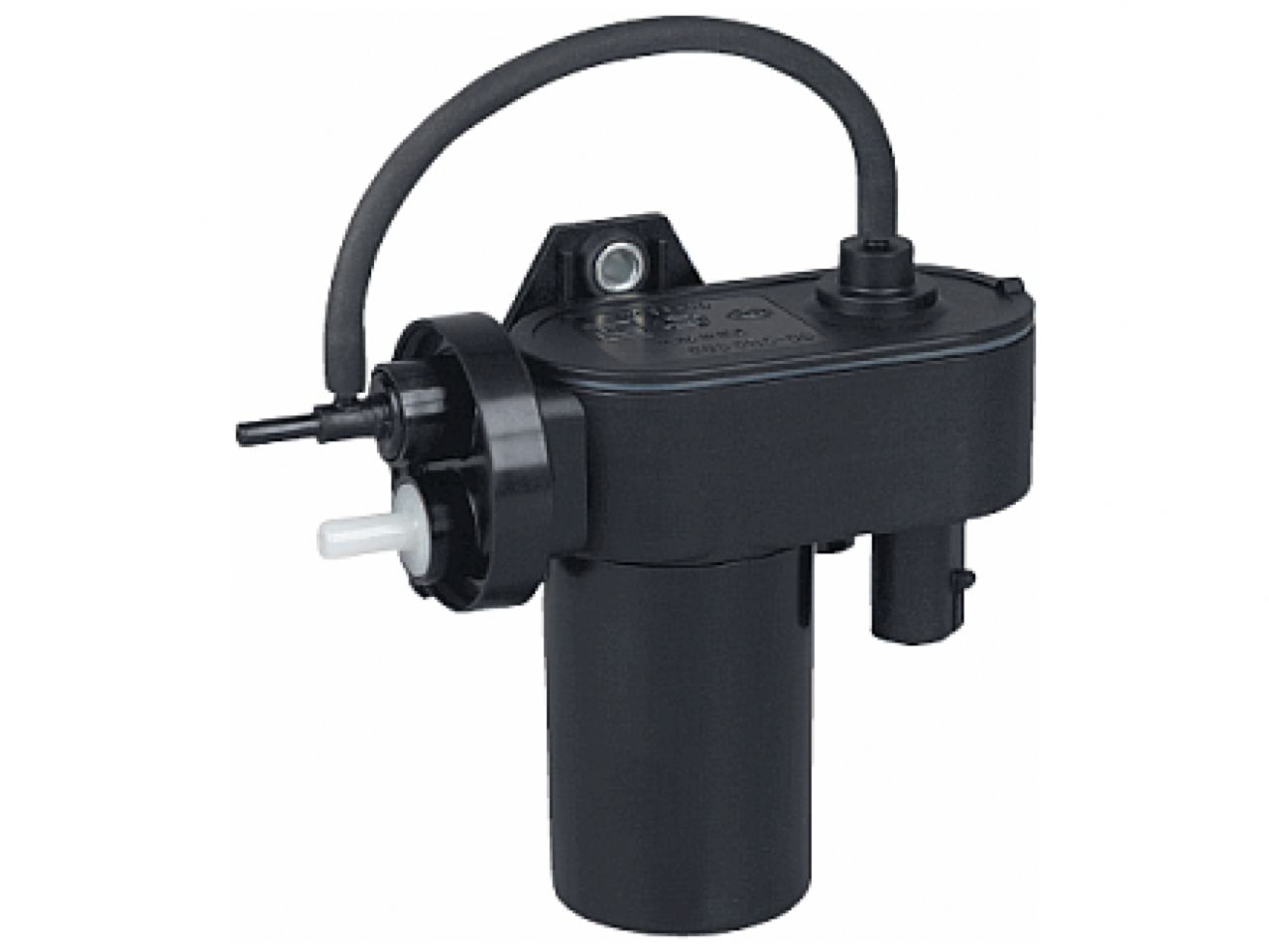

Hella Universal Electric Vacuum Pump Type 2 w/Quick Connect Terminals

Universal Electric Vacuum Pump

Applications:

Designed to supplement diesel engines in controlling heating and cooling functions, door locks, cruise controls, trunk release or any other functions controlled by vacuum.

Features:

• 12V DC

• Sealed motor (inlet port, outlet and pump end)

• Environmentally tested; humidity, salt, fog dust, air and water leakage

• Meets on (1) meter (3.28 feet) drop test

• Electrical Terminals: meet axial force (push/pull) of 40-45 pounds

• Vibration tested: eight (8) hours per plane; amplitude (peak to peak) 1.27 mm (0.05 in.)

• Electrical Stress Tested; Load Dump, Reverse Voltage, Short to Power Ground, non-disruptive transients and stall

• Meets standard corrosion test ASTM-B 117

• Temperature Range: -25°C to +96°C

• Weight: 13 grams (11 oz.)

• Chemical Resistant: 50/50 water, ethylene glycol antifreeze, Dexcon II transmission fluid, Leaded or unleaded regular gasoline, Diesel fuel, Dot 3 hydraulic brake fluid, Ethanol, 25% methanol +5% liquid soap in water

Specifications:

• Evacuate a 40 cubic inch (minimum) reservoir from atmoshere pressure to 15 inches of mercury vaccum in maximum of 20 seconds.

• Internal switch turns motor off when the vacuum reaches a maximum of 15 inches of mercury. When vacuum is reduced to a  minimum of 11 (+2 or -0) inches of mercury, the internal switch will reactivate the motor to increase vacuum.

• Motor draws no more than .65A @ 13.5VDC (average).
