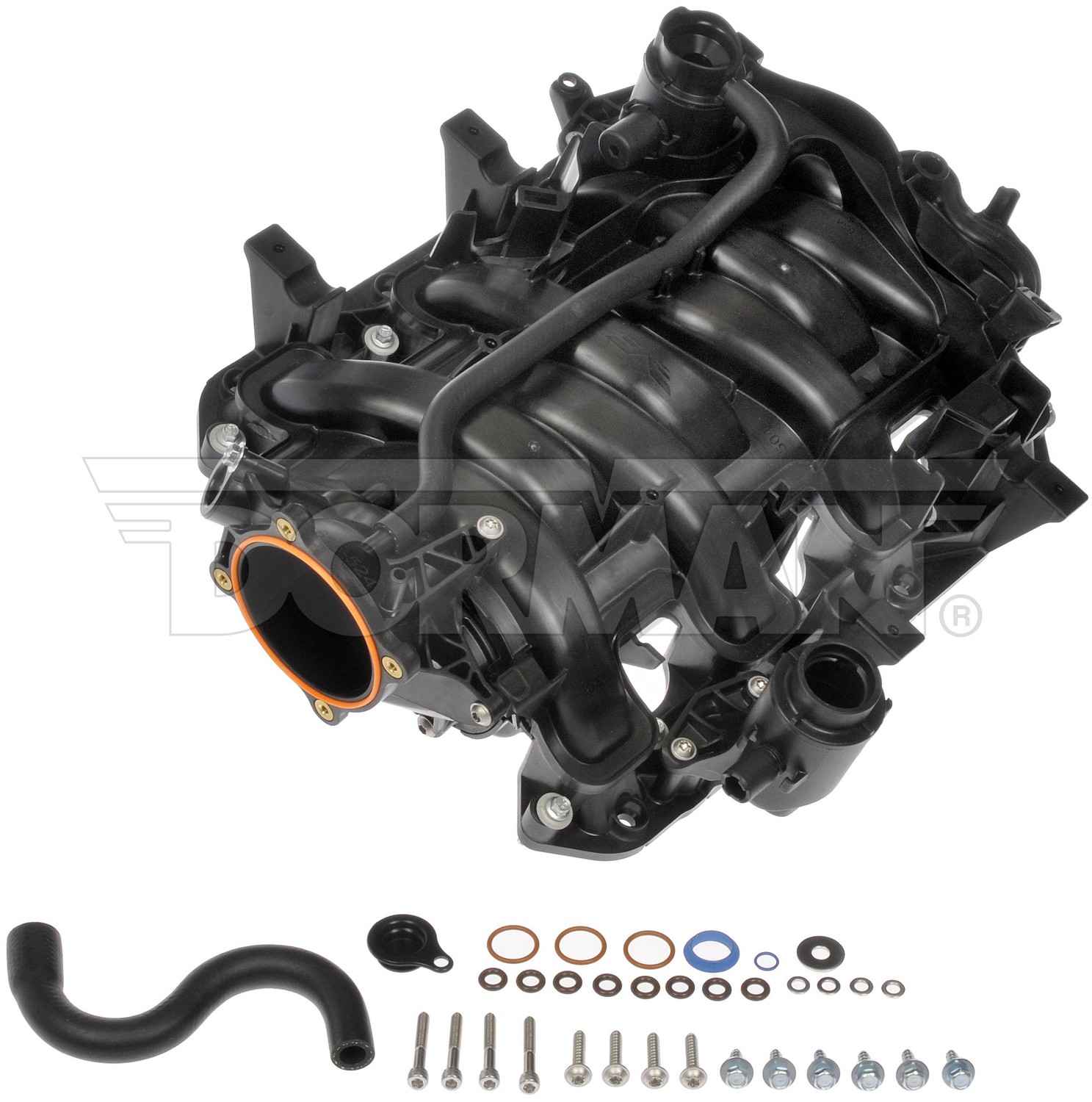

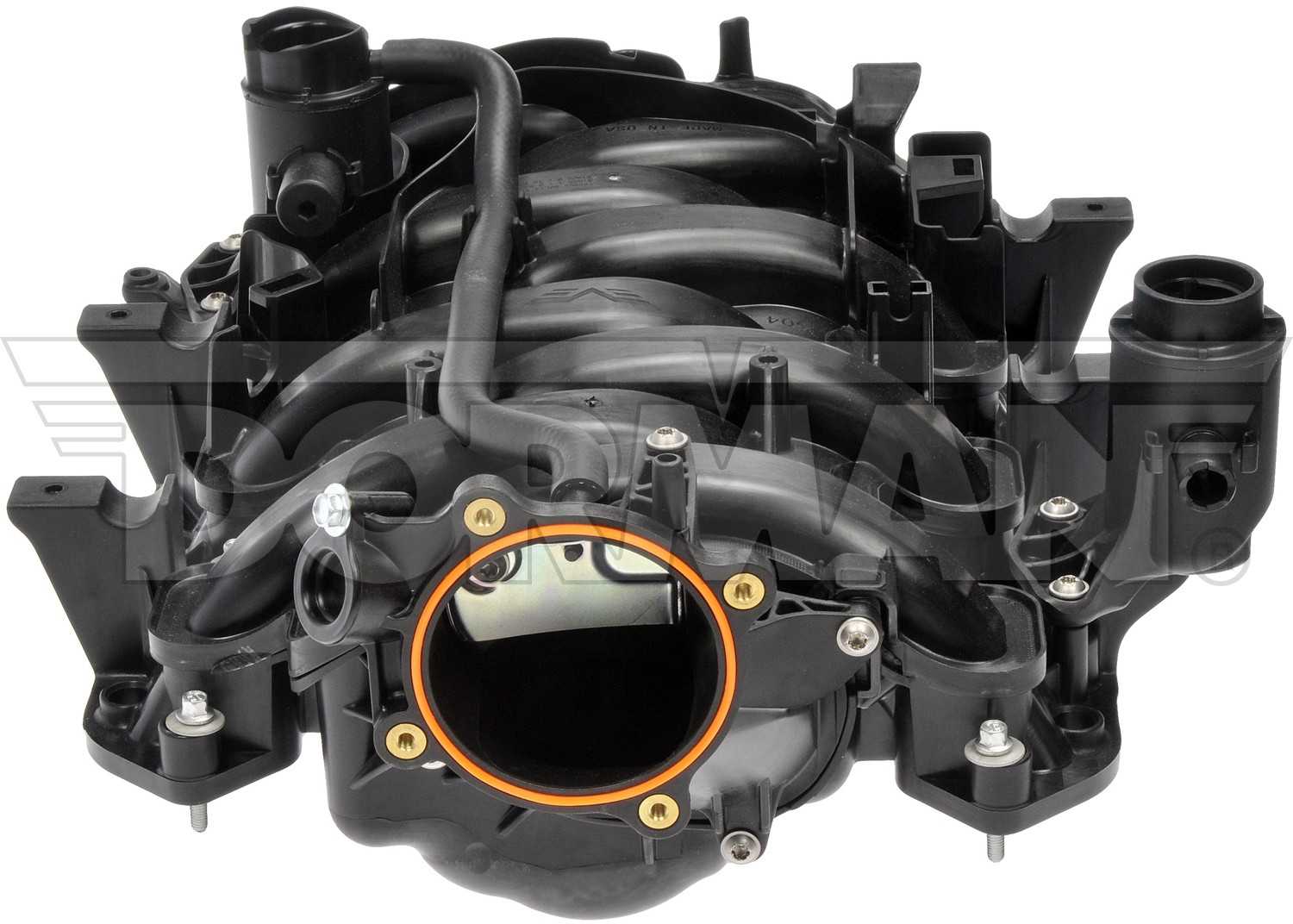

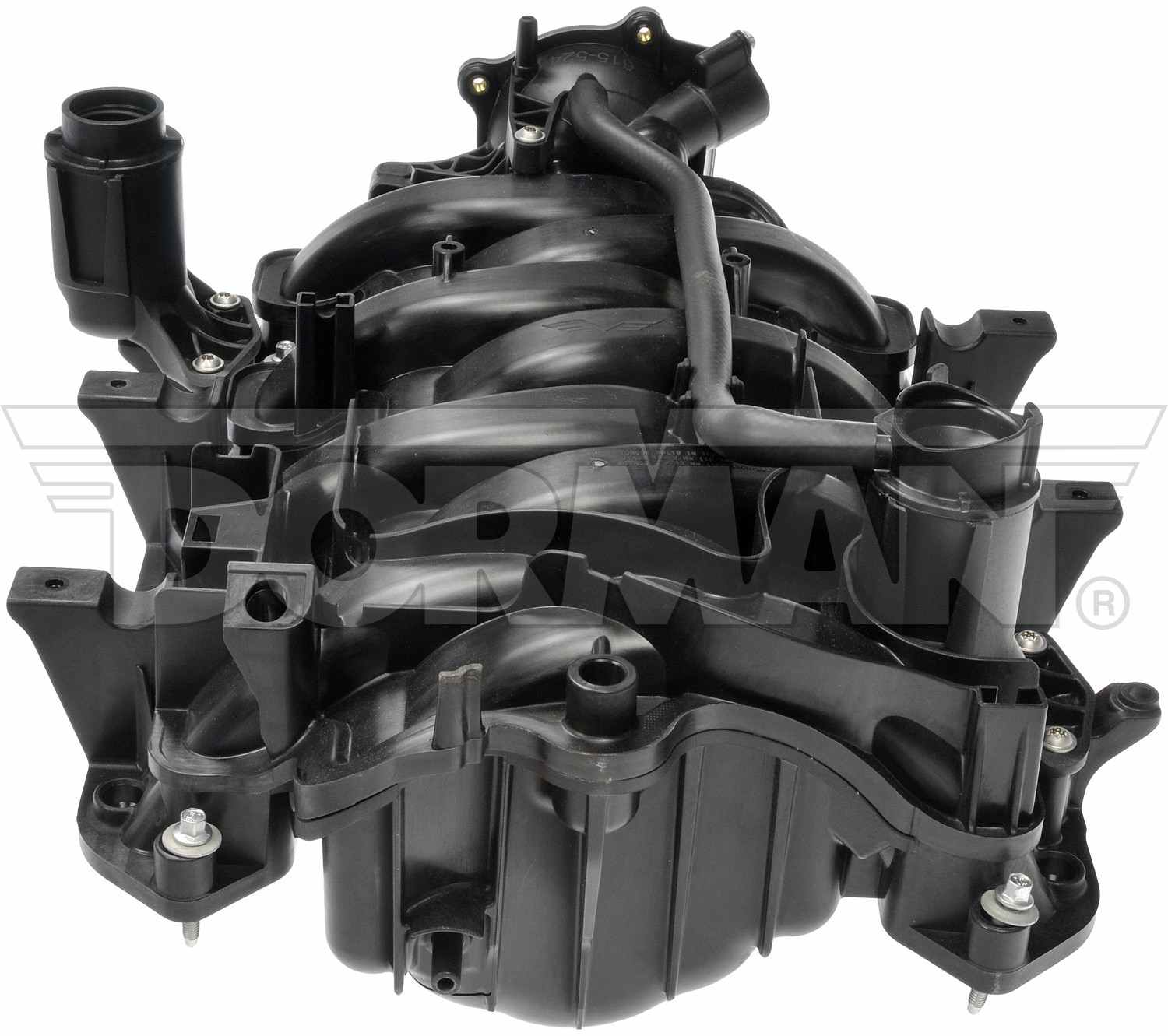

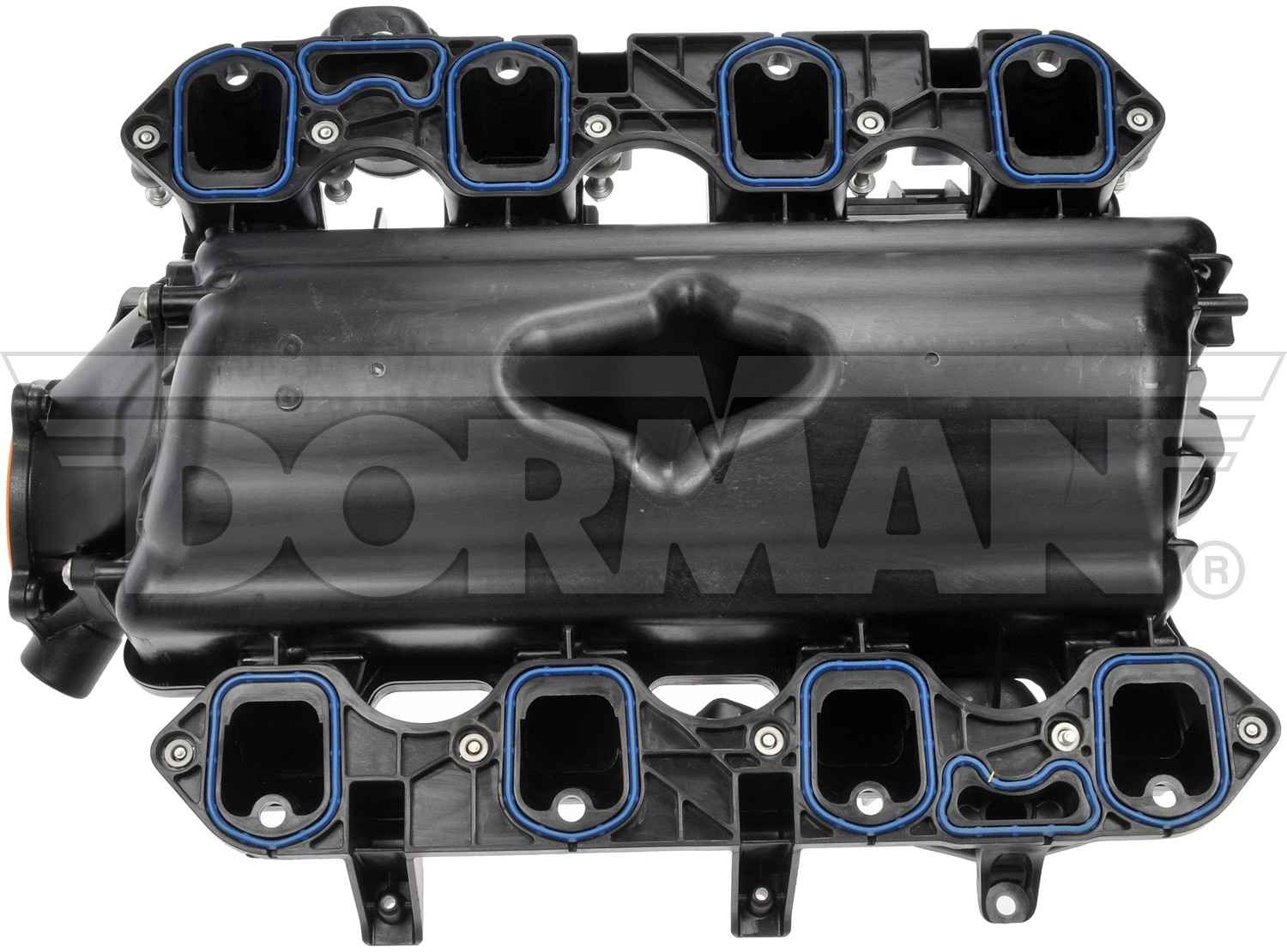

Dorman Upper Nylon Intake Manifold

This engine intake manifold was precision-engineered and durably manufactured to match the fit and function of the original manifold on specified vehicles. It is thoroughly tested to ensure top-quality OEM construction and superior reliability.

• Ideal replacement - this intake manifold was precision-engineered and durably manufactured to match the fit and function of the stock manifold on specified vehicles
• Reliable construction - tested to ensure top-quality OEM performance and durability
• Perfect fit - designed to match all specifications of the original part for convenient, trouble-free installation
• Trustworthy design - built by the industry leader in aftermarket manifolds

Product Specifications

Air Conditioning Compressor Mount: No
Alternator Mount: No
Center Maximum Height: 6 In.
Color/Finish: Black and Silver
EGR Ready: Yes
Front Maximum Height: 11 In.
Gasket or Seal Included: Yes
Heated Choke Port: No
High-Riser: No
Installation Instructions Included: Yes
Item Grade: Regular
Length: 22 In.
Manifold Height (in): 11 In.
Material: Nylon and Plastic
Mount Hole Diameter: 0.5 In.
Mount Hole Quantity: 10
Number Of Ports: 8
Package Contents: 1 Manifold, 8 Port Gaskets, 1 Throttle Body Gasket, 1 EGR Block-Off Cap, Oil Fill / PCV O-Ring, 3 Block-Off O-Rings, 8 Fuel Injector O-Rings, Map Sensor O-Ring, Seal - EGR Pipe, 4 M6 Self-Tapping Screws, 6 M6 Self Tapping Screws 10MM Hex
Package Quantity: 1
Packaging Type: Box
Port Outlet Dimensions: 2 x 1.5
Rear Maximum Height: 6 In.
Street Legal: Yes
Width: 16 In.

Application Summary: Chrysler 2006-05, Dodge 2006-05, Jeep 2008-06

Vehicle Fitments:
