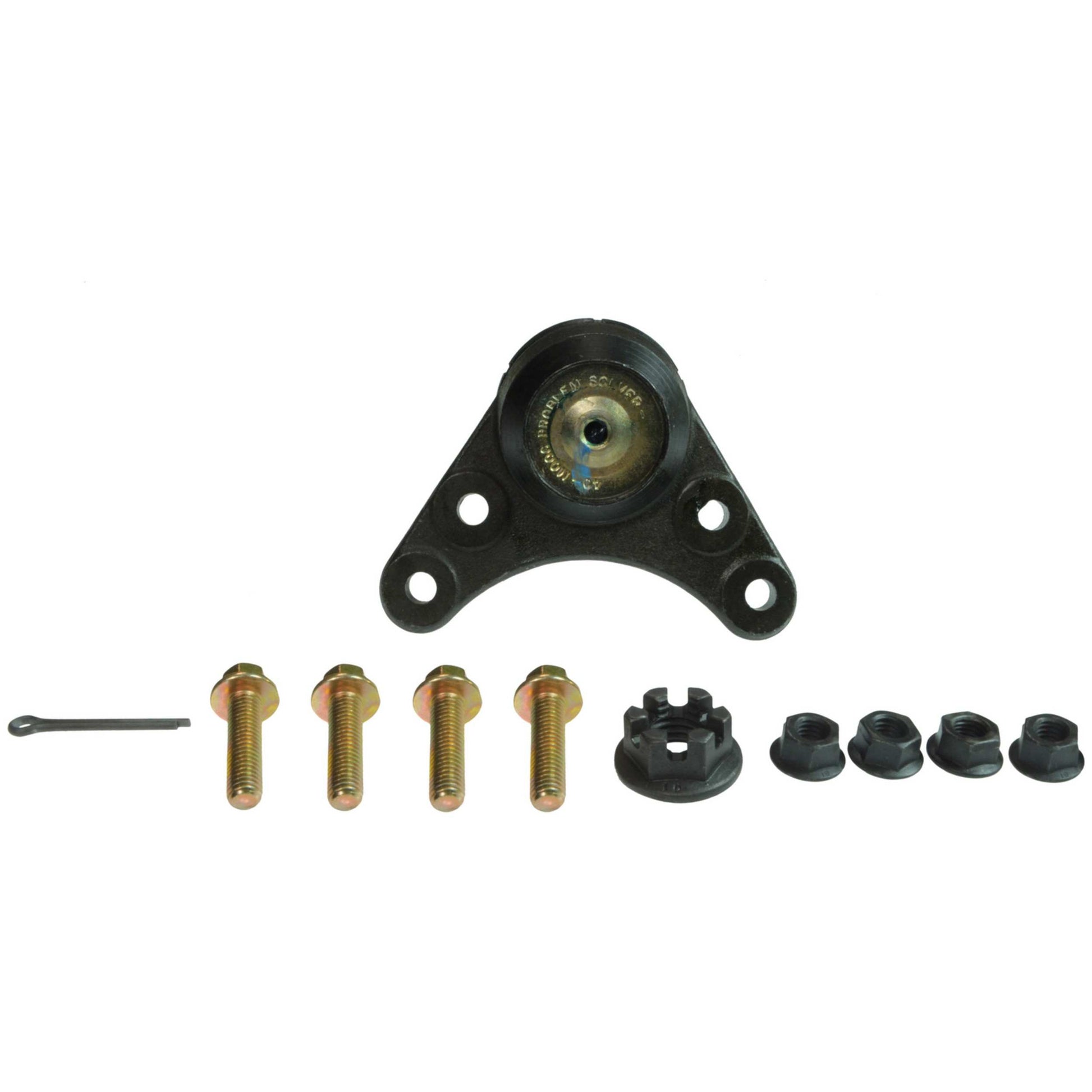

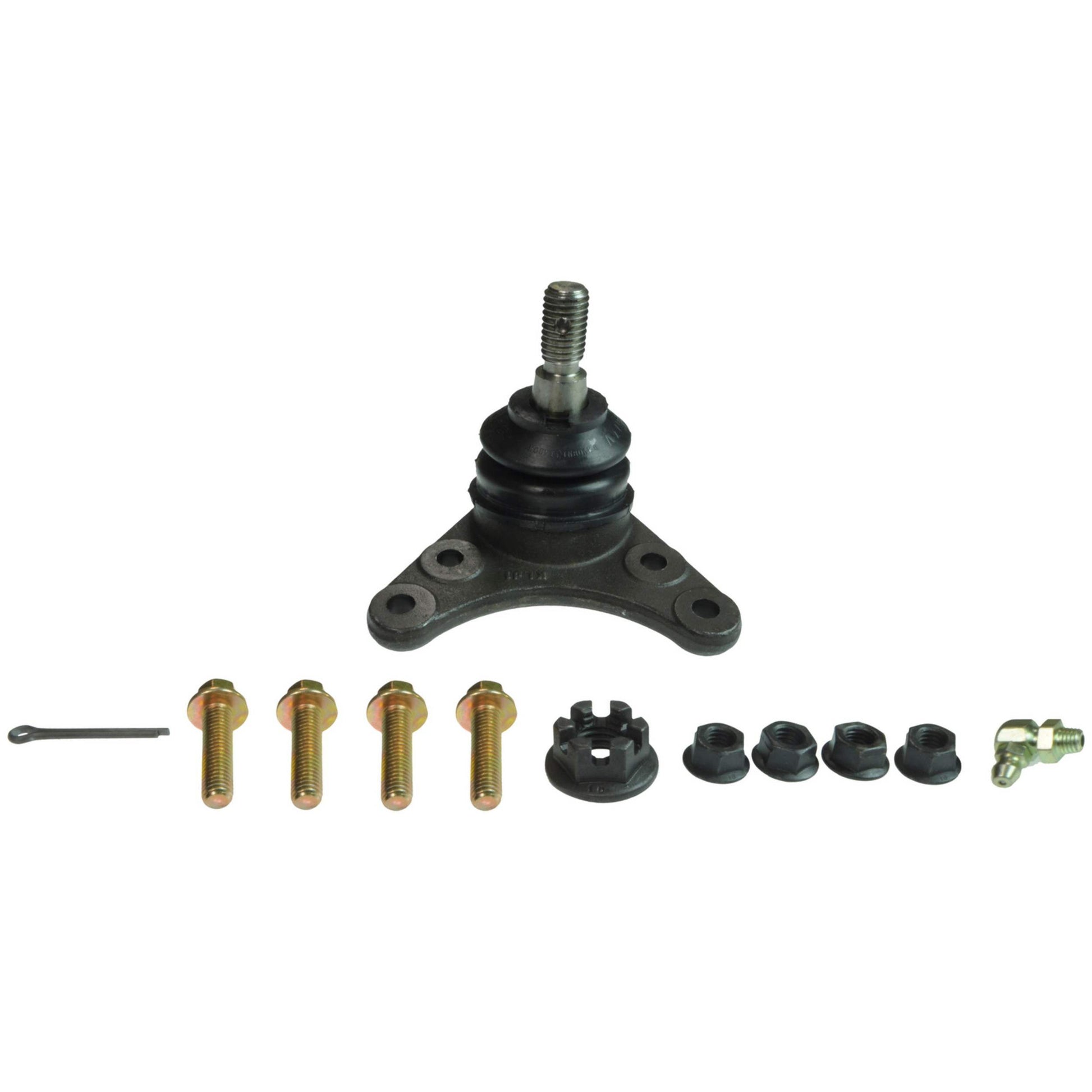

Moog Upper Ball Joint Chevrolet / GMC / Isuzu
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
Hardened ball stud made of OE equivalent or better materials to withstand higher loads
Patent pending dust boot with encapsulated Belleville washer help control axial and radial movement
Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
Premium forged housing with increased cross section of up to 52% more material in key areas
Larger grease reservoir and easy-to-install pre-tapped grease fitting hole for improved maintenance
Greaseable socket reduces corrosion and wear by allowing new lubricant to flush contaminants
Specifications
Ball Joint Specifications
Ball Joint Attachment Type: Bolt-On
Mount Type: Bolt-On
Greasable Design: Yes
Includes Grease Fitting/s: Yes
Includes Bolts: Yes
Includes Nuts: Yes
Includes Castle Nut: Yes
Includes Cotter Pin: Yes
Includes Cotter Pin Hole: Yes
Includes Hardware: Yes
Includes Bushings: No
Quantity of Bushings: 0
Includes Mount Plate: No
Mount Hole Quantity: 4
Includes Washers: No
Adjustable: No
Bolt Length (Inch): 1.180
Bolt Thread Size: M8x1.25
Boot Material: Neoprene
Heavy Duty: No
Height (Inch): 4.000
Outer Diameter (Inch): 1.960
Length (Inch): 3.600
Stud Taper Per Foot: 0.046
Stud Thread: M14x1.5
Type of Suspension: Standard
Meets/Exceeds OE Manufacturer Specs: Yes
Mount Type: Bolt-On
Greasable Design: Yes
Includes Grease Fitting/s: Yes
Includes Bolts: Yes
Includes Nuts: Yes
Includes Castle Nut: Yes
Includes Cotter Pin: Yes
Includes Cotter Pin Hole: Yes
Includes Hardware: Yes
Includes Bushings: No
Quantity of Bushings: 0
Includes Mount Plate: No
Mount Hole Quantity: 4
Includes Washers: No
Adjustable: No
Bolt Length (Inch): 1.180
Bolt Thread Size: M8x1.25
Boot Material: Neoprene
Heavy Duty: No
Height (Inch): 4.000
Outer Diameter (Inch): 1.960
Length (Inch): 3.600
Stud Taper Per Foot: 0.046
Stud Thread: M14x1.5
Type of Suspension: Standard
Meets/Exceeds OE Manufacturer Specs: Yes
Applications
|
|
|
|
|
|
|
|
|
|||||||||
| Chevrolet | Colorado | 2012-2004 | Front Upper | 2 | |||||||||||||
| GMC | Canyon | 2012-2004 | Front Upper | 2 | |||||||||||||
| Isuzu | i-280 | 2006 | Front Upper | 2 | |||||||||||||
| Isuzu | i-290 | 2008-2007 | Front Upper | 2 | |||||||||||||
| Isuzu | i-370 | 2008-2007 | Front Upper | RWD | 2 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004 - 2012 | Chevrolet | Colorado | Base |
| 2004 - 2008 | Chevrolet | Colorado | LS |
| 2006 - 2012 | Chevrolet | Colorado | WT, LT |
| 2004 - 2005 | Chevrolet | Colorado | Z85, Z71 LS, Sport LS, Z85 LS, Sport, Z71 |
| 2007 - 2012 | GMC | Canyon | Base |
| 2004 - 2008 | GMC | Canyon | SL |
| 2004 - 2012 | GMC | Canyon | SLE |
| 2006 - 2012 | GMC | Canyon | SLT, WT |
| 2004 - 2005 | GMC | Canyon | Z71 SLE, Z85 SLE, Z71 Fleet, Z85 SL, Z71 SL |
| 2006 | Isuzu | i-280 | Base |
| 2007 | Isuzu | i-290 | LS |
| 2007 - 2008 | Isuzu | i-290 | S |
| 2007 - 2008 | Isuzu | i-370 | LS |
Moog Upper Ball Joint Chevrolet / GMC / Isuzu
Sale price$71.63 USD
