Wiring Specialties Universal Harness PRO Series WRS-PROUNI-CHASSIS
Wiring Specialties Universal Harness PRO Series WRS-PROUNI-CHASSIS
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
Low stock: 10 left
Configure your harness
Select the options for your vehicle and equipment.
Add the specifications requested by your selected options, such as throttle body, pedal, or sensor details.
Your build summary
Contact us to order this configuration. We will confirm the options, availability, and final price.
Email this configurationShipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

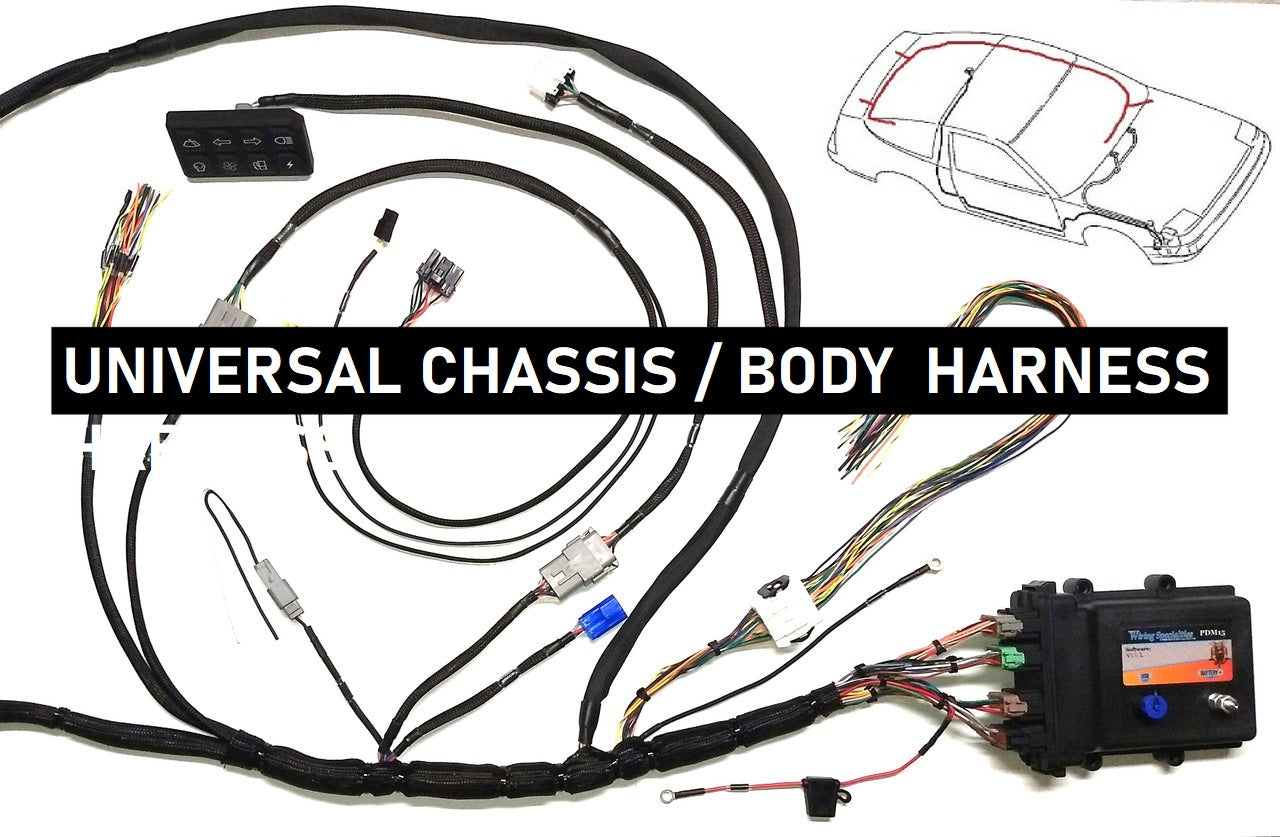

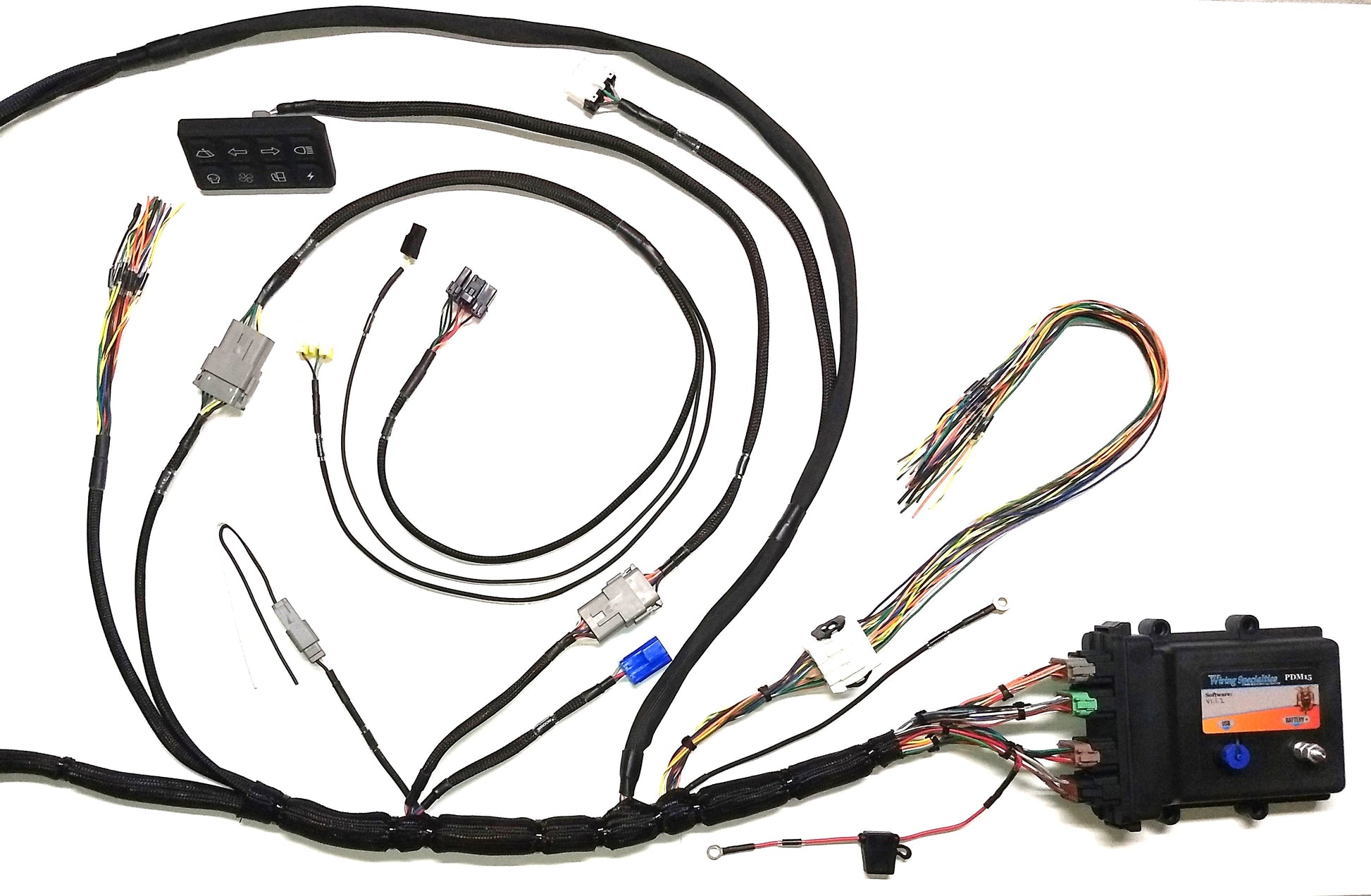

Read the shipping policyFor use with an Aftermarket ECU like ECU Master, AEM Infinity, Haltech Elite or LINK G4X Series. Please contact sales if you have any questions. Check out the Videos & detailed Install Guide available HERE Please NOTE: This item is NOT ELIGIBLE for coupon discounts. Call Sales! Universal / Standalone Complete Replacement Chassis Harness & Power Distribution Management Solution includes:

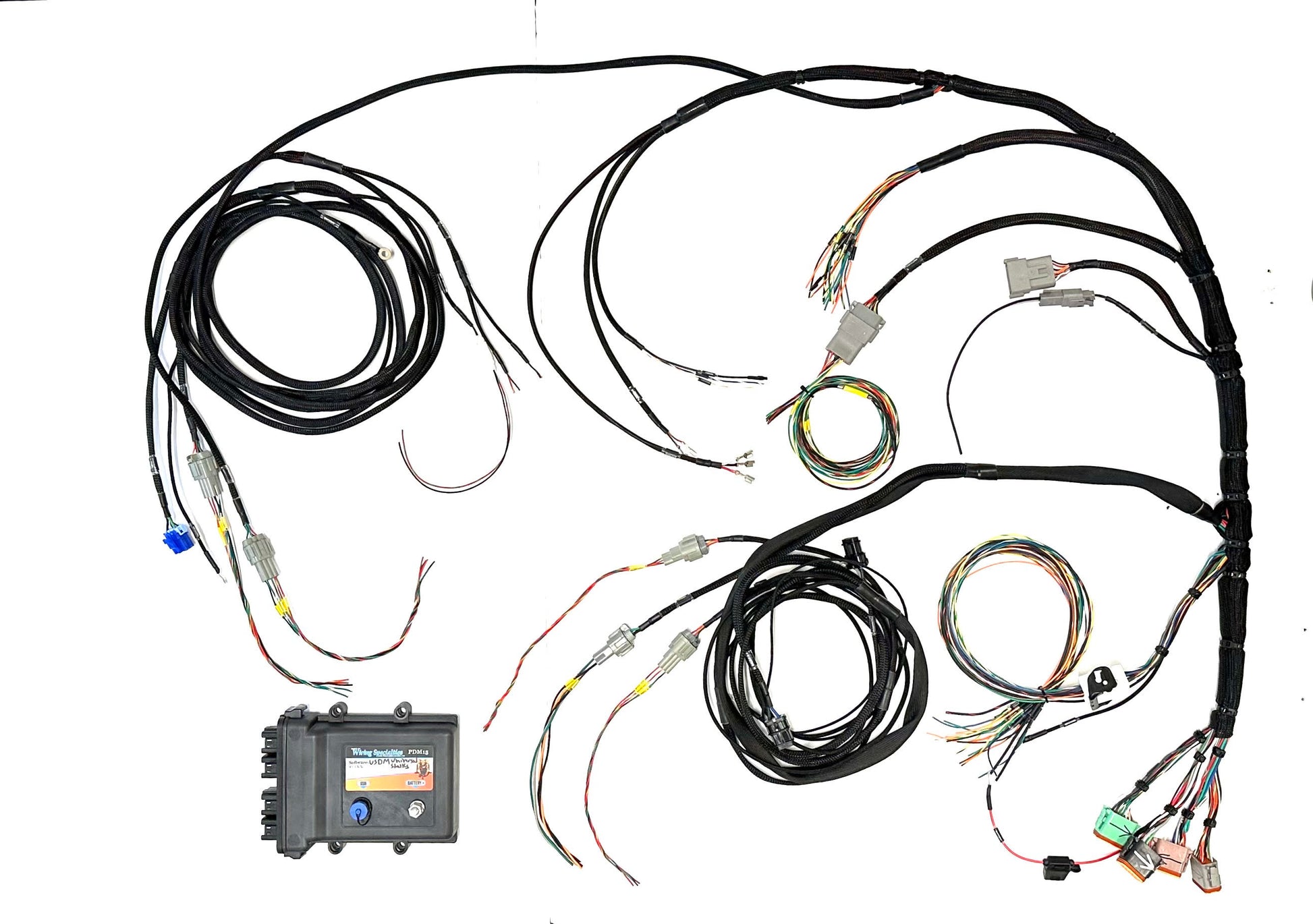

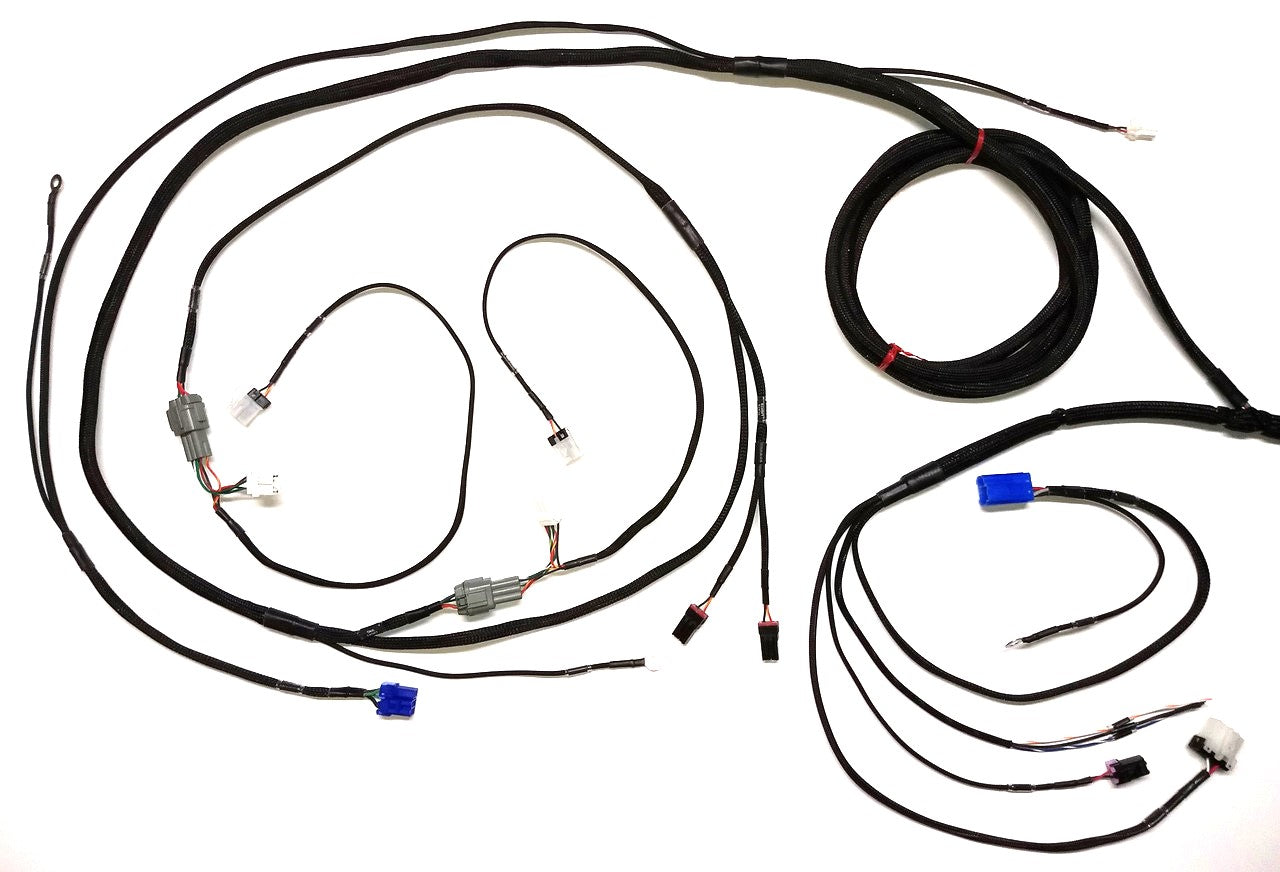

- Complete replacement body wiring harness

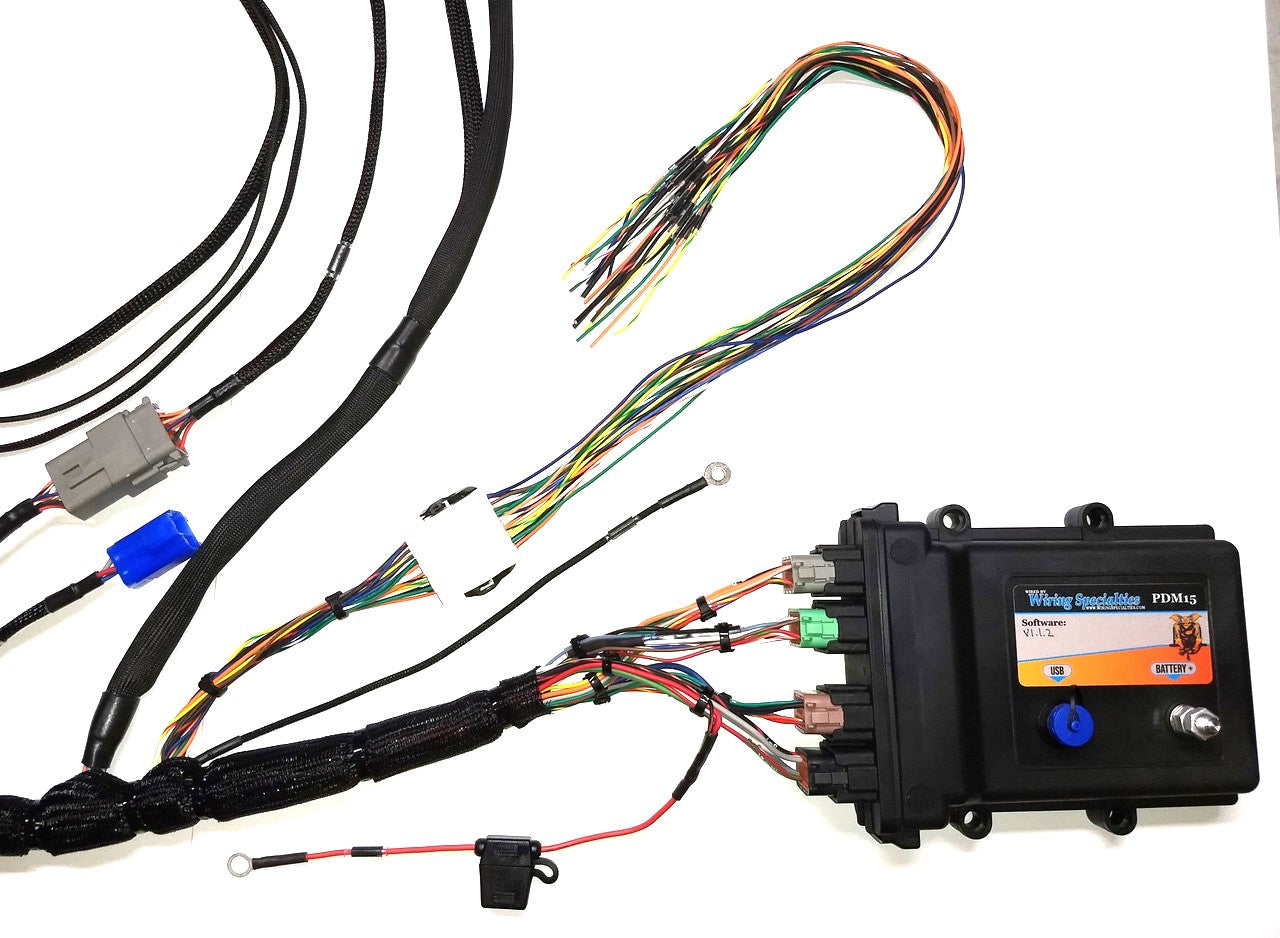

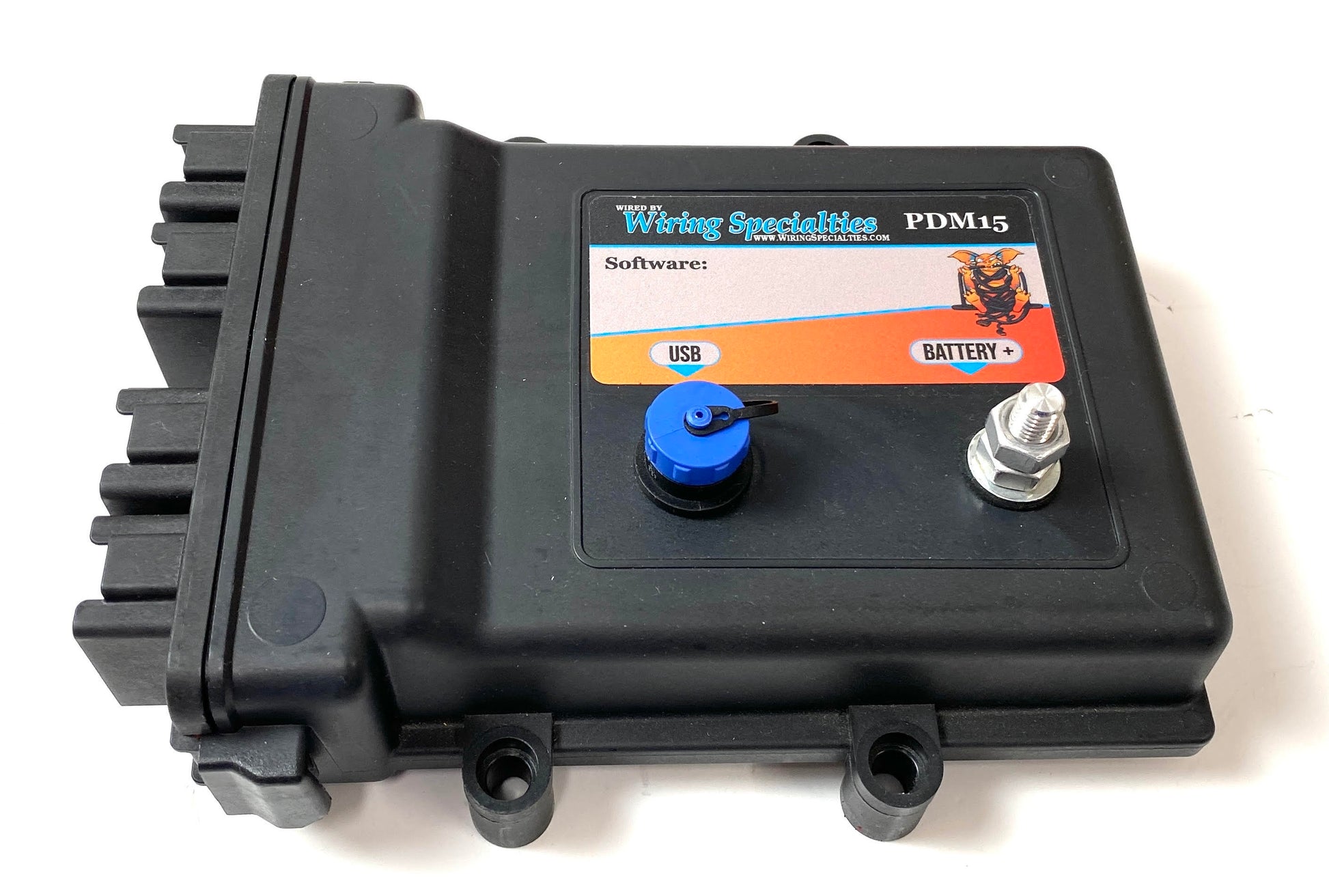

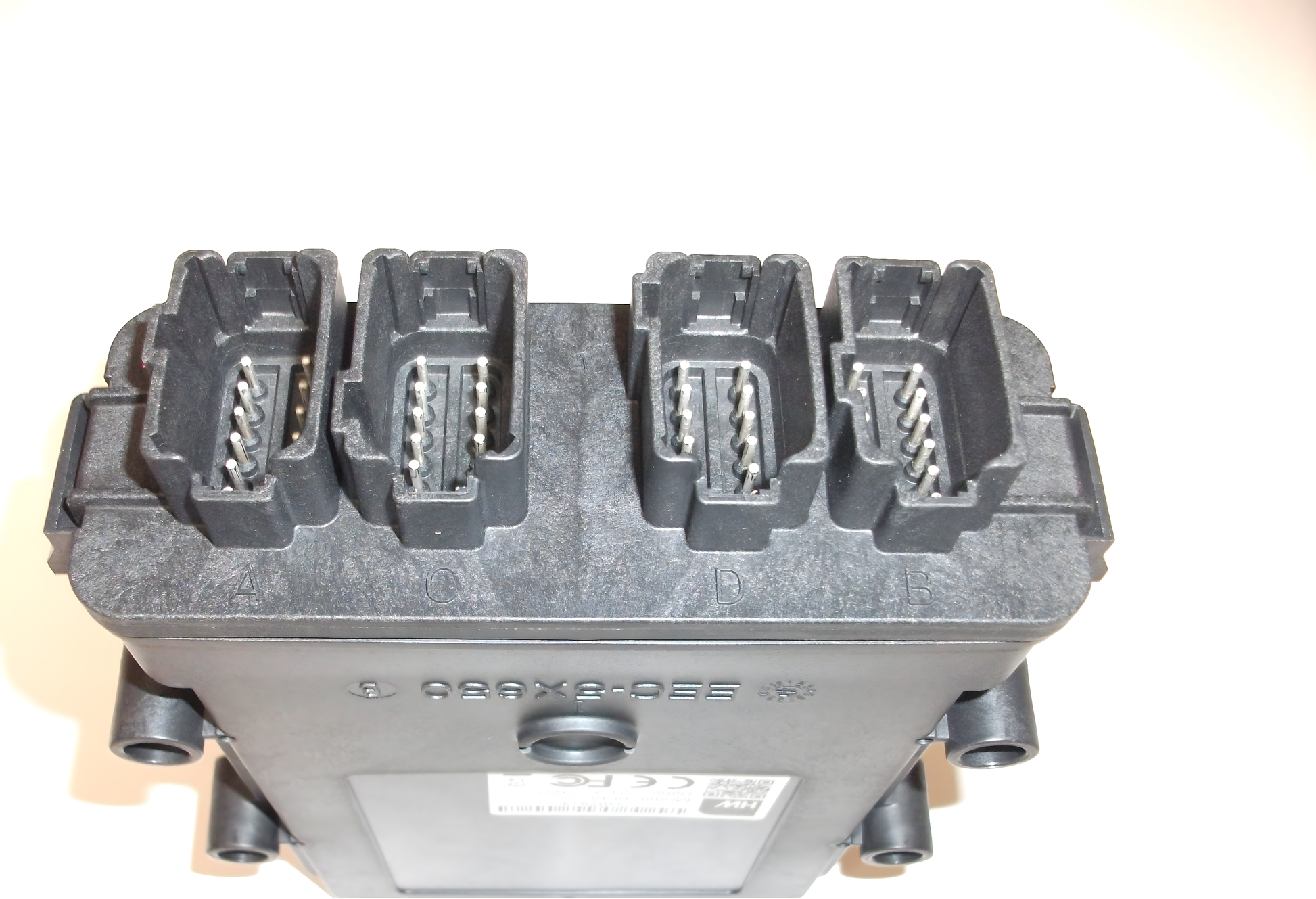

- Pre-Programmed 15-Circuit Solid-State Power Distribution Management Unit

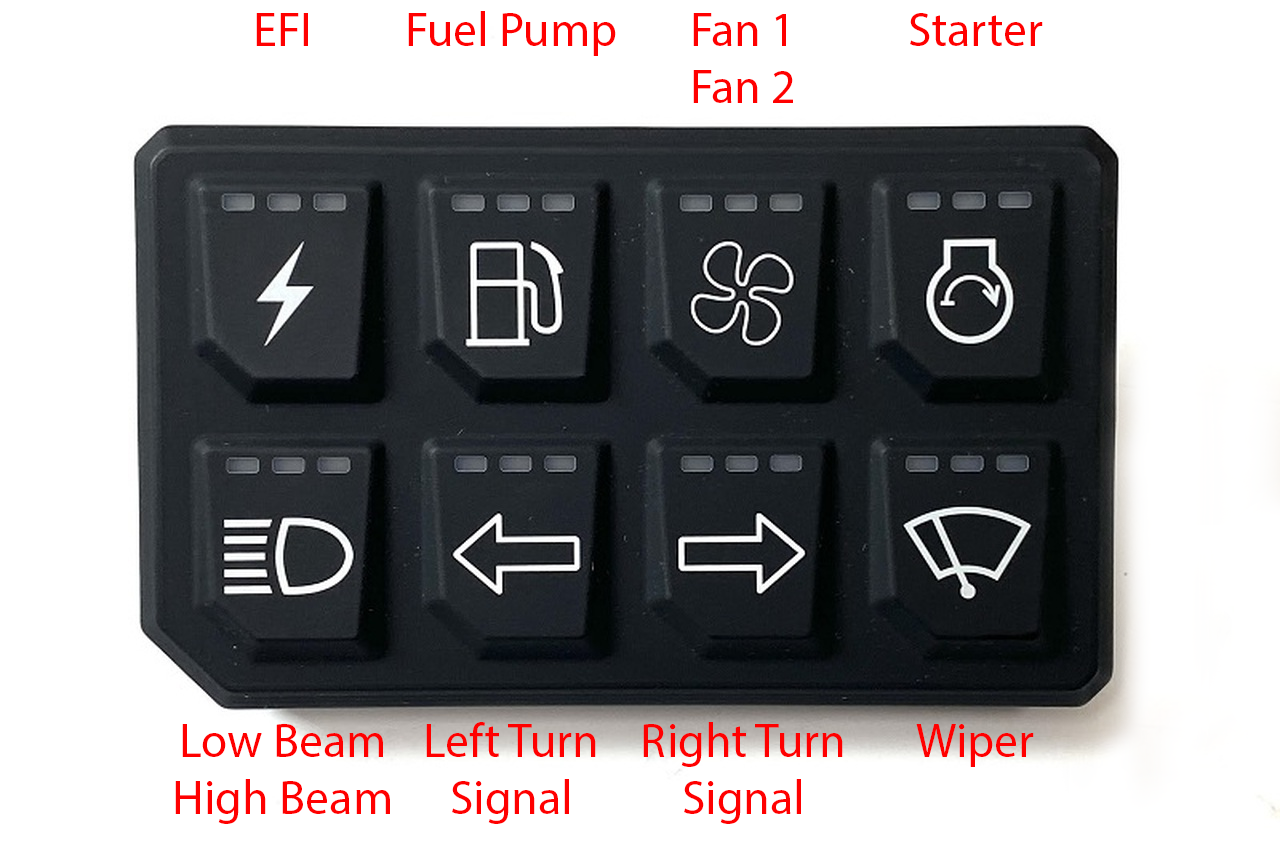

- Choice of 8-position CAN Keypad OR use your own inputs (for an additional charge) to control lights, turn signals, wipers etc.
- Labeled Flying lead connections to terminate to your specific chassis connections
- Add our Complete Battery Wiring Power Management Kit (for an additional charge) for total peace of mind This chassis harness is perfect for Race / Track cars, cars running a stripped interior / switch panel, and motorsports / restoration projects
- all using an aftermarket ECU.
Specifications
CHASSIS: UNIVERSAL / STANDALONE
- Race / Track cars, Cars running a stripped interior / switch panel, Classic & Pre-EFI cars, sand rails, dune buggies Supported Outputs
- Ignition & EFI + Starter
- Dual Engine Cooling Fans controlled via Aftermarket ECU
- Single Fuel Pump, Dual Pump Upgrade Available

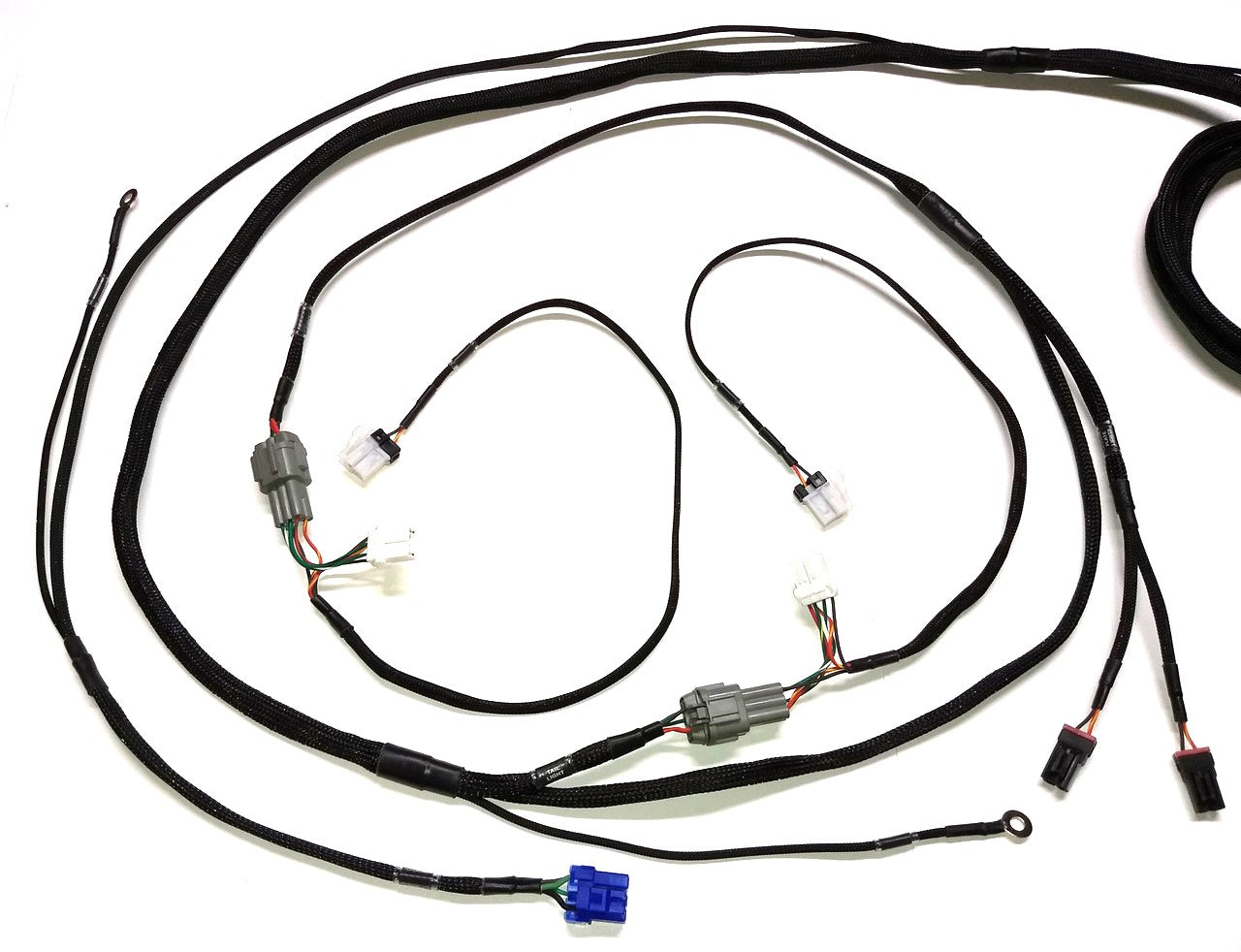

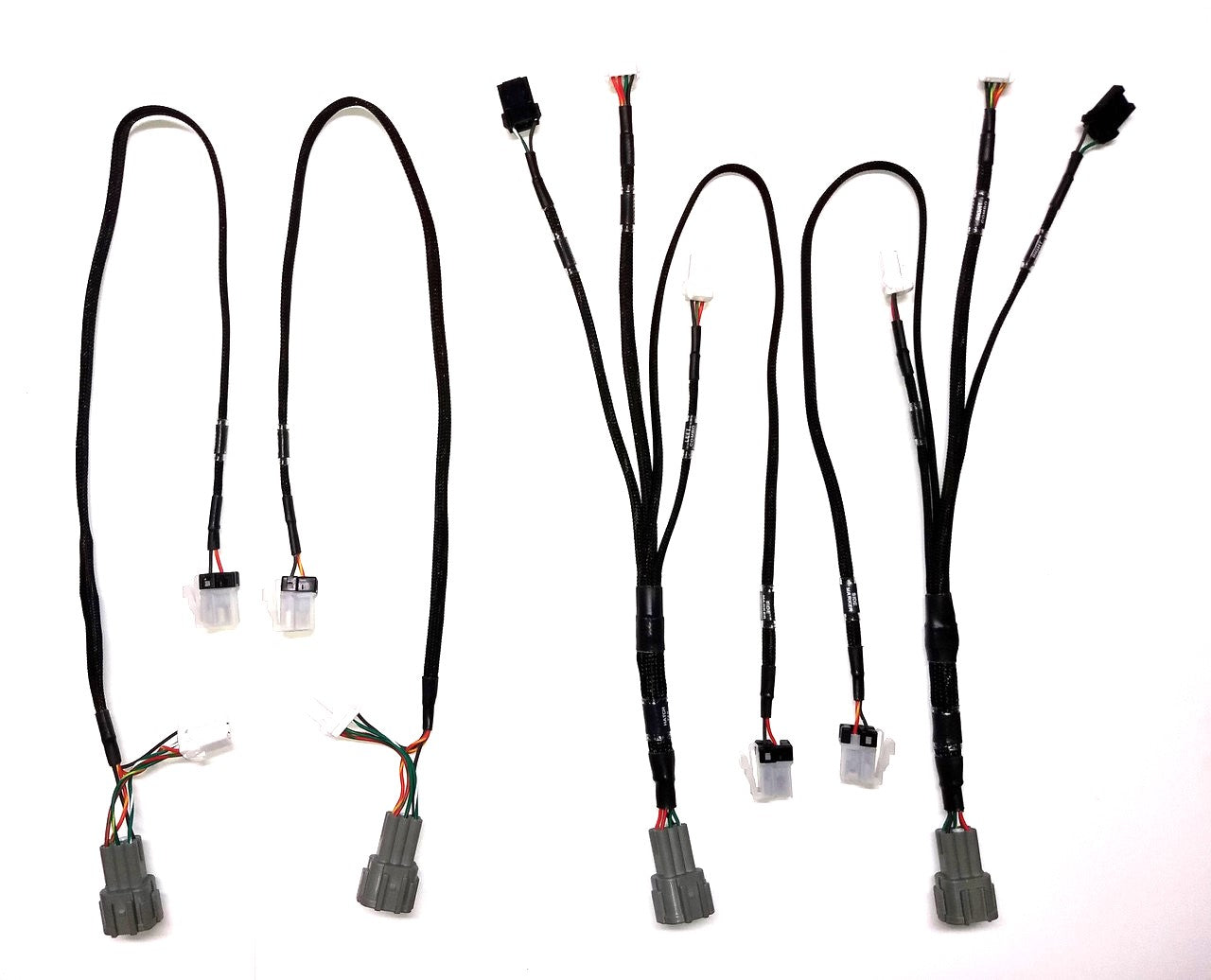

- Running Lights, Marker Lights, and License Plate Lights

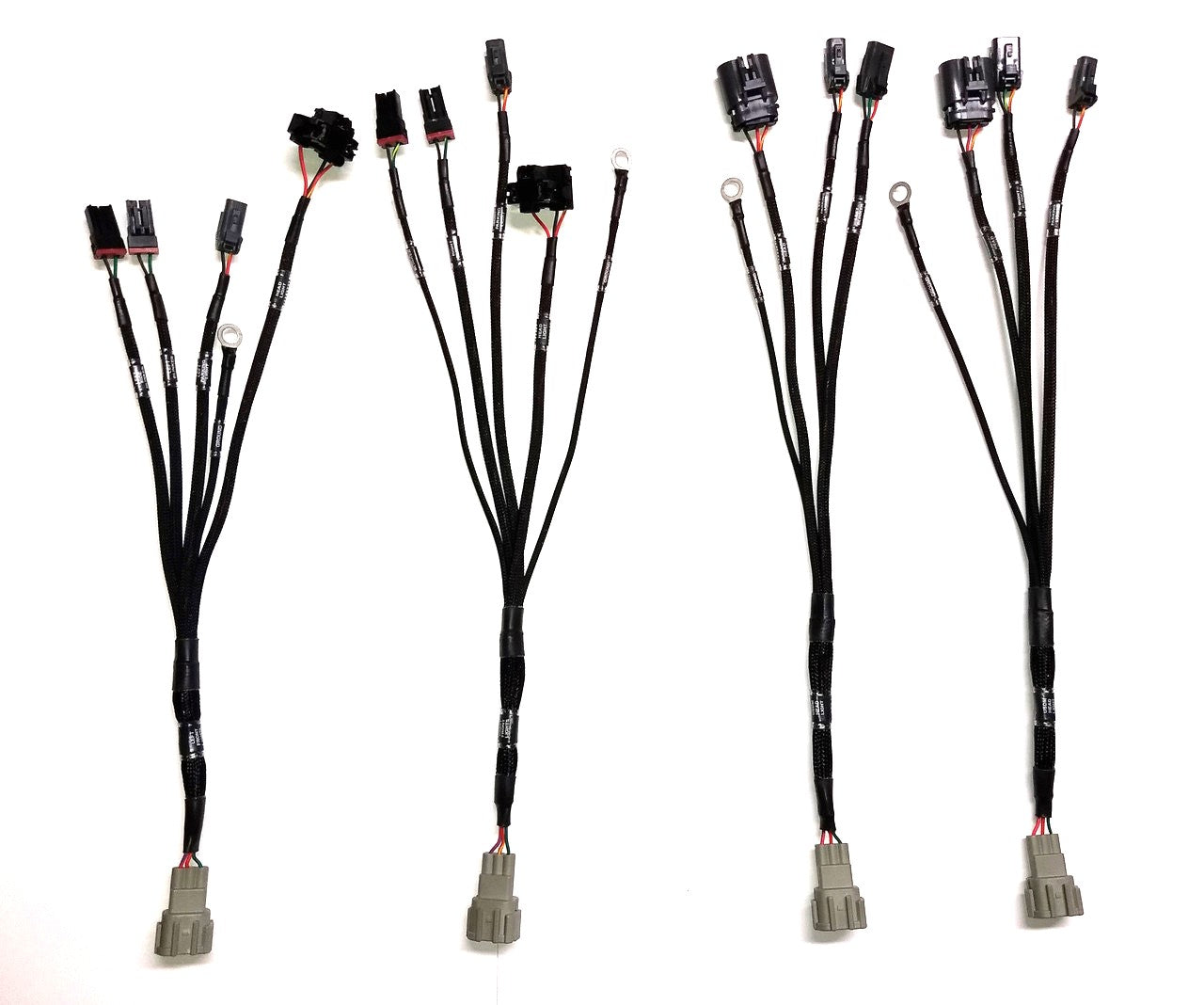

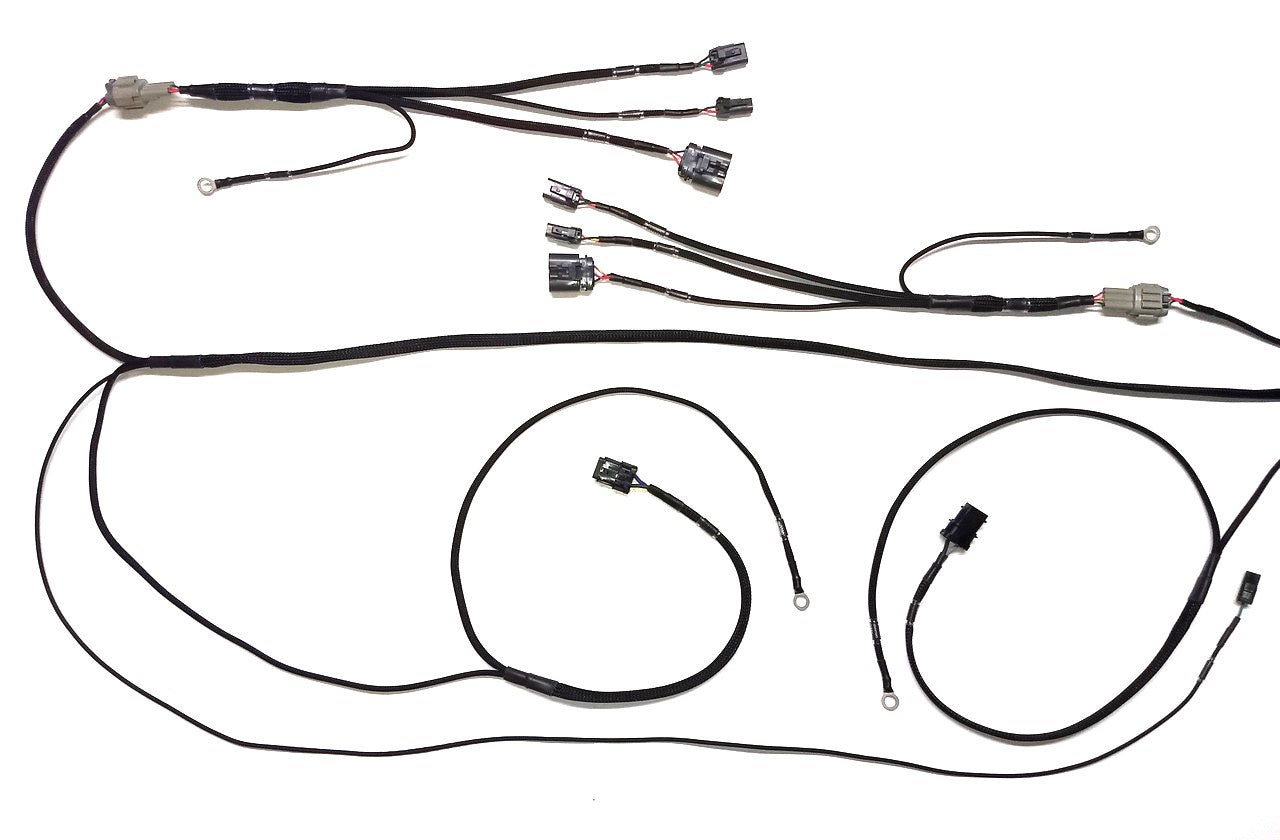

- Low Beam & High Beam Headlights
- Left & Right Turn Signals (manual, no auto cancel) at All Four Corners + Marker Lights
- Brake Lights
- Single Windshield Wiper Speed
- High
- Single Blower Motor/ HVAC Speed
- Horn

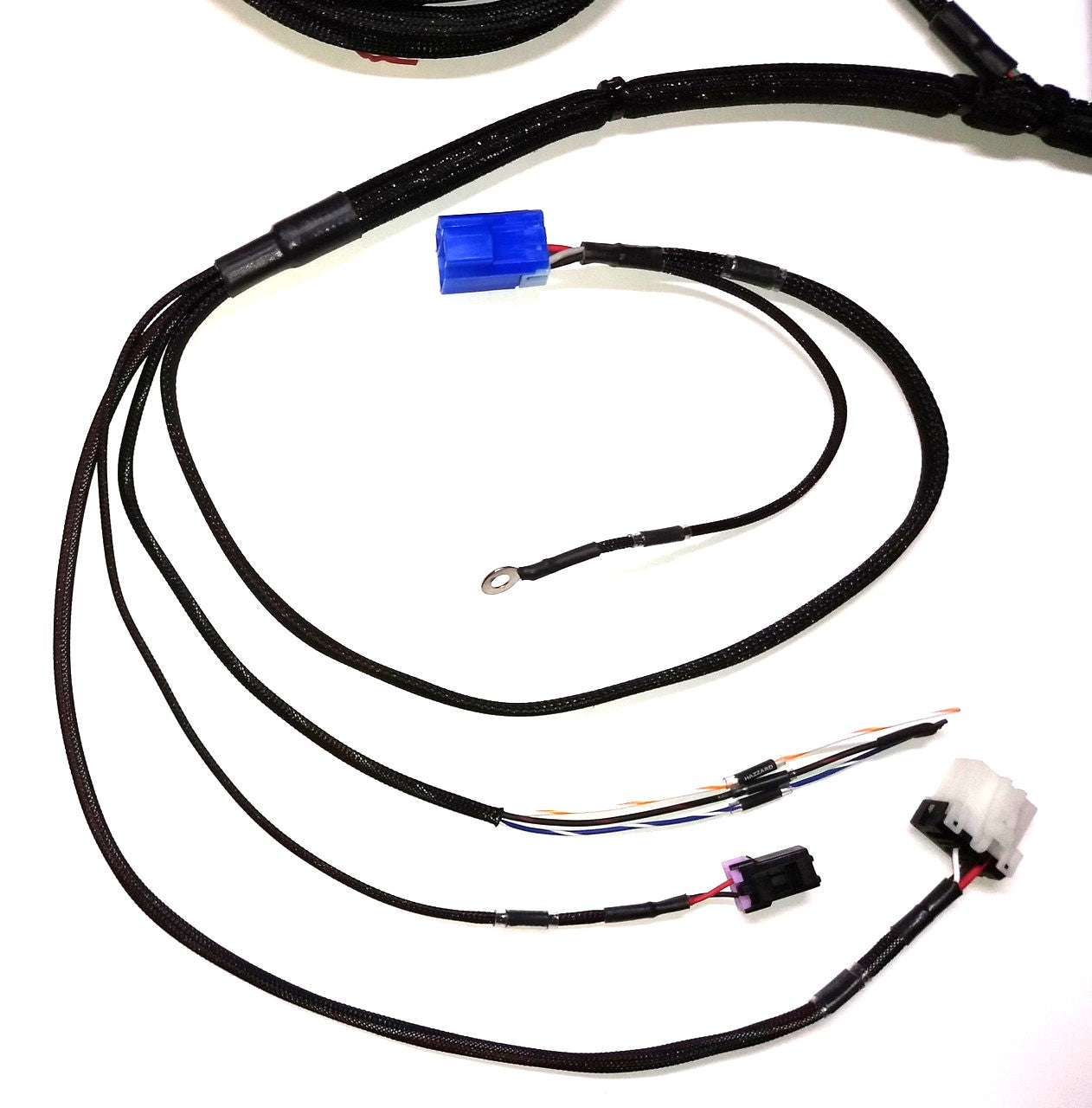

- Hazard Lights Supported Inputs
- Key Switch Required for Ignition Signal
- Choice of:
- Labeled flying leads for Lighting and Wipers input (Additional charge), Key Switch operates starter

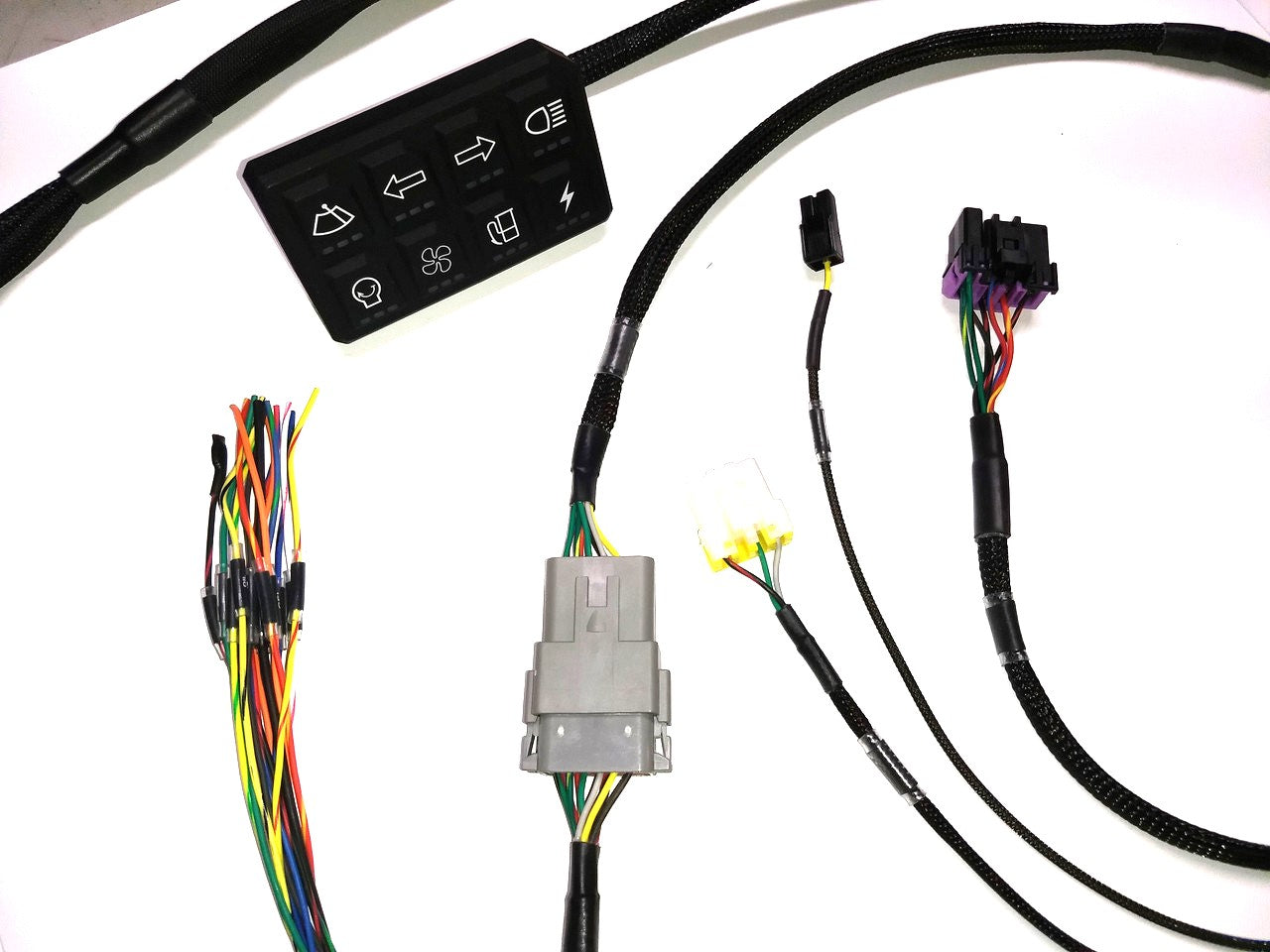

- CANbus 8-Button Keypad for all functions Tech Support Included for our Customers 7 days a week For the Dual Fuel Pump Option, please click HERE for additional specifications & details. For the Complete Battery Wiring Power Management Kit Option, please click HERE for additional specifications & details. PRO-SERIES HARNESS TECHNICAL SPECS
- Point-to-Point continuity tested on every wire
- Constructed using exact OEM connectors and seals

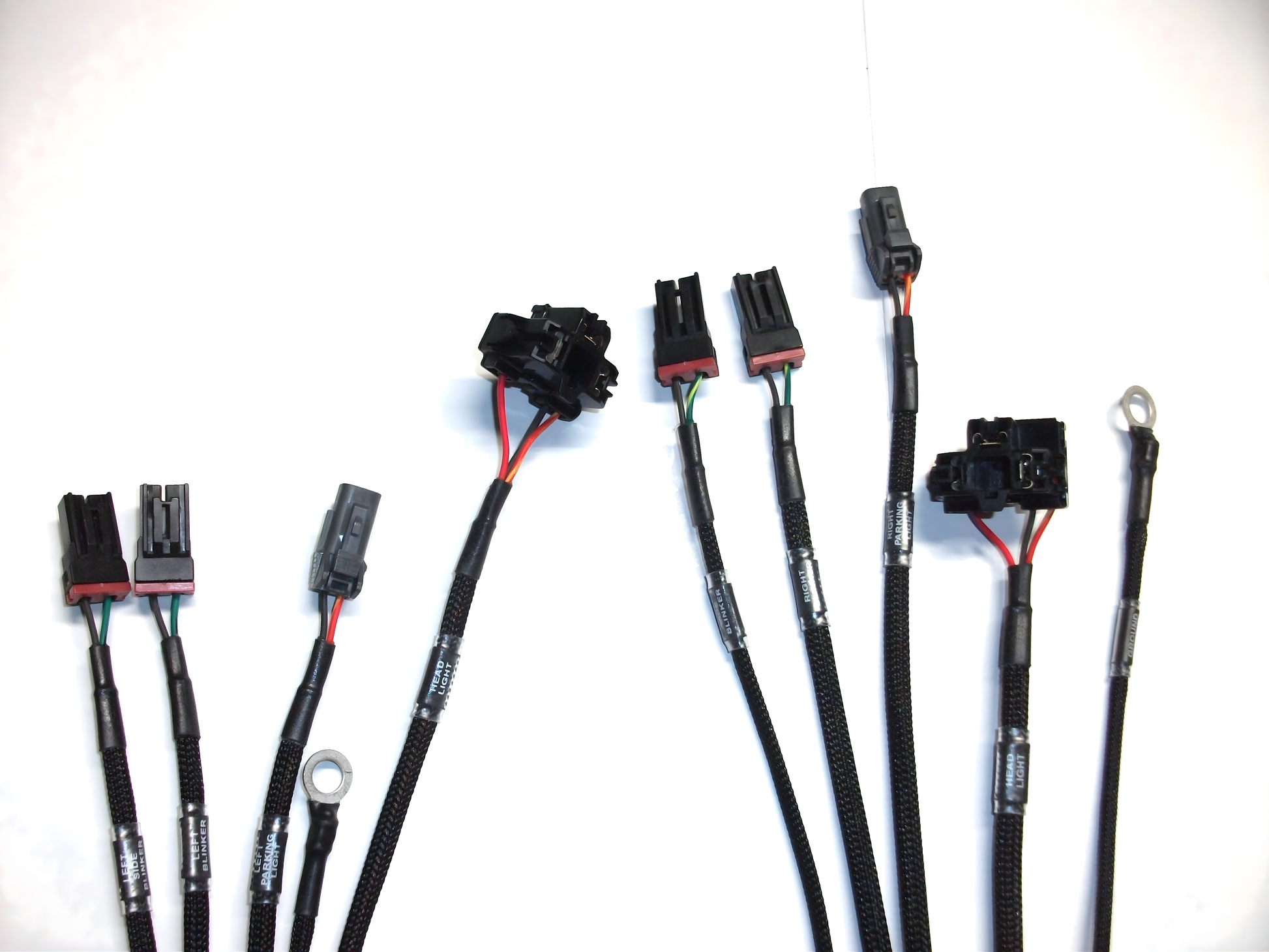

- Made with high temp TXL wire with adhesive shrink tubing (-40°C/-40°F to +125°C/+257°F operating temperature)
- Wrapped in lightweight nylon loom (-94°C/-137°F to +125°C/+257°F operating temperature)
- Fully tested after production for an easy plug-and-play installation Read more
