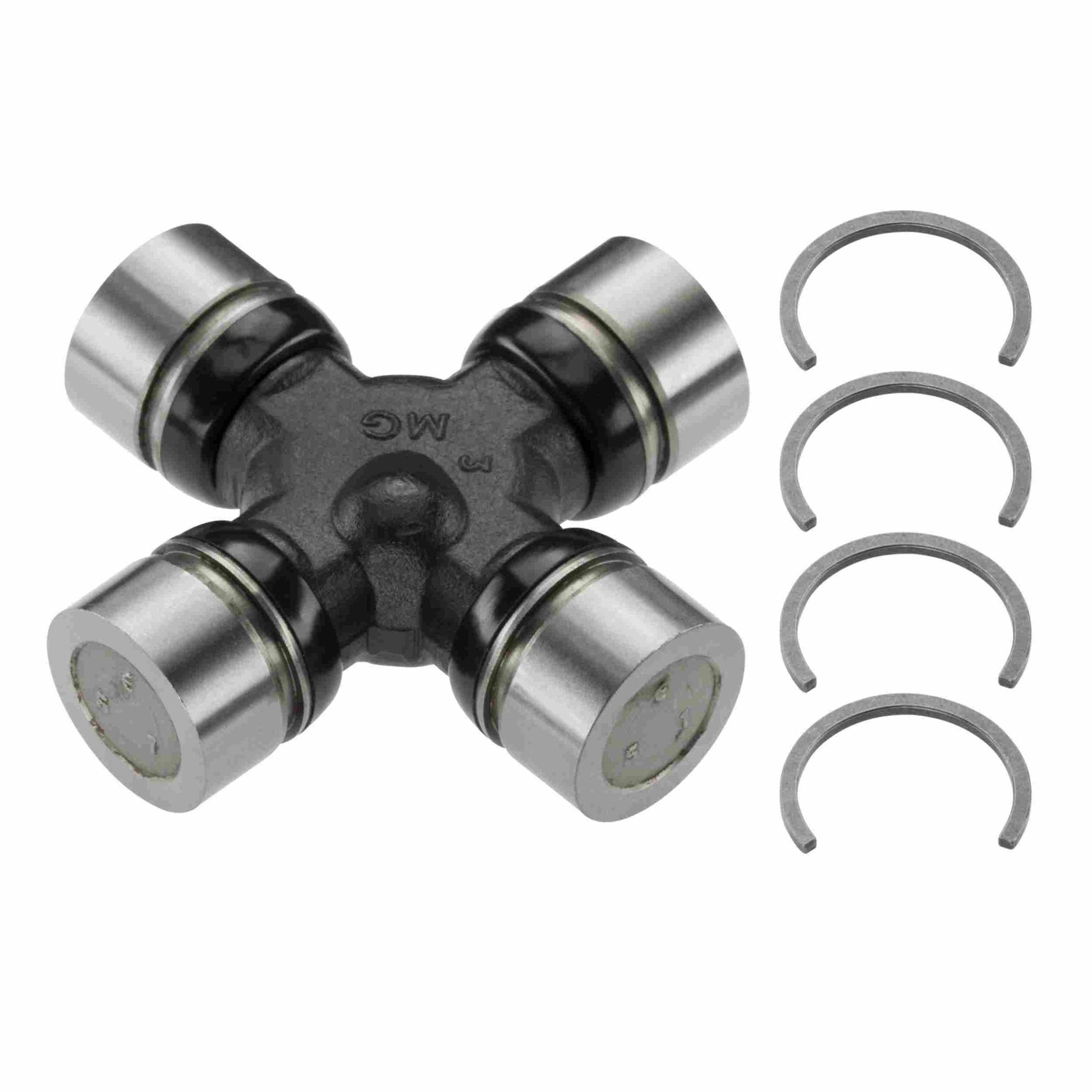

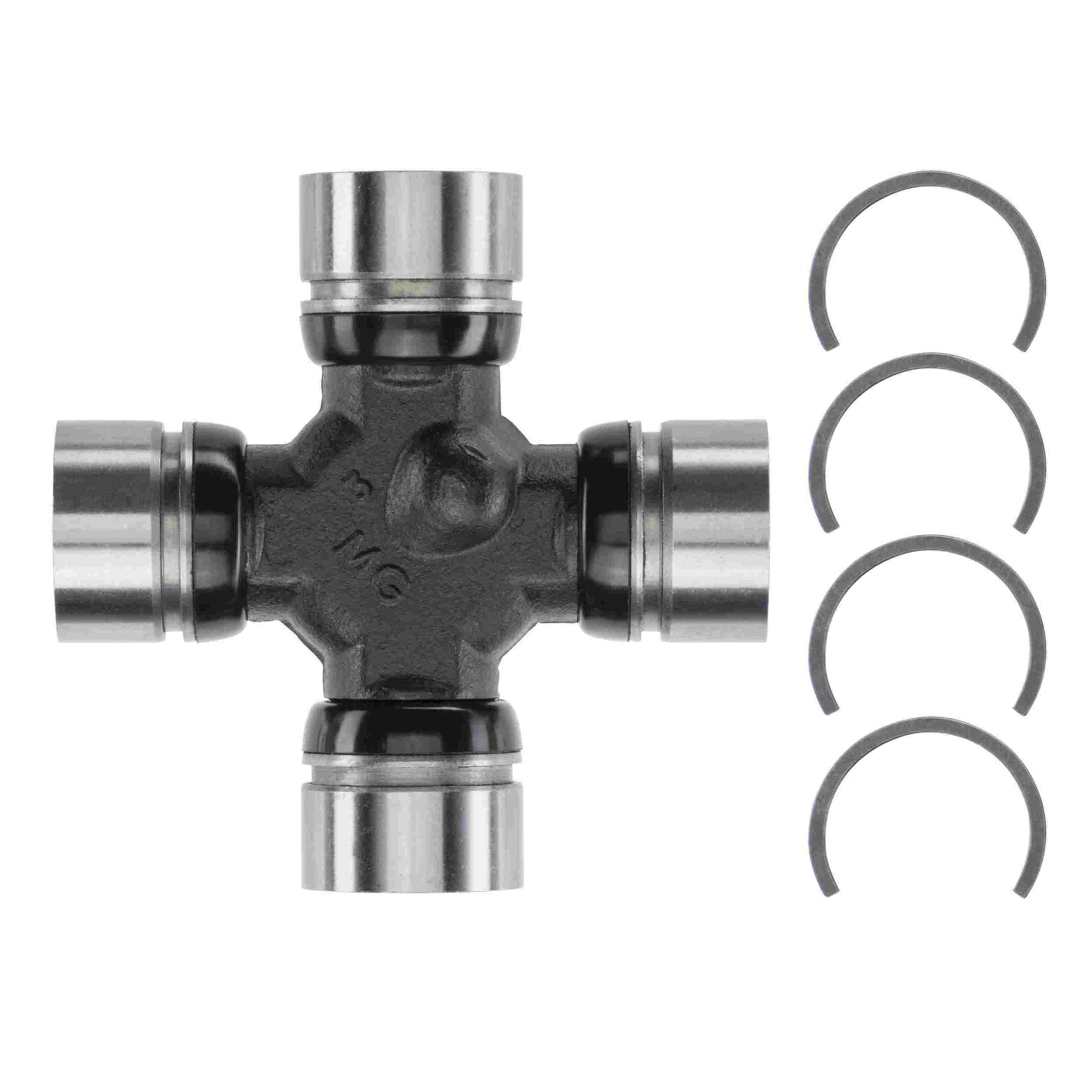

Moog Universal Joint

Over 70 years of aftermarket engineering and product expertise has made MOOG® an industry leader in driveline quality and customer satisfaction.

* Greaseable - allows new grease to flush out contamination and moisture reducing corrosion and wear

* Needle bearings and snap rings from an original equipment supplier

* Nitrile rubber grease seals have compressed double lip design for protection from contaminants

* Consistent heat treatment achieves good bearing hardness for durable wear and strength

* Bearing cups ground and slightly oversized to fit in a used drive shaft

* Cross forging shape and flash provide easier installation and high strength

Specifications

U-Joint Specifications

U-Joint Identification: 4 Round Plain Bearings

Bearing Type A: Round Plain

Bearing Diameter A - Inch: 1.188

Bearing Diameter A - mm: 30.2

Length Measurement A: Outside of Bearing to Outside of Bearing

Length A - Inch: 2.293

Length A - mm: 58.24

Bearing Type B: Round Plain

Bearing Diameter B - Inch: 1.188

Bearing Diameter B - mm: 30.2

Length Measurement B: Outside of Bearing to Outside of Bearing

Length B - Inch: 2.293

Length B - mm: 58.24

Lubricateable: Yes

Application

PASSENGER CAR & LIGHT TRUCK

Vehicle Fitments:
