CSF Universal Half Radiator w/ direct fitment for Evo 7/8/9 and 92-00
CSF Radiator are CAD/CAM designed using UnigraphicsT Software. With OE radial and deep drawn aluminum end tanks. The "B-Tube" Technology - Stronger, most efficient tube in the world. Its wind tunnel tested for optimal radiator core cooling efficiency. Made in "Racing Style" Aluminum Drain Plug.

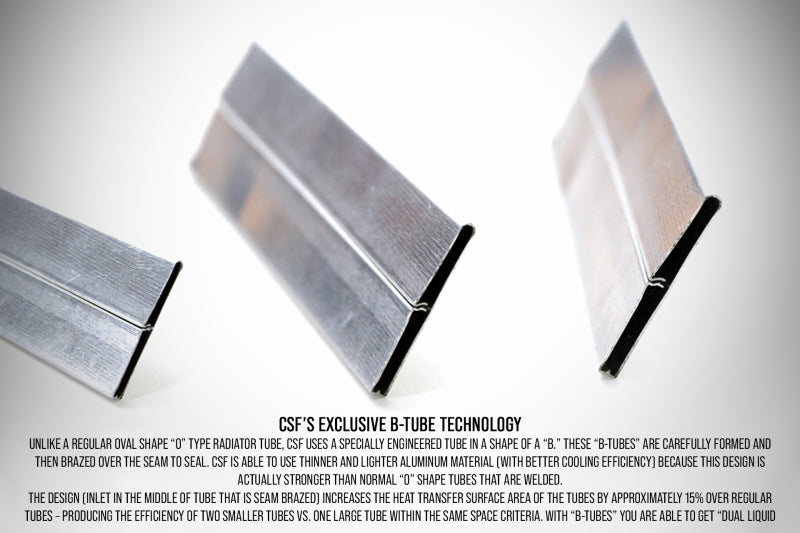

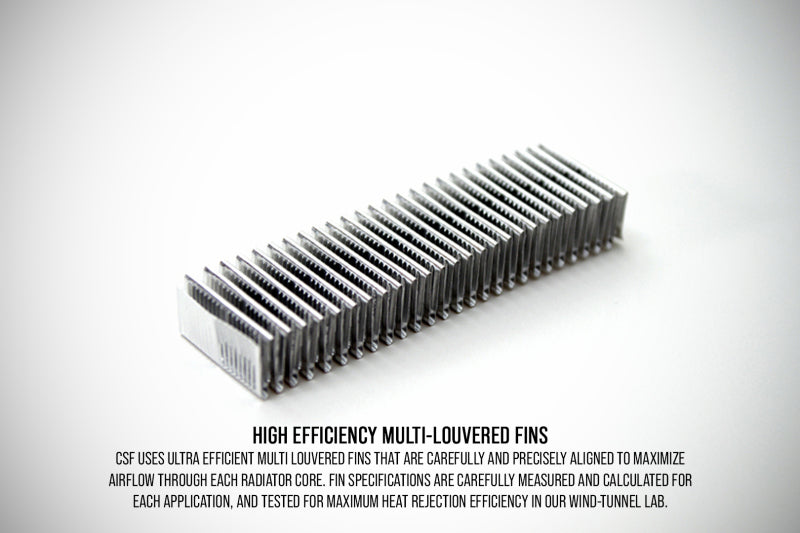

2-row 42mm high performance radiator core by CSF. With B-Tube technology andultra-efficient 6.5mm multi-louvered fin height
Installation kit includes both -16 AN male connections, as well as 1.25' OEM style "Slip-on"
Honda/Acura hose connections (Evolution 7/8/9 1-3/8th' OEM style "Slip-on" hose connections also included)
Universal mounting pins included - 2 different lengths for multiple installation configurations.
Multiple mounting pin locations on both top and bottom endtanks
Dual outlet design for multiple plumbing options
1/8th NPT temperature sensor port
1 hour hand polished mirror-finish

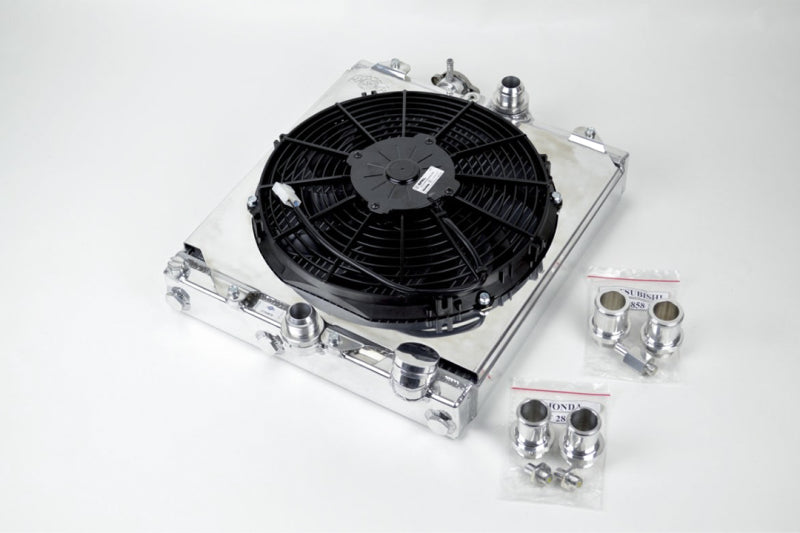

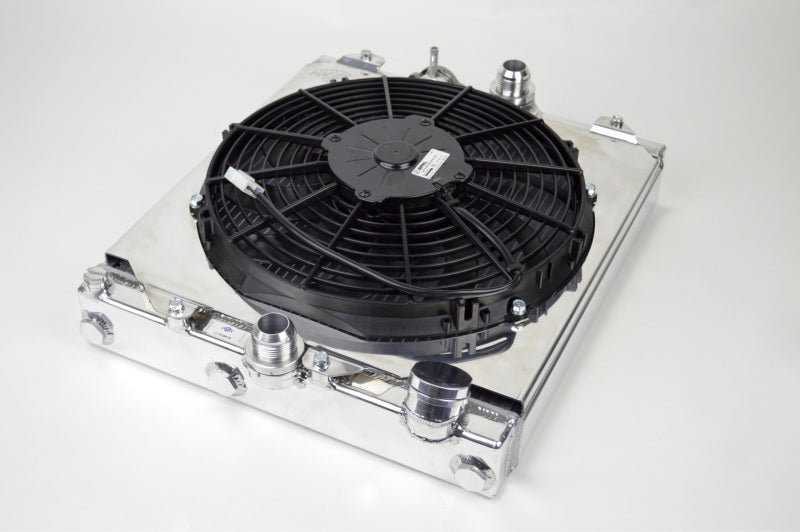

Includes all-aluminum fan shroud with 12-inch high performance SPAL Fan
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1992 - 2000 | Honda | Civic | DX, EX, CX, LX, Si |
| 1997 - 2000 | Honda | Civic | EX-R |
| 1999 - 2000 | Honda | Civic | EX-R SIR |
| 1998 - 2000 | Honda | Civic | GX |
| 1996 - 2000 | Honda | Civic | HX |
| 1999 | Honda | Civic | Value Package |
| 1992 - 1995 | Honda | Civic | VX |
| 1993 - 1997 | Honda | Civic del Sol | Si, S |
| 1994 - 1997 | Honda | Civic del Sol | VTEC |
| 2004 - 2006 | Mitsubishi | Lancer | DE, Ralliart |
| 2003 - 2006 | Mitsubishi | Lancer | Evolution, OZ Rally, ES, LS |
| 2005 - 2006 | Mitsubishi | Lancer | LS Diamond, Evolution MR, Evolution RS |
| 2006 | Mitsubishi | Lancer | SE, Evolution SE |
| 2004 | Mitsubishi | Lancer | Sportback Ralliart, Sportback |
