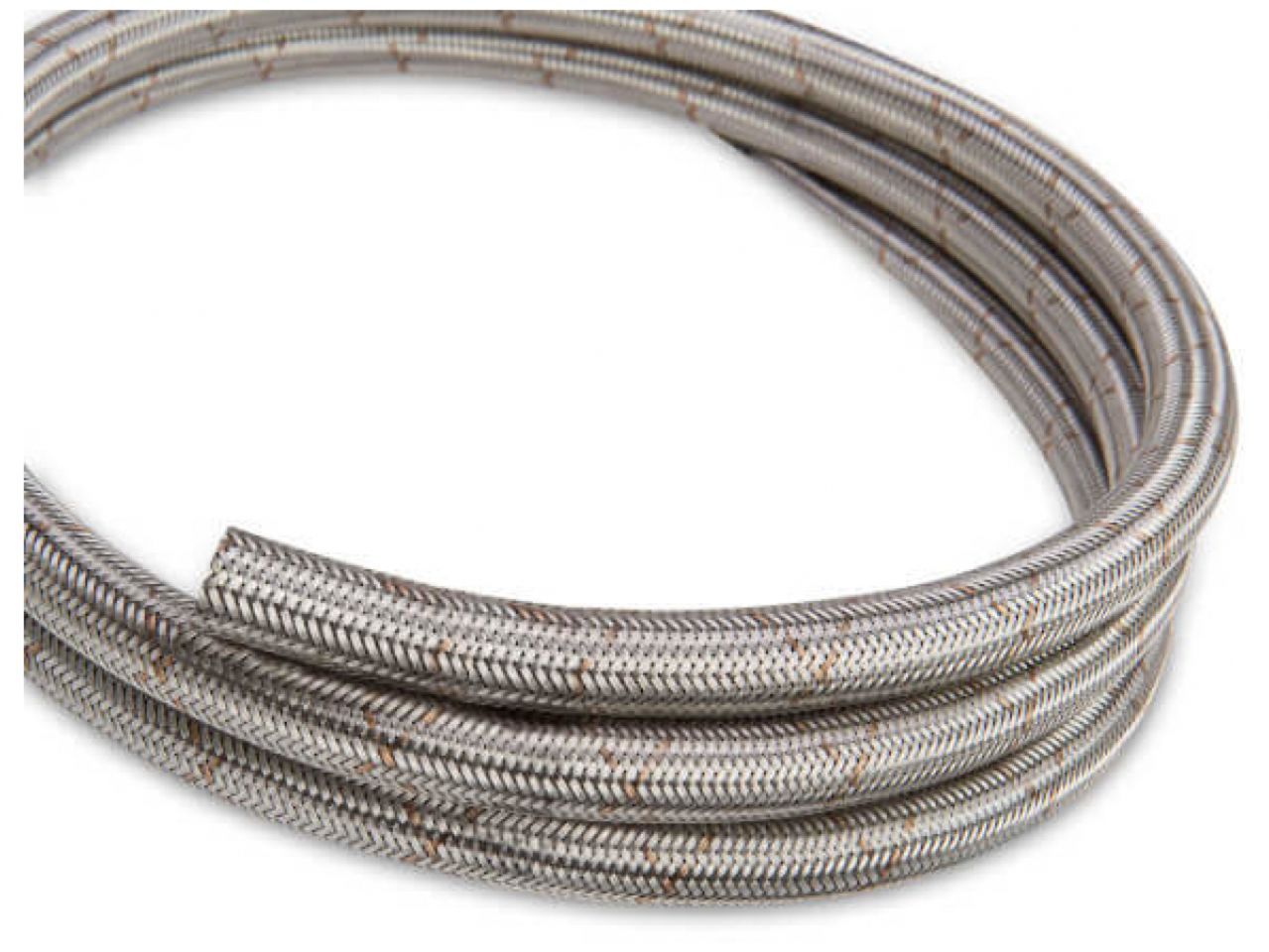

Earl's Ultra Flex Hose Size -8 Stainless Steel Braid - 10 Ft.
We have taken the same inner tubing of our Kevlar® hose, and covered it with a high tensile grade 304 stainless steel. You still get all of the same flow rate and flexibility advantages of the Kevlar® hose but with additional protection. The carbon lined inner tubing (for static dissipation) is smooth bore with large ID for maximum flow and convoluted exterior support for incredible flexibility. Ultra-Flex stainless is 40% lighter and has an average of 14% larger ID than our premium stainless braided rubber hose. Being made of PTFE resin, it has a large range of applications: Fuel, Oil, Water, Methanol, and Air as well as a very high vacuum rating – 29Hg. The new stainless hose also accepts all of the same hose ends and crimp collars made for the Kevlar® Ultra-Flex line. This means that the same crimper and dies used for the Kevlar® hose can be used with the new stainless, so your Earl's universal crimper and dies are all you need for all of your high end line assemblies.(All trademarks are property of their respective owners.)
Features:
- Stainless Steel Outer Braid
- High-Temp. Smooth bore PTFE tubing
- Convoluted outer wall of inner tube for incredible flexibility
- Remains Flexible at Temperatures Between -94°F and +500°F
- Clean and Fast Flowing
- Sold in Pre-Packaged Boxed Lengths
Specification
- Compatible Hose Ends: Ultra-Flex
- Crimping Die: 19MM - D10019BERL
- Emission Code: 5
- Final Crimp O.D. Range: .795"-.815"
- Fluid Type: Automatic Transmission Fluid,Bio-Fuels,Coolant,Diesel,E85, Methanol/Alcohol, Oil, Pump Gas, Race Gas
- Fluid Type Rating - Automatic Transmission Fluid: 5 out of 5 Rating
- Fluid Type Rating - Bio-Fuels: 5 out of 5 Rating
- Fluid Type Rating - Coolant: 5 out of 5 Rating
- Fluid Type Rating - Diesel: 5 out of 5 Rating
- Fluid Type Rating - E85: 5 out of 5 Rating
- Fluid Type Rating - Methanol/Alcohol: 5 out of 5 Rating
- Fluid Type Rating - Oil: 5 out of 5 Rating
- Fluid Type Rating - Pump Gas: 5 out of 5 Rating
- Fluid Type Rating - Race Gas: 5 out of 5 Rating
- Fluid Type Rating - Vacuum: 5 out of 5 Rating
- Hose Family: Ultra-Flex
- Hose Length: 10 Feet
- Hose Outer Material: Stainless Steel
- Hose Size: 8 AN
- Inside Diameter: .536"
- Max Vacuum: 29 in Hg
- Max Working PSI: 1030 PSI
- Min. Bend Radius: 1.496"
- Outside Diameter: .650"
- Product Type: Hose
- Submersible in Fuel: Yes
