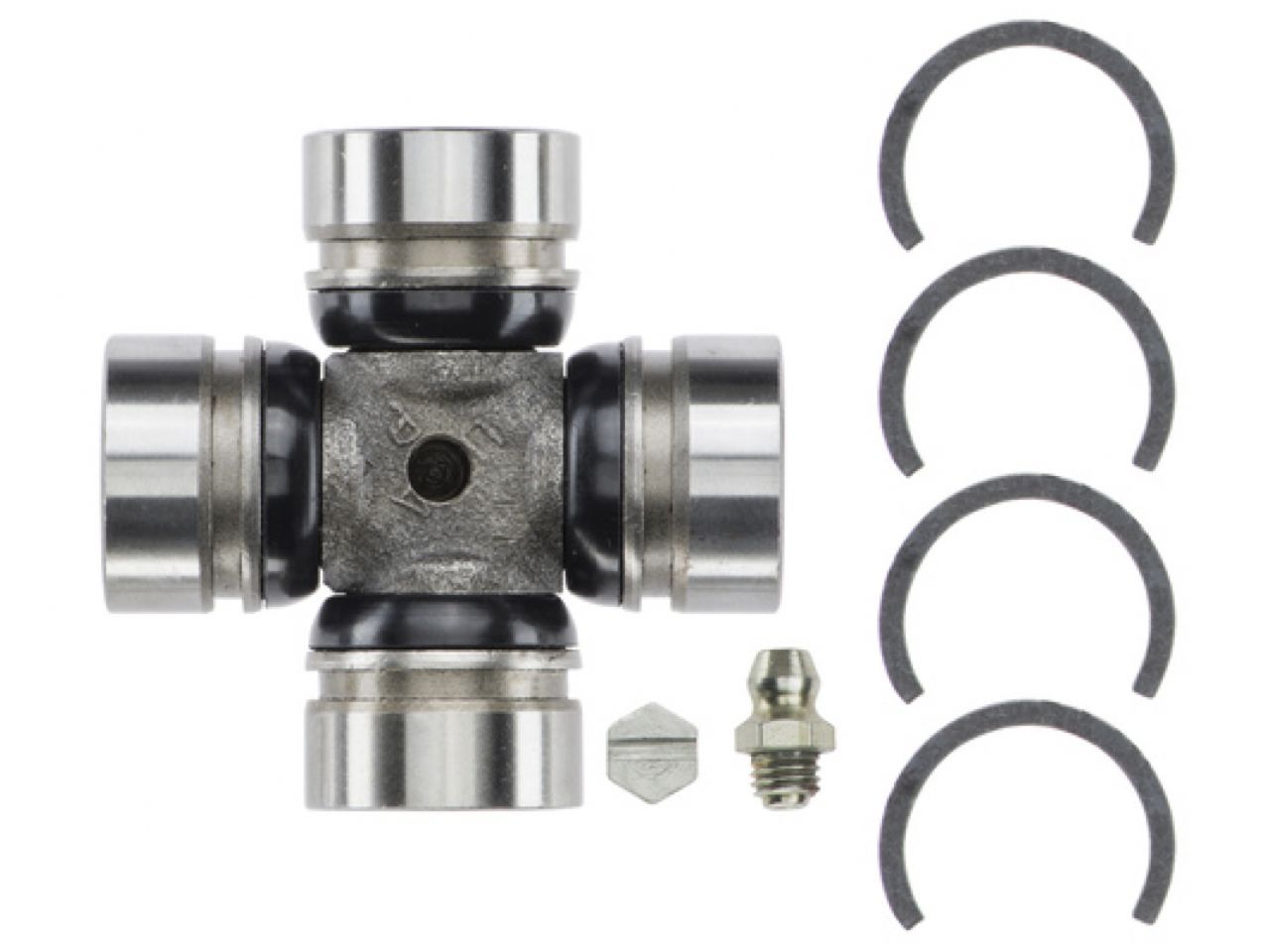

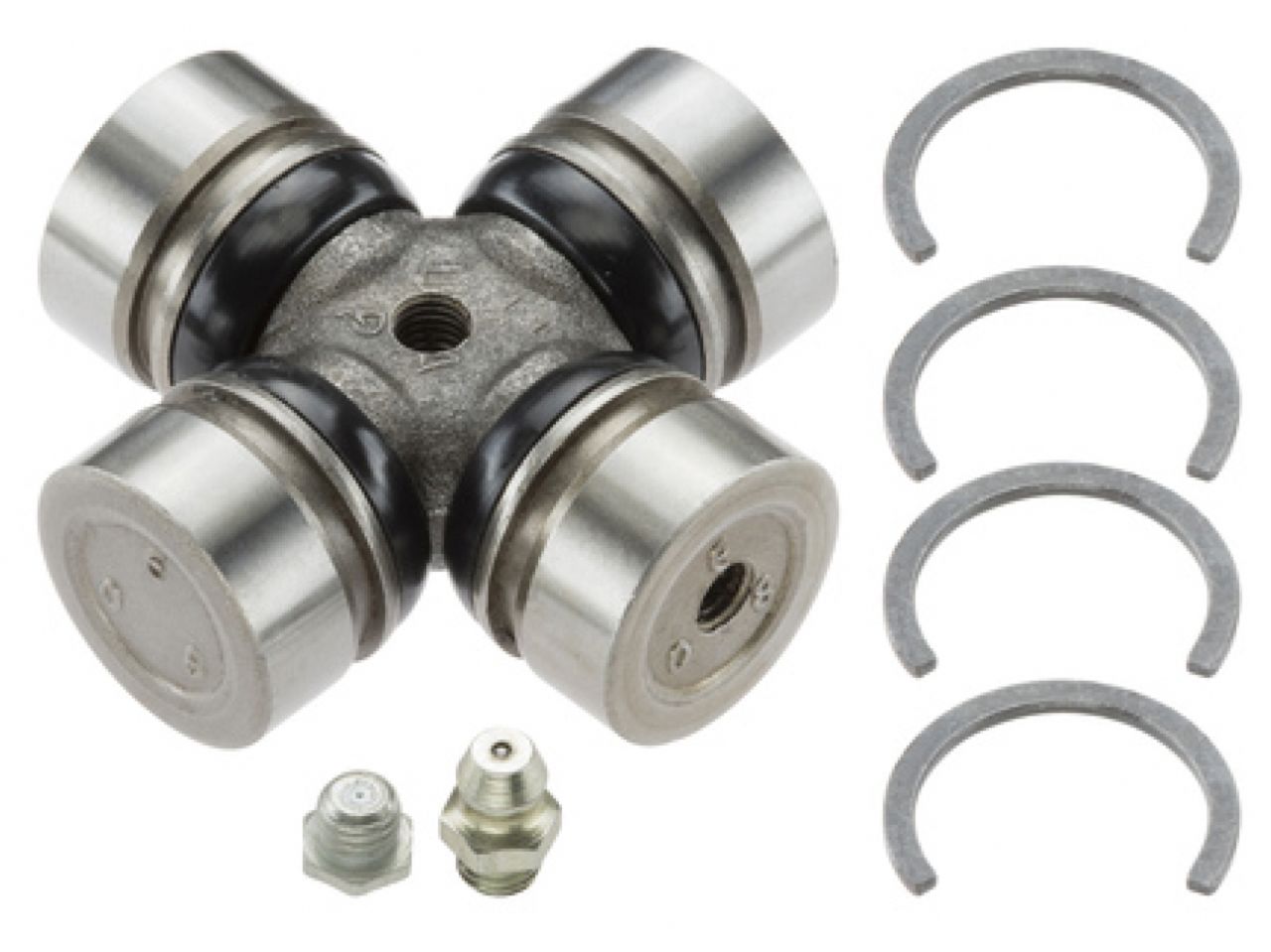

Moog U-joint

Over 70 years of aftermarket engineering and product expertise has made MOOG® an industry leader in driveline quality and customer satisfaction.

Features:

Greaseable - allows new grease to flush out contamination and moisture reducing corrosion and wear

Needle bearings and snap rings from an original equipment supplier

Nitrile rubber grease seals have compressed double lip design for protection from contaminants

Consistent heat treatment achieves good bearing hardness for durable wear and strength

Bearing cups ground and slightly oversized to fit in a used drive shaft

Cross forging shape and flash provide easier installation and high strength

Specification:

• U-Joint Identification: 4 Grooved Round Bearings
• Bearing Type A: Round Grooved
• Bearing Diameter A - Inch: 0.969
• Bearing Diameter A - mm: 24.6
• Length Measurement A: Outside of Groove to Outside of Groove
• Length A - Inch: 1.444
• Length A - mm: 36.6
• Bearing Type B: Round Grooved
• Bearing Diameter B - Inch: 0.969
• Bearing Diameter B - mm: 24.6
• Length Measurement B: Inside of Groove to Inside of Groove plus thickness of 2 Lock Rings
• Length B - Inch: 1.444
• Length B - mm: 36.6
• OE Series: Rockwell L6N
• Lubricateable: YES
• Lube Fitting Location: Regular Lube Fitting in Bearing
• Image: UJoint_4Grooved.tif
