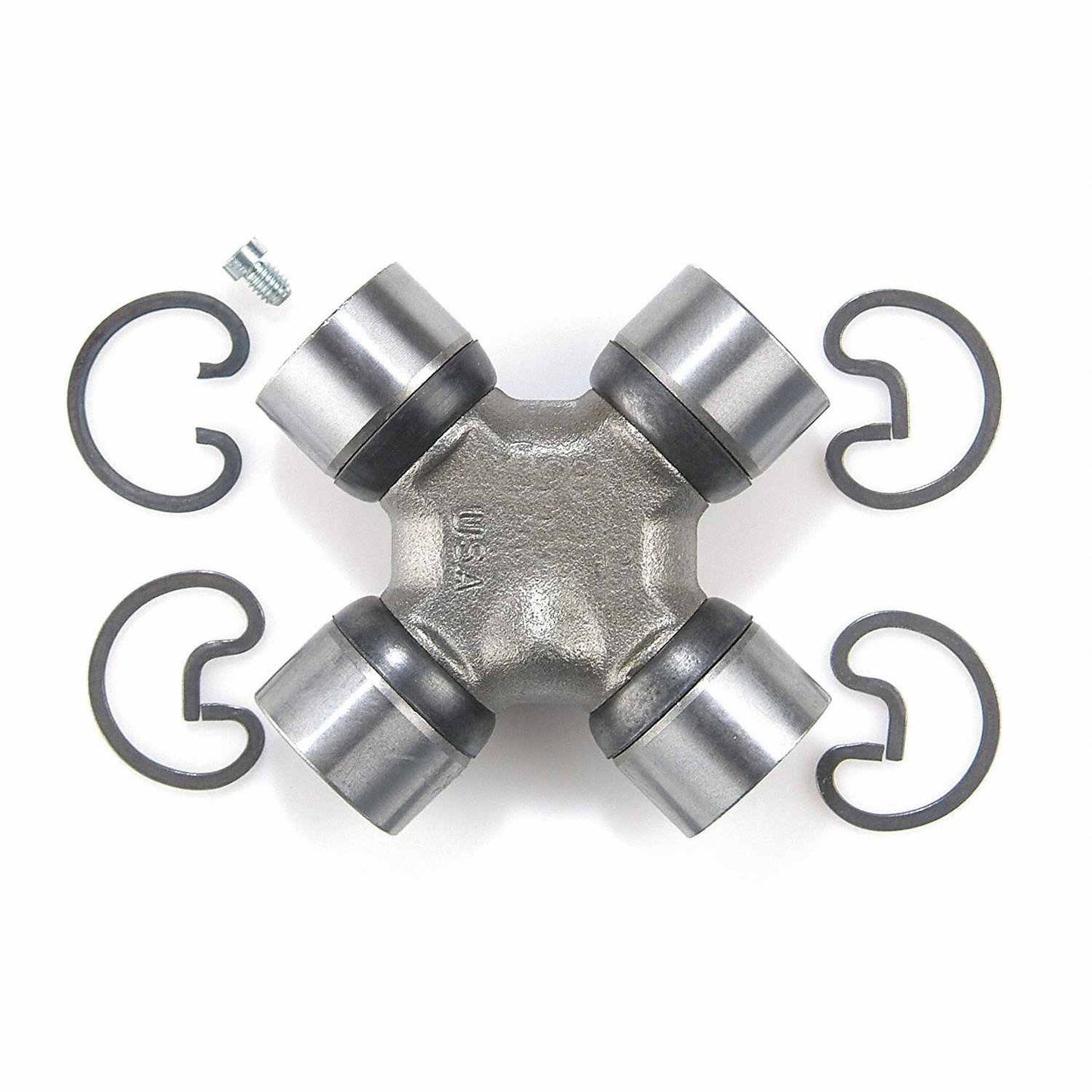

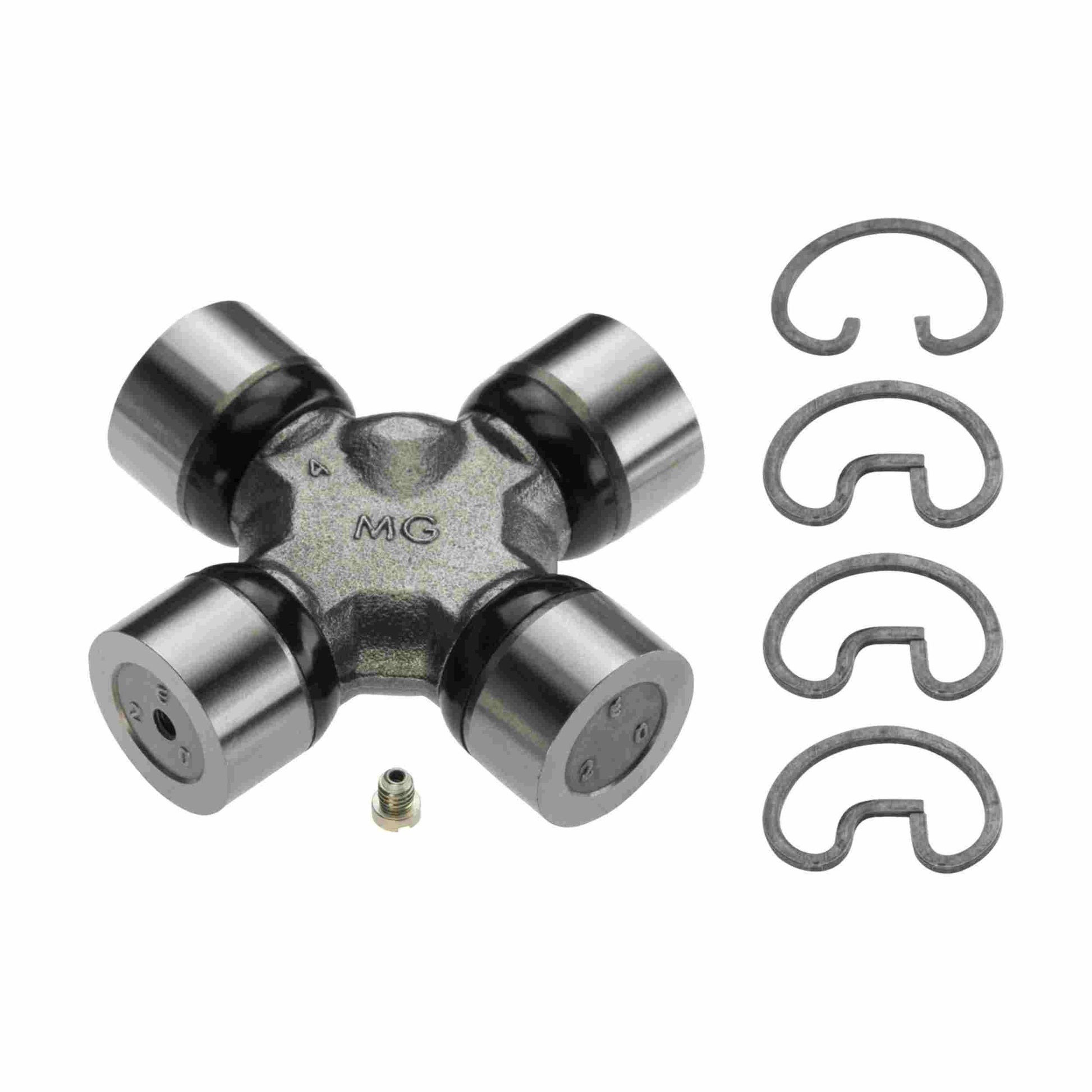

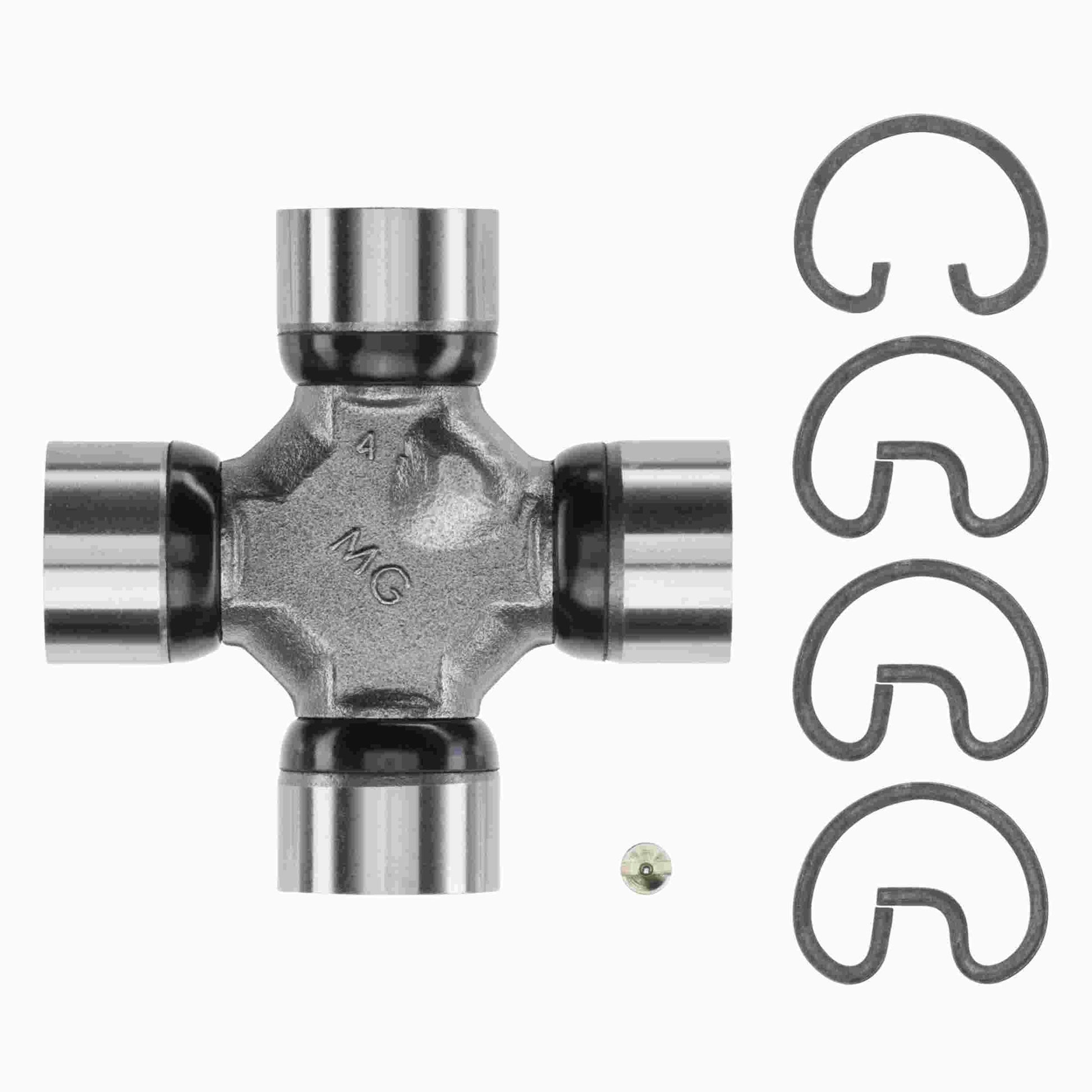

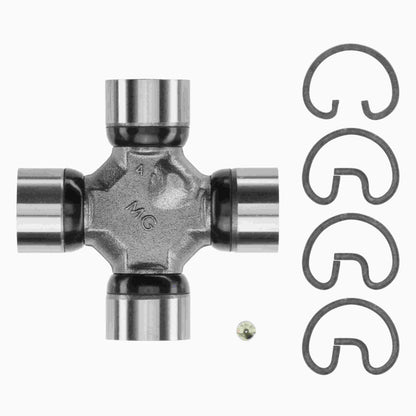

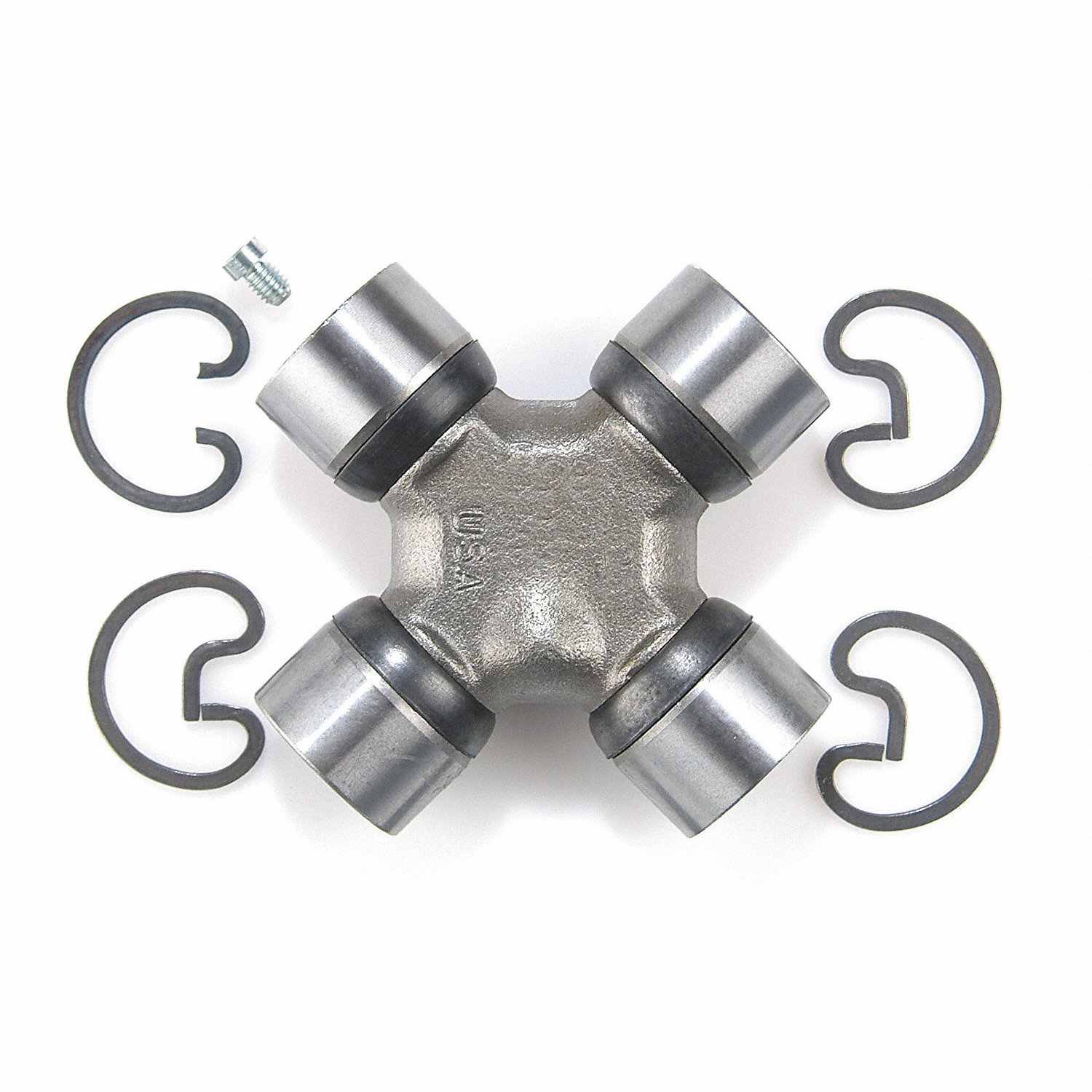

Moog U-Joint

Over 70 years of aftermarket engineering and product expertise has made MOOG® an industry leader in driveline quality and customer satisfaction.

* Greaseable - allows new grease to flush out contamination and moisture reducing corrosion and wear

* Needle bearings and snap rings from an original equipment supplier

* Nitrile rubber grease seals have compressed double lip design for protection from contaminants

* Consistent heat treatment achieves good bearing hardness for durable wear and strength

* Bearing cups ground and slightly oversized to fit in a used drive shaft

* Cross forging shape and flash provide easier installation and high strength

Specifications

U-Joint Specifications

U-Joint Identification: 4 Round Plain Bearings

Bearing Type A: Round Plain

Bearing Diameter A - Inch:1.063

Bearing Diameter A - mm: 27.0

Length Measurement A: Outside of Bearing To Outside of Bearing

Length A - Inch: 3.22

Length A - mm: 81.7

Bearing Type B: Round Plain

Bearing Diameter B - Inch: 1.063

Bearing Diameter B - mm: 27.0

Length Measurement B: Outside of Bearing To Outside of Bearing

Length B - Inch: 3.22

Length B - mm: 81.7

OE Series: Spicer 1310

Lubricateable: YES

Lube Fitting Location: Flush-type lube fitting in bearing

Image: UJoint_4Plain.tif

Application

PASSENGER CAR & LIGHT TRUCK

Vehicle Fitments:
