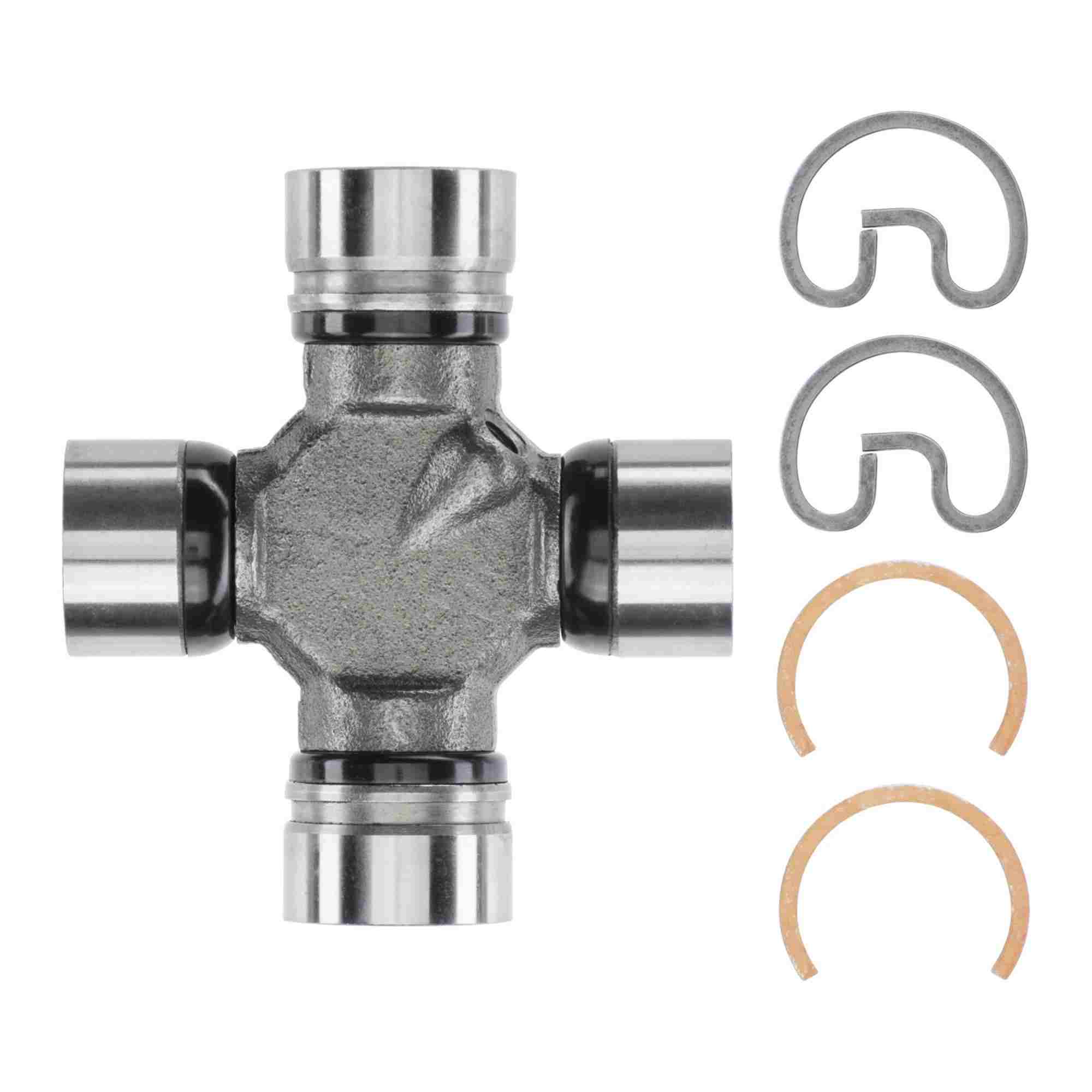

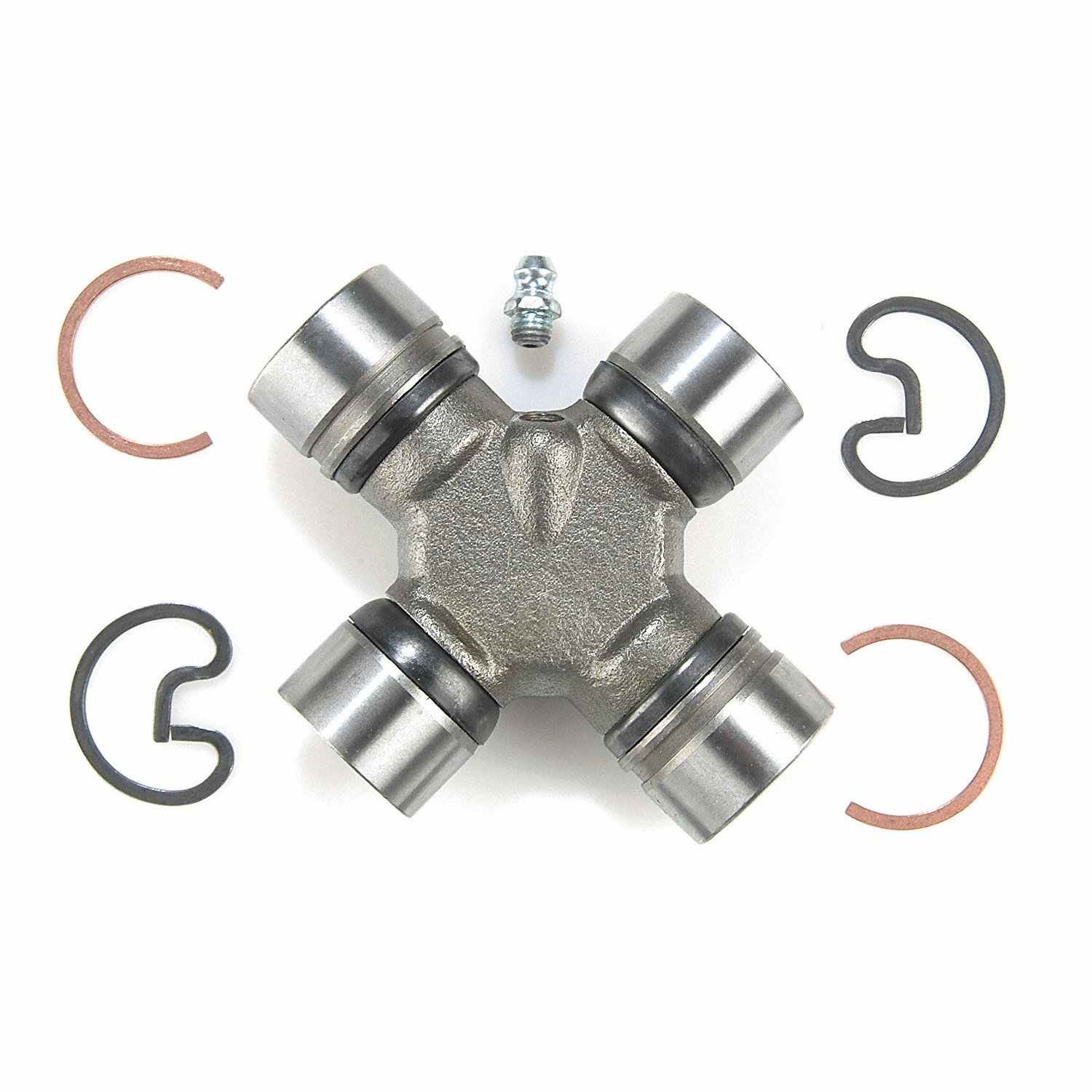

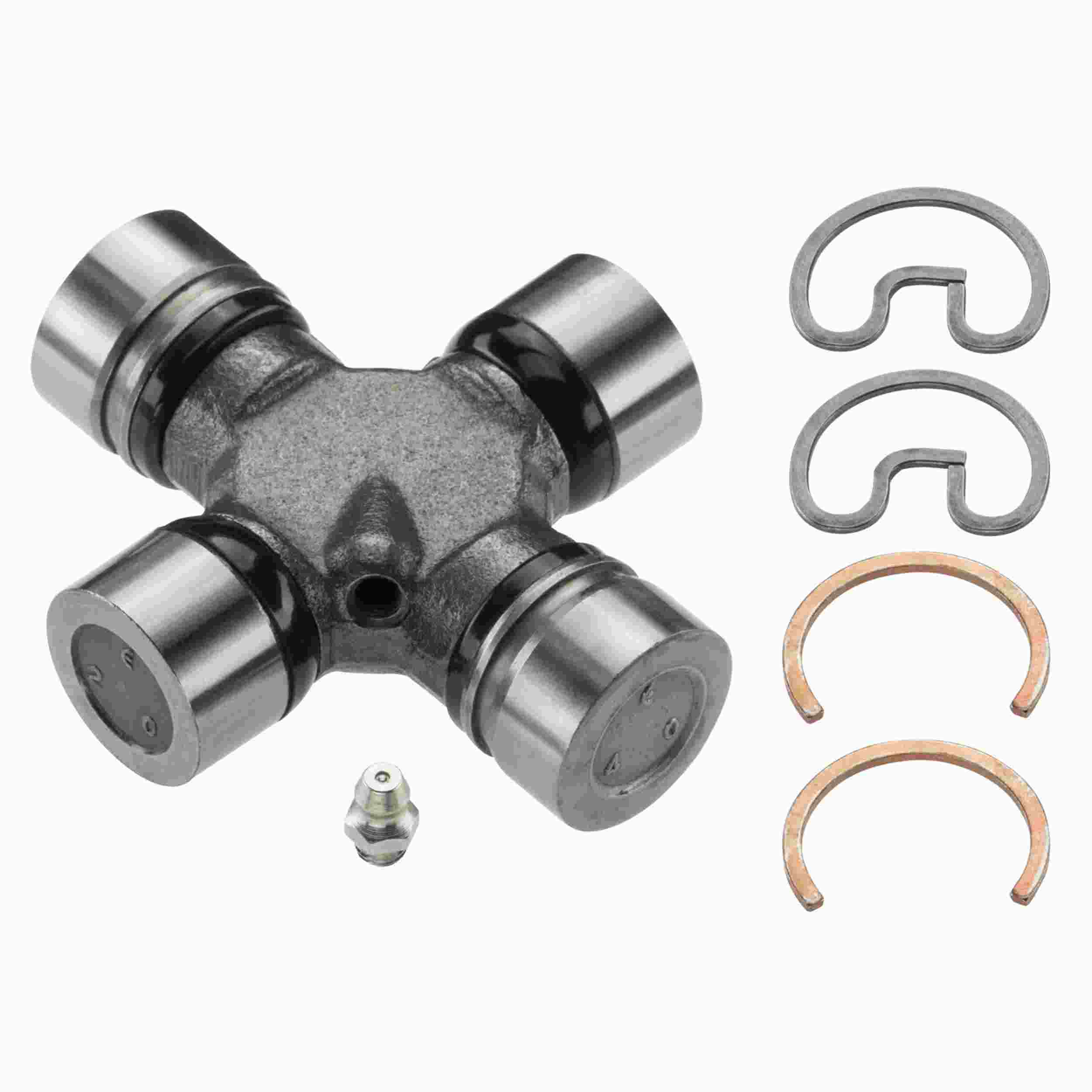

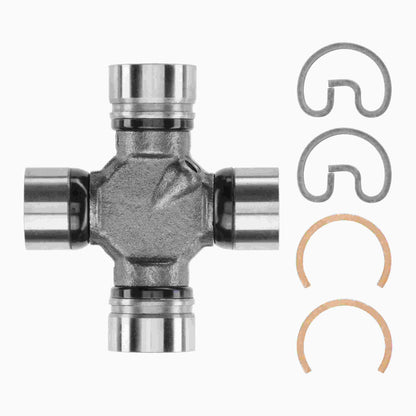

Moog U-Joint

Over 70 years of aftermarket engineering and product expertise has made MOOG® an industry leader in driveline quality and customer satisfaction.

* Greaseable - allows new grease to flush out contamination and moisture reducing corrosion and wear

* Needle bearings and snap rings from an original equipment supplier

* Nitrile rubber grease seals have compressed double lip design for protection from contaminants

* Consistent heat treatment achieves good bearing hardness for durable wear and strength

* Bearing cups ground and slightly oversized to fit in a used drive shaft

* Cross forging shape and flash provide easier installation and high strength

Specifications

U-Joint Specifications

U-Joint Identification: 2 Grooved and 2 Plain Round Bearings

Bearing Type A: Round Plain

Bearing Diameter A - Inch: 1.063

Bearing Diameter A - mm: 27.0

Length Measurement A: Outside of Bearing To Outside of Bearing

Length A - Inch: 3.22

Length A - mm: 81.7

Bearing Type B: Round Grooved

Bearing Diameter B - Inch: 1.125

Bearing Diameter B - mm: 28.6

Length Measurement B: Outside of Groove to Outside of Groove

Length B - Inch: 2.557

Length B - mm: 65.0

OE Series: Combination 369 x 534G

Lubricateable: YES

Lube Fitting Location: Regular Lube Fitting in Cross

Image: UJoint_2Grooved_2Plain.tif

Application

PASSENGER CAR & LIGHT TRUCK

Vehicle Fitments:
