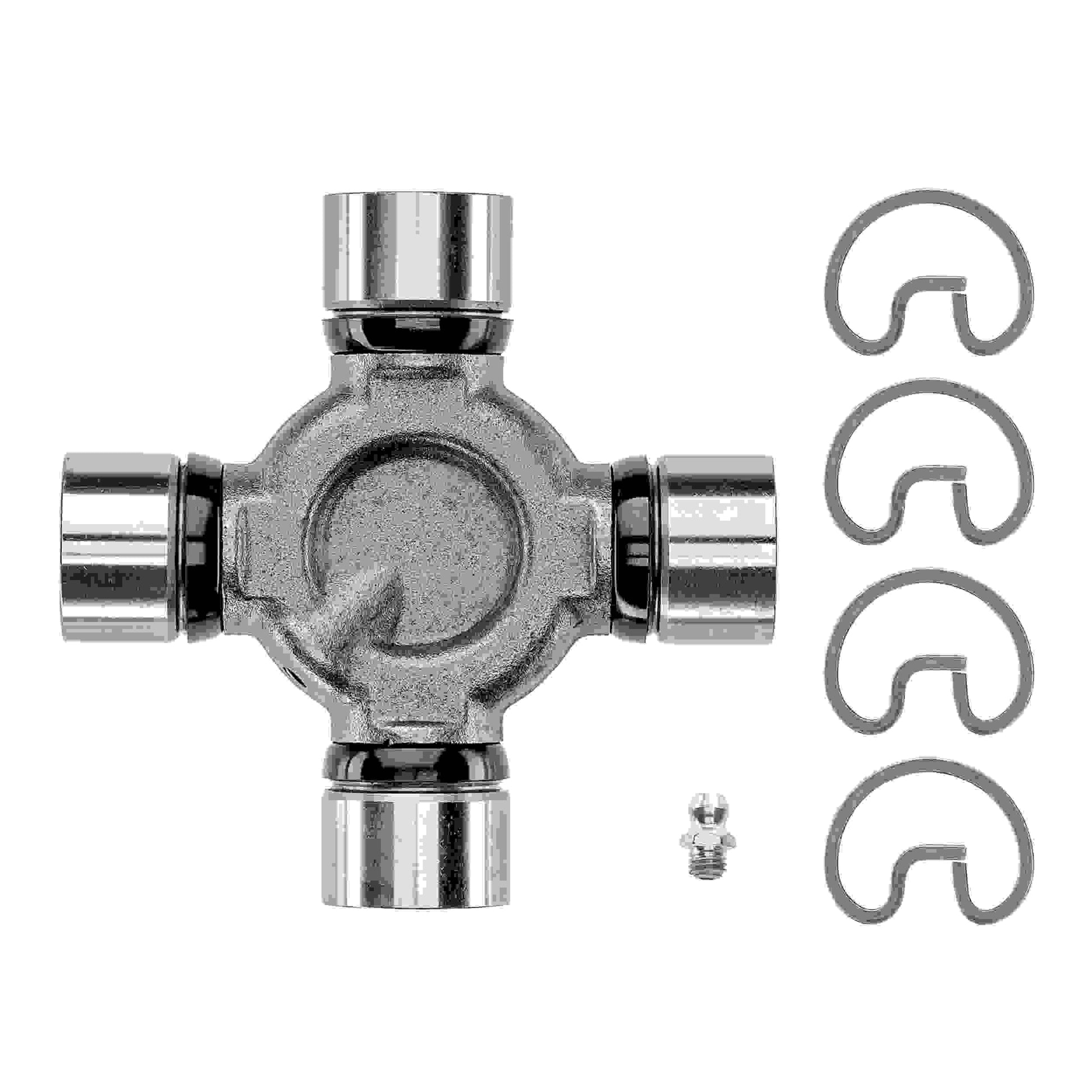

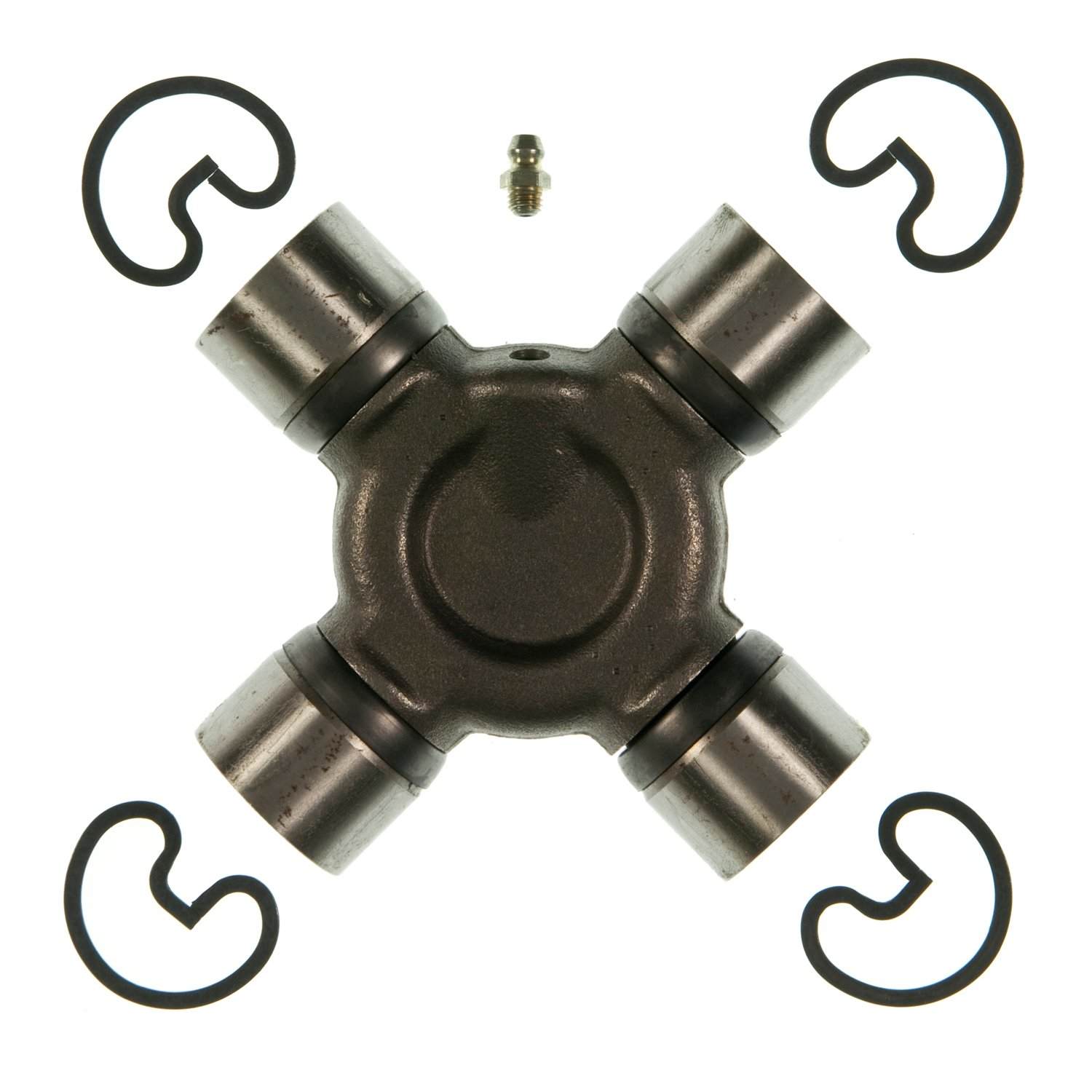

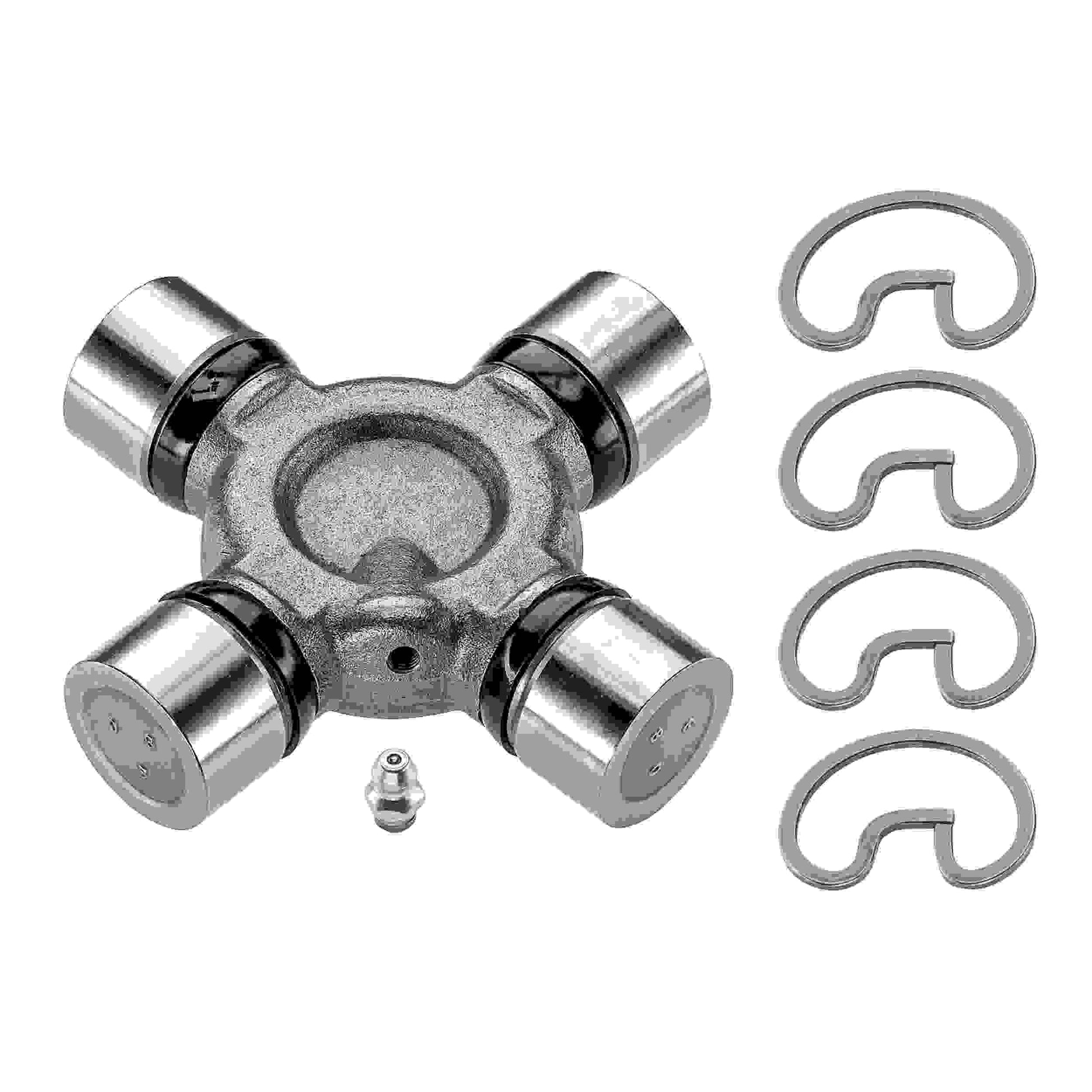

Moog U-JOINT

• Cross body drilled and tapped with grease fitting to allow joint maintenance
• Patented thrust washer technology absorbs axial loads preventing metal to metal contact
• Exclusive anti-drainback design controls lubrication flow and prevents dry startup
• OE needle bearings ensure size consistency, proper hardness and strength
• Metal shielded nitrile rubber grease seals have compressed double lip design
• Consistent heat treatment achieves good bearing hardness for durable wear and strength

U-Joint Specifications:

• U-Joint Identification: 4 Round Plain Bearings
• Bearing Type A: Round Plain
• Bearing Diameter A - Inch:1.375
• Bearing Diameter A - mm: 35.0
• Length Measurement A: Outside of Bearing To Outside of Bearing
• Length A - Inch: 4.956
• Length A - mm: 125.9
• Bearing Type B: Round Plain
• Bearing Diameter B - Inch: 1.375
• Bearing Diameter B - mm: 35.0
• Length Measurement B: Outside of Bearing To Outside of Bearing
• Length B - Inch: 4.956
• Length B - mm: 125.9
• OE Series: American Axle 1555
• Lubricateable: YES
• Lube Fitting Location:Regular Lube Fitting in Cross
• Image: UJoint_4Plain.tif
