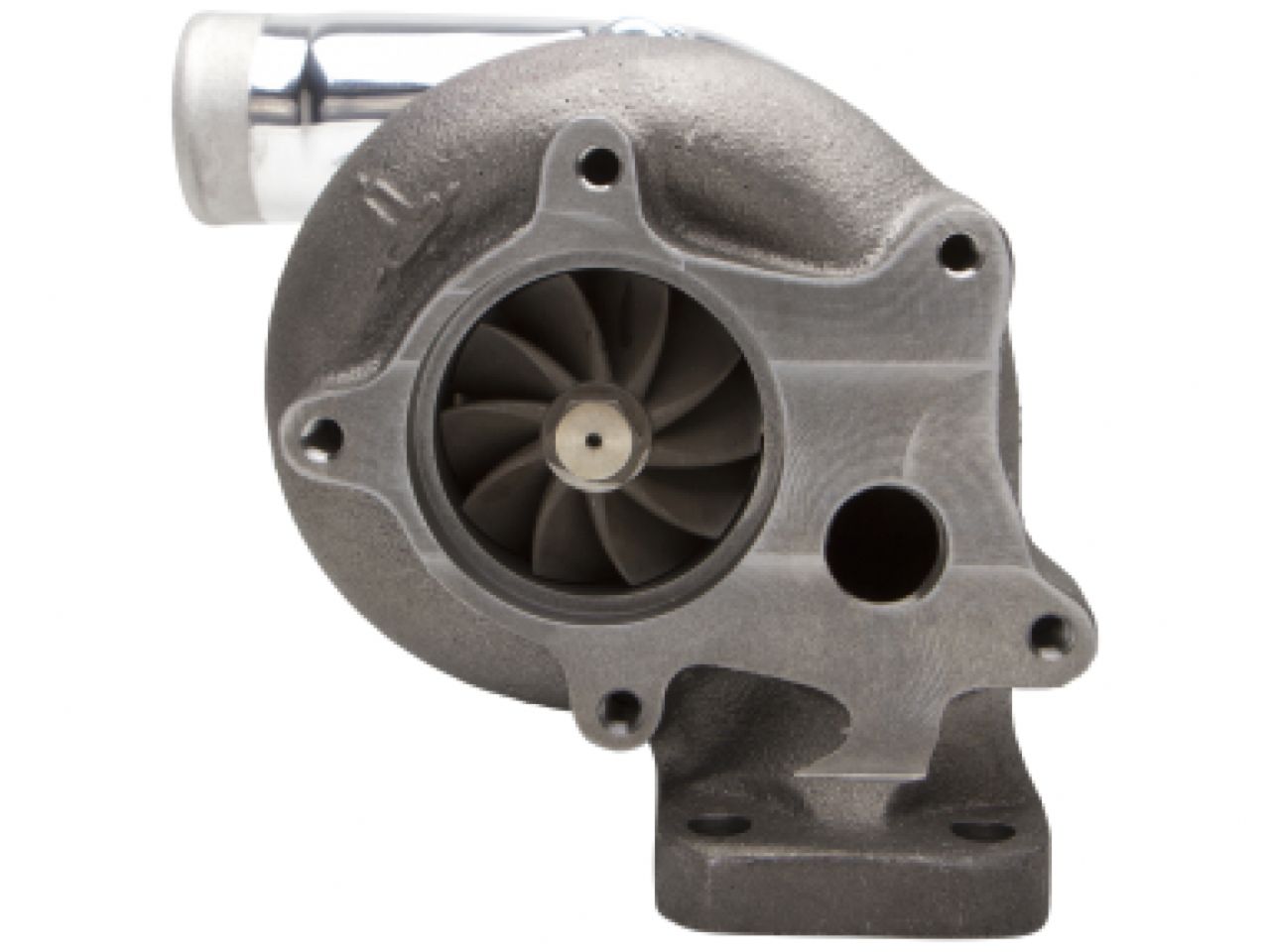

Turbonetics Turbo, T3_T4e-50-S3-Std0_63

The T3/T4 Hybrid turbochargers consist of a T3 turbine section, (F1-49, F1-54, F1-57, F1-62) and a T4 compressor section (T04B trim, T04E trim & 60-Series). This combination offers the low inertia and fast boost response of the lightweight T3 turbine wheel and the high-airflow characteristics of the T4 compressor family. All T3/T4 Hybrid Turbochargers are available with the patented Ceramic Ball-Bearing option highlighted in the CBB section of the site. The Ceramic Ball Bearing T3/T4 Hybrid series offers the fastest spool-up available. Coupled with extreme durability, the Ceramic Ball-Bearing concept provides the best available performance available in the turbocharging aftermarket. All T3/T4 Hybrids are custom matched for specific applications. Ranging from 200 HP to 600 HP. Contact a Turbonetics Turbo Specialist for application assistance and availability.

Specifications

Comp Wheel: E50

Comp. Inlet/outlet: 3.0"/2.0"

Turbine Wheel: F1-57

Turbine Housing: T3 0.63 A/r

Turbine Housing Inlet/outlet: 4-bolt / 5-bolt
