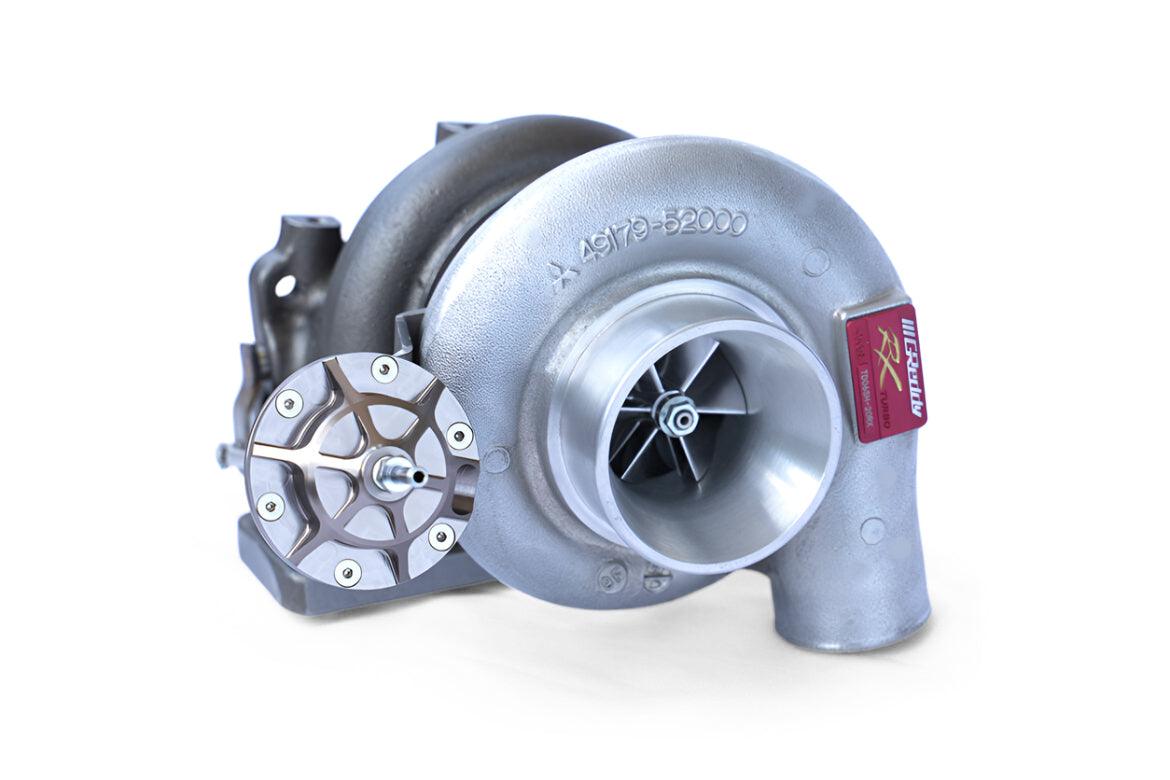

GReddy TURBO TUNER KIT (1JZ-VVTi) TD06SH 20RX Actuator Type 11510097
GReddy TURBO TUNER KIT (1JZ-VVTi) TD06SH 20RX Actuator Type 11510097
Out of stock
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Purchase information
Returns
Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.
Read the full return policyReturn details & how to start
Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.
Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.
Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.
Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.
After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.
Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.
For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.
Specifications
Product details shared across all variants.
- Product type
- Turbocharger
- Category
- Motor Vehicle Engine Parts
- Shipping dimensions (L × W × H)
[1JZ]GReddy Turbine Kit (TUNER KIT)
Product features
TD06SH20RX is set as an actuator type turbine kit for vehicles equipped with 1JZ (VVT-i).
By using a genuine exhaust housing, it can be bolted onto the genuine exhaust manifold and outlet.
The compressor cover uses the same type of S cover as the wastegate specification with emphasis on suction efficiency.
This is a tuner KIT that requires intake piping production and ECU setting.
(Please be sure to install it at a professional shop with specialized knowledge.)
Precautions when using TD06SH-20RX
specification
・At the minimum boost pressure of 0.95k (320ps), genuine injectors and genuine fuel pumps can be used (this may not apply depending on the auxiliary equipment).
・Blow-off valve must be installed
・Over 400ps can be achieved by resetting the ECU, replacing the injector, and fuel pump (outputs approximately 425PS at Boost 1.4K)
≪As this is a tuner KIT, you will need to separately manufacture and prepare the following items. ≫
・Compression tube
・Suction tube
・Air cleaner
・Hose, hose band
・Blow off valve
≪Product composition≫
Turbine body (TD06SH-20RX, 1JZ exclusive exhaust housing, machined aluminum actuator) Oil pressure
hose
Oil return tube (For JZX100, processing may be required depending on the car model)
Turbine side 1
engine side 1 Pieces
/Gaskets: Turbine IN, Turbine OUT, Exhaust Manifold, Oil Return, Copper Washer
[Compatible E/G model] 1JZ-GTE VVT-i engine equipped vehicle
Year: 96.09-04.11
TRUST CODE: 11510097
