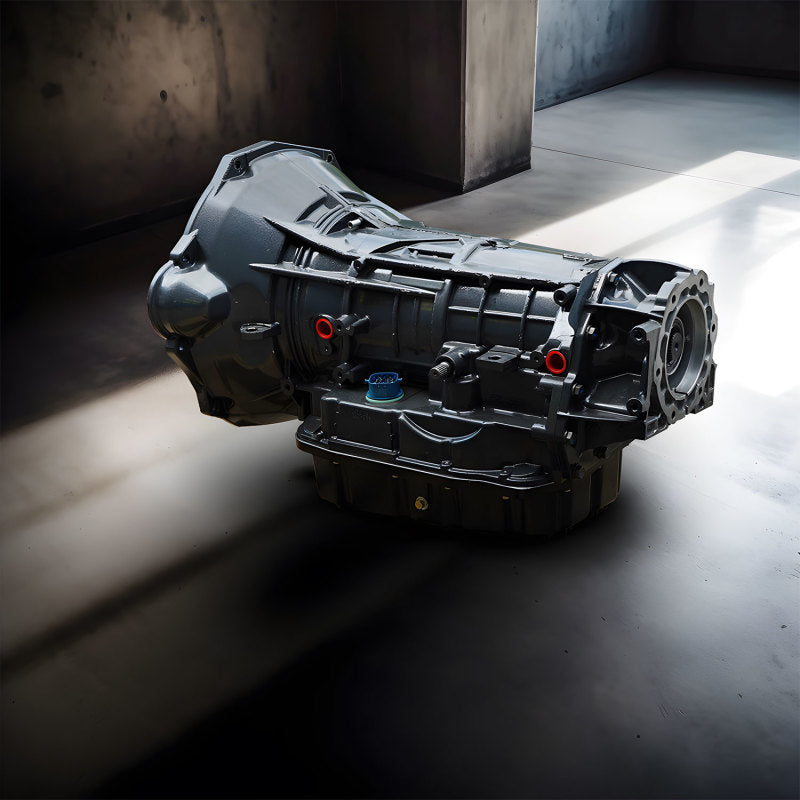

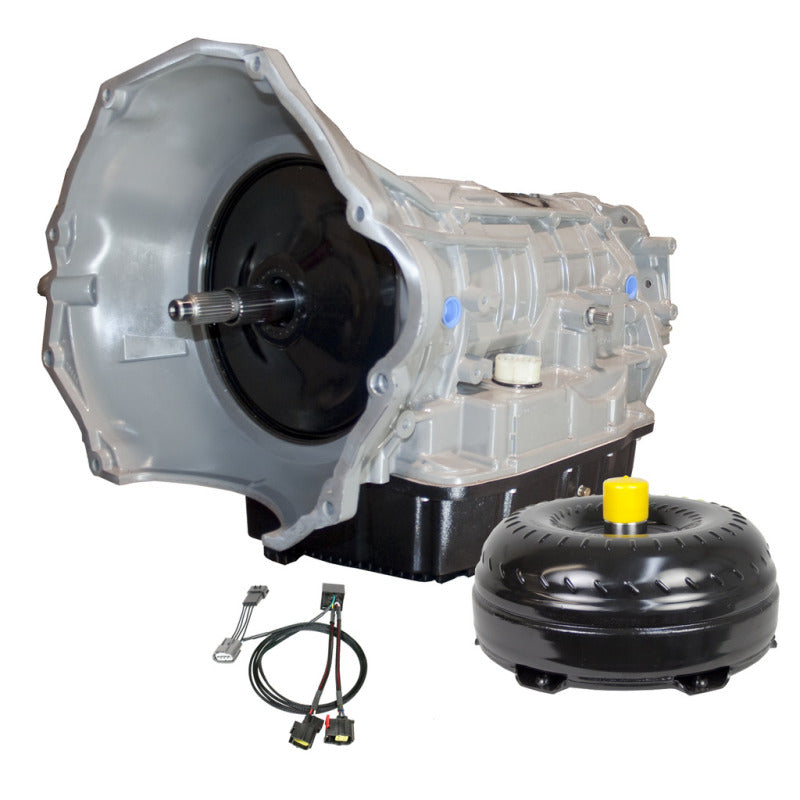

BD Diesel Transmission & ProForce Converter Package - Dodge 2007.5-2018 4wd

BD Dodge 68RFE Transmission & ProForce Converter Package - Dodge 2007.5-2018 4wd

TRANSMISSION:

Hard anodized valve body and new solenoid pack installed in every unit

Custom valve body separator plate with gaskets increases line pressure while stopping internal cross leaks

Heavy duty cam & roller design low reverse one way clutch

New 4C billet spring retainer

Steel girdle added to 2C piston to allow for more clutches and broader apply area

BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum

Over Drive clutches 33% increase & 2C clutches 33% increase

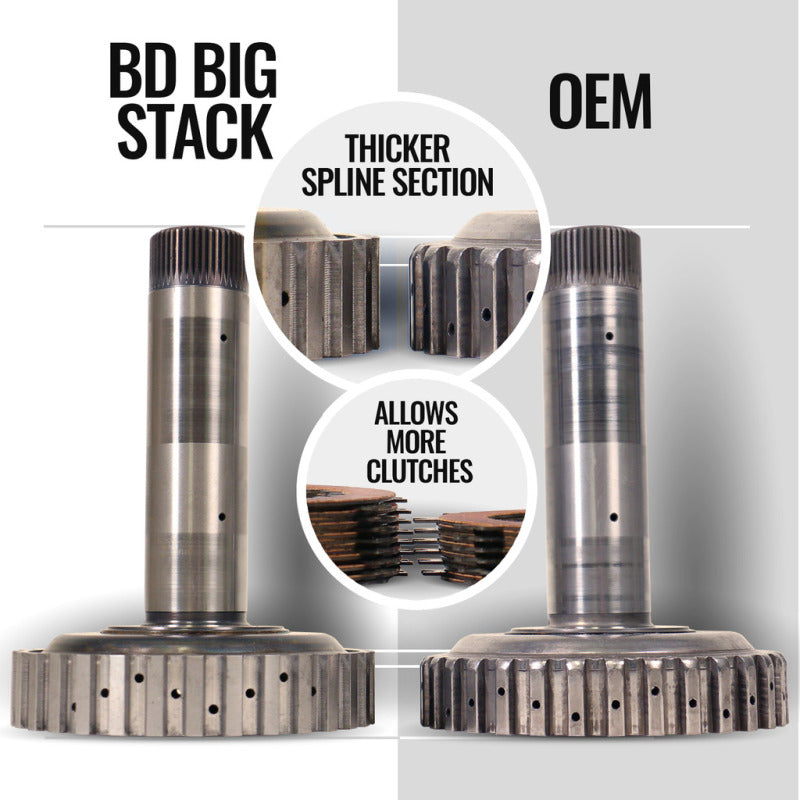

Custom Big Stack overdrive shaft

BD reinforced accumulator plate

TCC limit valve machined and sleeved to address high wear area with in pump

BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex

BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required

PROFORCE CONVERTER:

Good for 550 flywheel HP

Ideal replacement for stock torque converter

High performance Enhanced stall stator

Great for street and towing applications

Lower rpm response than the stock converter

Furnaced brazed turbine fins for improved fluid coupling efficiency

Damper springs replaced

11.625 inch dual-clutch

Billet forged front cover with thicker walls and stronger mounting pads

Applications:

• Dodge Ram 2500/Ram 3500 6.7 2007, 2008, 2009, 2010
• Ram 2500/3500 6.7 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018

Vehicle Fitments:
