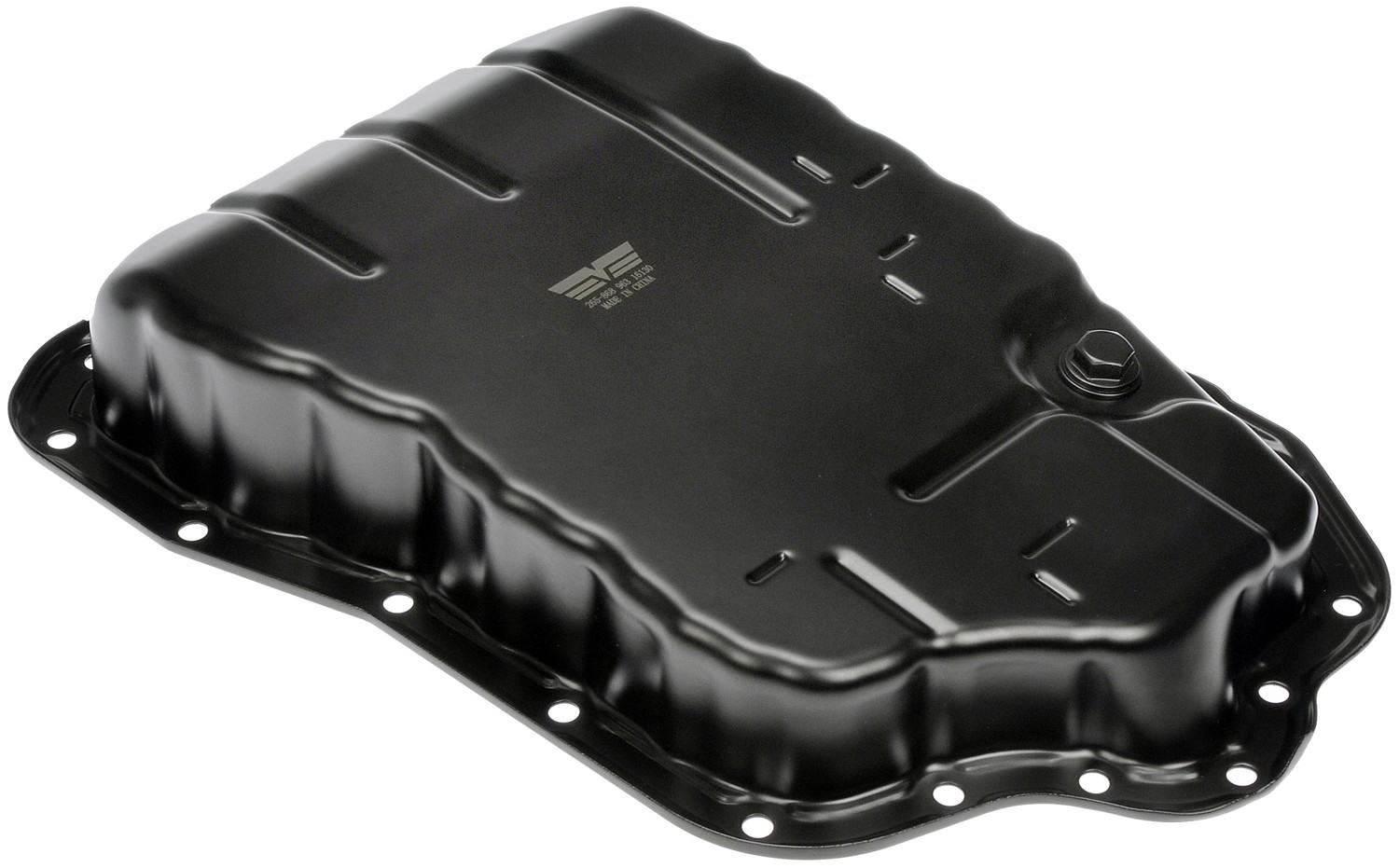

Dorman Transmission Pan With Drain Plug
Application Summary: Scion tC 2016-11, Toyota Camry 2016-10, Toyota Highlander 2013-10, Toyota Sienna 2013-11
Need an inexpensive, high-quality replacement for a cracked or rusted transmission oil pan? Our competitively priced solutions not only get the job done but also include a drain plug for easy servicing by both service technicians and vehicle owners.
" Inexpensive, high-quality replacement for leaking transmission oil pan
" Steel construction and powder-coated finish ensures added corrosion resistance and a longer service life
" Critical to car function by storing transmission fluid to keep transmission running cooler
" This part has undergone vehicle try-on testing to meet product standards and quality
Product Specifications
Bolt Hole Quantity: 19
Color/Finish: Black
Depth: 2.5 In.
Dipstick Port: No
Drain Plug Included: Yes
Drain Plug Type: Threaded
Gasket Configuration: One Piece
Gasket or Seal Included: No
Grade Type: Regular
Installation Hardware Included: No
Length (In): 14.10 In.
Oil Cooler Return Fitting: No
Package Contents: Transmission Pan
Package Quantity: 1
Packaging Type: Box
Transmission Filter Extension Included: No
Transmission Filter Included: No
Transmission Pan Capacity Increase (Qts): 0
Transmission Pan Material: Steel
Transmission Pan Style/Type: Standard
Transmission Plug Included: Yes
Transmission Temperature Sending Bung Included: No
Transmission Type: Automatic
Width (in): 9.60 In.
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
2011 - 2016 | Scion | tC | Base |
2014 - 2016 | Toyota | Camry | Hybrid SE |
2012 - 2016 | Toyota | Camry | Hybrid XLE, Hybrid LE |
2010 - 2011 | Toyota | Camry | Hybrid, Base |
2012 - 2014 | Toyota | Camry | L |
2014 | Toyota | Camry | SE Sport |
2010 - 2016 | Toyota | Camry | SE, LE, XLE |
2016 | Toyota | Camry | Special Edition |
2015 - 2016 | Toyota | Camry | XSE |
2010 - 2013 | Toyota | Highlander | Base, Hybrid, Hybrid Limited, SE, Base Premium, Limited, Sport Premium |
2013 | Toyota | Highlander | Plus |
2010 | Toyota | Highlander | Sport |
2011 - 2013 | Toyota | Sienna | Base, SE, XLE, CE, LE, Limited |
2013 | Toyota | Sienna | L |
