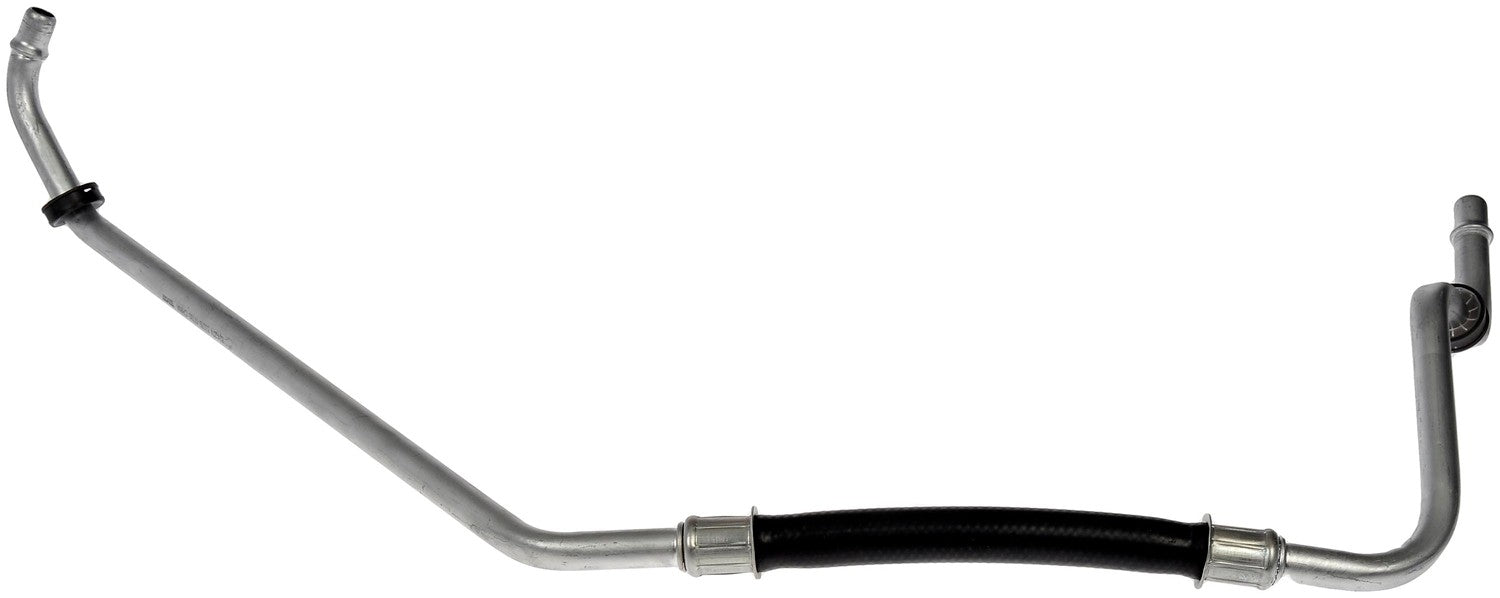

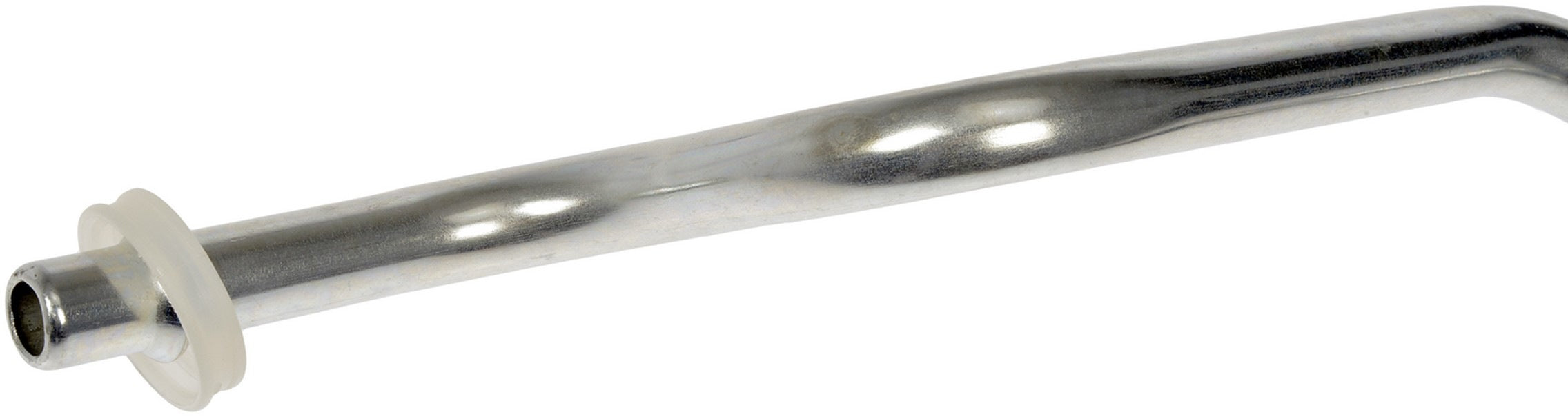

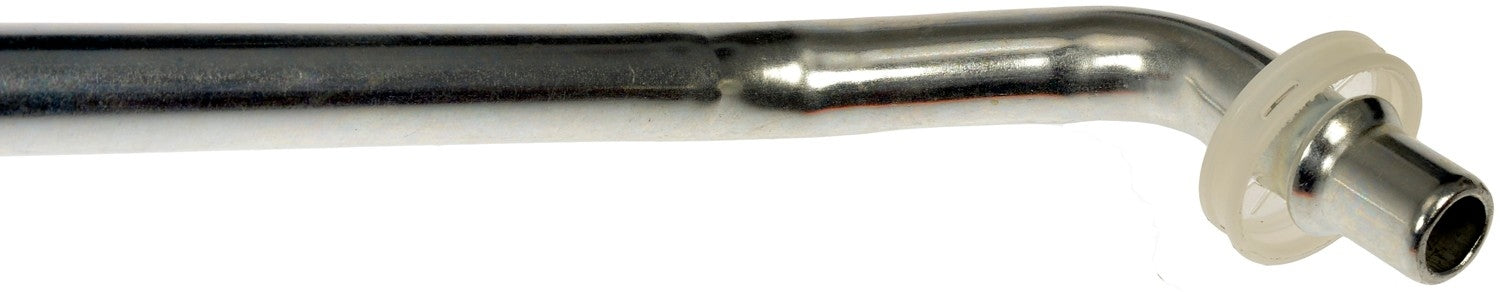

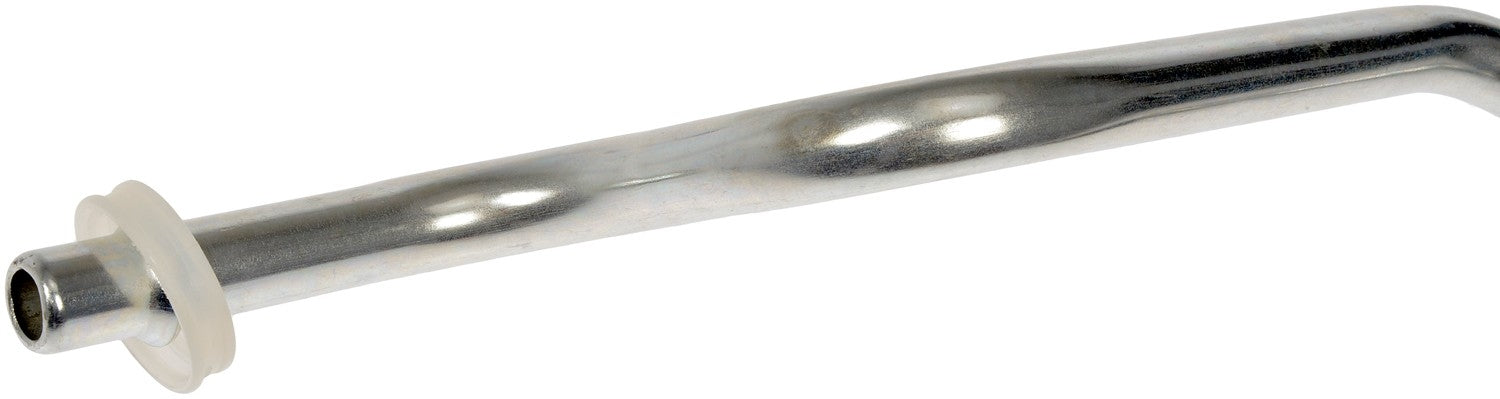

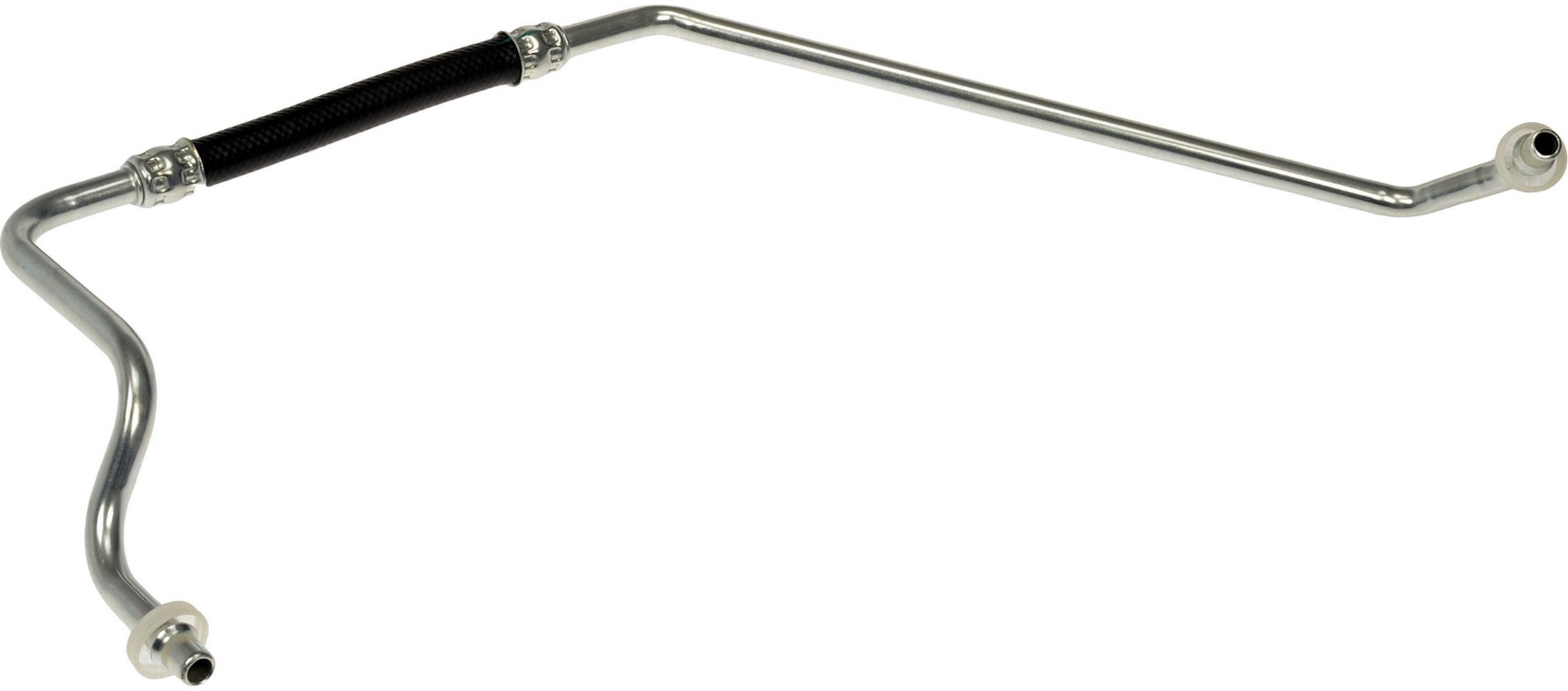

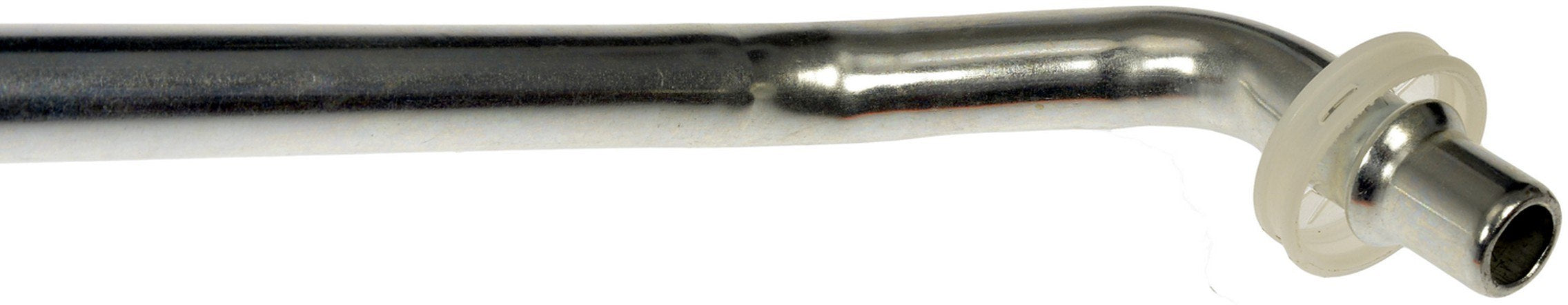

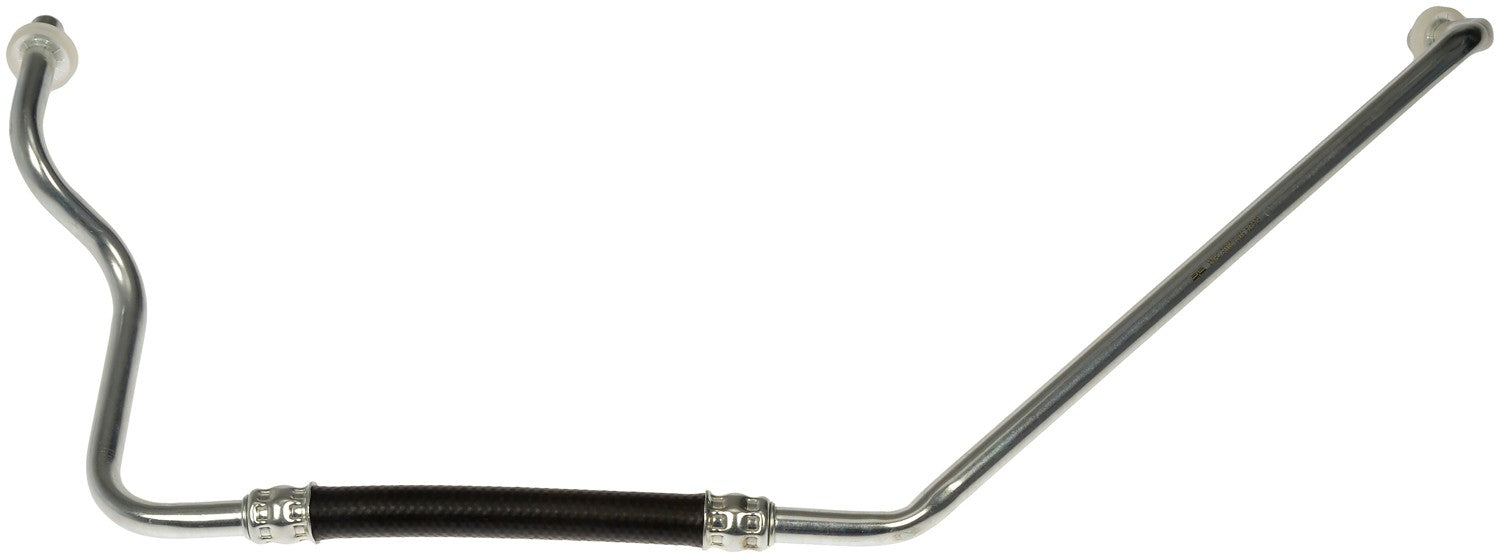

Dorman Transmission Oil Cooler Line
Application Summary: Chevrolet 2005-03, GMC 2005-03
This Automatic Transmission Oil Cooler Hose is constructed of quality metal and rubber components to ensure leak-free delivery of critical fluid between the transmission and the transmission oil cooler. Vehicle-specific application for a perfect fit.
- Quality construction - manufactured from metal and rubber with OE-style fittings
- Direct replacement - fits and functions like original equipment for a trouble-free installation
- Excellent value - OE quality at a lower price
- Vehicle tested - has undergone testing to ensure quality, proper fit and performance
Product Specifications
Color/Finish: NaturalColor/Finish: Natural
Contains Spring: No
End Inside Diameter: 13.4 mm
Fitting Included: No
Flexible: Yes
Gasket or Seal Included: No
Hose Attachment End 1: None
Hose Attachment End 2: None
Hose Material: Metal; Rubber
Hose Overall Length (In): 29.5 in
Hose Shape: Straight
Hose/Line Maximum Pressure (psi): 100 PS
Maximum Operating Temperature (°F): 329 Deg. F.
Minimum Operating Temperature (°F): -40 Deg. F.
Package Contents: 1 Transmission Oil Cooler Line
Package Quantity: 1
Packaging Type: Bag
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2003 - 2005 | Chevrolet | Silverado 2500 HD | LT, WT, Base, LS |
| 2003 - 2005 | Chevrolet | Silverado 3500 | LT, LS, Base |
| 2004 | Chevrolet | Silverado 3500 | WT |
| 2003 - 2005 | GMC | Sierra 2500 HD | Base, WT, SLE, SLT |
| 2003 - 2005 | GMC | Sierra 3500 | SLT, SLE, Base |
| 2004 - 2005 | GMC | Sierra 3500 | WT |
