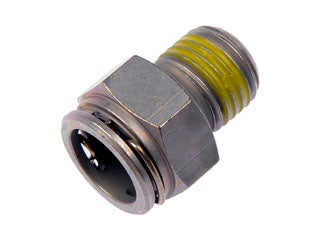

Dorman Transmission Oil Cooler Connector
Dorman's Auto Trans Oil Cooler Line Connectors are constructed from high-quality materials to provide a leak-free connection between transmission lines or between the radiator and the transmission. Replacement restores the radiator to proper operation.
- Direct replacement for a proper fit (where applicable)
- Retaining clips included (where applicable)
- Thread-sealant pre-applied for a secure connection (where applicable)
- Rigorous pressure testing has been undertaken to ensure that this part conforms to product standards
Specifications
End Outside Diameter: 0.68 In.
End Type: External Profile; Internal Profile
Fitting Angle: Straight
Fitting Attachment End Type 1: Quick Disconnect
Fitting Attachment End Type 2: Male Thread
Fitting Size End 1 (in): 0.375 In.
Fitting Size End 2 (in): 1/4-18 In. Thread
Material: Steel
Mounting Hardware Included: Not Required
Package Contents: Transmission Line Connector
Packaging Type: Clamshell
Thread Length: 1.0 In.
Thread Sealer Present: Yes
Package Quantity: 1
Application Summary
General Motors 2008-96, Isuzu 2003-97
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2000 - 2004 | Buick | Century | Limited, Custom |
| 2000 - 2004 | Buick | LeSabre | Custom, Limited |
| 2000 - 2004 | Buick | Park Avenue | Base, Ultra |
| 2004 - 2007 | Buick | Rainier | CXL |
| 2004 - 2005 | Buick | Rainier | CXL Plus |
| 2000 | Buick | Regal | GSE, LSE |
| 2000 - 2004 | Buick | Regal | LS, GS |
| 2002 - 2004 | Buick | Rendezvous | CX, CXL |
| 2002 - 2003 | Buick | Rendezvous | CXL Plus, CX Plus |
| 2004 | Buick | Rendezvous | Ultra |
| 1999 - 2006 | Cadillac | Escalade | Base |
| 2003 - 2006 | Cadillac | Escalade ESV | Base |
| 2002 - 2006 | Cadillac | Escalade EXT | Base |
| 1996 - 2005 | Chevrolet | Astro | Base, LS, LT |
| 2007 - 2008 | Chevrolet | Avalanche | LTZ, LS, LT, Base |
| 2002 - 2006 | Chevrolet | Avalanche 1500 | Base, LS, Z71, LT |
| 2002 - 2003 | Chevrolet | Avalanche 1500 | North Face, On Road Edition |
| 2003 | Chevrolet | Avalanche 1500 | WBH |
| 2004 - 2006 | Chevrolet | Avalanche 1500 | Z66 |
| 2002 - 2004 | Chevrolet | Avalanche 2500 | Base |
| 2005 | Chevrolet | Avalanche 2500 | LS, LT |
| 1996 - 2005 | Chevrolet | Blazer | Base |
| 1996 - 1997 | Chevrolet | Blazer | Deluxe |
| 1996 - 2004 | Chevrolet | Blazer | LS |
| 1996 - 2002 | Chevrolet | Blazer | LT |
| 2002 | Chevrolet | Blazer | LTZ |
| 1999 - 2001 | Chevrolet | Blazer | Trailblazer |
| 2001 - 2005 | Chevrolet | Blazer | Xtreme |
| 2003 - 2005 | Chevrolet | Blazer | ZR2 |
| 1996 - 1997 | Chevrolet | C1500 | Base |
| 1999 | Chevrolet | C1500 | LS |
| 1996 - 1998 | Chevrolet | C1500 | WT, Silverado, Cheyenne |
| 1996 - 1999 | Chevrolet | C1500 Suburban | LS, Base, LT |
| 1996 - 1999 | Chevrolet | C2500 Suburban | Base, LS |
| 1996 - 1997 | Chevrolet | C2500 Suburban | LT |
| 1996 - 2000 | Chevrolet | C3500 | Base |
| 1999 - 2000 | Chevrolet | C3500 | LS |
| 1996 - 1998 | Chevrolet | C3500 | Silverado, Cheyenne |
| 1996 - 2002 | Chevrolet | C3500HD | Base |
| 1998 | Chevrolet | Camaro | Lujo |
| 1998 - 2002 | Chevrolet | Camaro | Z28, Base, Z28 SS |
| 2004 - 2008 | Chevrolet | Colorado | Base, LS |
| 2006 - 2008 | Chevrolet | Colorado | WT, LT |
| 2004 - 2005 | Chevrolet | Colorado | Z85 LS, Sport LS, Sport, Z71, Z71 LS, Z85 |
| 2004 - 2005 | Chevrolet | Corvette | Base |
| 2004 | Chevrolet | Corvette | Z06 |
| 1996 - 2008 | Chevrolet | Express 1500 | LS, Base |
| 2001 - 2008 | Chevrolet | Express 1500 | LT |
| 1996 - 2008 | Chevrolet | Express 2500 | LS, Base |
| 2006 - 2008 | Chevrolet | Express 2500 | LT |
| 1996 - 2008 | Chevrolet | Express 3500 | LS, Base |
| 2006 - 2008 | Chevrolet | Express 3500 | LT |
| 2000 - 2004 | Chevrolet | Impala | Base, LS |
| 2003 | Chevrolet | Impala | LS Sport |
| 2003 - 2004 | Chevrolet | Impala | Police |
| 2004 | Chevrolet | Impala | SS |
| 1996 - 1997 | Chevrolet | K1500 | Base |
| 1996 - 1998 | Chevrolet | K1500 | Cheyenne, Silverado, WT |
| 1999 | Chevrolet | K1500 | LS |
| 1996 - 1999 | Chevrolet | K1500 Suburban | LS, LT, Base |
| 1996 - 1999 | Chevrolet | K2500 Suburban | Base, LS |
| 1996 - 1997 | Chevrolet | K2500 Suburban | LT |
| 1996 - 2000 | Chevrolet | K3500 | Base |
| 1999 - 2000 | Chevrolet | K3500 | LS |
| 1996 - 1998 | Chevrolet | K3500 | Silverado, Cheyenne |
| 2000 - 2001 | Chevrolet | Lumina | Base |
| 2002 | Chevrolet | Monte Carlo | SS 35th Anniversary Edition, SS Dale Earnhardt Signature Edition |
| 2003 | Chevrolet | Monte Carlo | SS Pace Car, LS Sport, LS Competition, SS High Sport |
| 2000 - 2004 | Chevrolet | Monte Carlo | SS, LS |
| 1998 - 1999 | Chevrolet | P30 | Base |
| 1996 - 2003 | Chevrolet | S10 | Base, ZR2 |
| 1996 - 2004 | Chevrolet | S10 | LS |
| 1996 - 1998 | Chevrolet | S10 | SS |
| 1999 - 2003 | Chevrolet | S10 | Xtreme |
| 2002 - 2004 | Chevrolet | S10 | ZR5 |
| 2002 | Chevrolet | Silverado 1500 | Custom |
| 2004 - 2006 | Chevrolet | Silverado 1500 | Hybrid |
| 1999 - 2008 | Chevrolet | Silverado 1500 | LS, LT, Base |
| 2007 - 2008 | Chevrolet | Silverado 1500 | LTZ |
| 2003 - 2006 | Chevrolet | Silverado 1500 | SS |
| 2002 - 2008 | Chevrolet | Silverado 1500 | WT |
| 2004 | Chevrolet | Silverado 1500 | Z71 |
| 2007 | Chevrolet | Silverado 1500 Classic | SS, WT, Hybrid, LT, LS |
| 2005 | Chevrolet | Silverado 1500 HD | Base |
| 2001 - 2005 | Chevrolet | Silverado 1500 HD | LS |
| 2001 - 2006 | Chevrolet | Silverado 1500 HD | LT |
| 2007 | Chevrolet | Silverado 1500 HD Classic | LT |
| 2003 - 2004 | Chevrolet | Silverado 2500 | 400 SS |
| 2001 - 2002 | Chevrolet | Silverado 2500 | Custom, Cheyenne |
| 1999 - 2004 | Chevrolet | Silverado 2500 | LS, Base, LT |
| 2004 | Chevrolet | Silverado 2500 | WT |
| 2001 - 2005 | Chevrolet | Silverado 2500 HD | Base |
| 2001 - 2006 | Chevrolet | Silverado 2500 HD | LS |
| 2001 - 2008 | Chevrolet | Silverado 2500 HD | LT |
| 2007 - 2008 | Chevrolet | Silverado 2500 HD | LTZ |
| 2003 - 2008 | Chevrolet | Silverado 2500 HD | WT |
| 2007 | Chevrolet | Silverado 2500 HD Classic | WT, LS, LT |
| 2001 - 2006 | Chevrolet | Silverado 3500 | Base, LS, LT |
| 2006 | Chevrolet | Silverado 3500 | HD |
| 2004 - 2006 | Chevrolet | Silverado 3500 | WT |
| 2007 | Chevrolet | Silverado 3500 Classic | WT, LT, LS |
| 2004 - 2006 | Chevrolet | SSR | Base |
| 2000 - 2008 | Chevrolet | Suburban 1500 | LS, Base, LT |
| 2006 - 2008 | Chevrolet | Suburban 1500 | LTZ |
| 2004 - 2007 | Chevrolet | Suburban 1500 | Z71 |
| 2000 - 2001 | Chevrolet | Suburban 2500 | Base |
| 2000 - 2007 | Chevrolet | Suburban 2500 | LS, LT |
| 2007 | Chevrolet | Suburban 2500 | LTZ |
| 2008 | Chevrolet | Tahoe | Hybrid |
| 2000 | Chevrolet | Tahoe | Limited |
| 1996 - 2008 | Chevrolet | Tahoe | LT, Base, LS |
| 2007 - 2008 | Chevrolet | Tahoe | LTZ |
| 2000 - 2008 | Chevrolet | Tahoe | Z71 |
| 2004 - 2007 | Chevrolet | Trailblazer | B, A |
| 2003 - 2007 | Chevrolet | Trailblazer | Base |
| 2002 - 2007 | Chevrolet | Trailblazer | LS, LT |
| 2002 - 2003 | Chevrolet | Trailblazer | LTZ |
| 2002 - 2004 | Chevrolet | Trailblazer | North Face |
| 2005 | Chevrolet | Trailblazer | Q, R |
| 2006 - 2007 | Chevrolet | Trailblazer | SS |
| 2003 - 2006 | Chevrolet | Trailblazer EXT | LS |
| 2002 - 2006 | Chevrolet | Trailblazer EXT | LT |
| 2002 - 2004 | Chevrolet | Trailblazer EXT | North Face |
| 2000 - 2004 | Chevrolet | Venture | LT, Base, LS, Plus |
| 2000 - 2003 | Chevrolet | Venture | Warner Bros., Value |
| 1997 - 2003 | Chevrolet | W3500 Tiltmaster | W3S042 |
| 1997 - 2003 | Chevrolet | W4500 Tiltmaster | W4S042 |
| 1997 | GMC | C1500 | Sierra GT |
| 1996 - 1999 | GMC | C1500 | Sierra SLT, Sierra SL, Sierra SLE |
| 1996 - 1998 | GMC | C1500 | Sierra Special |
| 1996 - 1999 | GMC | C1500 Suburban | SLT, Base, SLE |
| 1996 - 1999 | GMC | C2500 Suburban | SLT, Base, SLE |
| 1996 - 2000 | GMC | C3500 | Sierra SLT, Sierra SLE, Sierra SL |
| 1996 - 2002 | GMC | C3500HD | Base |
| 2007 - 2008 | GMC | Canyon | Base |
| 2004 - 2008 | GMC | Canyon | SL, SLE |
| 2006 - 2008 | GMC | Canyon | WT, SLT |
| 2004 - 2005 | GMC | Canyon | Z71 Fleet, Z71 SLE, Z85 SLE, Z71 SL, Z85 SL |
| 2005 - 2007 | GMC | Envoy | Denali |
| 2002 - 2007 | GMC | Envoy | SLE, SLT |
| 2005 - 2006 | GMC | Envoy XL | Denali |
| 2003 - 2006 | GMC | Envoy XL | SLT, SLE |
| 2004 - 2005 | GMC | Envoy XUV | SLT, SLE |
| 1996 - 2005 | GMC | Jimmy | Base, SLS |
| 2000 - 2001 | GMC | Jimmy | Diamond Edition |
| 1998 - 2000 | GMC | Jimmy | Envoy |
| 1996 - 2001 | GMC | Jimmy | SL, SLT, SLE |
| 1996 - 1999 | GMC | K1500 | Sierra SL, Sierra SLE, Sierra SLT |
| 1996 - 1998 | GMC | K1500 | Sierra Special |
| 1996 - 1999 | GMC | K1500 Suburban | SLT, Base, SLE |
| 1996 - 1999 | GMC | K2500 Suburban | SLT, SLE, Base |
| 1996 - 2000 | GMC | K3500 | Sierra SL, Sierra SLT, Sierra SLE |
| 1998 - 1999 | GMC | P3500 | Base |
| 1996 - 2005 | GMC | Safari | Base, SLT, SLE |
| 1996 - 2002 | GMC | Safari | SL |
| 1996 - 1998 | GMC | Safari | SLX |
| 1996 - 2008 | GMC | Savana 1500 | Base |
| 2006 - 2008 | GMC | Savana 1500 | LS, LT |
| 1996 - 2005 | GMC | Savana 1500 | SLE |
| 2001 - 2002 | GMC | Savana 1500 | SLT |
| 1996 - 2008 | GMC | Savana 2500 | Base |
| 2007 - 2008 | GMC | Savana 2500 | LT, LS |
| 1996 - 2005 | GMC | Savana 2500 | SLE |
| 2001 - 2002 | GMC | Savana 2500 | SLT |
| 1996 - 2008 | GMC | Savana 3500 | Base |
| 2006 - 2008 | GMC | Savana 3500 | LS, LT |
| 1996 - 2005 | GMC | Savana 3500 | SLE |
| 2001 - 2002 | GMC | Savana 3500 | SLT |
| 2002 - 2005 | GMC | Sierra 1500 | Base |
| 2001 | GMC | Sierra 1500 | C3 |
| 2002 | GMC | Sierra 1500 | HT |
| 2005 - 2006 | GMC | Sierra 1500 | Hybrid |
| 1999 - 2008 | GMC | Sierra 1500 | SLE, SLT, SL |
| 2002 - 2008 | GMC | Sierra 1500 | WT, Denali |
| 2007 | GMC | Sierra 1500 Classic | SLE, Hybrid, Denali, SLT, WT, SL |
| 2001 - 2006 | GMC | Sierra 1500 HD | SLE, SLT |
| 2007 | GMC | Sierra 1500 HD Classic | SLE, SLT |
| 2002 - 2004 | GMC | Sierra 2500 | Base |
| 1999 - 2002 | GMC | Sierra 2500 | SL |
| 1999 - 2004 | GMC | Sierra 2500 | SLE, SLT |
| 2003 - 2004 | GMC | Sierra 2500 | WT |
| 2002 - 2005 | GMC | Sierra 2500 HD | Base |
| 2001 - 2006 | GMC | Sierra 2500 HD | SL |
| 2001 - 2008 | GMC | Sierra 2500 HD | SLE, SLT |
| 2003 - 2008 | GMC | Sierra 2500 HD | WT |
| 2007 | GMC | Sierra 2500 HD Classic | WT, SL, SLE, SLT |
| 2002 - 2005 | GMC | Sierra 3500 | Base |
| 2001 - 2006 | GMC | Sierra 3500 | SLT, SL, SLE |
| 2004 - 2006 | GMC | Sierra 3500 | WT |
| 2007 | GMC | Sierra 3500 Classic | WT, SL, SLT, SLE |
| 1996 - 2001 | GMC | Sonoma | SLE |
| 1996 - 2004 | GMC | Sonoma | SLS, SL |
| 1997 - 2003 | GMC | W3500 Forward | W3S042 |
| 1998 - 2003 | GMC | W4500 Forward | W4S042 |
| 2007 - 2008 | GMC | Yukon | Base |
| 1999 - 2008 | GMC | Yukon | Denali |
| 2008 | GMC | Yukon | Hybrid |
| 1996 - 2006 | GMC | Yukon | SL |
| 1996 - 2008 | GMC | Yukon | SLT, SLE |
| 2001 - 2008 | GMC | Yukon XL 1500 | Denali |
| 2006 | GMC | Yukon XL 1500 | SL |
| 2000 - 2008 | GMC | Yukon XL 1500 | SLE, SLT |
| 2000 - 2007 | GMC | Yukon XL 2500 | SLE, SLT |
| 2003 - 2007 | Hummer | H2 | Base |
| 2005 - 2007 | Hummer | H2 | Luxury, Adventure |
| 2007 | Hummer | H2 | Special Edition |
| 2008 | Hummer | H3 | Alpha |
| 2007 - 2008 | Hummer | H3 | Luxury, Base, Adventure, X |
| 1997 - 2003 | Isuzu | NPR | Base |
| 1999 - 2003 | Isuzu | NPR-HD | Base |
| 2001 - 2002 | Oldsmobile | Aurora | Base |
| 1996 - 2004 | Oldsmobile | Bravada | Base |
| 2000 - 2002 | Oldsmobile | Intrigue | GL, GX, GLS |
| 2000 - 2004 | Oldsmobile | Silhouette | GL, GLS, Premiere |
| 2001 - 2003 | Pontiac | Aztek | Base |
| 2001 | Pontiac | Aztek | GT |
| 2002 - 2003 | Pontiac | Aztek | V |
| 2004 | Pontiac | Bonneville | GXP |
| 2000 - 2004 | Pontiac | Bonneville | SE, SLE |
| 2000 - 2003 | Pontiac | Bonneville | SSEi |
| 1998 - 2002 | Pontiac | Firebird | Trans Am, Base, Formula |
| 1998 - 2003 | Pontiac | Grand Prix | GT, SE |
| 2004 | Pontiac | Grand Prix | GT2, GT1 |
| 1998 - 2004 | Pontiac | Grand Prix | GTP |
| 2004 - 2006 | Pontiac | GTO | Base |
| 2000 - 2004 | Pontiac | Montana | Base |
| 2002 - 2005 | Workhorse | FasTrack FT1061 | Base |
| 2000 - 2001 | Workhorse | FasTrack FT1260 | Base |
| 2002 - 2005 | Workhorse | FasTrack FT1261 | Base |
| 2000 - 2002 | Workhorse | FasTrack FT1460 | Base |
| 2002 - 2005 | Workhorse | FasTrack FT1461 | Base |
| 2000 - 2001 | Workhorse | FasTrack FT1600 | Base |
| 2002 - 2005 | Workhorse | FasTrack FT1601 | Base |
| 2000 - 2001 | Workhorse | FasTrack FT1800 | Base |
| 2002 - 2005 | Workhorse | FasTrack FT1801 | Base |
| 2002 - 2003 | Workhorse | FasTrack FT1802 | Base |
| 2000 - 2005 | Workhorse | P30 | Base |
| 1999 - 2005 | Workhorse | P32 | Base |
| 1999 - 2005 | Workhorse | P42 | Base |
| 2006 - 2008 | Workhorse | W16 | Base |
| 2006 - 2008 | Workhorse | W18 | Base |
| 2006 - 2008 | Workhorse | W42 | Base |
| 2007 - 2008 | Workhorse | W62 | Base |
| 1999 - 2006 | Workhorse Custom Chassis | P32 | Base |
| 1999 - 2005 | Workhorse Custom Chassis | P42 | Base |
| 2006 | Workhorse Custom Chassis | W18 | Base |
| 2006 - 2008 | Workhorse Custom Chassis | W42 | Base |
Dorman Transmission Oil Cooler Connector
Sale price$21.88 USD
