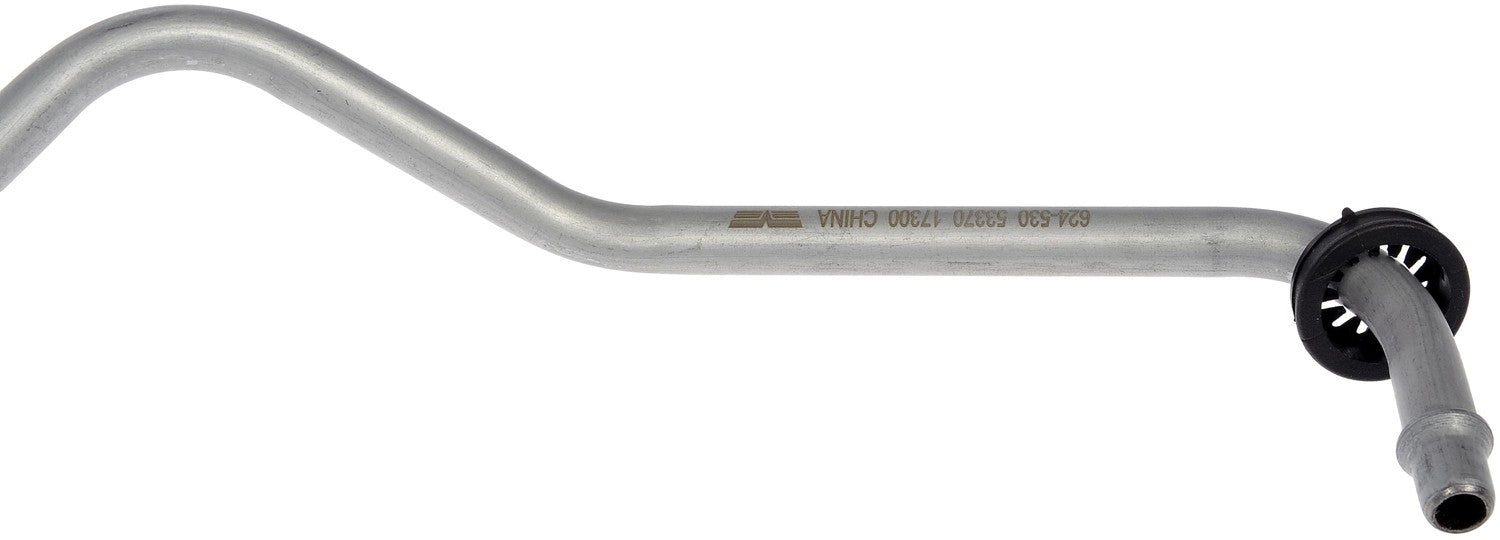

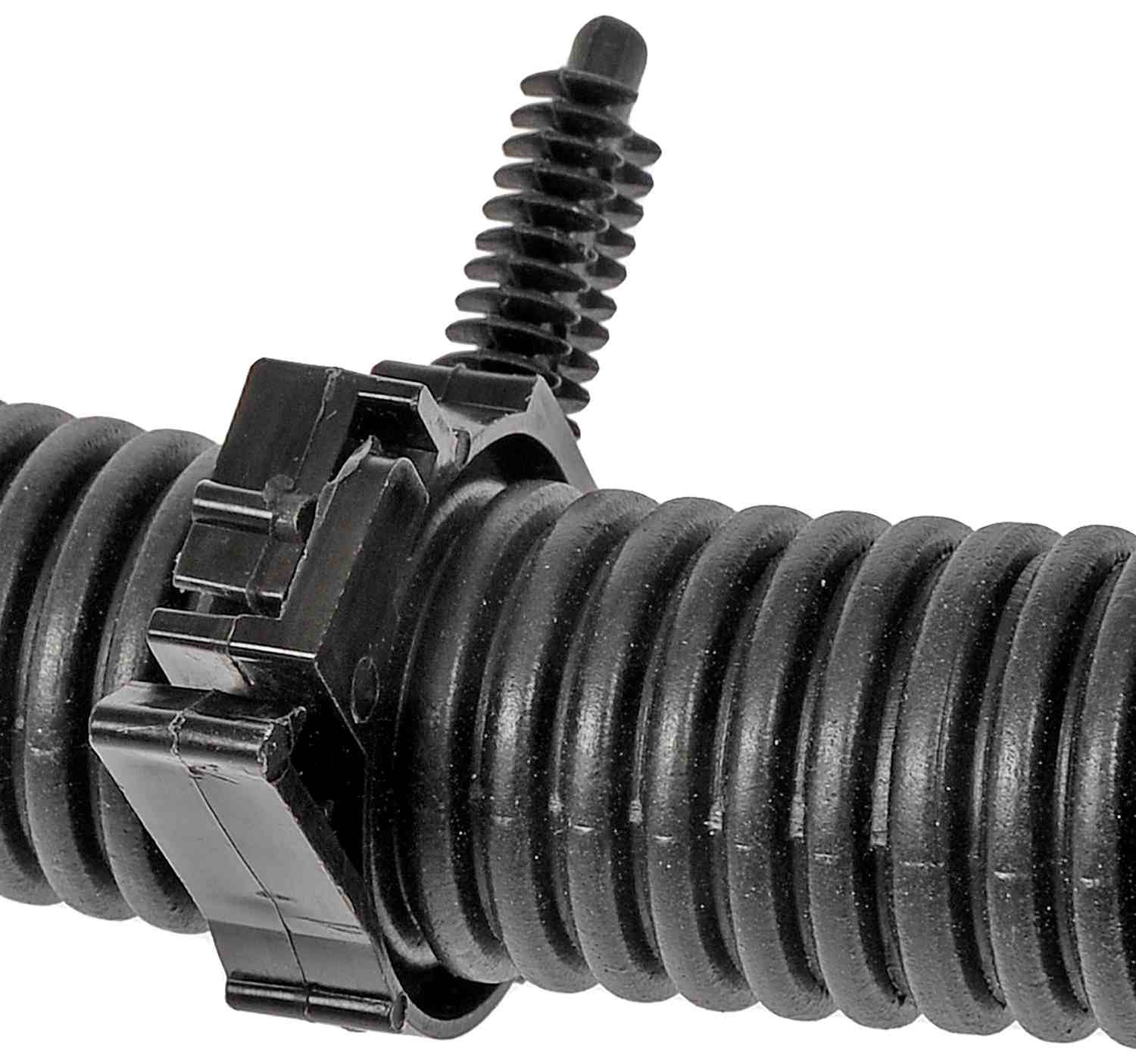

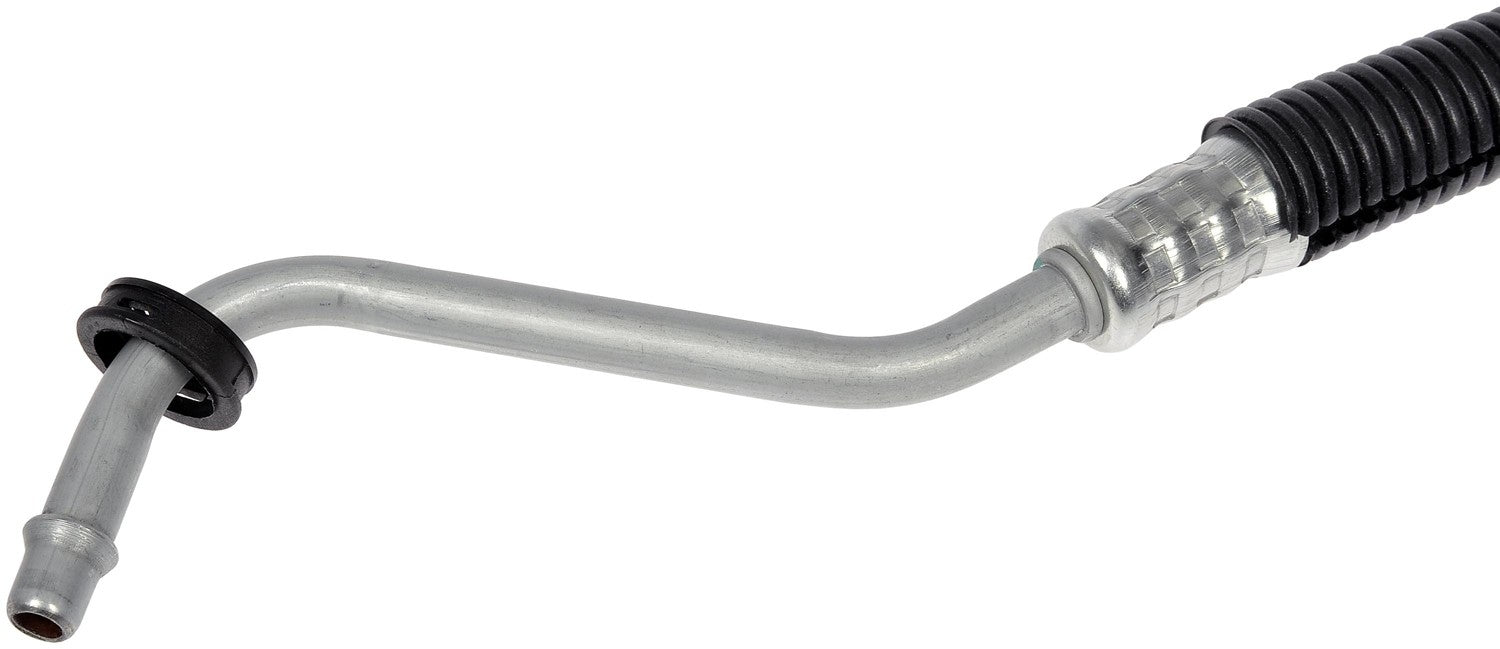

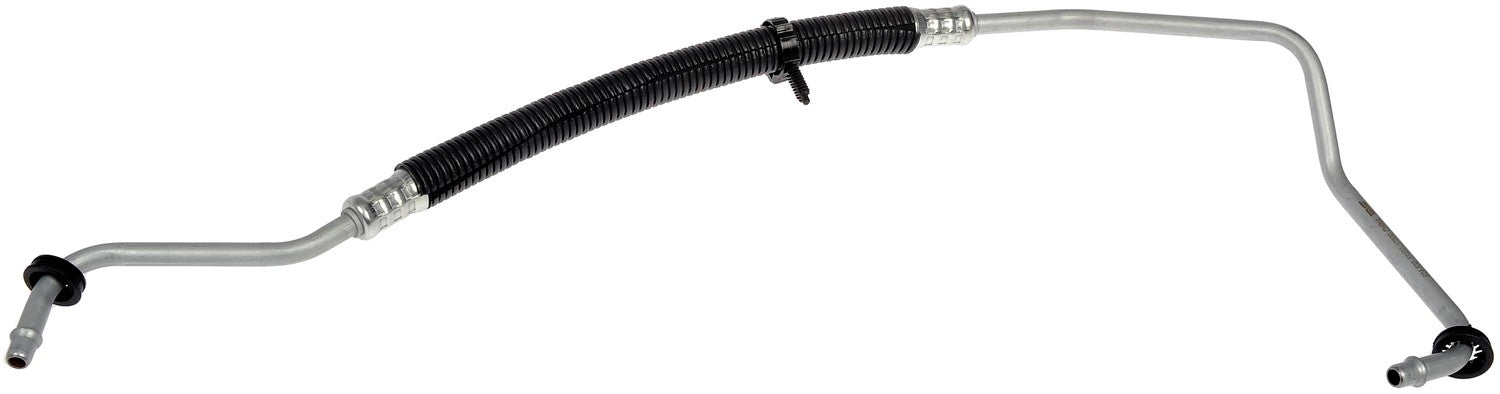

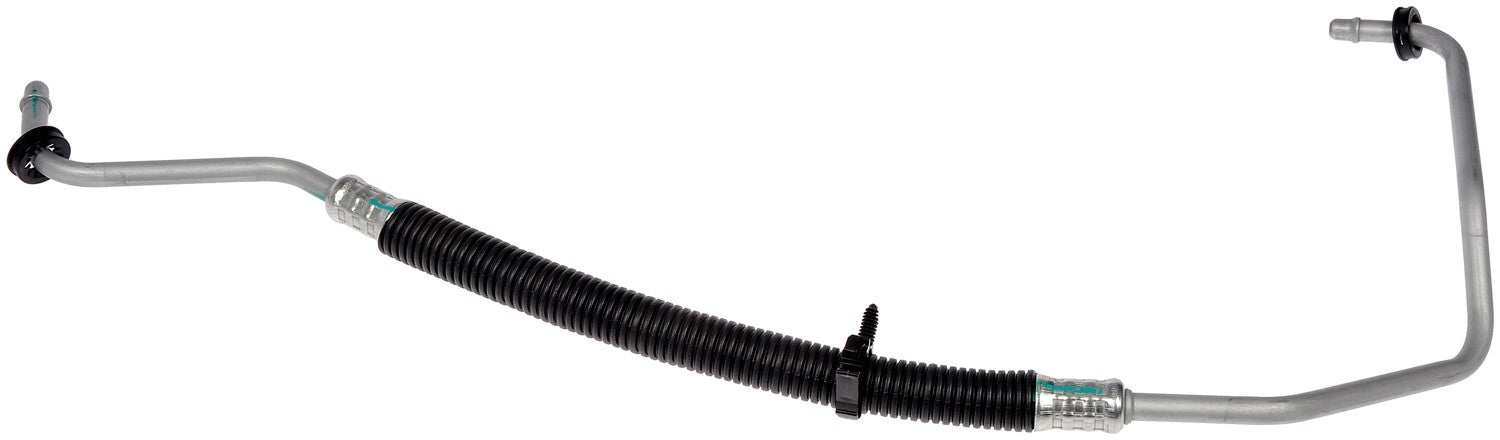

Dorman Transmission Cooler Lines
This Automatic Transmission Oil Cooler Hose is constructed of quality metal and rubber components to ensure leak-free delivery of critical fluid between the transmission and the transmission oil cooler. Vehicle-specific application for a perfect fit.
- Quality construction - manufactured from metal and rubber with OE-style fittings
- Direct replacement - fits and functions like original equipment for a trouble-free installation
- Excellent value - OE quality at a lower price
- Vehicle tested - has undergone testing to ensure quality, proper fit and performance
Specification
Color/Finish: Coated
Contains Spring: No
End Inside Diameter: 7.5 mm
Fitting Included: No
Flexible: Yes
Gasket or Seal Included: No
Hose Attachment End 1: Flange
Hose Attachment End 2: Flange
Hose Material: Metal; Rubber
Hose Overall Length (In): 23.3 In.
Hose Shape: Molded Assembly
Hose/Line Maximum Pressure (psi): 100 PSI
Maximum Operating Temperature (°F): 329 Deg. F.
Minimum Operating Temperature (°F): -40 Deg. F.
Package Contents: 1 Transmission Oil Cooler Line
Package Quantity: 1
Packaging Type: Bag
Application Summary
Chevrolet 2016-06, GMC 2016-06
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2006 - 2016 | Chevrolet | Express 2500 | LT, Base, LS |
| 2006 - 2016 | Chevrolet | Express 3500 | LT, LS, Base |
| 2009 - 2016 | Chevrolet | Express 4500 | Base |
| 2006 - 2016 | GMC | Savana 2500 | Base |
| 2007 - 2016 | GMC | Savana 2500 | LT, LS |
| 2009 - 2013 | GMC | Savana 2500 | SLE, SL |
| 2006 - 2016 | GMC | Savana 3500 | LS, LT, Base |
| 2009 - 2013 | GMC | Savana 3500 | SL, SLE |
| 2009 - 2016 | GMC | Savana 4500 | Base |
