BD Diesel Transmission & Converter Package - Dodge 2007.5-2018 4wd c/w Billet

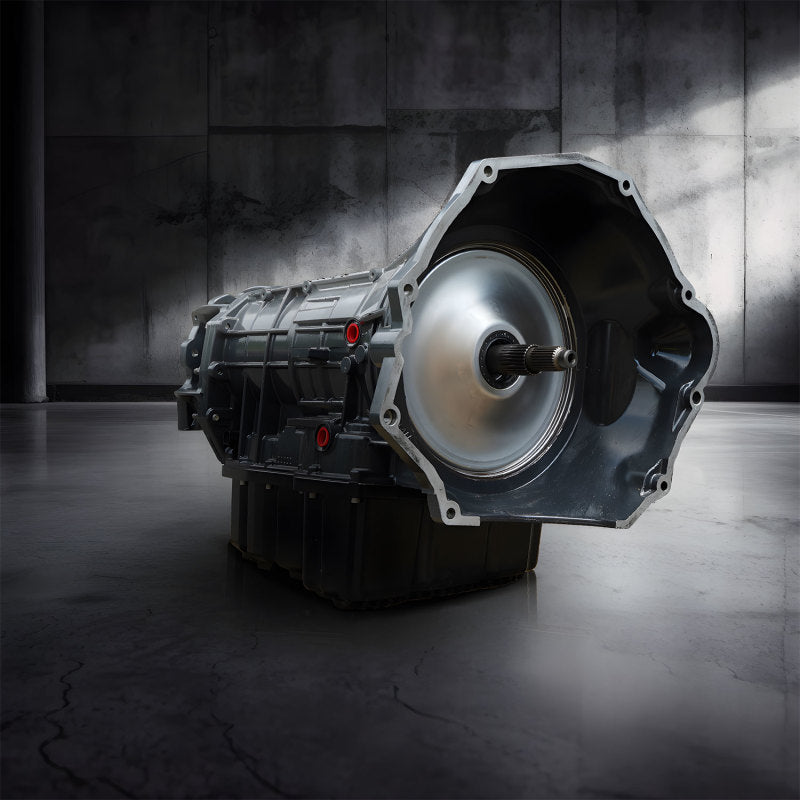

BD Dodge 68RFE Transmission & Converter Package - Dodge 2007.5-2018 4wd c/w Billet Input Shaft

TRANSMISSION:

Hard anodized valve body and new solenoid pack installed in every unit

Custom valve body separator plate with gaskets increases line pressure while stopping internal cross leaks

Heavy duty cam & roller design low reverse one way clutch

New 4C billet spring retainer

Steel girdle added to 2C piston to allow for more clutches and broader apply area

BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum

Over Drive clutches 33% increase & 2C clutches 33% increase

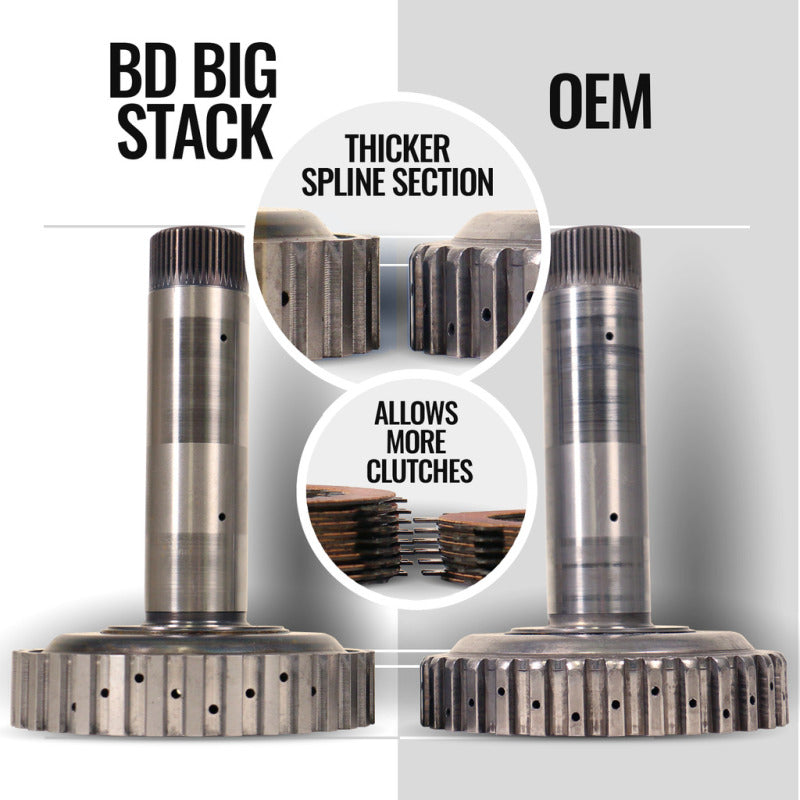

Custom Big Stack overdrive shaft

BD reinforced accumulator plate

TCC limit valve machined and sleeved to address high wear area with in pump

BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex

BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required

Performance Transmission but with the added touch of a Billet Input Shaft to take the "snap" from rapid throttle and high horsepower

TORQUE CONVERTOR:

Triple Disc

Enhanced Stall - Street/Towing applications

HD springs absorb shock of engagement

Stamp forged 1-piece cover

Eliminates warpage from clutch heat

Taller cover can be rebuilt more often

Trapezoid teeth design

Engineered tighter tolerances

Self-centering trapezoid teeth design increases contact decreases wear and chatter

Thrust bearings - not plastic thrust washers

Riveted piston ensures alignment & eliminates vibration or embrittlement from welding

Cast stator designs maximizes torque

New sprag components ensure long term durability

Furnaced brazed turbine fins for improved fluid coupling efficiency

Reduced overall weight by 12lbs compared to competitors

Applications:

• Dodge Ram 2500/Ram 3500 6.7 2007, 2008, 2009
• Ram 2500/3500 6.7 011, 2012, 2013, 2014, 2015, 2016, 2017, 2018

Vehicle Fitments:
