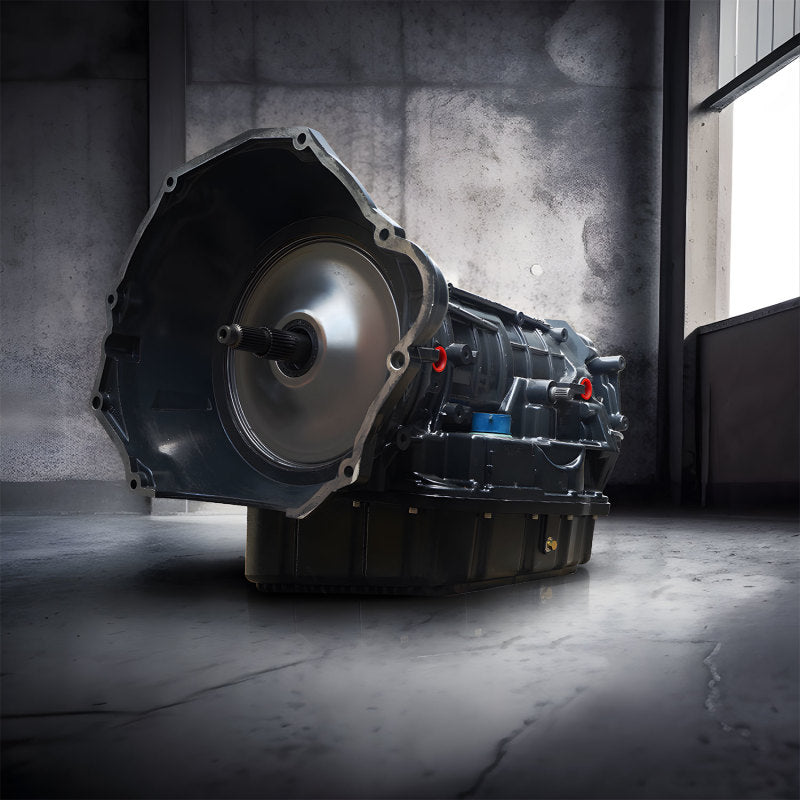

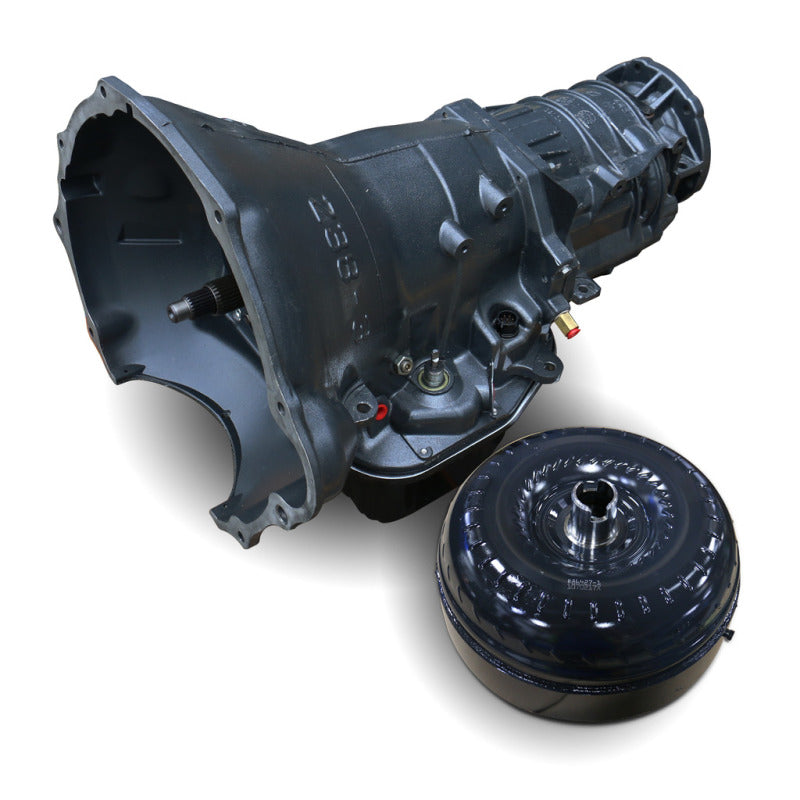

BD Diesel Transmission & Converter Package - 2005-2007 4wd w/TVV Stepper Motor

BD Dodge 48RE Transmission & Converter Package - 2005-2007 4wd w/TVV Stepper Motor - c/w Auxiliary Filter

TRANSMISSION:

Upgraded Valvebody

Upgraded governor solenoid

Upgraded governor pressure transducer (47RE/48RE) - Twice the burst pressure than stock

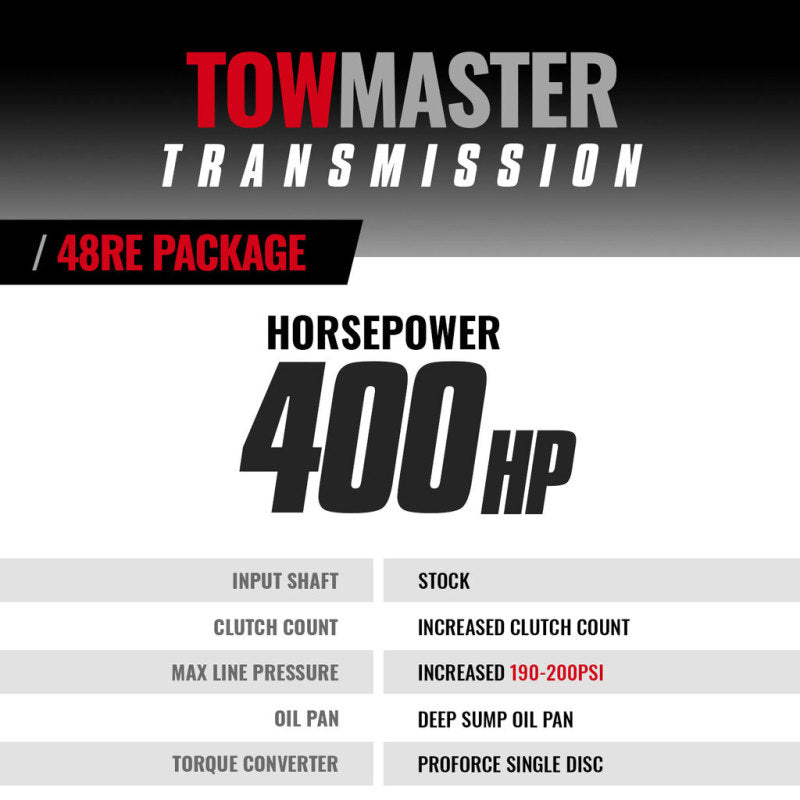

Increased line pressure to 190-200psi

No shuttle shifting problems

Modified manual valve for lube in all positions

Stock thrust bushings replaced with roller Torrington bearings

Clutch Count: DIRECT 6

Clutch Count: FORWARD 5

Clutch Count: OD 6

Clutch Count: OD DIRECT 10

High temp/energy Raybestos band

Billet band lever

Billet band strut

Drilled intermediate shaft for increased lubrication

BD rigid aluminum heavy duty transmission pan

Pan adds 2qt extra oil capacity

Pan heat-dissipating fins keep temperature down

Magnetic drain plug

Increase the durability of your drivetrain

BD auxiliary full flow filter kit for extra protection

Cooler line case saver in every transmission

Every transmission is tested on a dyno

Not warranted for Race or Sled Pull use

TORQUE CONVERTOR:

Enhanced Stall - Street/Towing applications

Torque multiplying cast aluminum stators

Lower rpm response than the stock converter

More efficient operation

Less heat and better fuel economy

Stamp-forged steel front cover

Furnace-brazed fins

Up to triple the amount of lock-up clutch material

Applications:

• Dodge Ram 2500/Ram 3500 5.9 2005, 2006, 2007
