TrakMotive New CV Axle Shaft NI-8593

TrakMotive New CV Axle Shaft NI-8593

Regular price $140.13
Regular price Sale price $140.13
Sale Sold out

Shipping calculated at checkout.

Low stock: 1 left

Quantity

Shipping & returns

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Returns

Need to return an item? Request authorization within 30 days of delivery for eligible unused, uninstalled items. Exclusions and fees apply.

Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.

Read the full return policy
Eligibility, fees and return steps

Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.

Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Do not send a return without authorization.

Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.

After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.

Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.

For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

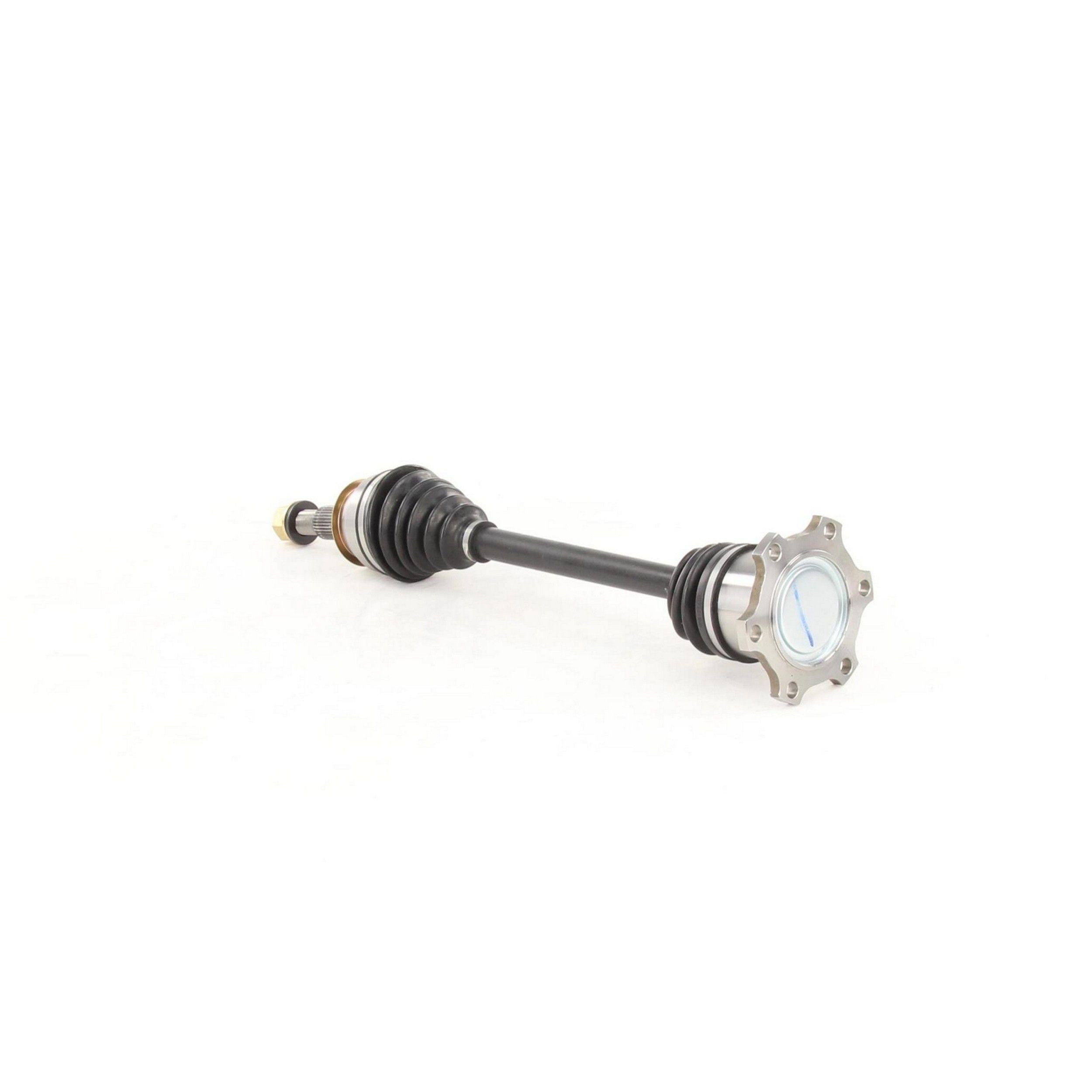

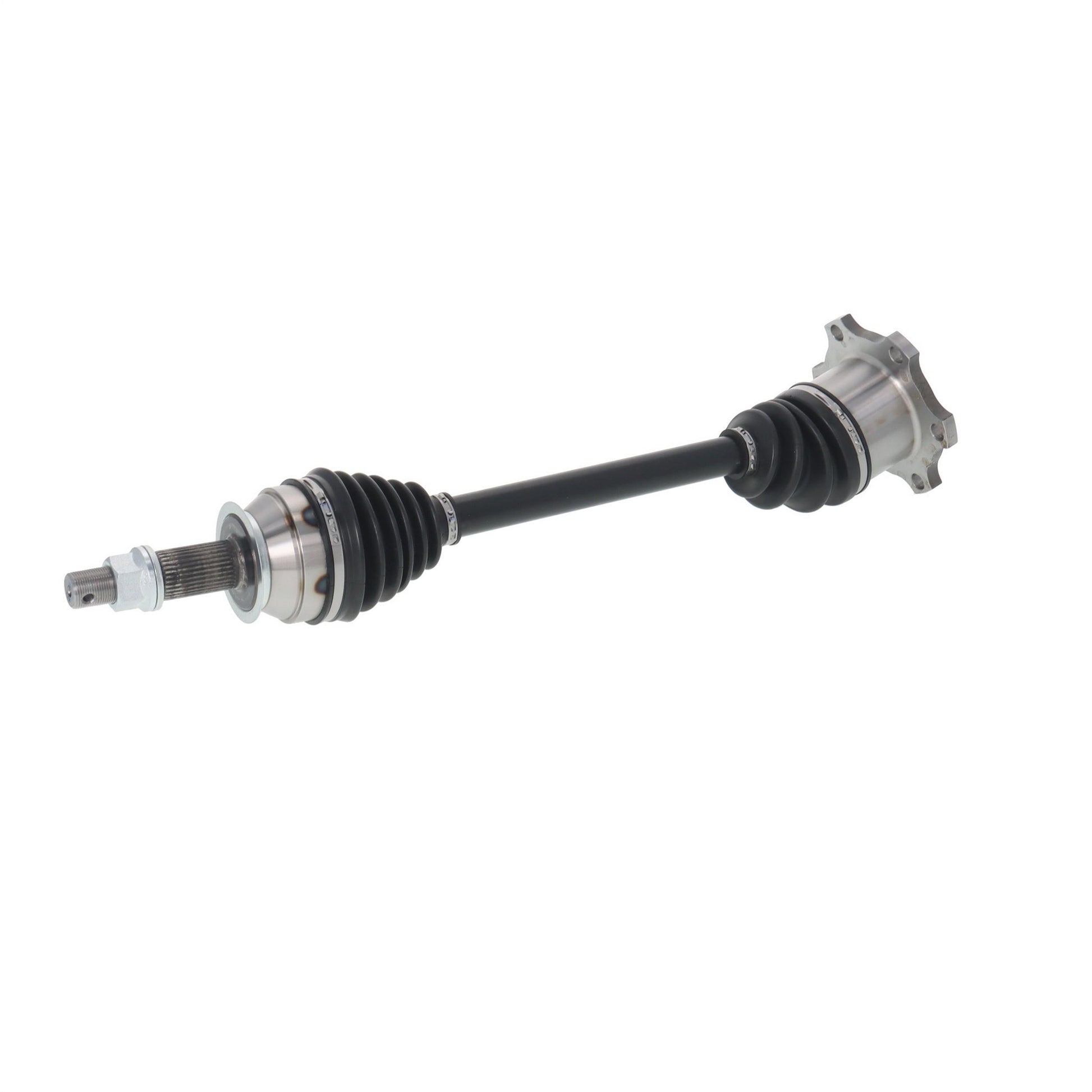

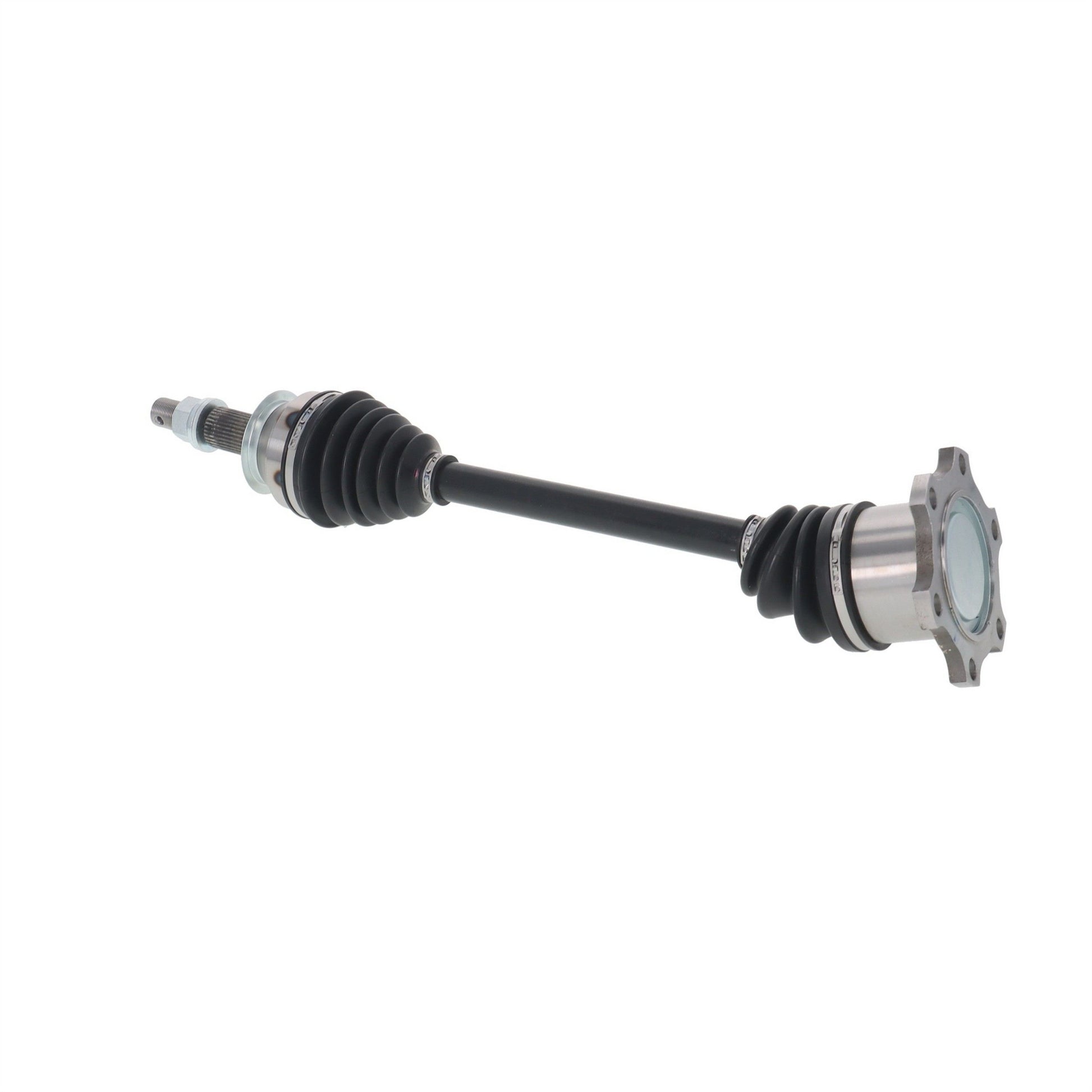

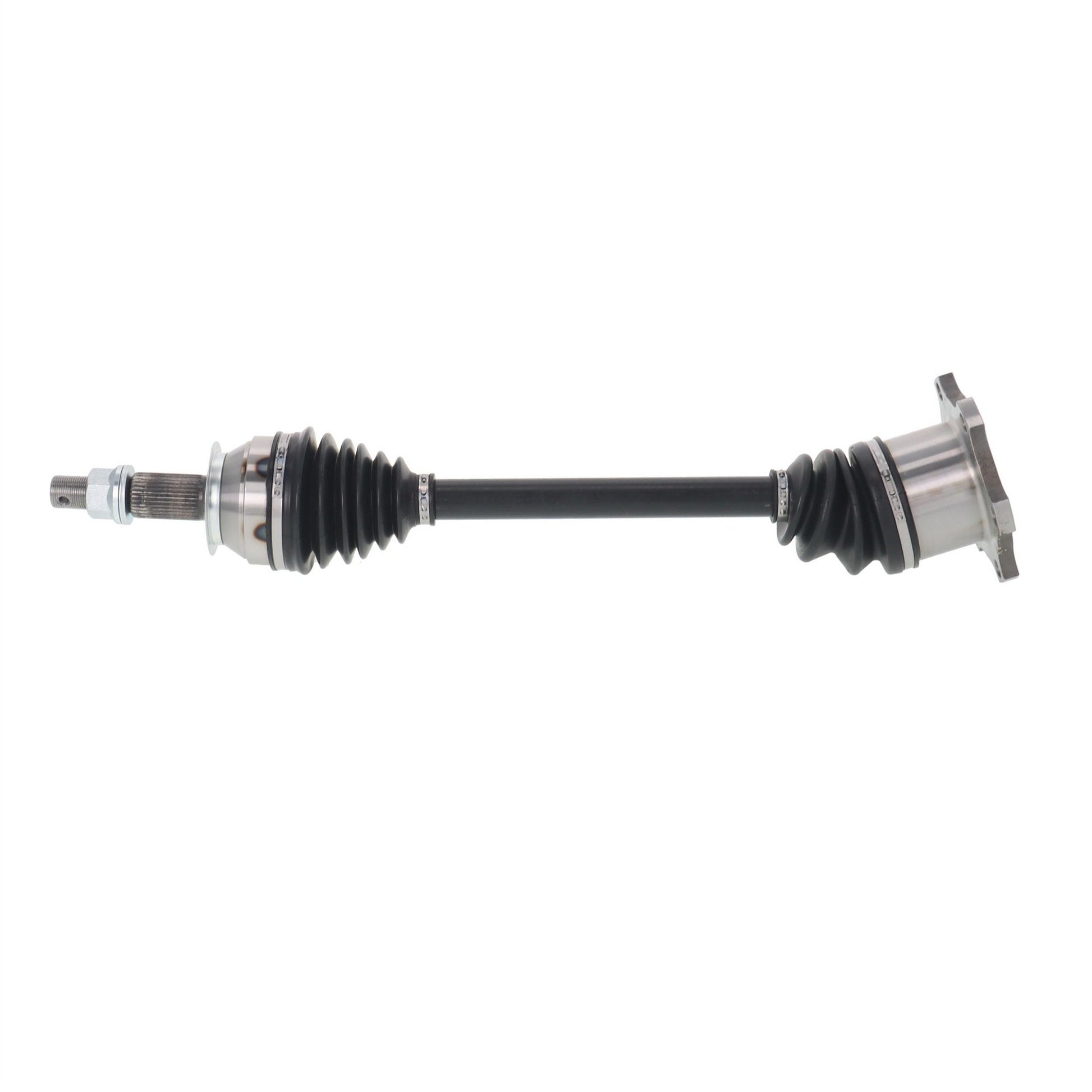

A single bare cv axle shaft, that is a component of a CV axle assembly. (NI-8593) by TrakMotive

Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:1007 and TS 16949:2009 Certified Company



Vehicle Fitments:

Year Make Model Submodel
2006 - 2010 INFINITI M45 Sport, Base
2008 - 2010 INFINITI M45 X



ABS Ring Tooth Count 0
ABS Tone Ring Included No
Axle Nut Head Type Hex
Axle Nut Height (in) .93
Axle Nut Height (mm) 24
Axle Nut Hex Size (in) 1.25
Axle Nut Hex Size (mm) 32
Axle Nut Included Yes
Axle Nut Length (in) 1.35
Axle Nut Length (mm) 35
Axle Nut Locking Type Cotter Pin
Axle Nut Socket Size 32
Axle Nut Thread Size M24x1.5
Grade Type Premium
Inboard Joint Boot Material Neoprene
Inboard Joint Type Flange
Inboard Shaft Connection Style Bolt-On
Number Of Bolt Holes 0
Number Of Inboard Joint Bolt Holes 0
Number Of Inboard Shaft Bolts 0
Number Of Inboard Splines 0
Number Of Outboard Joint Bolt Holes 0
Number Of Outboard Shaft Bolts 0
Number Of Outboard Splines 32
Outboard Joint Boot Material Neoprene
Outboard Joint Type Conventional
Outboard Shaft Connection Style Spline
Overall Compressed Length (in) 25.1
Overall Compressed Length (mm) 638
