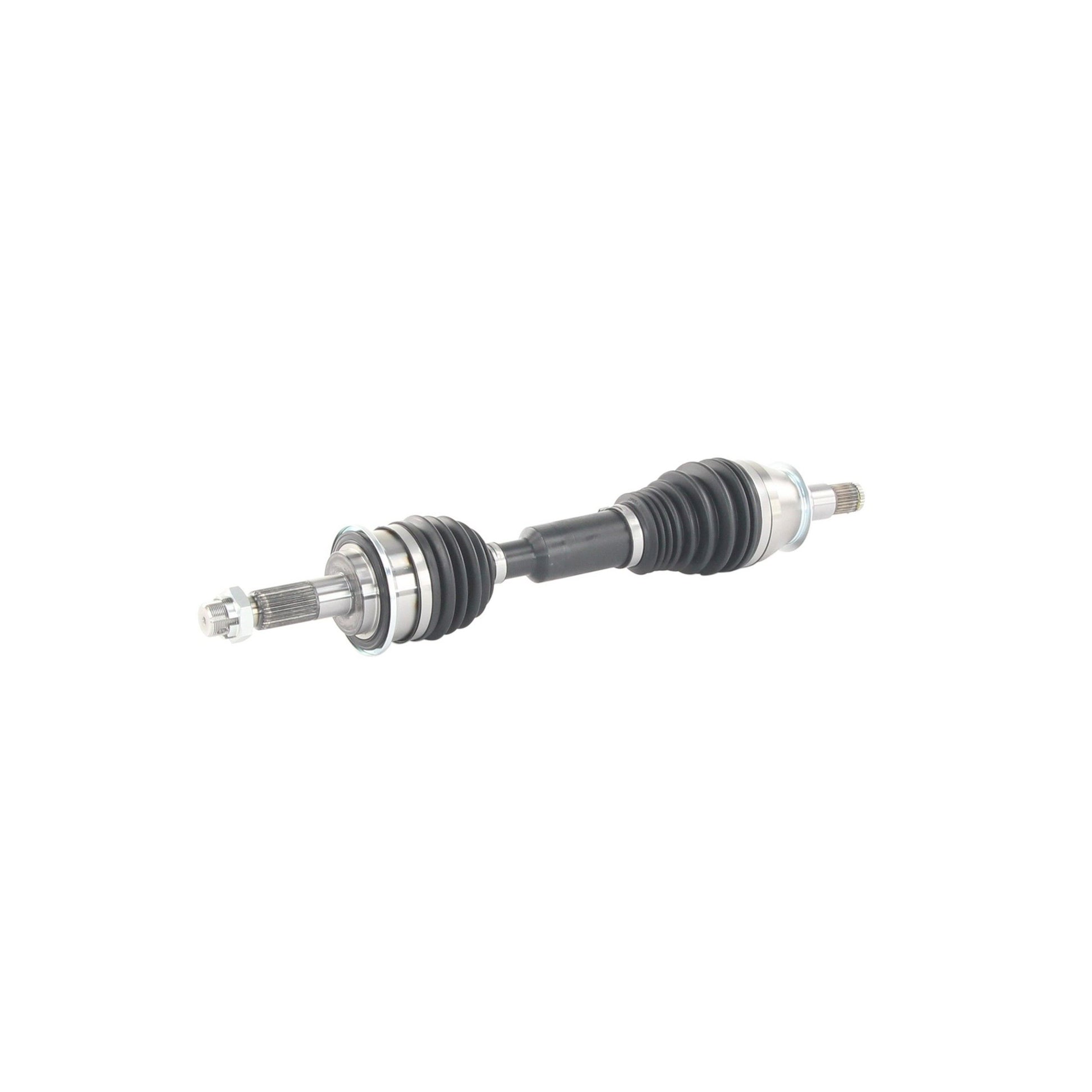

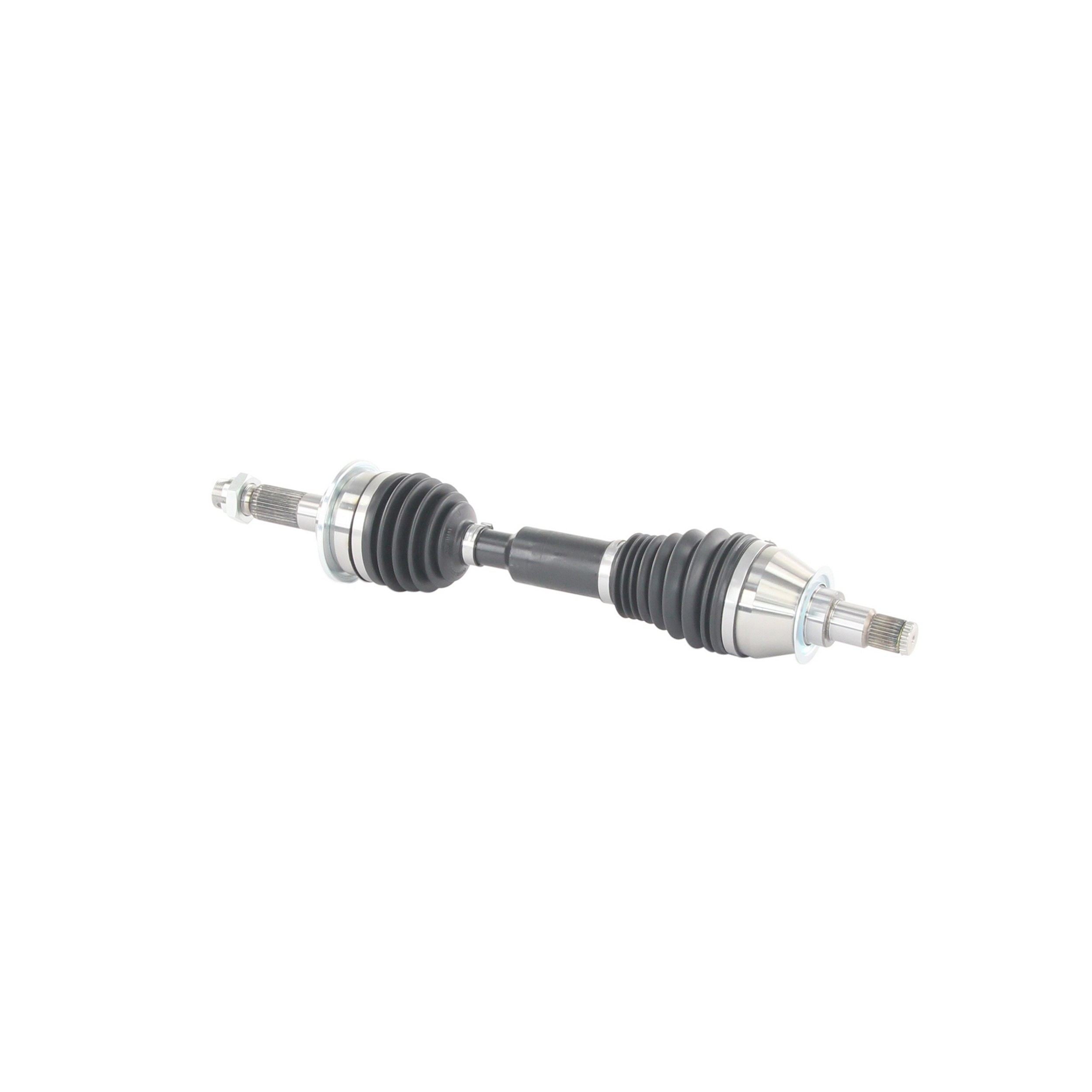

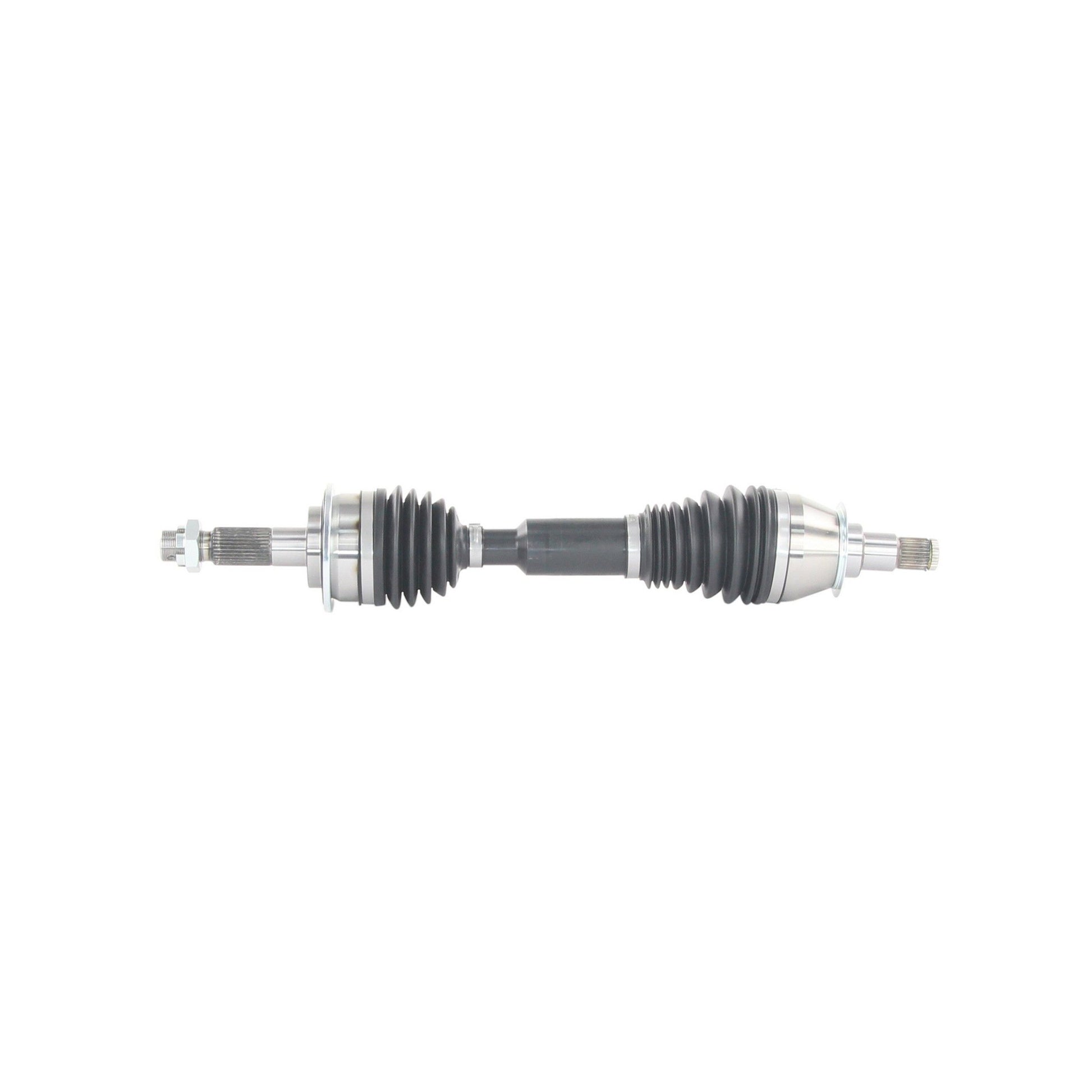

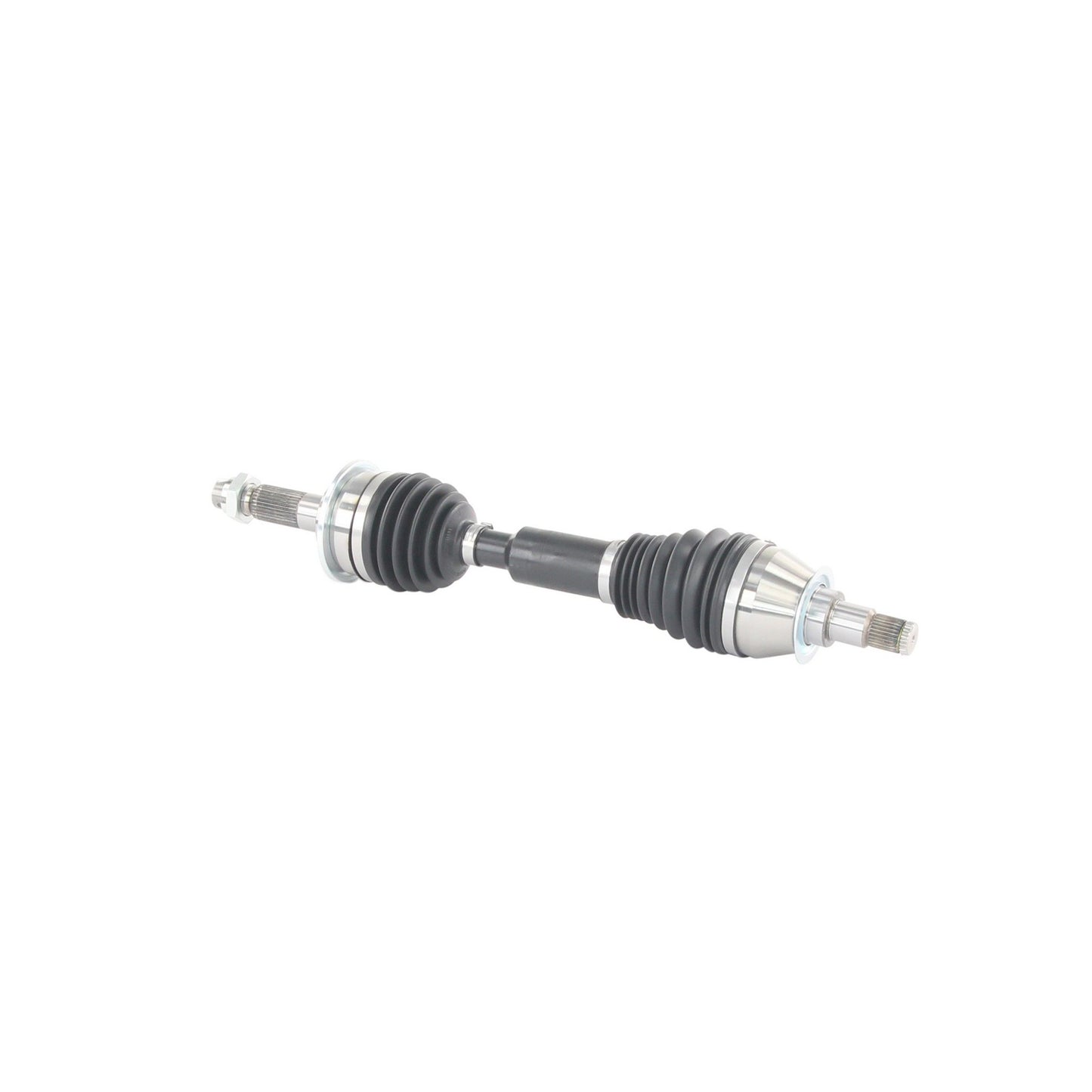

TrakMotive Extended Travel CV Axle Shaft TO-8043XTT
TrakMotive Extended Travel CV Axle Shaft TO-8043XTT
TrakMotive Extended Travel CV Axle Shaft TO-8043XTT
Trakmotive Axles

TrakMotive Extended Travel CV Axle Shaft TO-8043XTT

SKU: 99E0G | MPN:  TO-8043XTT
In stock
Sale price$188.56 USD

A single bare cv axle shaft, that is a component of a CV axle assembly. (TO-8043XTT) by TrakMotive

Extended Travel CV Axles are designed with a sliding center bar that provides up to 44mm more travel than an OEM CV shaft. Additionally, the CV joints can achieve a up to a 47 degree articulation angle compared to a maximum 23 degree articulation angle on a typical OE CV joint.

Trakmotive Axles TO-8043XTT

year vehicle attributes Quantity part description position
1996 4WD 1
1997 4WD 1
1998 4WD 1
1999 4WD 1
2000 4WD 1
2001 4WD 1
2002 4WD 1



year vehicle attributes Quantity part description position
1995 4WD 1
1996 4WD 1
1997 4WD 1
1998 4WD 1
1999 4WD 1
2000 4WD 1
2001 4WD 1
2002 4WD 1
2003 4WD 1
2004 4WD

1



ABS Ring Tooth Count 0
ABS Tone Ring Included No
Axle Nut Head Type Hex
Axle Nut Height (in) .75
Axle Nut Height (mm) 19
Axle Nut Hex Size (in) 1.61
Axle Nut Hex Size (mm) 41
Axle Nut Included Yes
Axle Nut Length (in) 1.85
Axle Nut Length (mm) 48
Axle Nut Locking Type Cotter Pin
Axle Nut Socket Size 41
Axle Nut Thread Size M2x1.5
California Proposition 65 Required N
Grade Type Premium
Inboard Joint Boot Material Thermoplastic
Inboard Joint Type Male
Inboard Shaft Connection Style Spline
Number Of Bolt Holes 0
Number Of Inboard Joint Bolt Holes 0
Number Of Inboard Shaft Bolts 0
Number Of Inboard Splines 27
Number Of Outboard Joint Bolt Holes 0
Number Of Outboard Shaft Bolts 0
Number Of Outboard Splines 30
Outboard Joint Boot Material Thermoplastic
Outboard Joint Type Conventional
Outboard Shaft Connection Style Spline
Overall Compressed Length (in) 24.09
Overall Compressed Length (mm) 612
