Tomioka Racing TR Premium Mitsubishi 4G63 2.3L Stroker Kit 94 mm Stroke I-Beam / 85 mm
Tomioka Racing TR Premium Mitsubishi 4G63 2.3L Stroker Kit 94 mm Stroke
sku: 9IU8G | mpn: TR-ES2003-IB
Regular price
$4,950.00
Regular price
$4,250.00
Sale price
$4,950.00
Shipping calculated at checkout.
Out of stock
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
Gain horsepower and torque through displacement using factory 4G63 engine block! Tomioka Racing 2.3 Liter Premium Stroker Kit for 4G63 series engine is built with the quality features and the latest technology in coating options to ensure the dependability that comes from every TR product. TR uses competition grade components from forged 2618 aluminum pistons, forged 4340 connecting rods, and billet crankshaft chosen specifically to offer the durability to handle high horsepower demands. When coupled with our competition series bearings it makes TR Stroker Kit the ultimate 4G63 engine upgrades!
Stroker Kit Characteristics
| Compression Ratio : | 9.0 : 1 |
| Stroke : | 94 mm |
| Rod Length : | 150 mm |
| Crankshaft : | Billet |
| Piston : | Forged |
| Bearings : | Race |
Stroker Kit Specifications
|
Part Number
|
Stroke
|
Bore Size
|
Over Size
|
Rod Length
|
Compression Distance
|
Compression Ratio
|
|
TR-ES2003
|
94 mm
|
85.0 mm
|
Standard
|
150 mm
|
28.70 mm
|
9.0 : 1
|

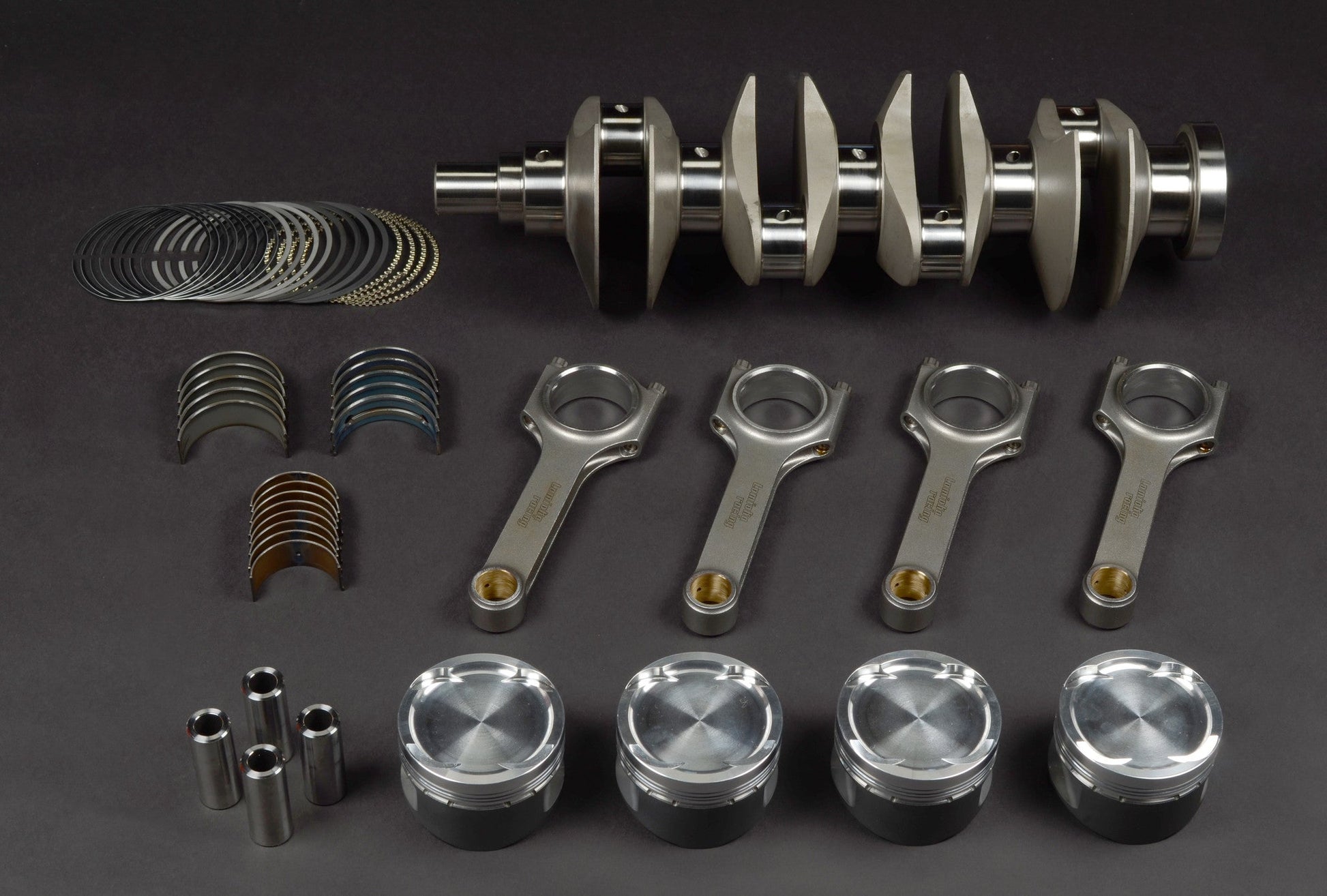

Kit Contents

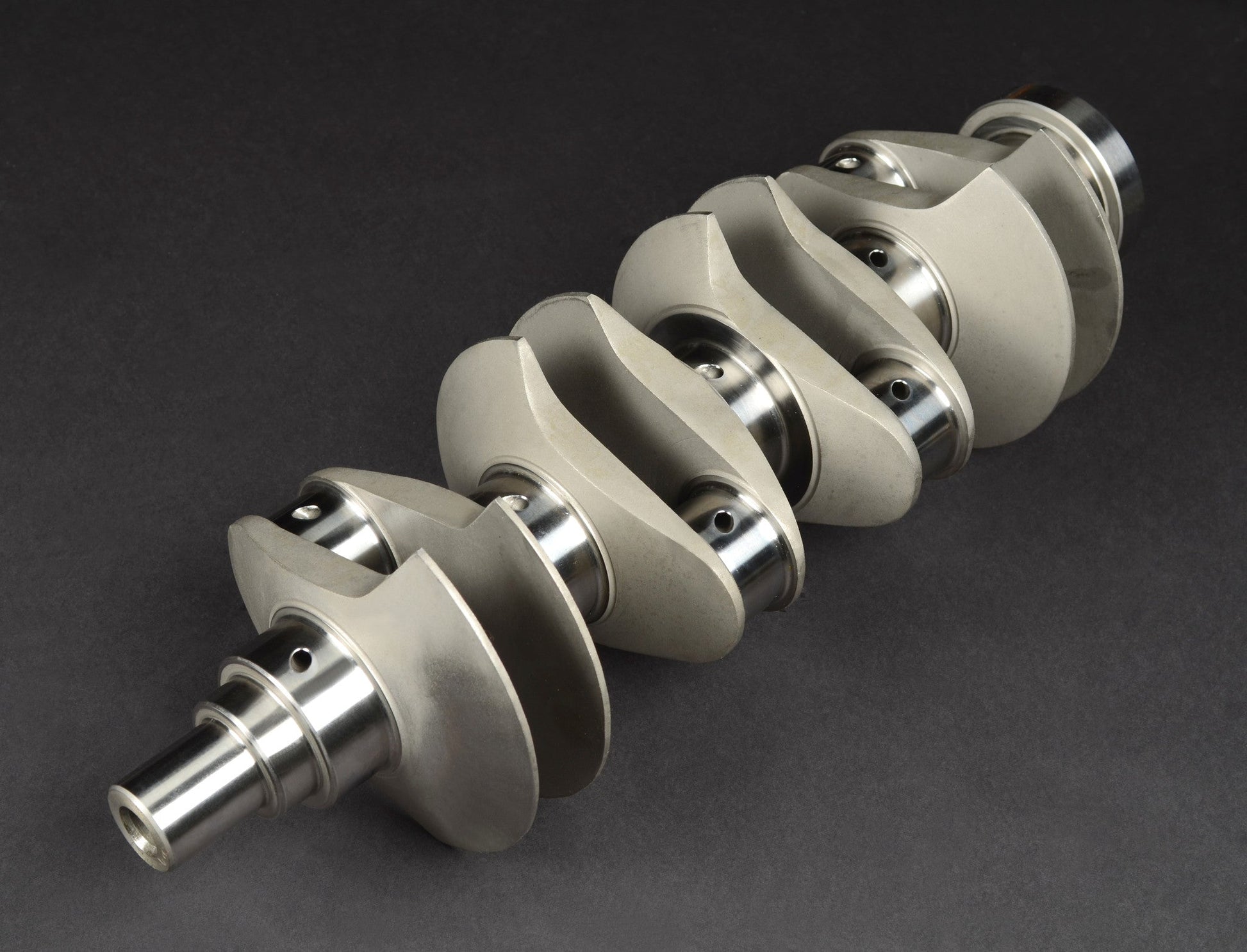

| Billet Crankshaft |

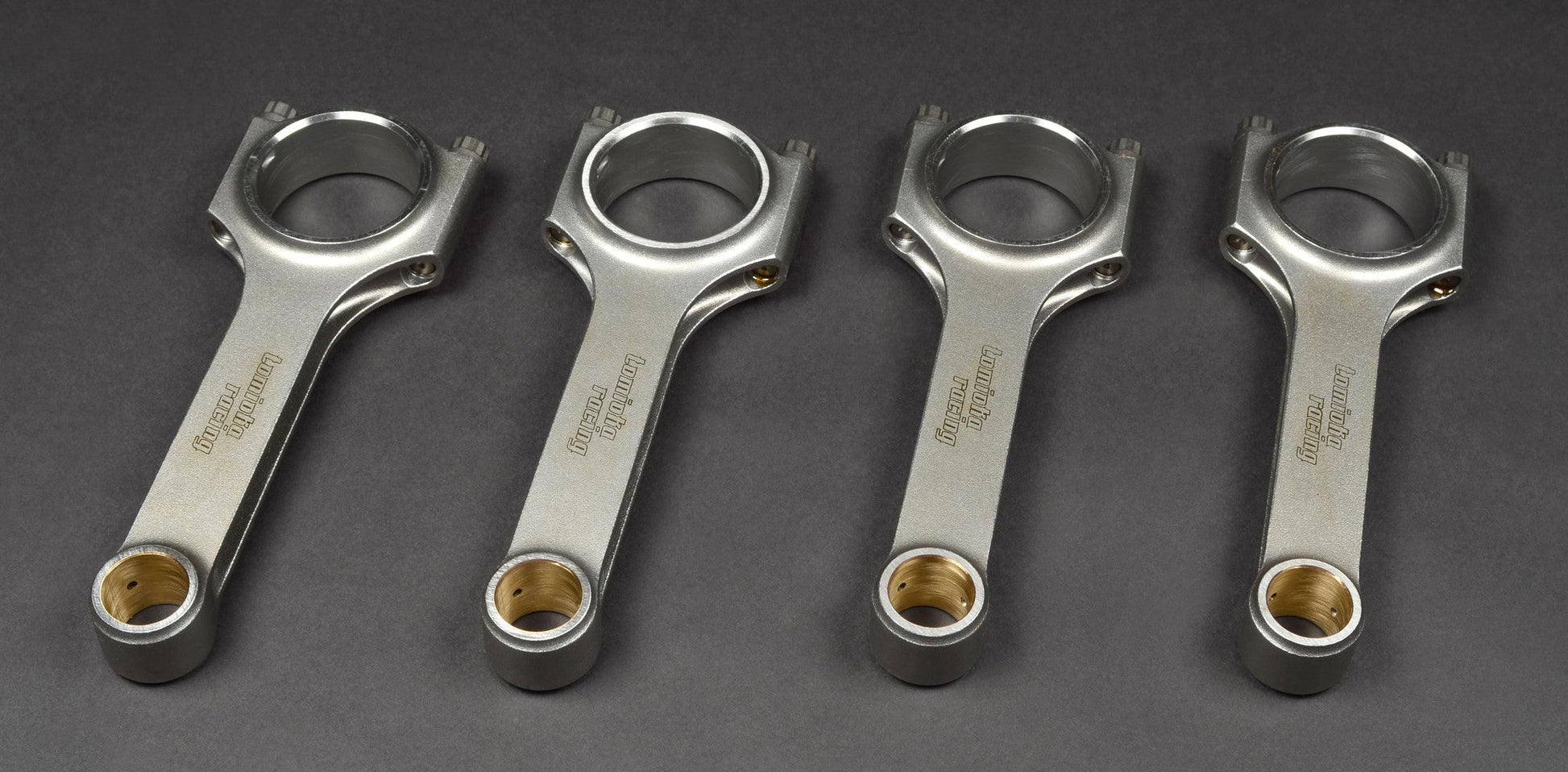

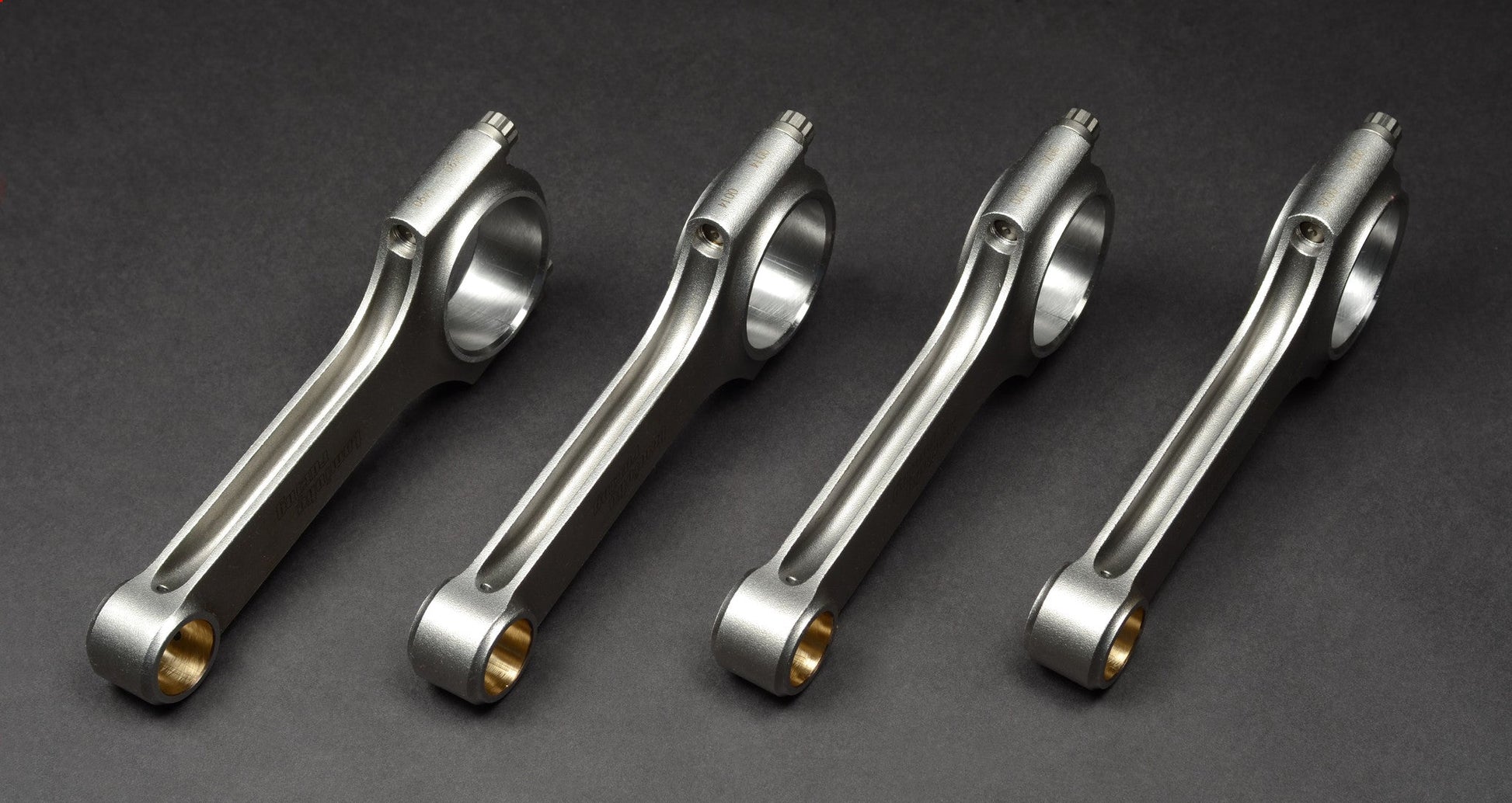

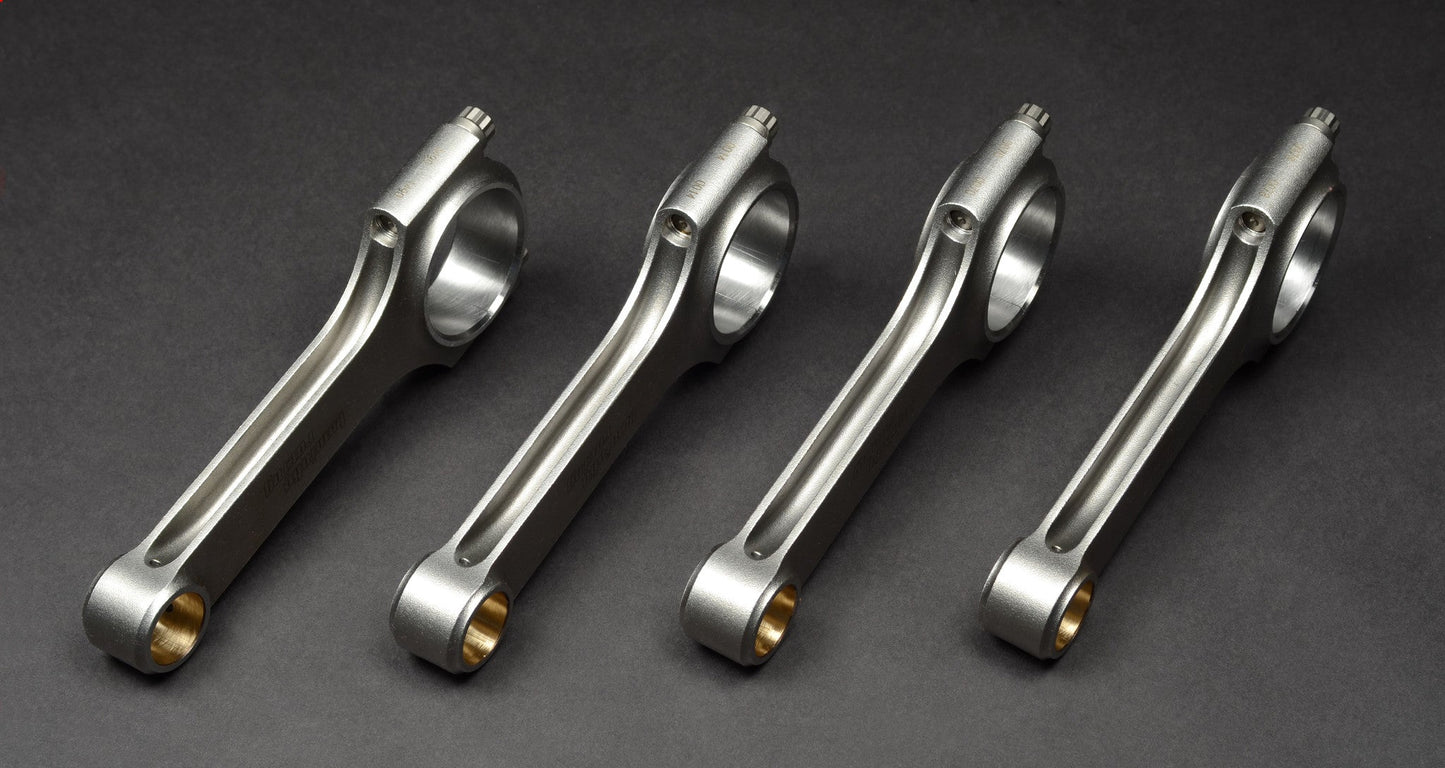

| H-Beam Connecting Rod Set / I-Beam Connecting Rod Set |

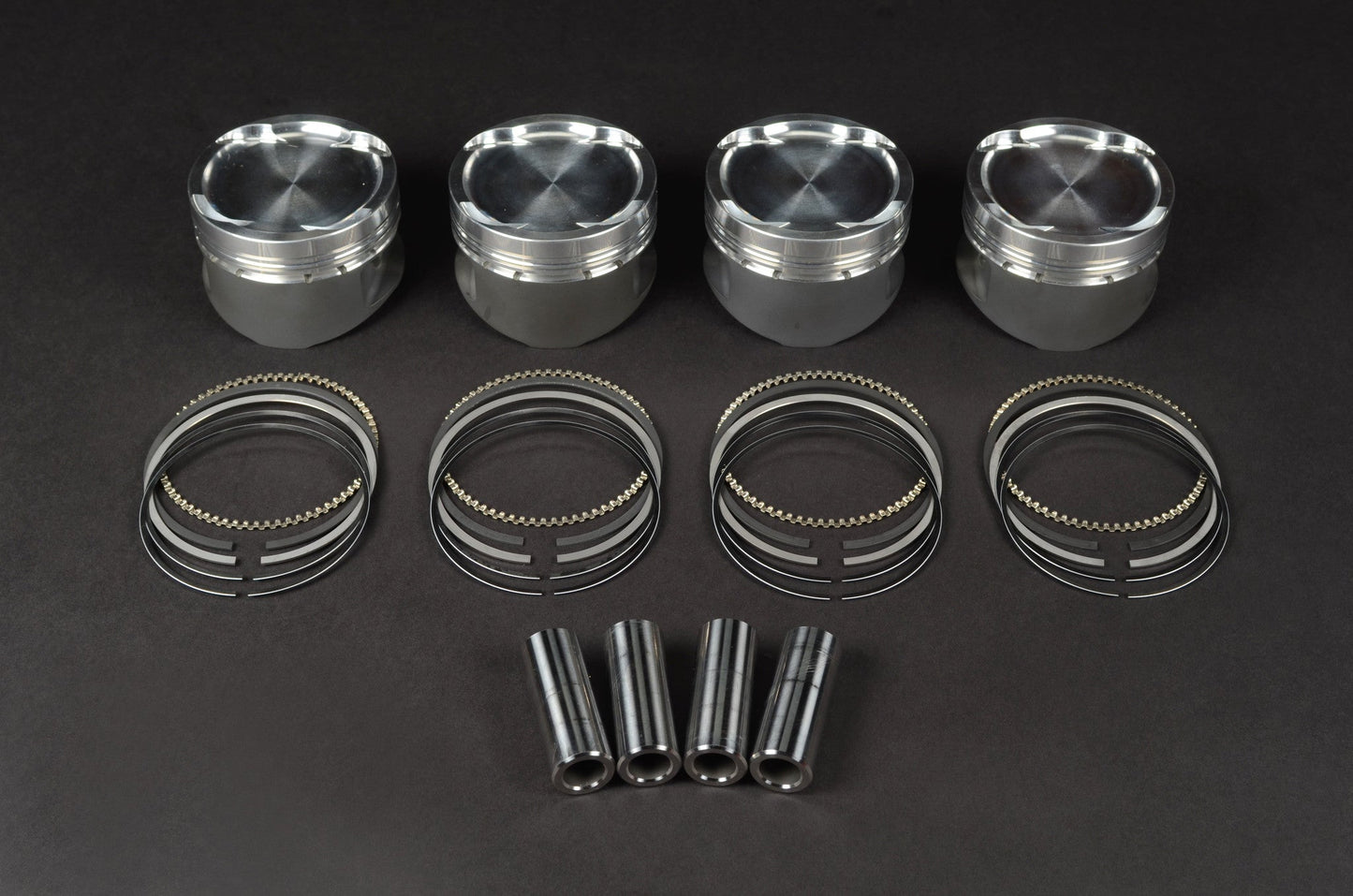

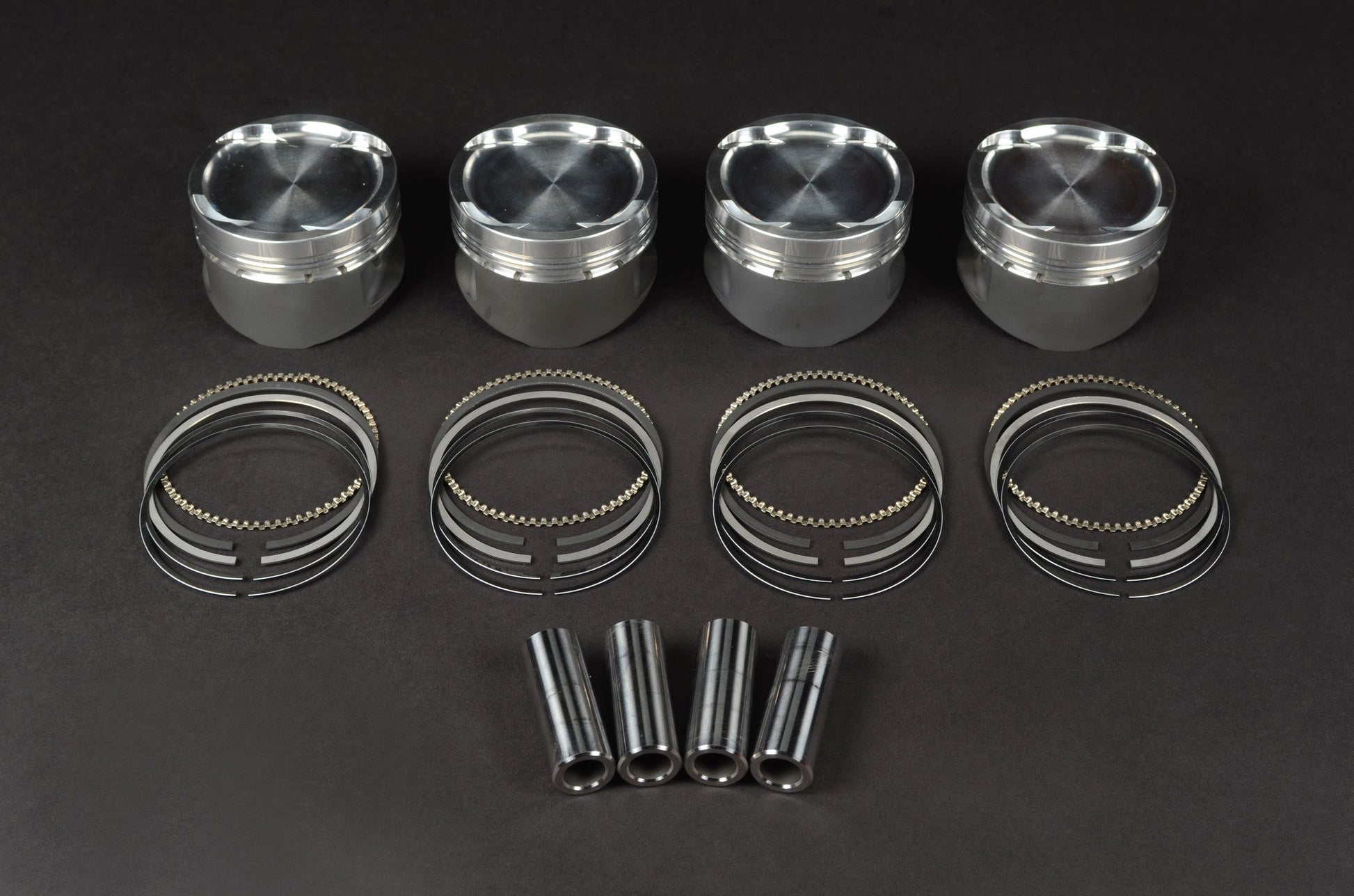

| Forged Piston Set |
| Race Main Bearings Set |
| Race Conrod Bearings Set |
