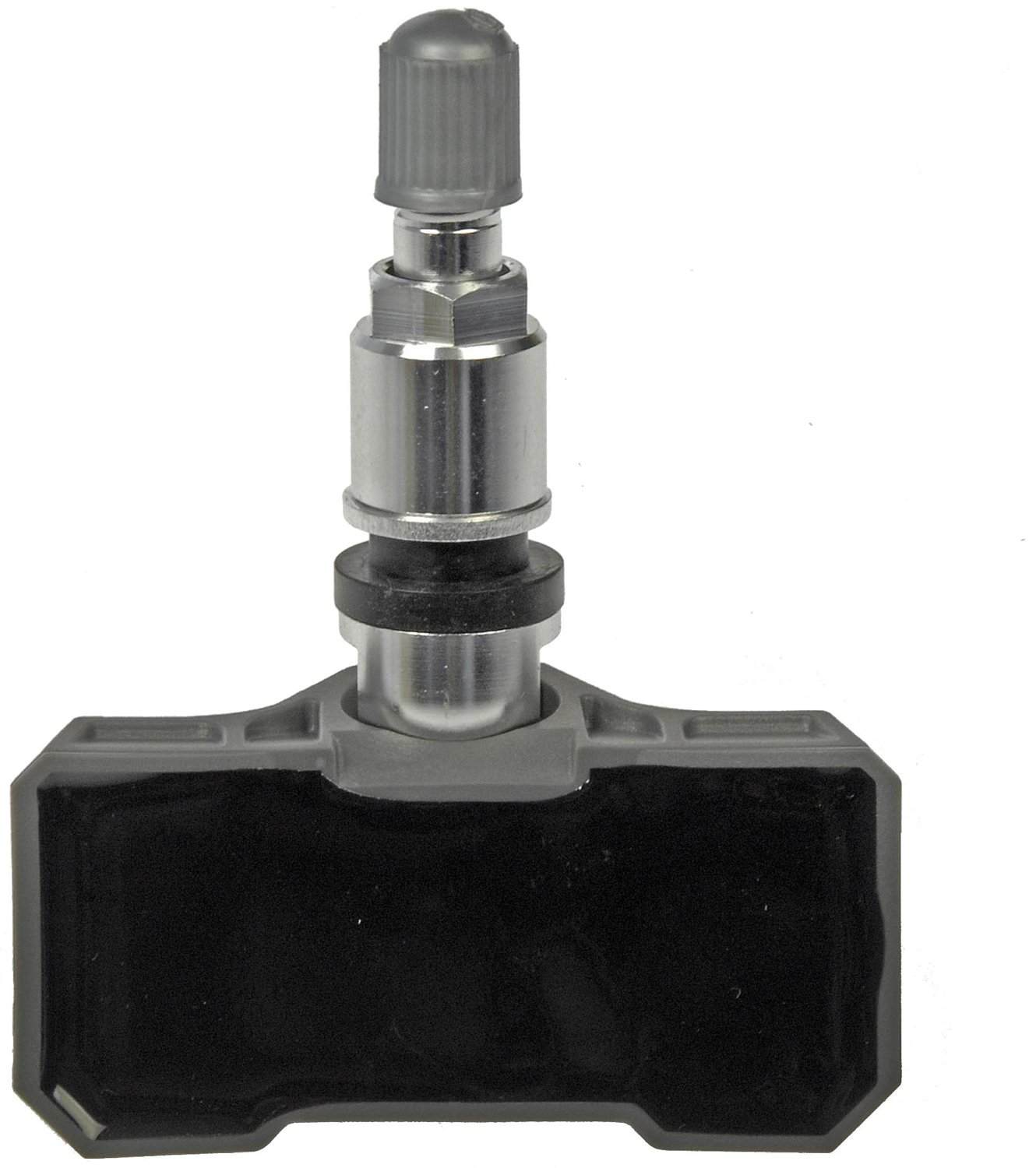

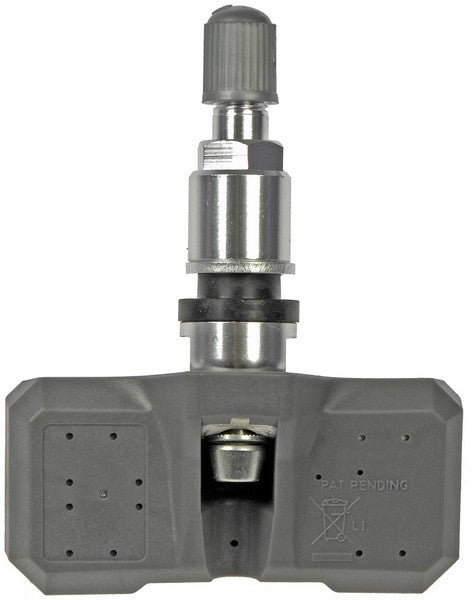

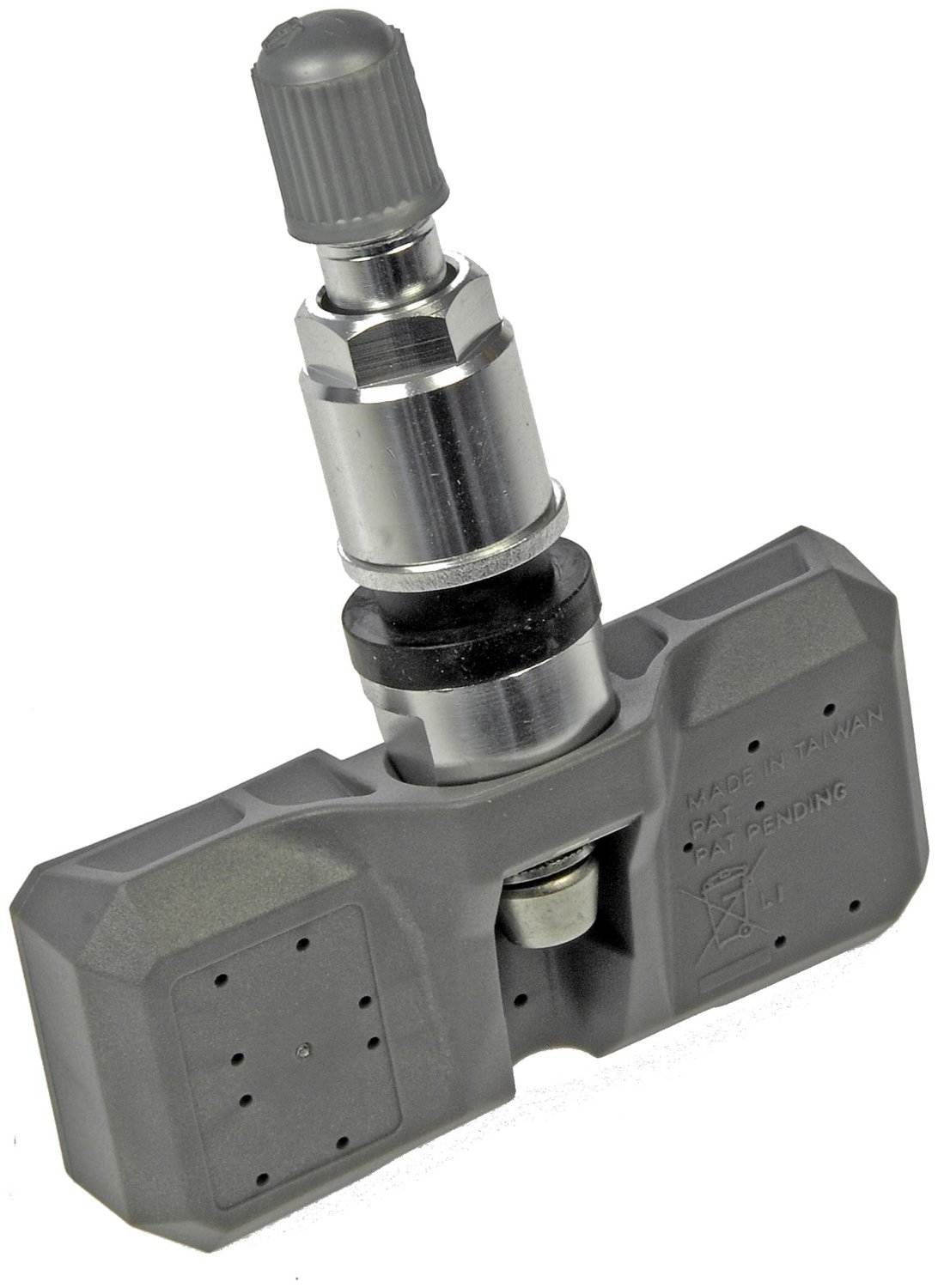

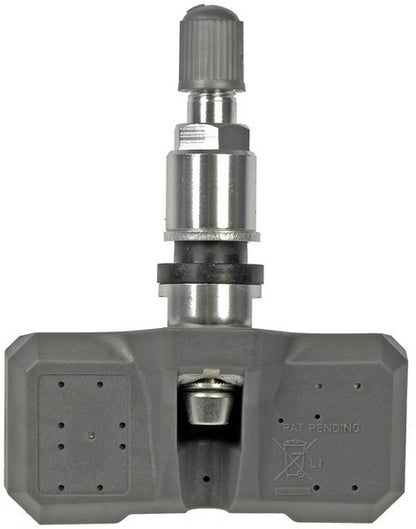

Dorman TPMS Sensor/Transmitter
Dorman's Tire Pressure Monitoring System (TPMS) Sensor features a unique two-piece design that allows for replacement of the valve stem independently of the sensor. The sensor also offers an adjustable angled stem, so an exact fit is ensured. Likewise, proper function is ensured: though the look and color of the sensor may vary from the factory-installed one, the internal electronics are customized for your specific vehicle, and will provide the same service as the original.
- Replaceable aluminum valve stem is anodized for long-lasting corrosion resistance-and may be serviced separately from the entire unit
- Comes with stem unit, grommet, washer, and hex nut for a complete installation
- Sensors are designed to accommodate installation angles from 5 to 26 degrees
- Dorman sensors work with all existing Tire Pressure Monitoring System (TPMS) tools
Application Summary: Cadillac 2004, Chevrolet 2004, GMC 2004
Product Specifications
Activation Type:Pressure Drop
Frequency:315 Mhz Am
Housing Material:Plastic
Mounting Hardware Included:Yes
Mounting Location:Wheel Valve Stem Hole
Mounting Method:Clamp In
Package Contents:One Tire Pressure Monitor Sensor With Clamp In Valve Stem
Package Quantity:1
Packaging Type:Box
Universal Or Specific Fit:Specific
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004 | Cadillac | Escalade | Base |
| 2004 | Cadillac | Escalade ESV | Base |
| 2004 | Cadillac | Escalade EXT | Base |
| 2004 | Chevrolet | Avalanche 1500 | Base, Z66, Z71 |
| 2004 | Chevrolet | Avalanche 2500 | Base |
| 2004 | Chevrolet | Silverado 1500 | SS, LT, LS, Base, WT, Z71, Hybrid |
| 2004 | Chevrolet | Silverado 2500 | Base, LS, WT, LT, 400 SS |
| 2004 | Chevrolet | Silverado 2500 HD | LT, WT, Base, LS |
| 2004 | Chevrolet | Silverado 3500 | LS, LT, WT, Base |
| 2004 | Chevrolet | Suburban 1500 | Base, LS, LT, Z71 |
| 2004 | Chevrolet | Suburban 2500 | LT, LS |
| 2004 | Chevrolet | Tahoe | Z71, LT, LS |
| 2004 | GMC | Sierra 1500 | SLT, SLE, Denali, Base, WT |
| 2004 | GMC | Sierra 2500 | SLT, Base, WT, SLE |
| 2004 | GMC | Sierra 2500 HD | WT, Base, SLT, SLE |
| 2004 | GMC | Sierra 3500 | WT, SLE, Base, SLT |
| 2004 | GMC | Yukon | SLE, Denali, SLT |
| 2004 | GMC | Yukon XL 1500 | Denali, SLE, SLT |
| 2004 | GMC | Yukon XL 2500 | SLE, SLT |
