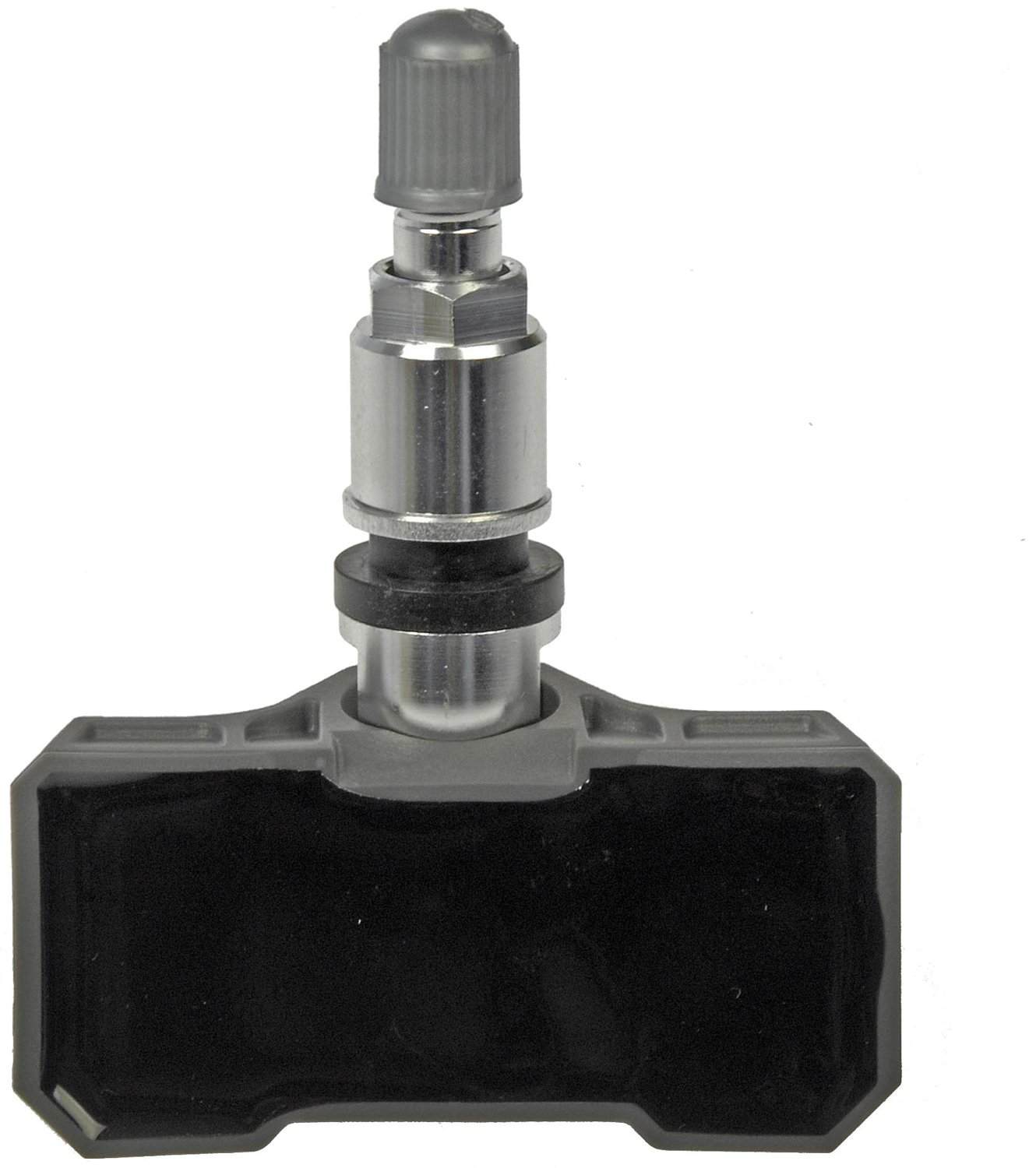

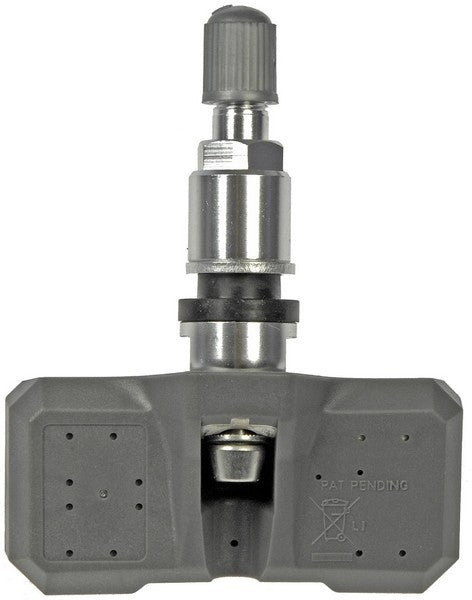

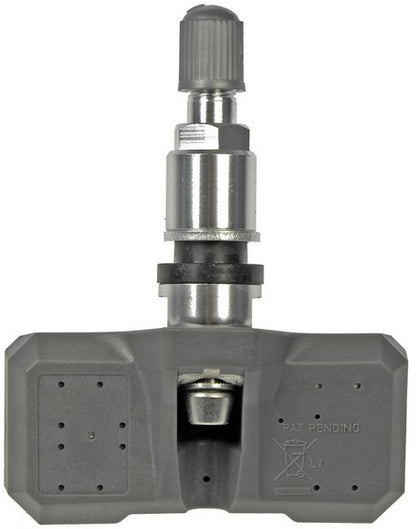

Dorman TPMS Sensor/Transmetter
Dorman's Tire Pressure Monitoring System (TPMS) Sensor features a unique two-piece design that allows for replacement of the valve stem independently of the sensor. The sensor also offers an adjustable angled stem, so an exact fit is ensured. Likewise, proper function is ensured: though the look and color of the sensor may vary from the factory-installed one, the internal electronics are customized for your specific vehicle, and will provide the same service as the original.
- Replaceable aluminum valve stem is anodized for long-lasting corrosion resistance-and may be serviced separately from the entire unit
- Comes with stem unit, grommet, washer, and hex nut for a complete installation
- Sensors are designed to accommodate installation angles from 5 to 26 degrees
- Dorman sensors work with all existing Tire Pressure Monitoring System (TPMS) tools
Application Summary: Cadillac DeVille 2005-01, Cadillac Seville 2004-01, Chevrolet Corvette 2004-01
Product Specifications
Activation Type:Magnetic
Frequency:315 Mhz Am
Housing Material:Plastic
Mounting Hardware Included:Yes
Mounting Location:Wheel Valve Stem Hole
Mounting Method:Clamp In
Package Contents:One Tire Pressure Monitor Sensor With Clamp In Valve StemPackage Quantity:1
Packaging Type:Box
Universal Or Specific Fit:Specific
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2001 - 2005 | Cadillac | DeVille | DHS, DTS, Base |
| 2004 - 2005 | Cadillac | DeVille | Protection Series |
| 2001 | Cadillac | DeVille | STS |
| 2001 - 2004 | Cadillac | Seville | STS, SLS |
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition, 50th Anniversary Edition Pace Car |
| 2001 - 2004 | Chevrolet | Corvette | Base, Z06 |
