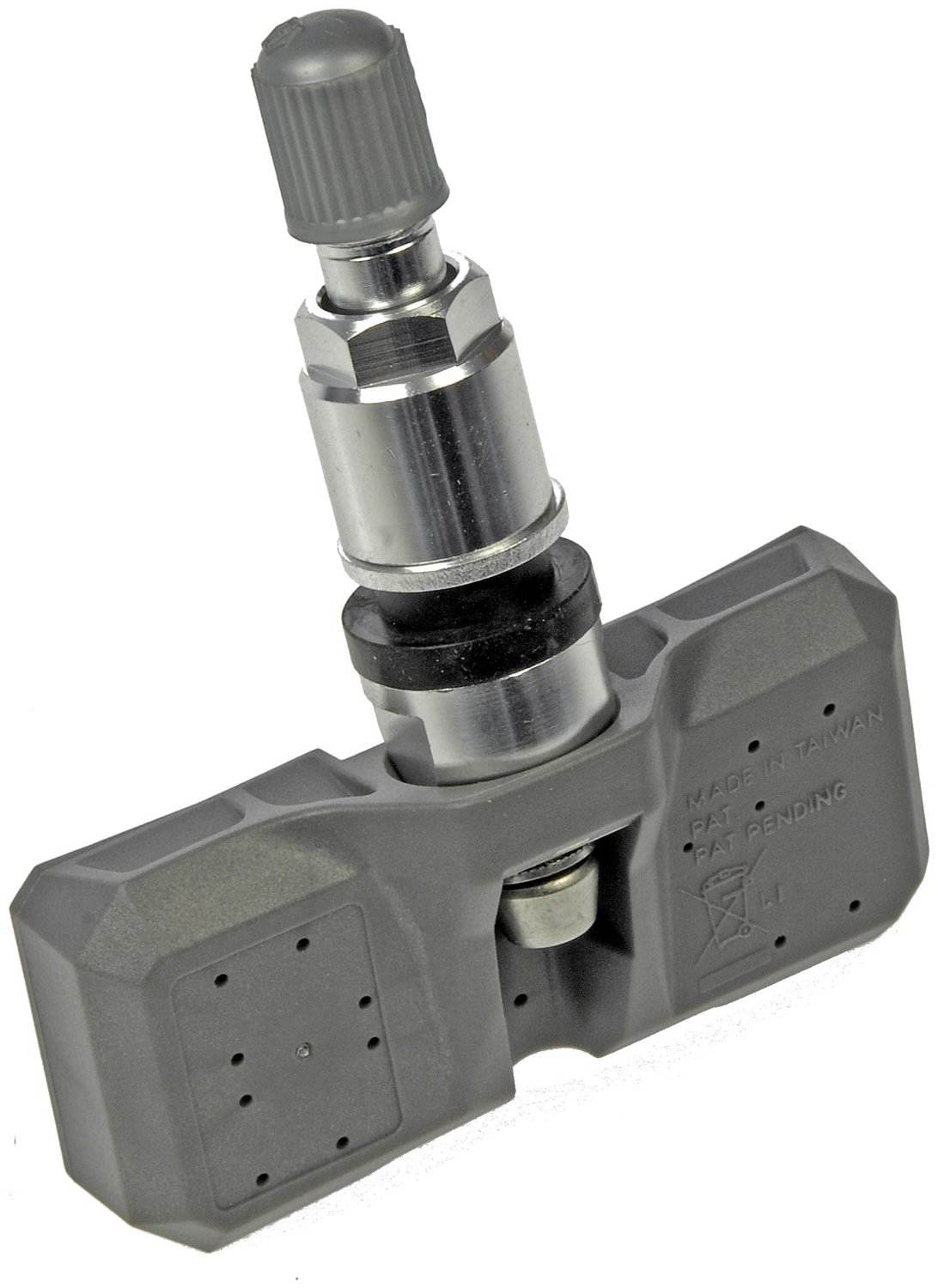

Dorman TPMS Sensor Transmit
Dorman's Tire Pressure Monitoring System (TPMS) Sensor features a unique two-piece design that allows for replacement of the valve stem independently of the sensor. The sensor also offers an adjustable angled stem, so an exact fit is ensured. Likewise, proper function is ensured: though the look and color of the sensor may vary from the factory-installed one, the internal electronics are customized for your specific vehicle, and will provide the same service as the original.
- Replaceable aluminum valve stem is anodized for long-lasting corrosion resistance-and may be serviced separately from the entire unit

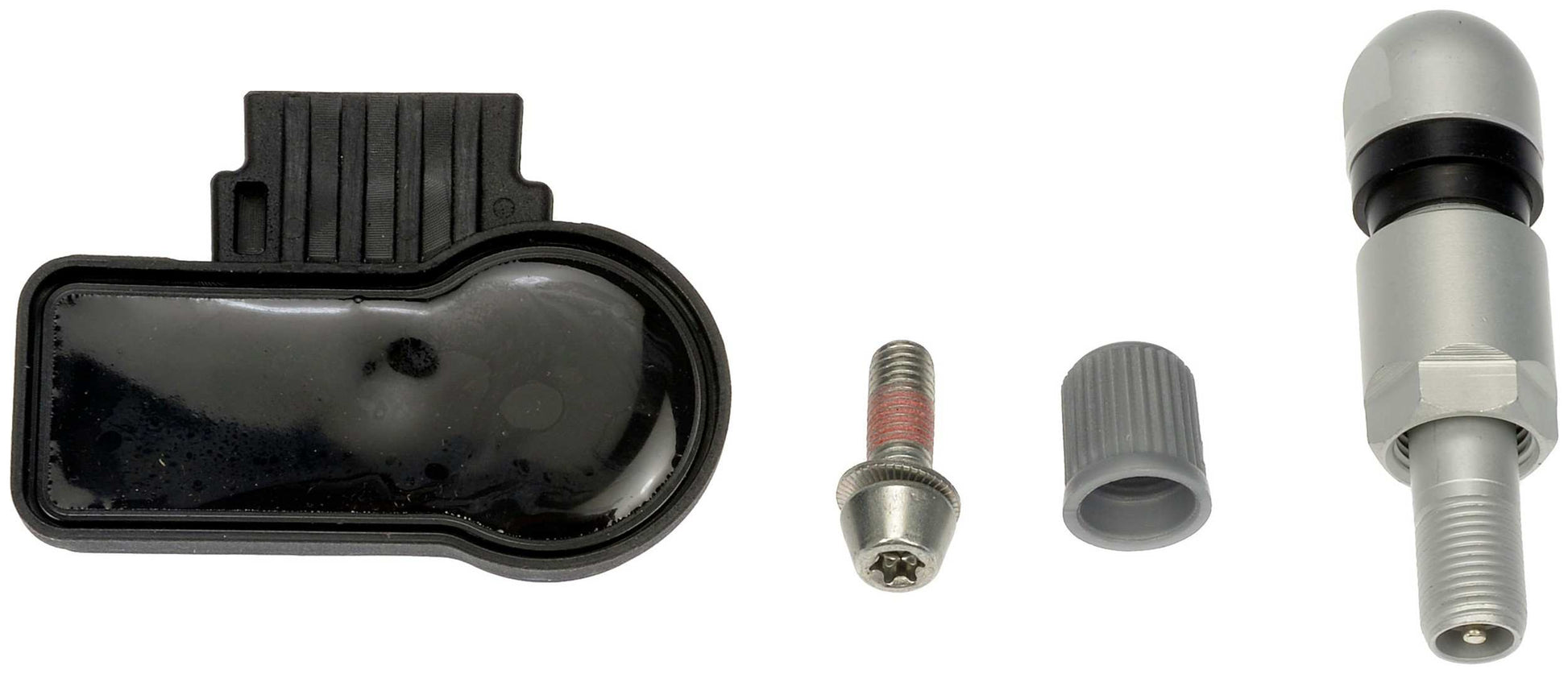

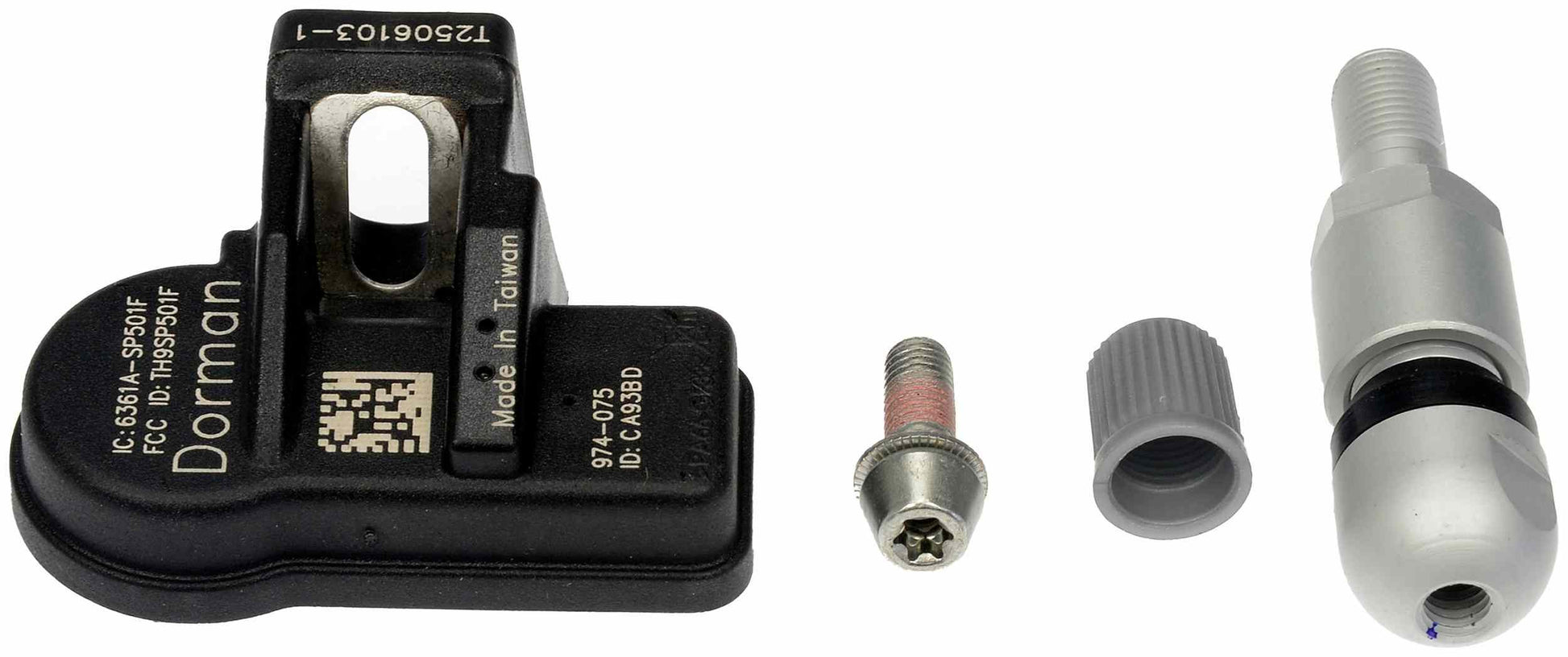

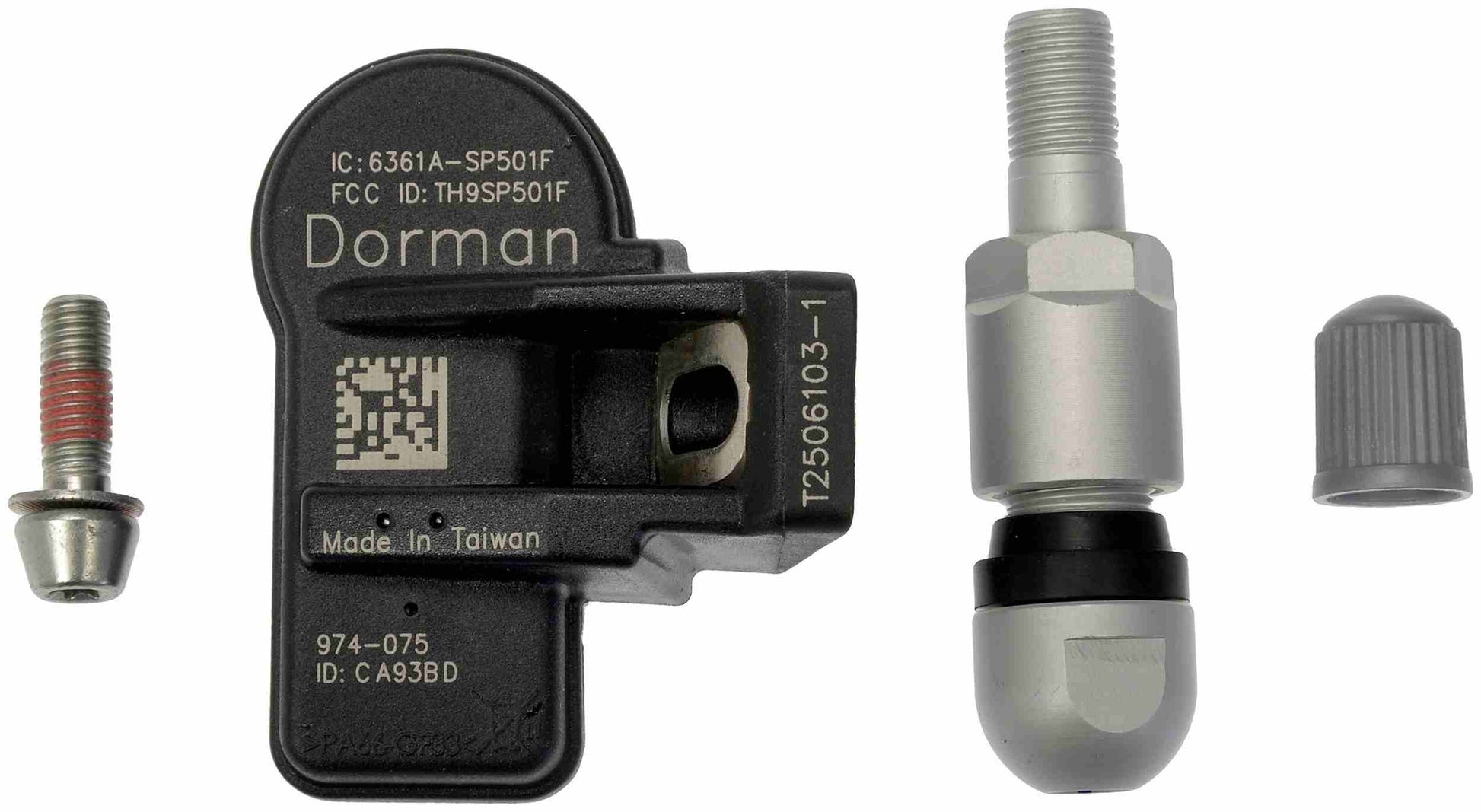

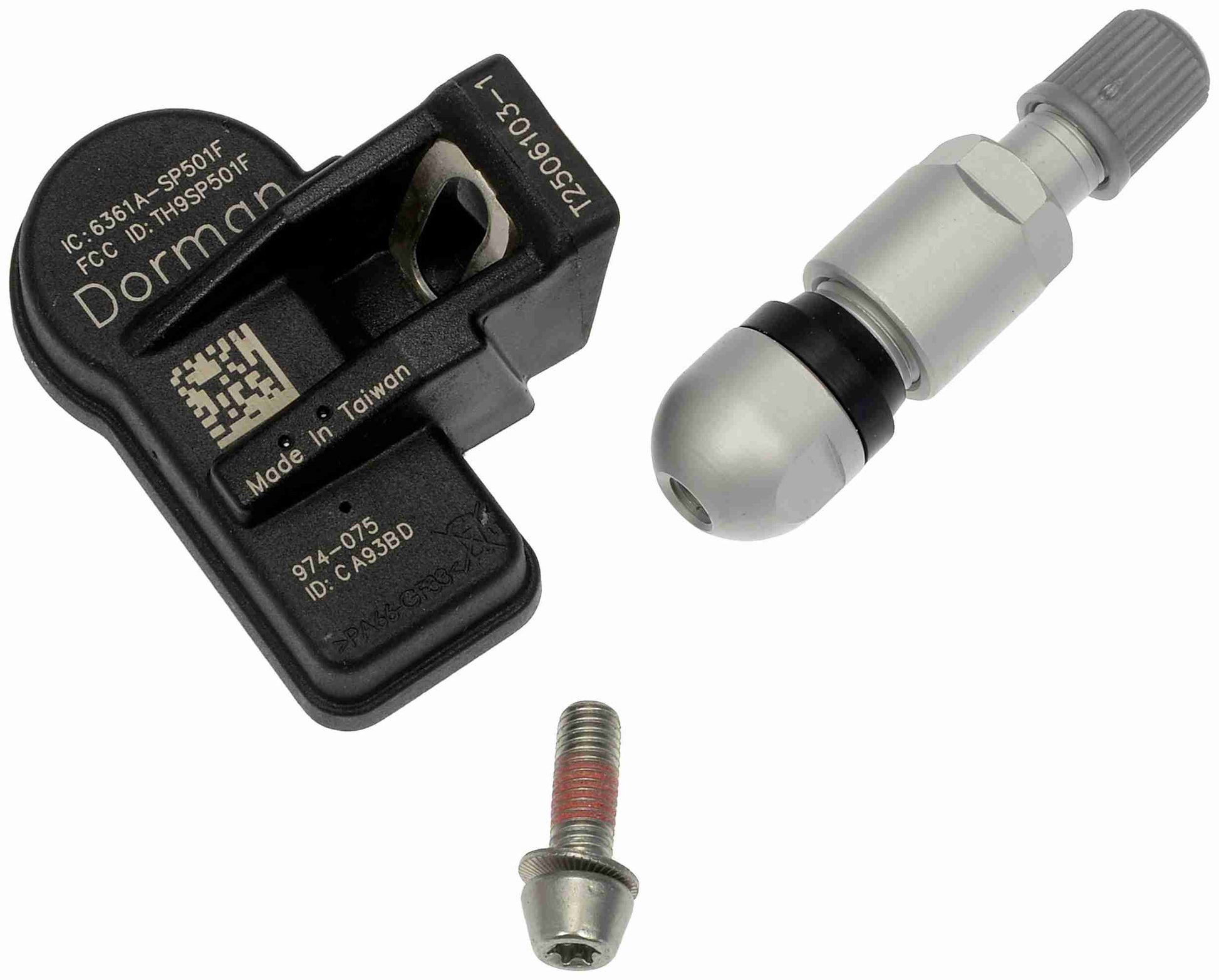

- Comes with stem unit, grommet, washer, and hex nut for a complete installation
- Sensors are designed to accommodate installation angles from 5 to 26 degrees
- Dorman sensors work with all existing Tire Pressure Monitoring System (TPMS) tools
Application Summary: Subaru 2016-05, Suzuki 2011-05, Volvo 2014-99
Product Specifications
Activation Type:Frequency
Frequency:315 Mhz
Housing Material:Plastic
Mounting Hardware Included:Yes
Mounting Location:Wheel Valve Stem Hole
Mounting Method:Clamp In
Package Contents:One Tire Pressure Monitor Sensor With Clamp In Valve Stem
Package Quantity:1
Packaging Type:Box
Universal Or Specific Fit:Specific
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2006 - 2007 | Subaru | B9 Tribeca | Base, Limited |
| 2016 | Subaru | Crosstrek | Hybrid, Hybrid Touring |
| 2016 - 2017 | Subaru | Crosstrek | Premium, Sport, Touring, Base, Limited |
| 2014 - 2018 | Subaru | Forester | 2.0XT Limited, 2.5i Premium, 2.0XT Touring, 2.0XT Premium, 2.5i, 2.5i Touring, 2.5i Convenience, 2.5i Limited |
| 2008 | Subaru | Forester | 2.5 XT, 2.5 XS Premium, Anniversary Edition, 2.5 X, Sports 2.5 X, 2.5 XS, Sports 2.5 XT |
| 2018 | Subaru | Forester | Premium, Limited, Touring |
| 2013 | Subaru | Forester | X Convenience |
| 2007 - 2008 | Subaru | Forester | X L.L. Bean Edition |
| 2009 - 2013 | Subaru | Forester | X Limited, X Premium, X Touring |
| 2007 - 2017 | Subaru | Forester | XS, X, XSL |
| 2008 - 2018 | Subaru | Forester | XT |
| 2007 - 2013 | Subaru | Forester | XT Limited |
| 2010 - 2013 | Subaru | Forester | XT Premium |
| 2010 - 2012 | Subaru | Forester | XT Sports |
| 2011 - 2013 | Subaru | Forester | XT Touring |
| 2008 | Subaru | Impreza | 2.0R |
| 2009 - 2010 | Subaru | Impreza | 2.5 GT |
| 2010 | Subaru | Impreza | 2.5i Limited, WRX GT, WRX SE, WRX STI Special Edition |
| 2010 - 2011 | Subaru | Impreza | 2.5i Premium |
| 2012 - 2016 | Subaru | Impreza | Base, Sport Limited, Premium, Sport Premium, Touring, Limited |
| 2014 - 2016 | Subaru | Impreza | I Limited |
| 2013 - 2016 | Subaru | Impreza | I Sport, i |
| 2008 - 2011 | Subaru | Impreza | Outback Sport, 2.5i |
| 2009 - 2012 | Subaru | Impreza | R |
| 2008 - 2015 | Subaru | Impreza | Sport |
| 2010 - 2014 | Subaru | Impreza | WRX Limited |
| 2009 - 2014 | Subaru | Impreza | WRX Premium |
| 2011 - 2014 | Subaru | Impreza | WRX STI Limited |
| 2008 - 2014 | Subaru | Impreza | WRX STI, WRX |
| 2011 | Subaru | Impreza | XV |
| 2009 | Subaru | Legacy | 2.0R, 3.0 R Premier, 3.0 R |
| 2010 - 2012 | Subaru | Legacy | 2.5GT, 3.6R Premium |
| 2013 - 2014 | Subaru | Legacy | 2.5i Convenience |
| 2007 - 2009 | Subaru | Legacy | 2.5i Special Edition |
| 2014 - 2017 | Subaru | Legacy | 2.5i Sport |
| 2009 - 2016 | Subaru | Legacy | 2.5i Touring |
| 2006 - 2017 | Subaru | Legacy | 2.5i, 2.5i Limited |
| 2008 - 2009 | Subaru | Legacy | 3.0 R Limited |
| 2010 - 2013 | Subaru | Legacy | 3.6R |
| 2010 - 2017 | Subaru | Legacy | 3.6R Limited, 2.5i Premium |
| 2015 - 2016 | Subaru | Legacy | 3.6R Touring |
| 2009 - 2015 | Subaru | Legacy | Base |
| 2005 - 2013 | Subaru | Legacy | GT |
| 2005 - 2009 | Subaru | Legacy | GT Limited |
| 2006 - 2009 | Subaru | Legacy | GT spec.B |
| 2005 | Subaru | Legacy | i |
| 2005 - 2015 | Subaru | Legacy | Limited |
| 2015 | Subaru | Legacy | Premium |
| 2014 | Subaru | Legacy | R |
| 2010 - 2014 | Subaru | Legacy | Sport |
| 2008 | Subaru | Legacy | Touring, 2.0, 3.0 |
| 2007 | Subaru | Outback | 2.5i Basic |
| 2013 - 2014 | Subaru | Outback | 2.5i Convenience |
| 2006 - 2017 | Subaru | Outback | 2.5i Limited, 2.5i |
| 2010 | Subaru | Outback | 2.5i Sport |
| 2012 - 2017 | Subaru | Outback | 2.5i Touring |
| 2009 | Subaru | Outback | 3.0 R Premier, 2.5i Special Edition, 3.0 R Limited |
| 2008 | Subaru | Outback | 3.0 R, 2.5 XT, Touring, Premier, 2.5i L.L. Bean Edition, 2.5i Limited L.L. Bean Edition |
| 2010 - 2014 | Subaru | Outback | 3.6R |
| 2010 - 2017 | Subaru | Outback | 3.6R Limited, 3.6R Premium, 2.5i Premium |
| 2015 - 2017 | Subaru | Outback | 3.6R Touring |
| 2008 - 2015 | Subaru | Outback | Base |
| 2005 - 2015 | Subaru | Outback | Limited |
| 2015 | Subaru | Outback | Premium |
| 2005 - 2006 | Subaru | Outback | R |
| 2005 - 2008 | Subaru | Outback | R L.L. Bean Edition, XT |
| 2006 | Subaru | Outback | R VDC Limited |
| 2005 | Subaru | Outback | VDC Limited, i |
| 2005 - 2009 | Subaru | Outback | XT Limited |
| 2008 - 2014 | Subaru | Tribeca | Base, Limited |
| 2009 - 2014 | Subaru | Tribeca | Premier |
| 2008 | Subaru | Tribeca | Premiere |
| 2010 - 2012 | Subaru | Tribeca | Touring, Premium |
| 2018 - 2020 | Subaru | WRX | 6 Man, CVT |
| 2013 - 2021 | Subaru | WRX | Limited, Base |
| 2015 - 2021 | Subaru | WRX | Premium |
| 2014 | Subaru | WRX | SE |
| 2017 - 2020 | Subaru | WRX | Sport-tech, Sport |
| 2013 - 2016 | Subaru | WRX | STI |
| 2013 - 2021 | Subaru | WRX STI | Base |
| 2015 | Subaru | WRX STI | Launch Edition |
| 2015 - 2021 | Subaru | WRX STI | Limited |
| 2019 | Subaru | WRX STI | S209 |
| 2016 | Subaru | WRX STI | Series.HyperBlue |
| 2017 - 2020 | Subaru | WRX STI | Sport |
| 2013 - 2020 | Subaru | WRX STI | Sport-tech |
| 2018 - 2020 | Subaru | WRX STI | STI |
| 2014 | Subaru | WRX STI | Tsurugi Edition |
| 2018 | Subaru | WRX STI | Type RA |
| 2015 | Subaru | XV Crosstrek | Base |
| 2014 - 2015 | Subaru | XV Crosstrek | Hybrid Touring, Hybrid |
| 2013 - 2015 | Subaru | XV Crosstrek | Limited, Premium, Sport, Touring |
| 2007 - 2011 | Suzuki | Grand Vitara | GLS, GL, Base |
| 2008 - 2010 | Suzuki | Grand Vitara | JA |
| 2011 | Suzuki | Grand Vitara | JLX-L |
| 2008 - 2011 | Suzuki | Grand Vitara | Limited, JX, JLX |
| 2007 - 2009 | Suzuki | Grand Vitara | Luxury |
| 2009 - 2011 | Suzuki | Grand Vitara | Premium |
| 2007 - 2008 | Suzuki | Grand Vitara | SWT |
| 2007 - 2010 | Suzuki | Grand Vitara | XSport |
| 2007 - 2011 | Suzuki | SX4 | Base, Sport |
| 2008 - 2011 | Suzuki | SX4 | JX, JLX |
| 2011 | Suzuki | SX4 | LE Anniversary Edition, JA |
| 2010 - 2011 | Suzuki | SX4 | LE, Sportback, Sport GTS, Sport S, Crossover, Sport SE |
| 2005 | Suzuki | XL-7 | EX, LX |
| 2006 | Suzuki | XL-7 | Premium, Base |
| 2001 - 2004 | Volvo | S60 | 2.0T |
| 2004 - 2005 | Volvo | S60 | 2.4, 2.5T AWD |
| 2004 - 2009 | Volvo | S60 | 2.5T |
| 2002 - 2003 | Volvo | S60 | AWD |
| 2001 - 2003 | Volvo | S60 | Base, 2.4T |
| 2004 - 2007 | Volvo | S60 | R |
| 2001 - 2009 | Volvo | S60 | T5 |
| 2007 - 2008 | Volvo | S60 | T5 Kinetic, T5 Inspiration |
| 2006 | Volvo | S60 | T5 Sport |
| 2004 - 2006 | Volvo | S80 | 2.5T, 2.5T AWD |
| 1999 - 2004 | Volvo | S80 | 2.9 |
| 1999 - 2006 | Volvo | S80 | T6 |
| 2002 | Volvo | S80 | T6 Anniversary |
| 2000 - 2001 | Volvo | S80 | T6 Executive |
| 2005 | Volvo | S80 | T6 Premier |
| 2004 | Volvo | V70 | 2.5T AWD |
| 2002 - 2003 | Volvo | V70 | AWD |
| 2001 - 2003 | Volvo | V70 | Base, 2.4T |
| 2004 - 2007 | Volvo | V70 | R, 2.4, 2.5T |
| 2001 - 2005 | Volvo | V70 | T5 |
| 2001 - 2002 | Volvo | V70 | X/C |
| 2004 - 2007 | Volvo | XC70 | 2.5T, Base |
| 2006 | Volvo | XC70 | Ocean Race |
| 2003 | Volvo | XC70 | X/C |
| 2004 - 2007 | Volvo | XC90 | 2.5T |
| 2007 - 2014 | Volvo | XC90 | 3.2 |
| 2009 - 2014 | Volvo | XC90 | 3.2 R-Design |
| 2008 | Volvo | XC90 | 3.2 Sport |
| 2003 - 2012 | Volvo | XC90 | Base |
| 2011 - 2014 | Volvo | XC90 | Luxury |
| 2010 - 2014 | Volvo | XC90 | R-Design |
| 2003 - 2006 | Volvo | XC90 | T6 |
| 2005 | Volvo | XC90 | T6 Premier |
| 2013 | Volvo | XC90 | T6 R-Design |
| 2005 - 2011 | Volvo | XC90 | V8 |
| 2006 | Volvo | XC90 | V8 Ocean Race, V8 Premier |
| 2009 | Volvo | XC90 | V8 R-Design |
| 2007 - 2008 | Volvo | XC90 | V8 Sport |
Dorman TPMS Sensor Transmit
Sale price$46.90 USD
