TOM'S Racing - 2020+ Toyota GR Supra Rear Bundle Kit - Barrel Muffler + Fully Dry Carbon Rear Bumper Diffuser
TOM'S Racing - 2020+ Toyota GR Supra
Rear Bundle Kit
Barrel Muffler + Fully Dry Carbon Rear Bumper Diffuser

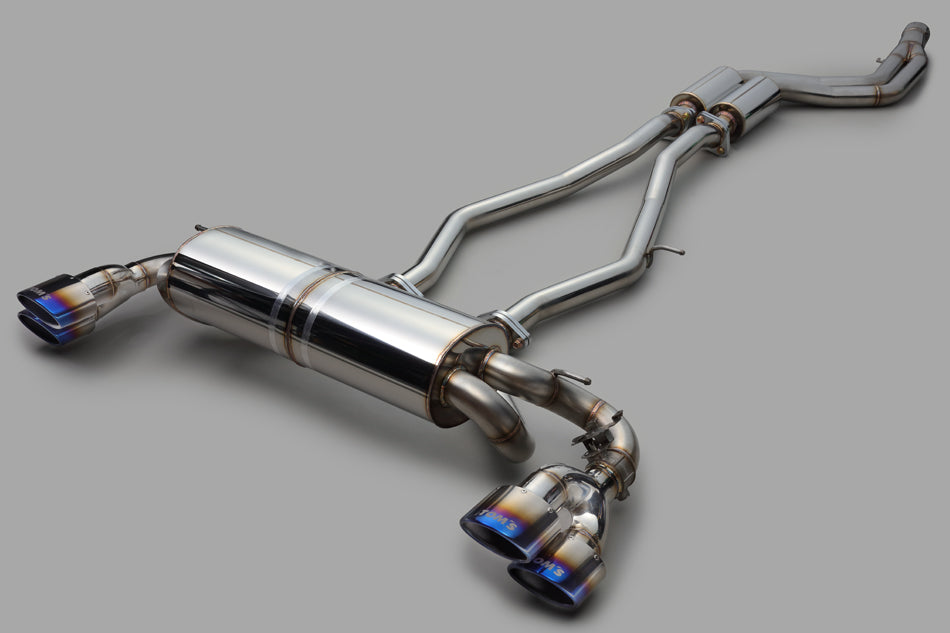

TOM'S Racing Barrel Muffler
- Catback Exhaust System Quad Titanium Tips
- Compatible ONLY with TOM'S Racing Rear Bumper Diffuser (Part Number: TMS-52159-TDB42)
| Bolt-On | Yes |
|---|---|
| Year | 2020, 2021, 2022 |
| Make | Toyota |
| Model | GR Supra |
| Body Style | 2-Door Coupe |
| Engine | B58 (3.0L- I6 Turbo) |
| Chassis | DB42 (A90) |
| Piping Diameter | 60.5mm |
| Tip Diameter | 120mm x 90mm (Quad Tip Staggered) |
| Pieces | 4 |

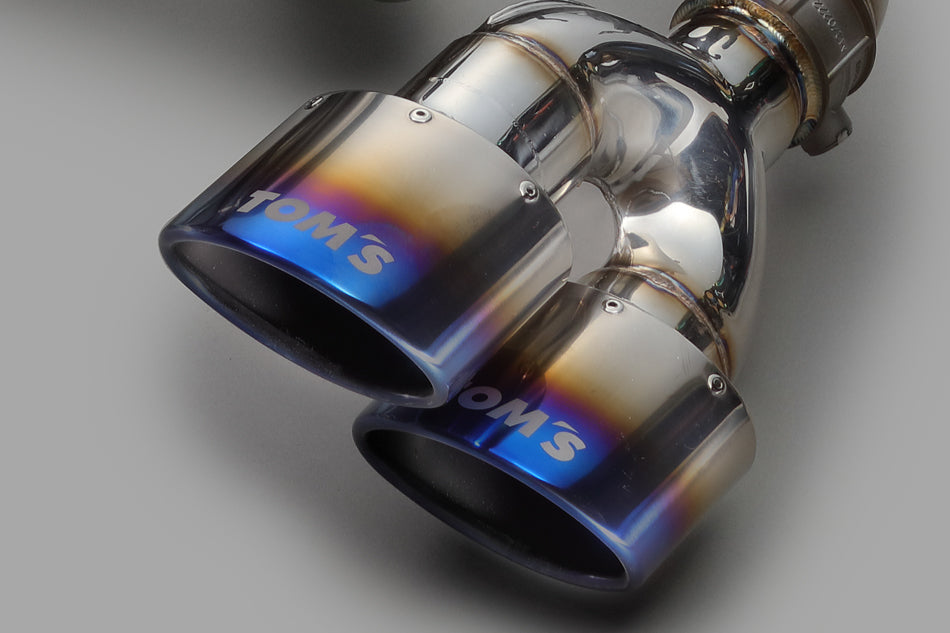

| Exhaust Tip Style | Titanium Oval- Dual wall rolled, Angle cut (Riveted) |
| Piping Material | SUS304 Stainless Steel |
| Muffler Material | SUS304 Stainless Steel |
| Muffler Tip Material | Titanium |
| Sound Level | Sound Level: 85 dB @ 4,500 RPM |
| Special Notes | Built-In Exhaust Valve- Compatible with OEM Valve Actuator/Motor Assy. NOTE: Do not use harsh chemicals or metal polish cleaners when cleaning titanium tips. We recommend using standard isopropyl alcohol |
 |
WARNING: California Prop 65 Cancer & Reproductive Harm www.p65warnings.ca.gov |

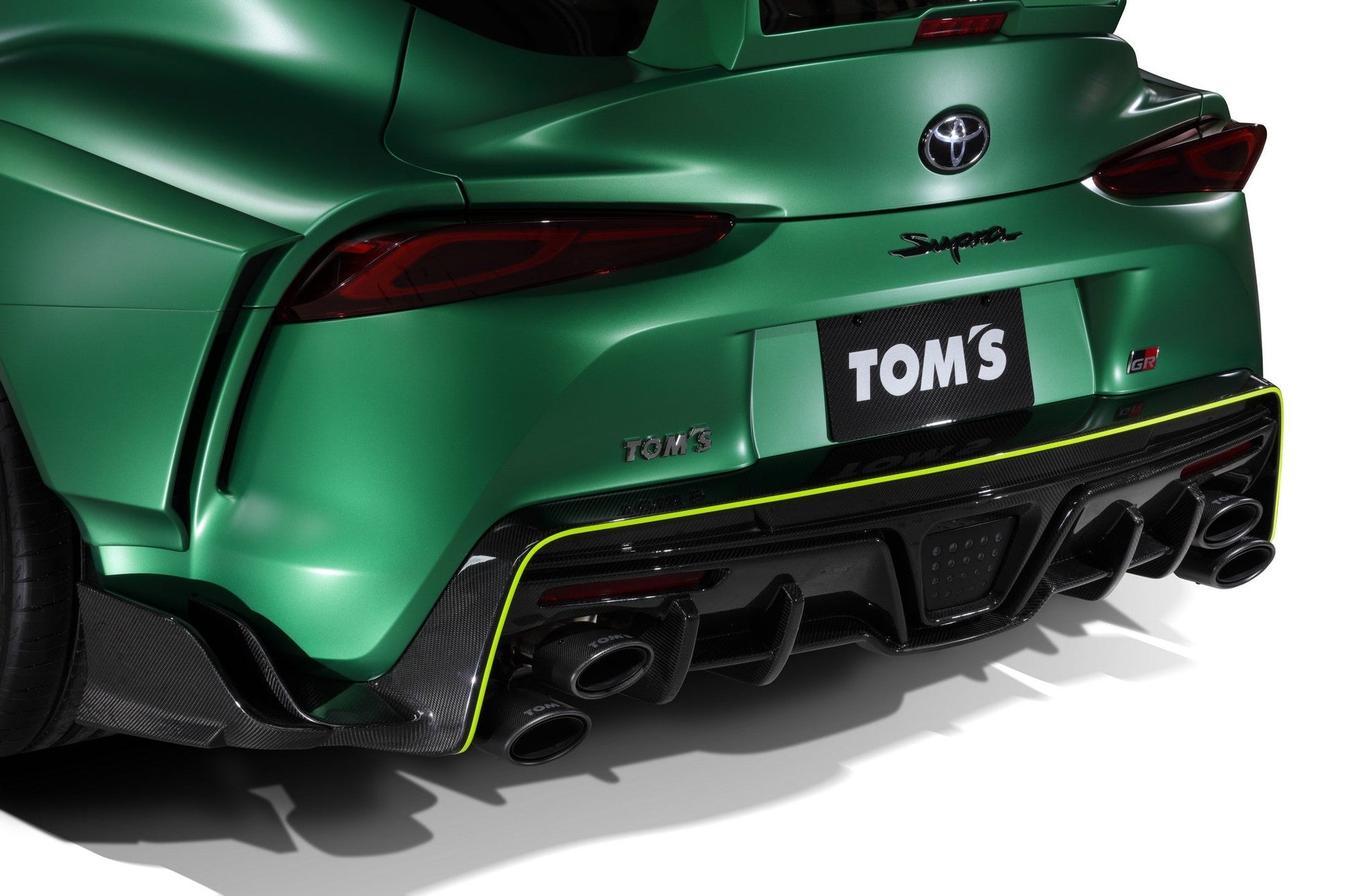

Fully Dry Carbon Rear Bumper Diffuser
*Can be installed with OEM Factory Muffler Or Compatible with TOM'S Racing Barrel Catback Exhaust System (Part Number: TMS-17400-TDB42)
- Plus 11mm length from the vehicle body
- Plus 17mm lower from the vehicle body
| Bolt-On | Yes |
|---|---|
| Part Number | TMS-51410-TDB42 |
| Year | 2020, 2021, 2022 |
| Make | Toyota |
| Model | GR Supra |
| Engine | B58 |
| Chassis | DB42 (A90) |
|
WARNING: California Prop 65 Cancer & Reproductive Harm www.p65warnings.ca.gov |
