A no compromise exhaust manifold that offers significant performance gain at the top end for the Mazda MX-5 Miata NC.
The new Expreme Manifold for the NC Miata improves upon the stock version in every way possible.
Features:- Catless - Significantly lighter than stock with dramatically improved exhaust flow efficiency.
- Precision made, highly durable flange(s). O2 sensor boss also included/attached.
- Precision cast ('Lost-Wax') and machined single-piece flange.
| Item | TOMEI | STD |
| Part No. | TB6010-MZ03A | - |
| Material | SUS304 | - |
| Pipe Diameter | 42.7-60.5mm | 38.1-60.5mm |
| Pipe Thickness | 1.5mm | 1.5mm |
| Flange Thickness | F:11.00mm R:8.0mm |
F:11.5mm R:2.5mm |
| Weight | 15.43 lbs | 50.71lbs |

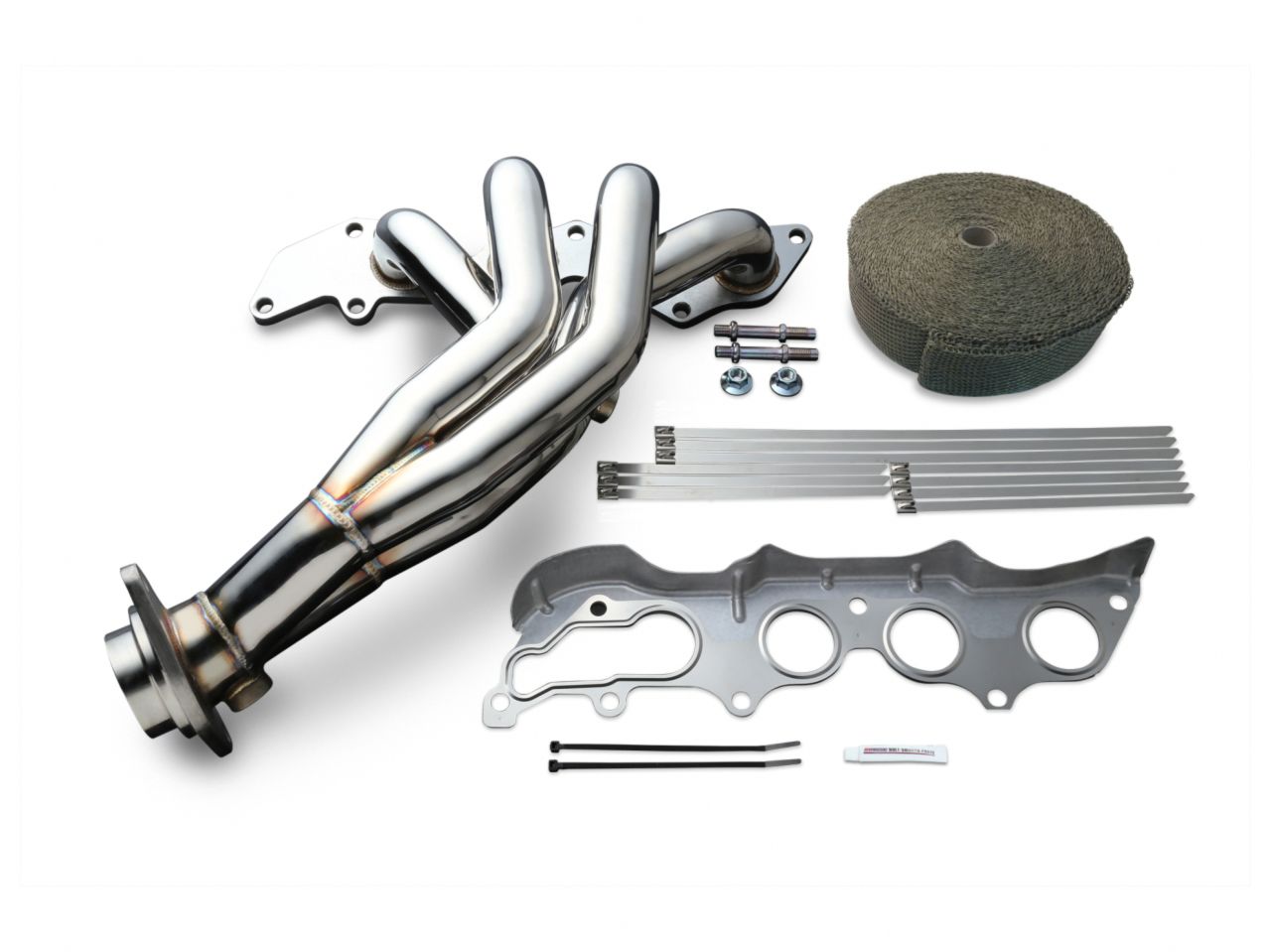

- Exhaust Manifold (1)
- Exhaust Manifold Gasket (1)
- Stud Bolt (2)
- Flange Nut (2)
- Tie Wrap 200mm (2)
- Bandage (1)
- Bandage Band 362mm (6)
- Bandage Band 201mm (8)
- Bolt Smooth Paste(1)
This kit includes all the components necessary for installation including the bolts and nuts. Bolt Smooth Paste is also included to help prevent the bolts becoming seized under heat.
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015 | Mazda | MX-5 Miata | 25th Anniversary Edition |
| 2013 - 2015 | Mazda | MX-5 Miata | Club |
| 2006 | Mazda | MX-5 Miata | Club Spec, Base |
| 2006 - 2015 | Mazda | MX-5 Miata | Grand Touring, Sport |
| 2008 - 2015 | Mazda | MX-5 Miata | GT, GX, GS |
| 2011 - 2012 | Mazda | MX-5 Miata | Special Edition |
| 2007 - 2009 | Mazda | MX-5 Miata | SV |
| 2006 - 2012 | Mazda | MX-5 Miata | Touring |
