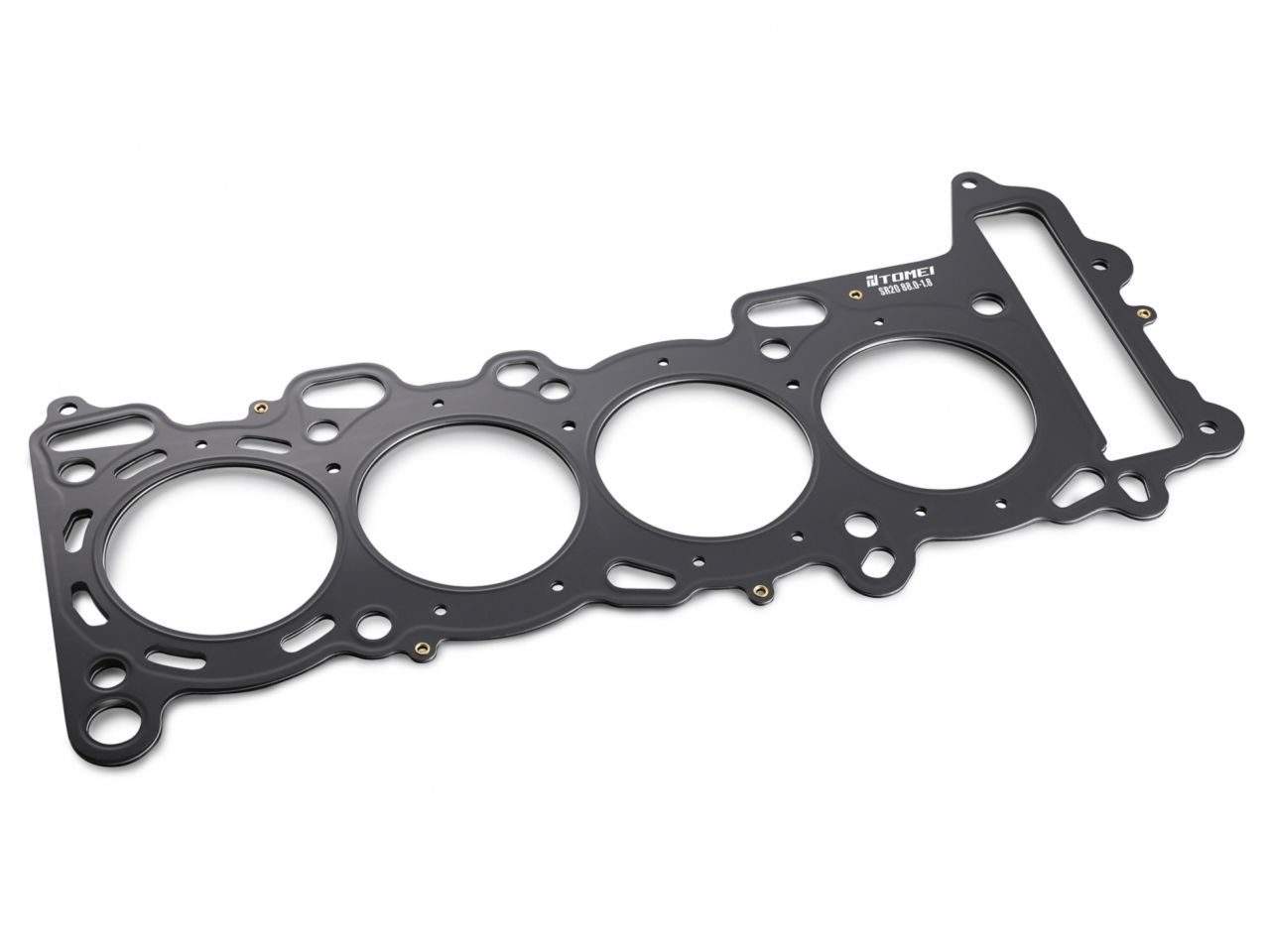

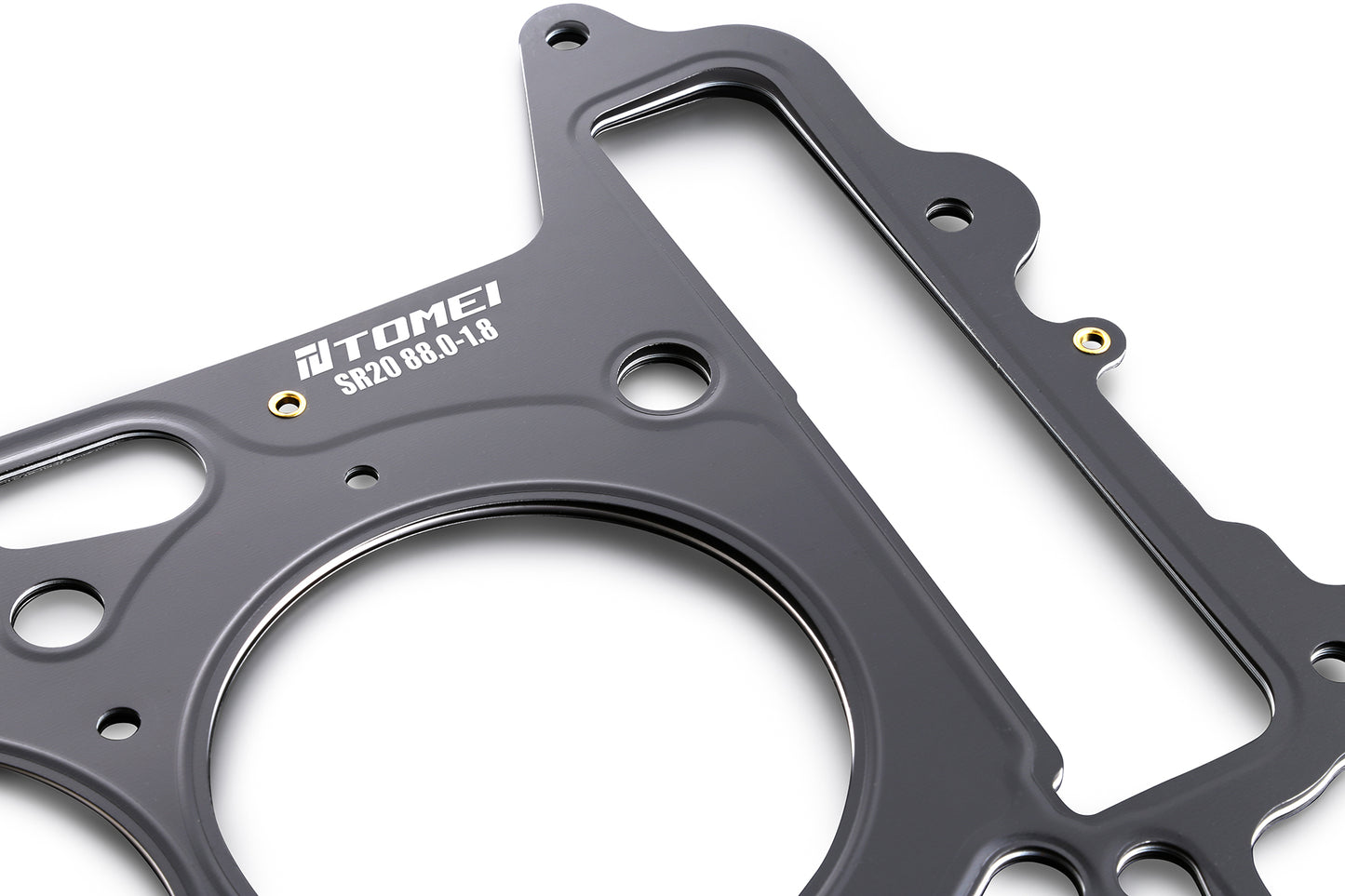

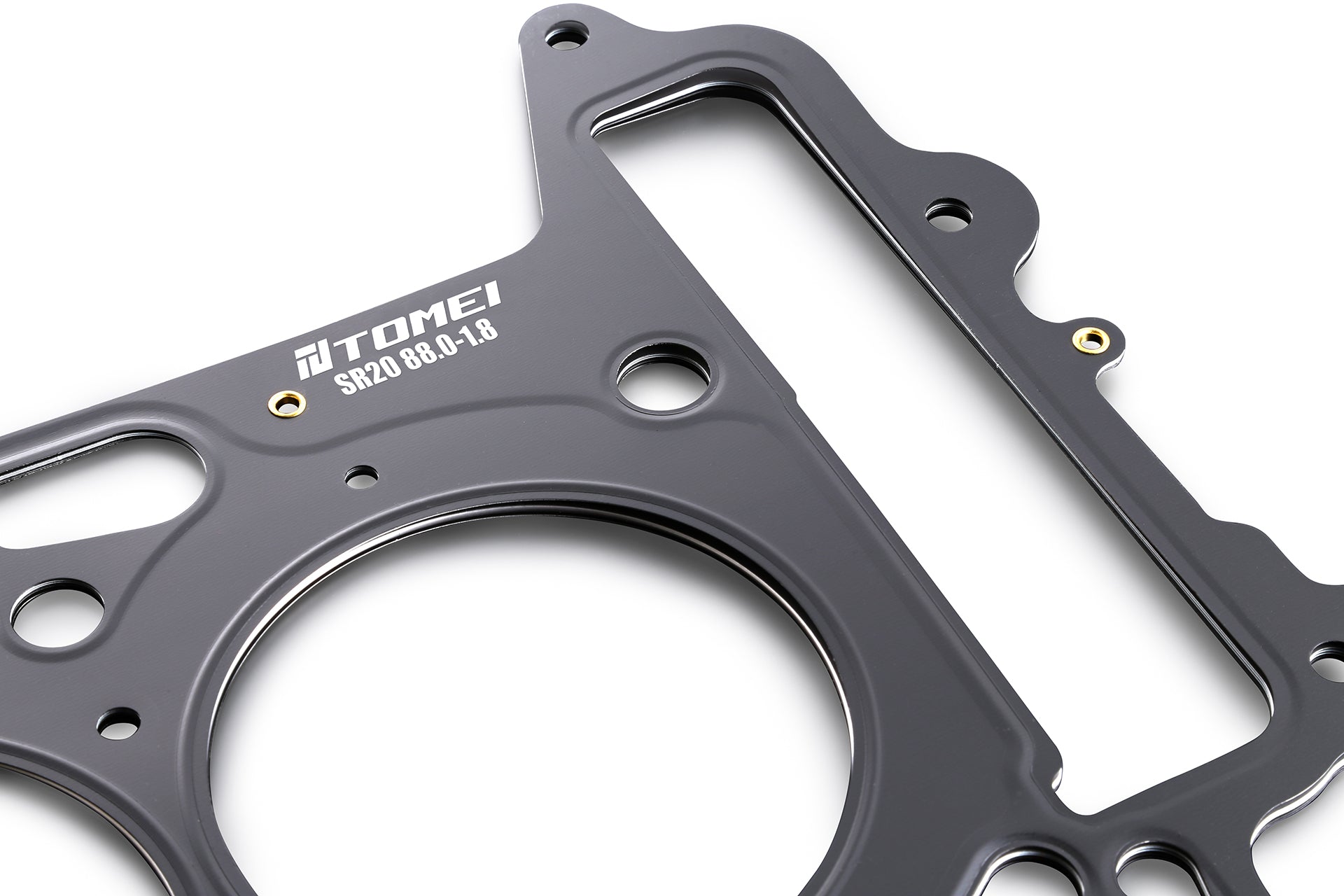

Tomei SR20DE[T]-FR Head Gasket 87.0 / 1.0mm

Tomei SR20DE[T]-FR Head Gasket

$108.00

Sale Sold out

Shipping calculated at checkout.

Bore 87.0 88.0

Thickness 1.0mm 1.2mm 1.5mm 1.8mm

16 in stock

Quantity

Shipping & returns

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Returns

Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.

Read the full return policy

Return details & how to start

Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.

Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.

Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.

Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.

After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.

Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.

For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

Specifications

Product details shared across all variants.

Product type: Engine Cylinder Head Gasket
Category: Cylinder Heads
Item condition: New
Manufacturer type: Aftermarket

Shipping dimensions (L × W × H)
Shipping weight: 1.5 lb
Barcode: 650229661041

Billable shipping weight; may include dimensional weight.

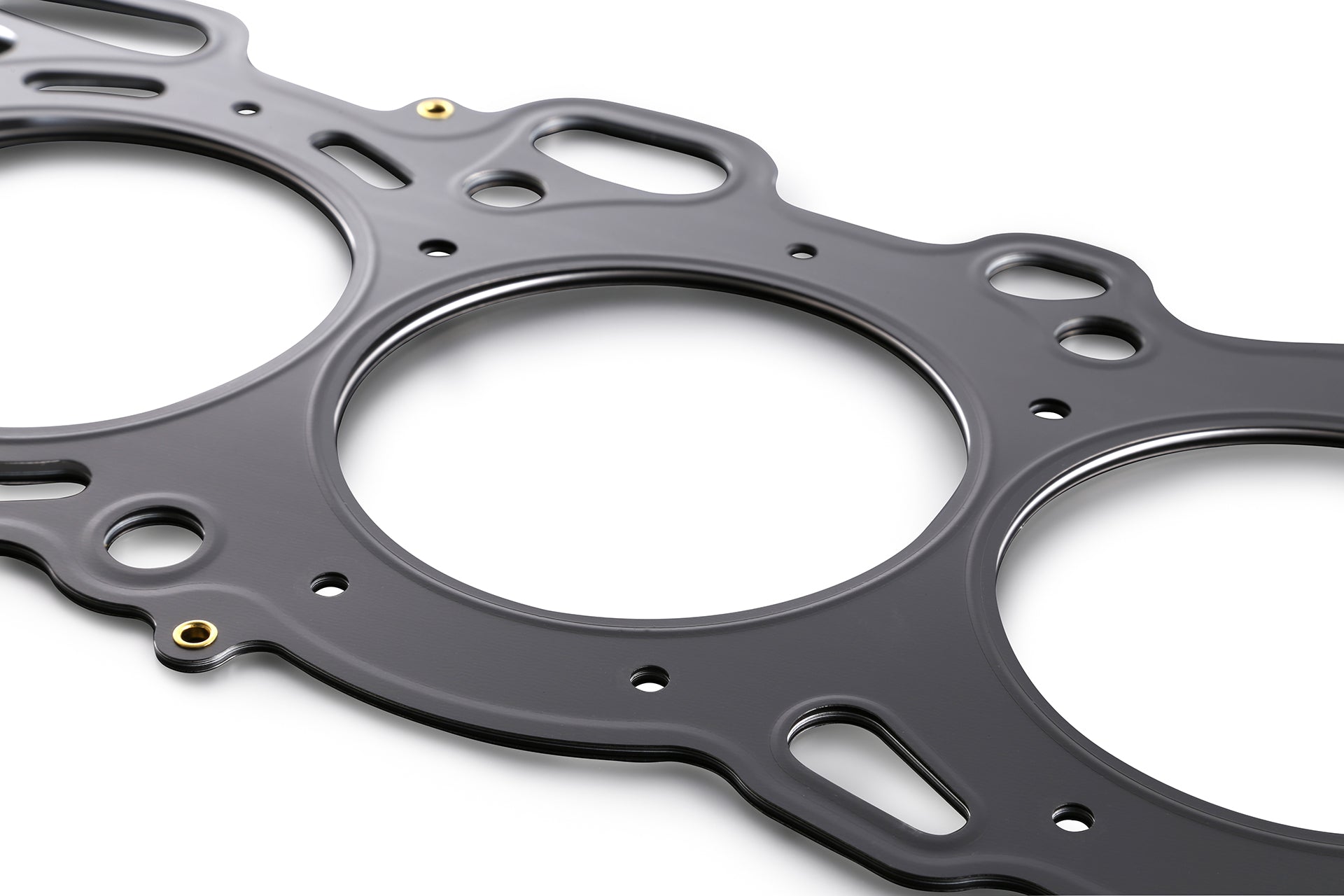

Tomei Gasket Ultra Durable, High Performance Head Gasket Highly Optimized, Engine Specific Construction Made Using Premium Grade Materials and Coatings Precision Water/Oil Route Seals Multiple Thicknesses For CR Adjustment Each gasket features an optimized combination of seals and beads derived from analyzing the engine's individual characteristics that include bore spacing/layout, head/block materials and sealing properties. This also helps limit the head/warp distortion that's often associated with other high performance gaskets.

STAINLESS STEEL

Stainless steel is used across all our high performance gaskets. Robust and resistant to high temperatures,stainless steel facilitates efficient transfer of heat from the combustion chamber to the cylinder block. In addition, it's flexible nature further strengthens the seal made by the spring-like beads which helps prevent issues such as blown gaskets and melted cylinder blocks.

UNIQUE RUBBER COATING

Both the top and bottom layers of the gaskets are coated in a specially developed unique rubber coating that reinforces the seal and contact with the head/block surfaces. Higher Compression, The perfect Seal, Prevent Problems With this Easy Upgrade !! The technological advancement of performance engines and even more so from tuned engines will increase the burden of stress on the head gasket. Under extreme conditions of high cylinder pressures and competition use, the head gasket is often the weakest point. The expansion and 3D pressure image shown, displays the effectiveness of the TOMEI multiple layered head gasket with the super grommet design (shown with the pressure image analysis system). The sealing performance is pursued with cross-section measurements and utilizing various functions within the design.

RB20DE(T) HEAD GASKET

Specifications:

Category: Gasket Head Gasket

Engine: RB20DE(T)

Weight (lbs): 2

Dimension (Inch): 12x22x1

Material: Metal

BORE	THICKNESS	PART NO.
¦87.0	1.0mm	TA4070-NS08A
	1.2mm	TA4070-NS08B
	1.5mm	TA4070-NS08C
	1.8mm	TA4070-NS08D
¦88.0	1.2mm	TA4070-NS08E
	1.5mm	TA4070-NS08F
	1.8mm	TA4070-NS08G
