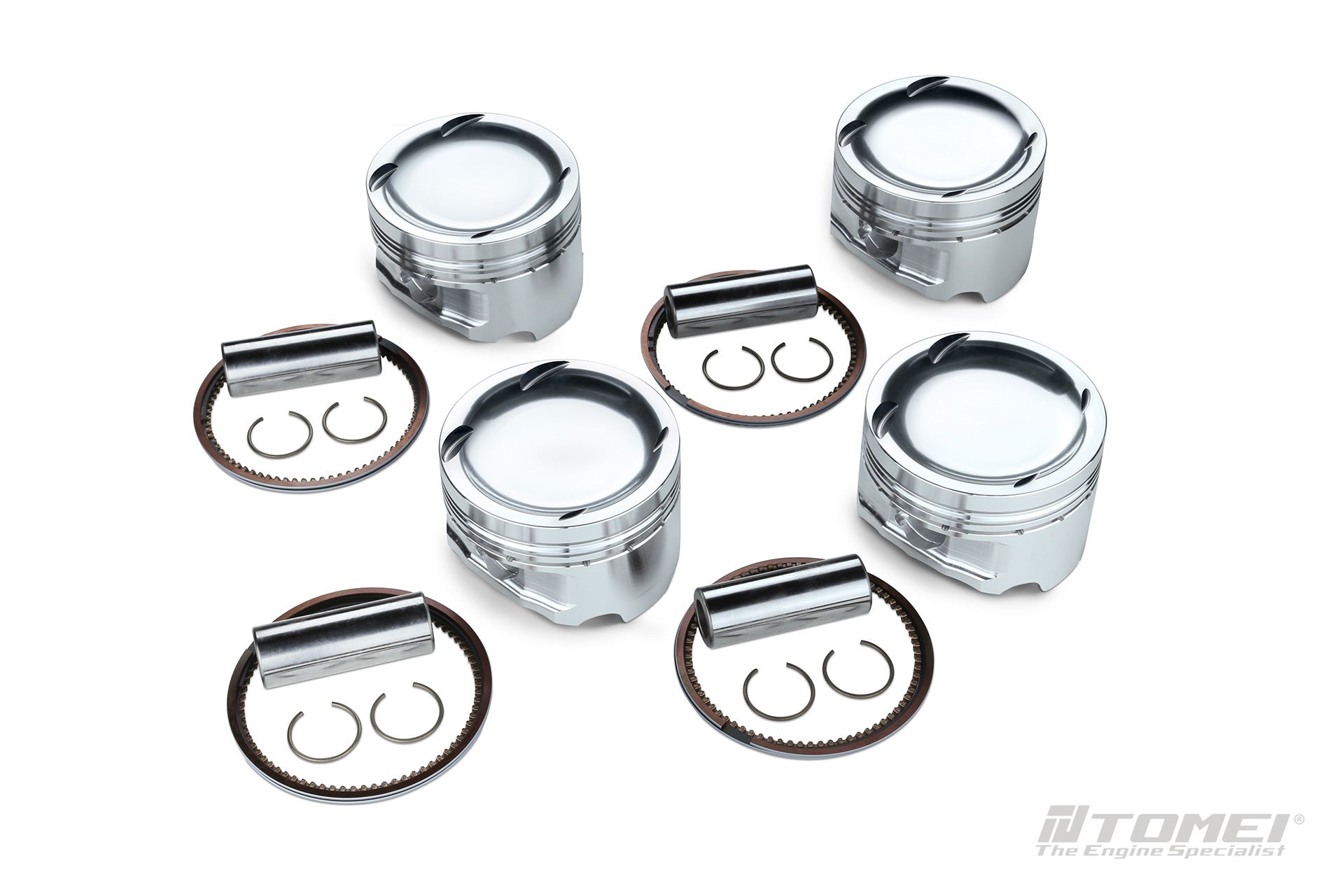

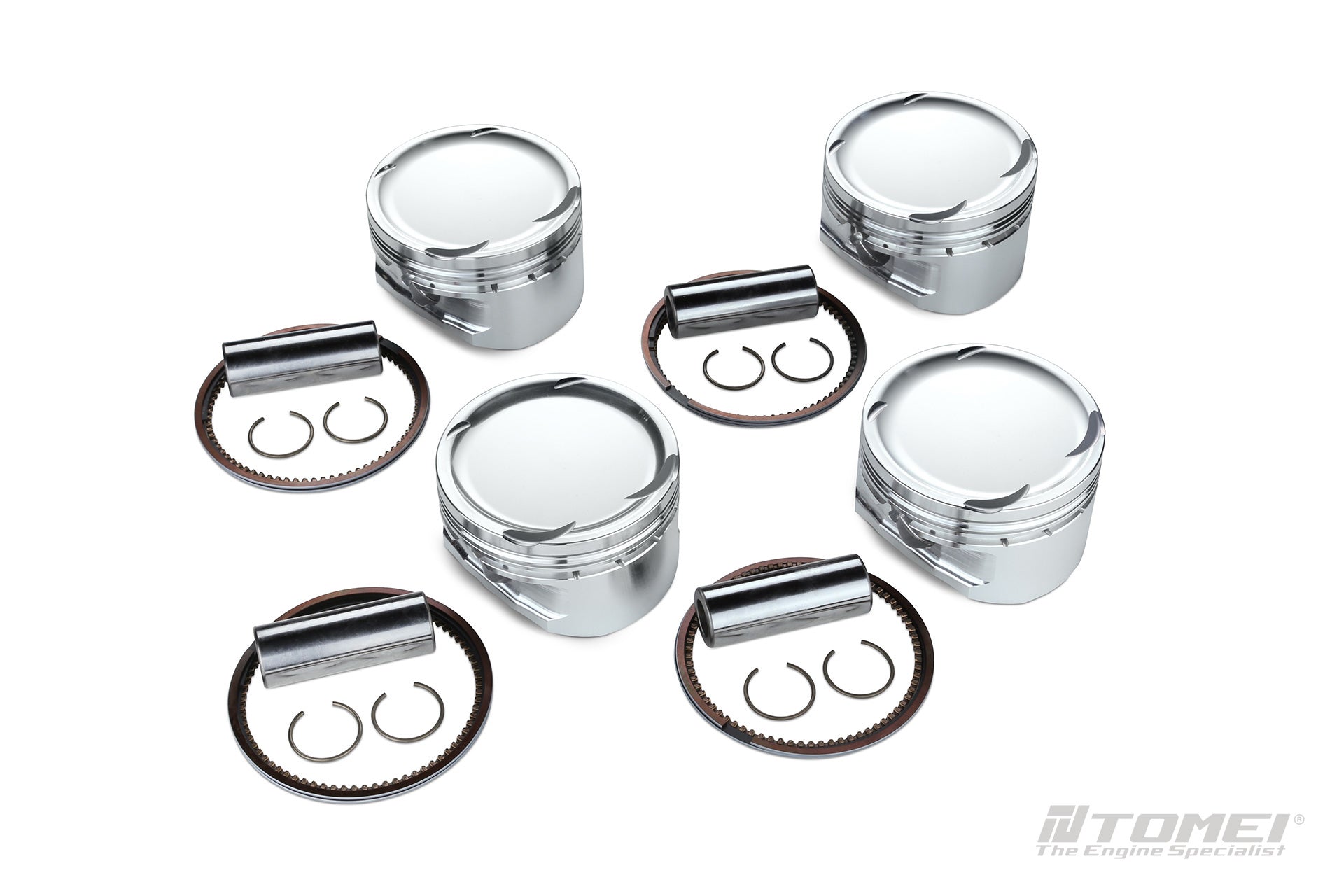

Tomei Forged Piston Kit  4G63 86.00mm CH31.65 (2.2)

Tomei Forged Piston Kit

Regular price $1,080.00
Regular price $1,200.00 Sale price $1,080.00
Sale Sold out

Shipping calculated at checkout.

Option

Low stock: 3 left

Quantity

Shipping & returns

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Returns

Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.

Read the full return policy
Return details & how to start

Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.

Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.

Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.

Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.

After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.

Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.

For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

Tomei Forged Piston Kit 4G63 & 4B11



Category  Engine Parts Number
86.00mm CH31.65 (2.2) 4G63

TA202A-MT01A

86.00mm CH31.65 (2.2) CP

4G63

TA202A-MT01AP
87.00mm CH27.40 (2.3) 4B11 TA202A-MT02A
87.00mm CH27.40 (2.3) CP 4B11 TA202A-MT02AP



Part Number TA202A-MT01A TA202A-MT01AP TA202A-MT02A TA202A-MT02AP
BORE (mm)  86.00 (OEM +1.0)
86.00 (OEM +1.0)
87.00 (OEM +1.0)
87.00 (OEM +1.0)
PIN DIA. (mm)  22 22 23 23
PIN LENGTH (mm)  60 60 62 57
CLIP INNNER DIA.  22 22 23 23
VALVE RECESS  WITH WITH WITHOUT WITHOUT
COMP.HEIGHT (mm)  31.65 (OEM -3.35)
31.65 (OEM -3.35)
27.38 (OEM -6.0)
27.38 (OEM -6.0)
PISTON DOME VOL. (cc)  -19.5 -19.6   -12.9
PISTON WEIGHT (g)  328.7 335.1   305.1
PIN WEIGHT (g)  121.5 125 133 117
TOTAL WEIGHT (g)  450.2 460.1   422.1
TOP RING (mm)  1.20 x 3.05 1.20 x 2.95 1.20 x 3.05 1.00 x 3.30
SECOND RING (mm)  1.20 x 3.70 1.20 x 2.95 1.20 x 3.9 1.20 x 3.60
OIL RING (mm)  2.50 x 2.85 2.00 x 2.60 2.50 x 2.95 3.60 x 3.25
MATERIAL A4032 A2618 A4032 A2618
