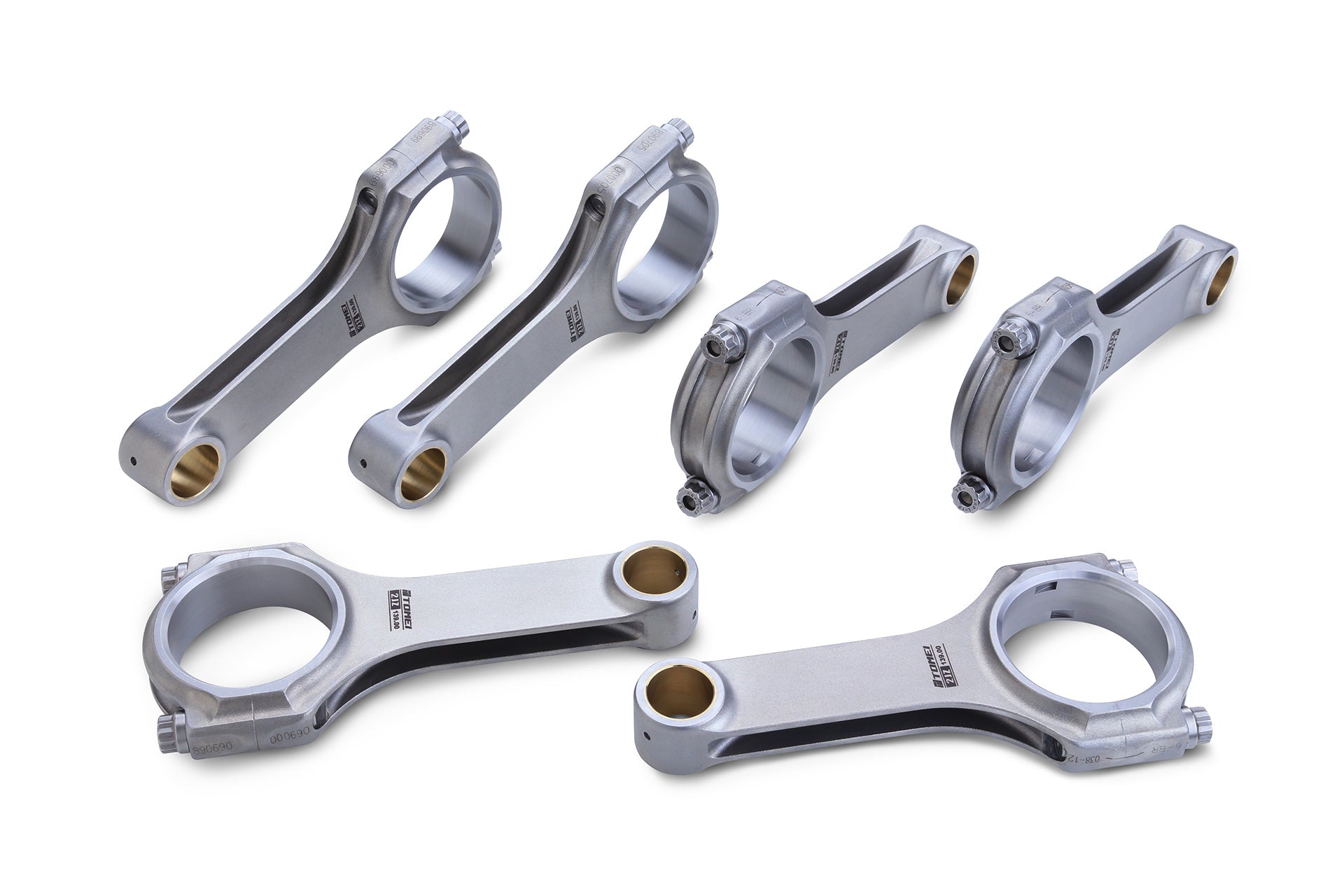

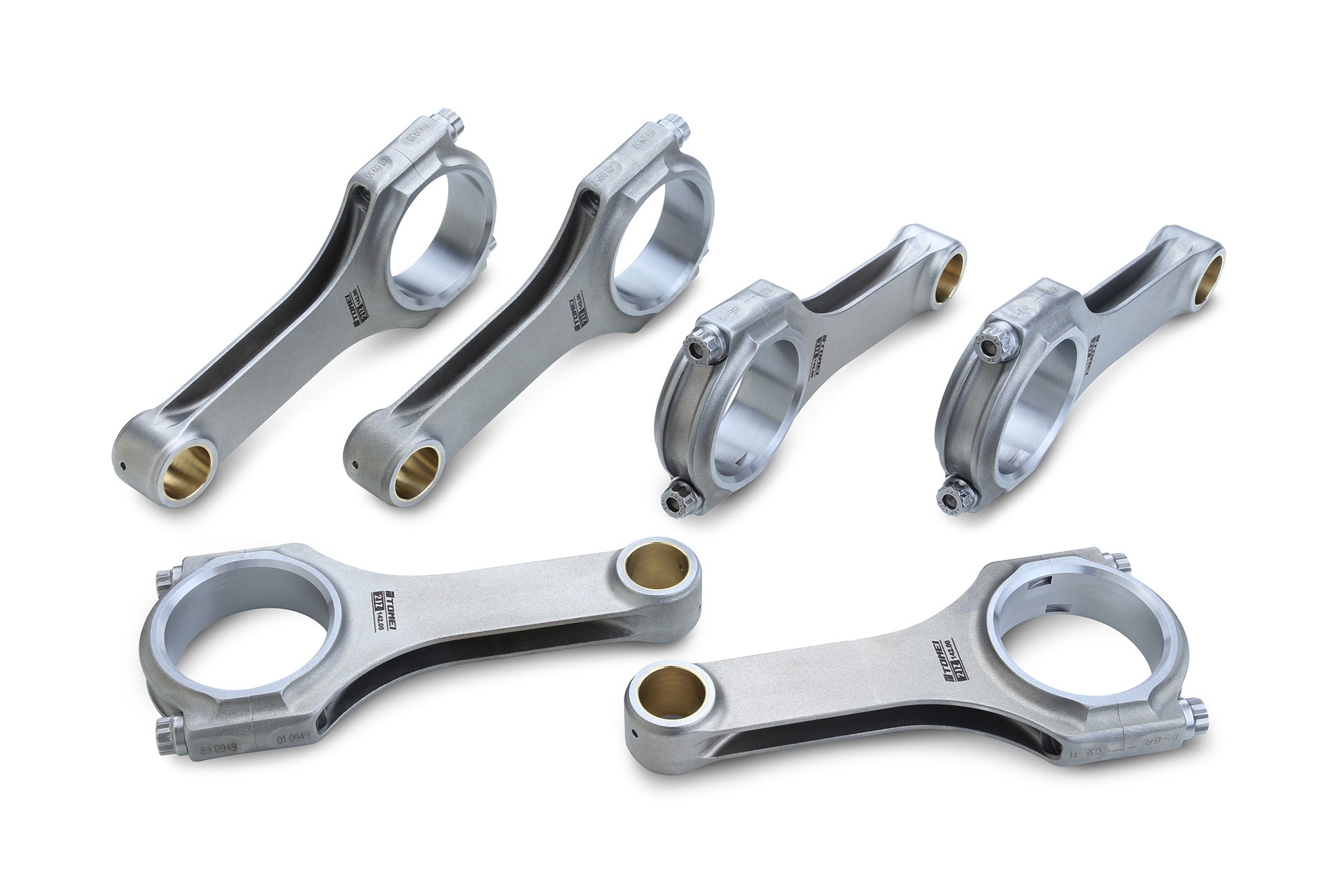

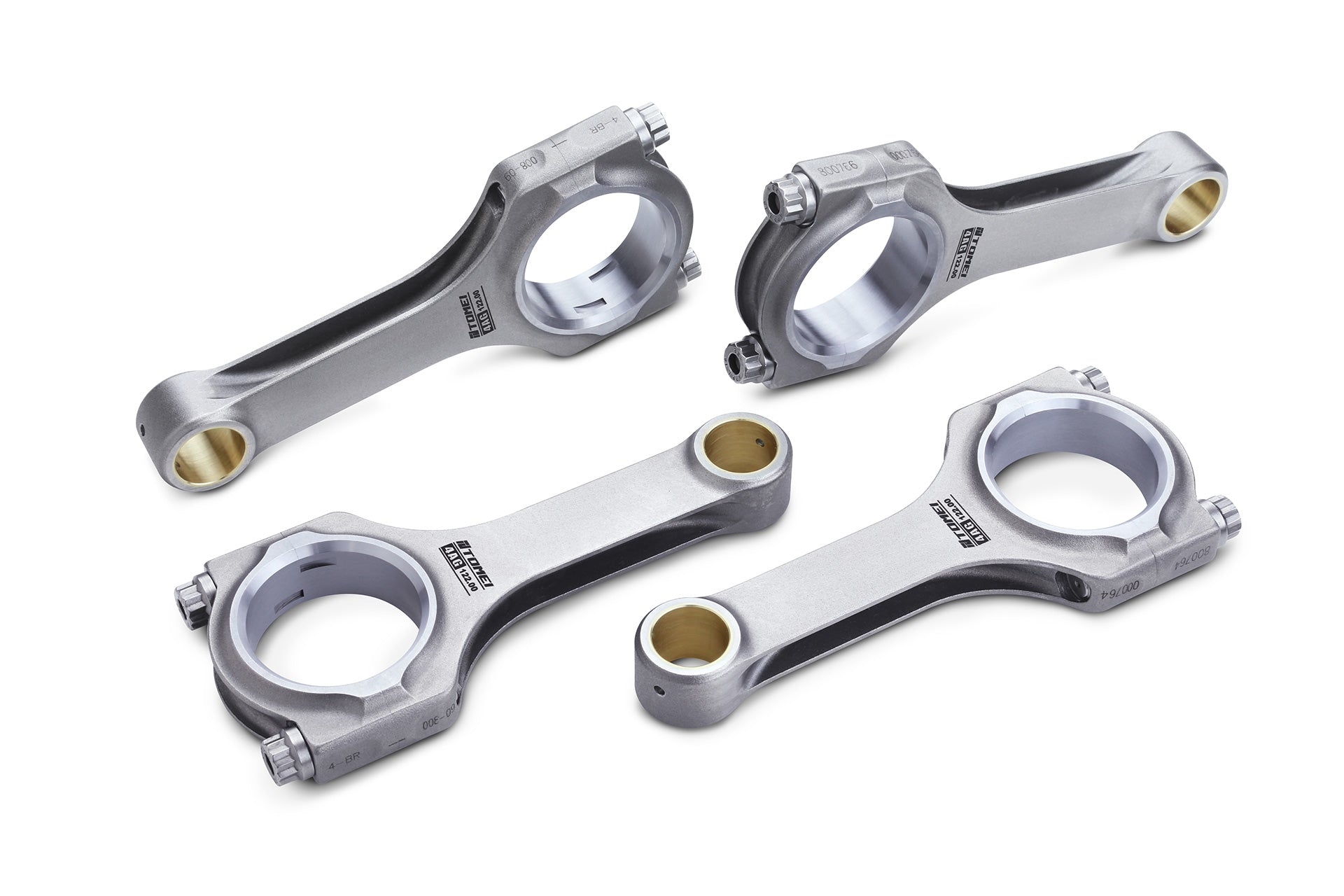

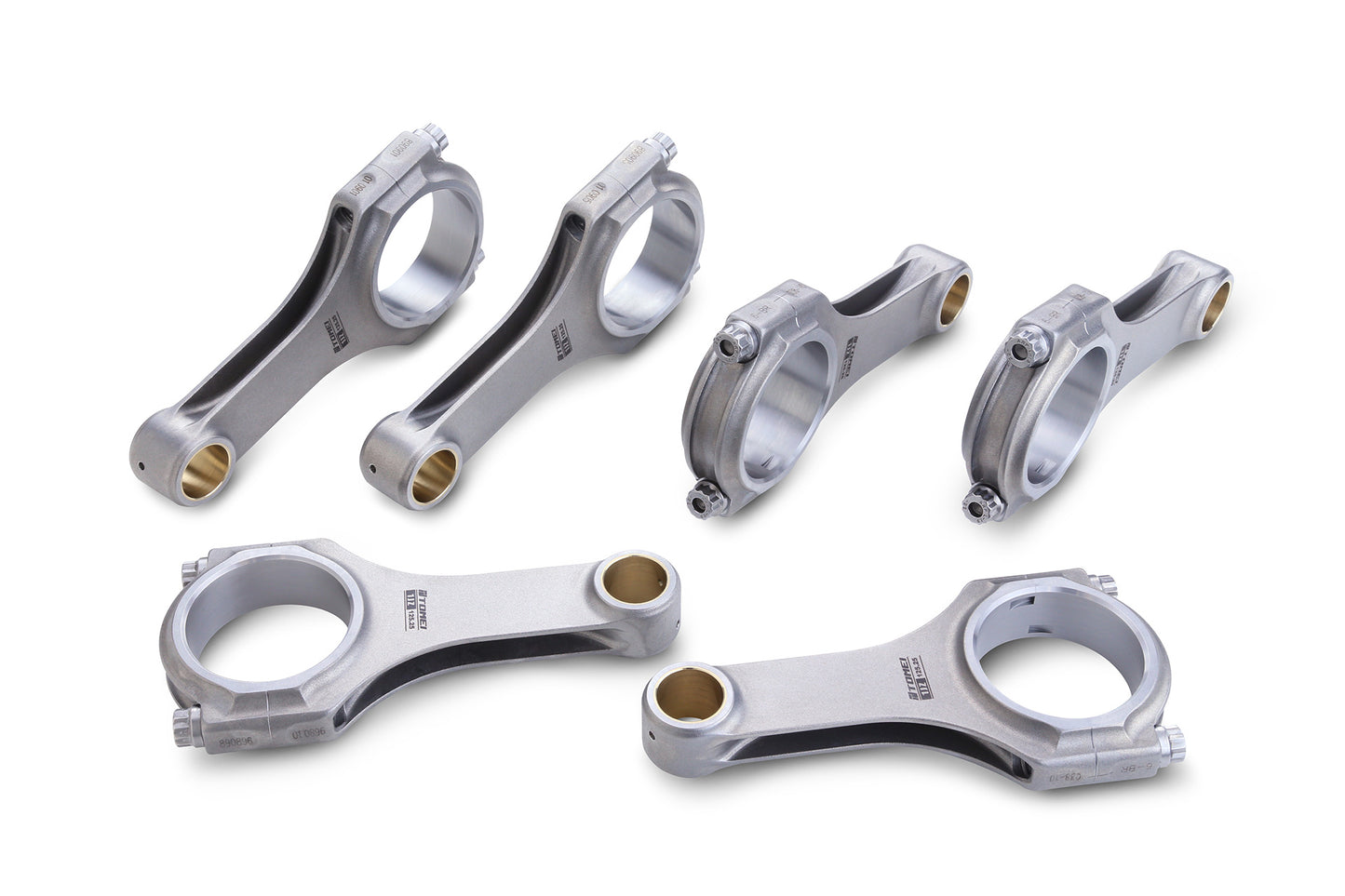

Tomei Forged H-Beam Connecting Rod Set  4A-G 122.00mm (STD/1.8)

Tomei Forged H-Beam Connecting Rod Set

Regular price $648.00
Regular price Sale price $648.00
Sale Sold out

Shipping calculated at checkout.

Option

Low stock: 1 left

Quantity

Shipping & returns

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy

Returns

Need help with a return? Request authorization within 30 days of delivery for eligible unused, uninstalled items. See details for exclusions and applicable fees.

Read the full return policy
Return details & how to start

Request return authorization (RMA) within 30 days of delivery for eligible items. Keep items unused and uninstalled, with original packaging and accessories. Electronics, liquids, special orders and other categories are excluded.

Email sales@frsport.com with RETURN and your order number in the subject to request an RMA. Please wait for return authorization before sending your item back.

Wrong part/size or change of mind: a 20% return processing fee applies, plus applicable shipping costs.

Original shipping is non-refundable. For orders shipped free, the actual outbound shipping cost is deducted from the refund. Return shipping is prepaid by the customer.

After payment capture, cancellations and refunds generally incur a 5% processing fee, except for our error, confirmed defects or confirmed carrier loss. The 5% and 20% fees do not stack; only the greater applicable fee applies. Store credit waives the 5% fee, but applicable return fees remain.

Missing, incorrect or transit-damaged items: report within 3 business days of receipt with photos of the product and packaging.

For defective items, contact us for help with the manufacturer's warranty process. The manufacturer decides the claim.

Specifications

Product details shared across all variants.

Product type
Engine Connecting Rod
Category
Motor Vehicle Engine Parts
Item condition
New
Manufacturer type
Aftermarket
Shipping weight
6.7 lb
Barcode
650229655828

Billable shipping weight; may include dimensional weight.

Forged H-Beam Connecting Rod Set

Category: Cylinder Block Connecting Rod



Category  Engine Parts Number

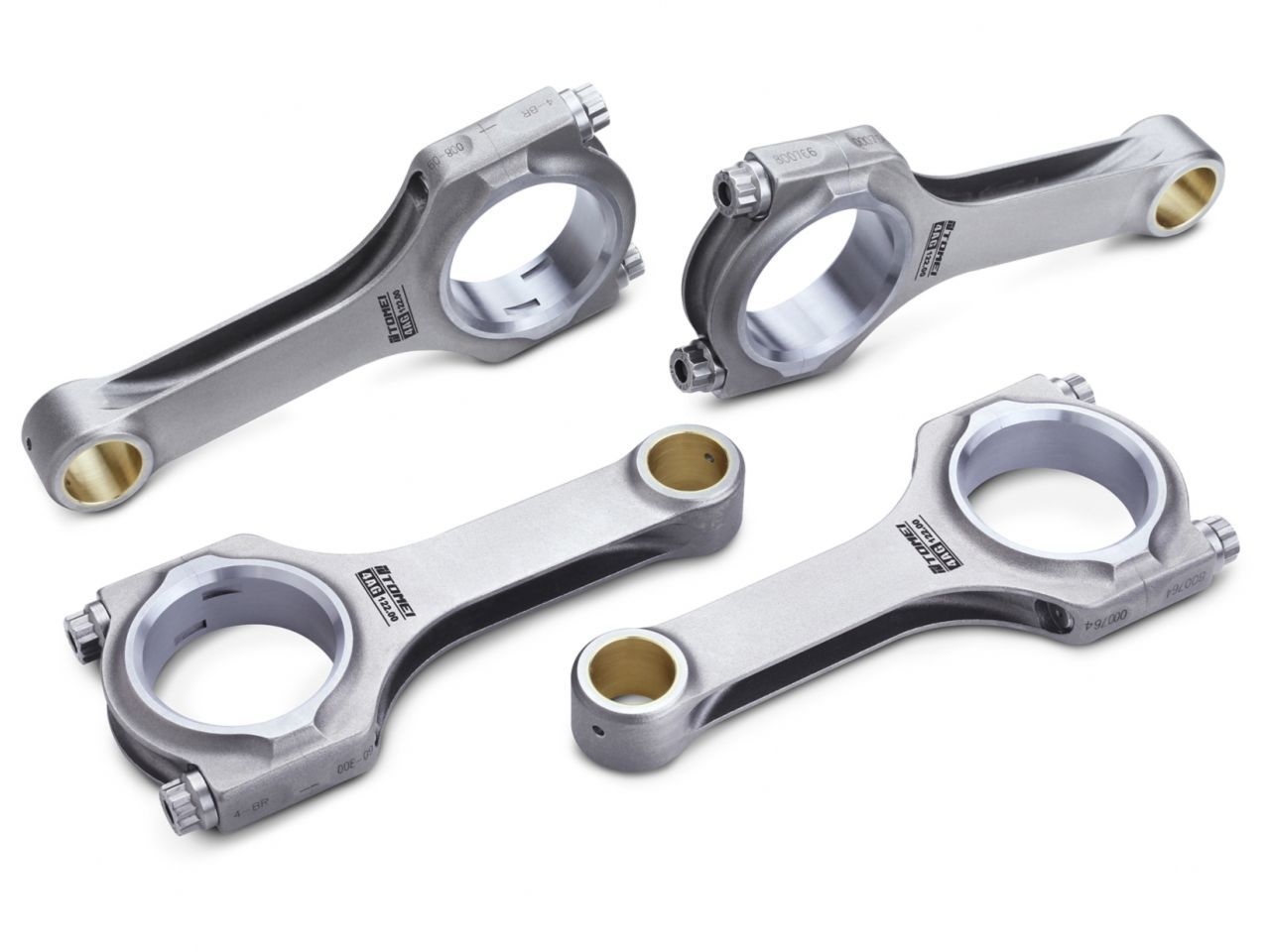

Forged H-Beam Connecting Rod Set 4A-G 122.00mm (STD/1.8) 4AG-16V,4AG-20V TA203A-TY01A
Forged H-Beam Connecting Rod Set 2JZ-GTE 142.00mm (STD/3.4) 2JZ TA203A-TY03A
Forged H-Beam Connecting Rod Set 2JZ-GTE 139.00mm (3.6) 2JZ TA203A-TY03B
Forged H-Beam Connecting Rod Set 1JZ-GTE 125.25mm (STD) 1JZ TA203A-TY04A



Part Number TA203A-TY01A TA203A-TY03A TA203A-TY03B TA203A-TY04A
C-to-C (mm) 122.00 (OEM ±0.0)
142.00 (OEM ±0.0)
139.00 (OEM -3.0) 125.25 (OEM ±0.0)
BE.BORE×WIDTH
(mm)
45.0×21.85
55.0 x 26.0 55.0 x 26.0 55.0 x 26.0
PE.BORE×WIDTH
(mm)
(Bush inner cir)
20.0×21.85
22.0 x 26.0 22.0 x 26.0 20.0 x 26.0
MATERIAL SNCM439
SNCM439
SNCM439
SNCM439
BOLT  ARP L19
3/8-24 40.0mm
ARP L19
3/8-24 40.0mm
ARP L19
3/8-24 40.0mm
ARP L19
3/8-24 40.0mm
BEARING SIZE  INNER DIA. 42.0mm
WIDTH 17.2mm
INNER DIA. 52.0mm
WIDTH 19mm
INNER DIA. 52.0mm
WIDTH 19mm
INNER DIA. 52.0mm
WIDTH 19mm
WEIGHT (g)  469.0
647 658 630
