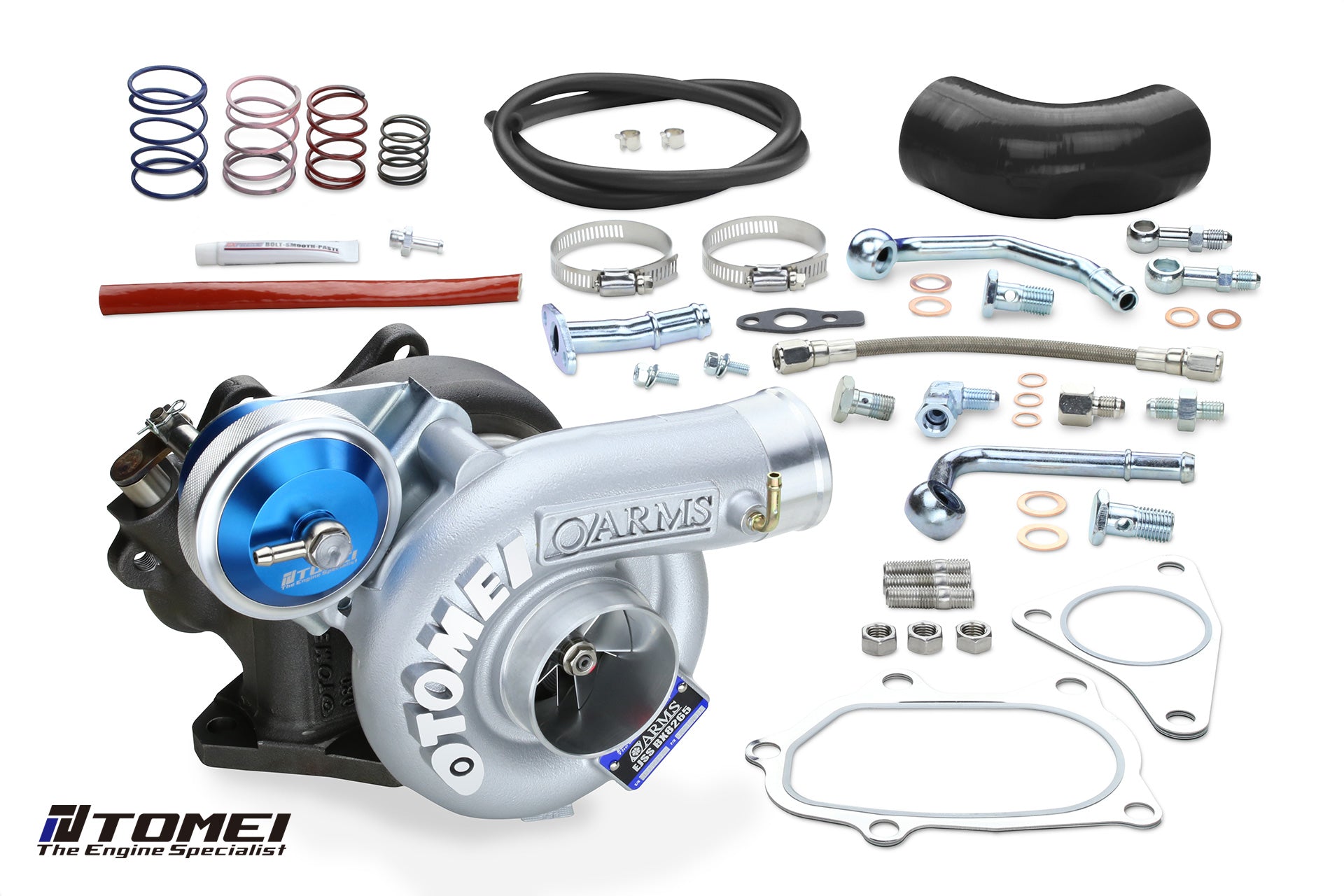

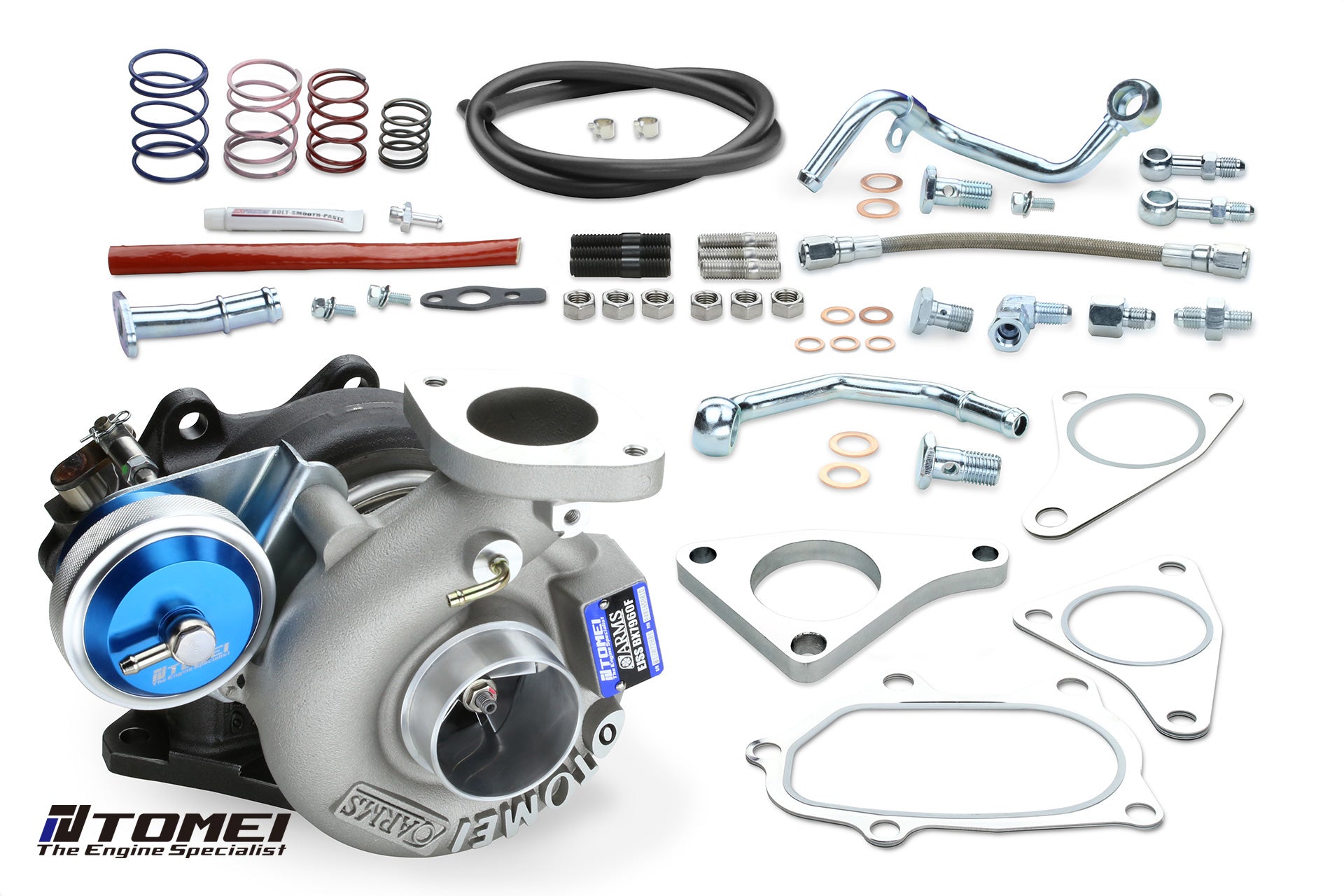

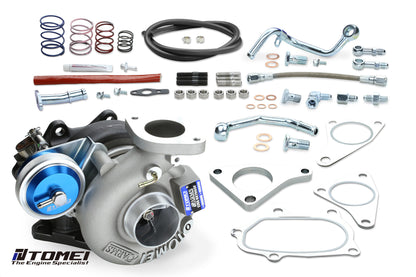

Tomei B/B Turbocharger Kit Arms Engine EJ20, EJ25  Single Scroll BX7760

Tomei B/B Turbocharger Kit Arms Engine EJ20, EJ25

sku: 1WDU7 | mpn: TB403A-SB01A
$1,602.00
$1,780.00 $1,602.00
Sale Sold out

Shipping calculated at checkout.
Option

Low stock: 4 left

Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.

Shipping & returns

Shipping details

In-stock orders are processed within 48 hours; transit time is additional.

International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

Read the shipping policy
Return policy

Tomei B/B Turbocharger Kit Arms

Category  Engine  Parts Number
EJ SINGLE SCROLL BX7760 EJ20,EJ25 TB403A-SB01A
EJ SINGLE SCROLL BX7960 EJ20,EJ25 TB403A-SB01B
EJ SINGLE SCROLL BX7960F  EJ20,EJ25 TB403A-SB01D
EJ SINGLE SCROLL BX8265 EJ20,EJ25 TB403A-SB01C



PART NUMBER TB403A-SB01A TB403A-SB01B TB403A-SB01C TB403A-SB01D
TARGET HP (HP) 380 400 450 400
BEARING TYPE Ball Bearing Ball Bearing Ball Bearing Ball Bearing
INITIAL BOOST SETTING (kgf/cm2) 1 1 1 1
COMPRESSOR WHEEL
ⒶIND(mm) 52.6 52.6 54.8 52.6
ⒷEXD(mm) 68 68 76.2 68
Trim 60 60 52 60
Blades 6/6. 6/6. 6/6. 6/6.
Material  A2618 A2618 A2618 A2618
Production CNC BILLET CNC BILLET CNC BILLET CNC BILLET
TURBINE WHEEL
ⒶIND(mm) 56 61 67 61
ⒷEXD(mm) 49.1 54 58.8 54
Trim 77 79 77 79
Blades 9 9 9 9
Material  K418 K418 K418 K418
Production CAST CAST CAST CAST
COMPRESSOR HOUSING
IND(mm) 53.6 53.6 55.8 53.46
EXD(mm) 41.63 41.63 41.5 44.2
A/R 0.78 0.78 0.78 0.78
TURBINE HOUSING
IND(mm) 45 45 45 45
EXD(mm) EJ EJ EJ EJ
A/R 0.57 0.57 0.57 0.57
