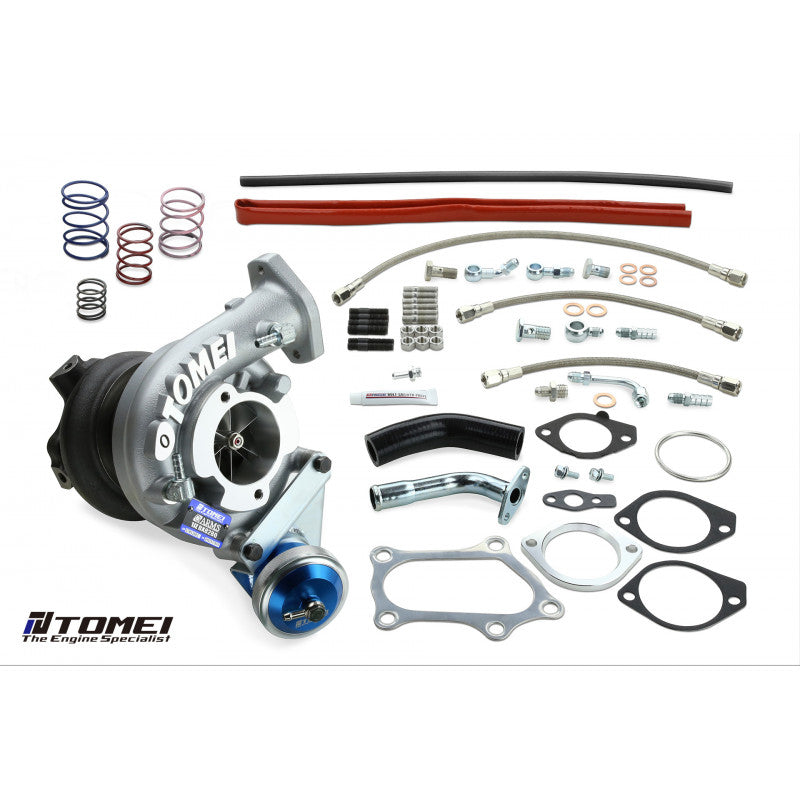

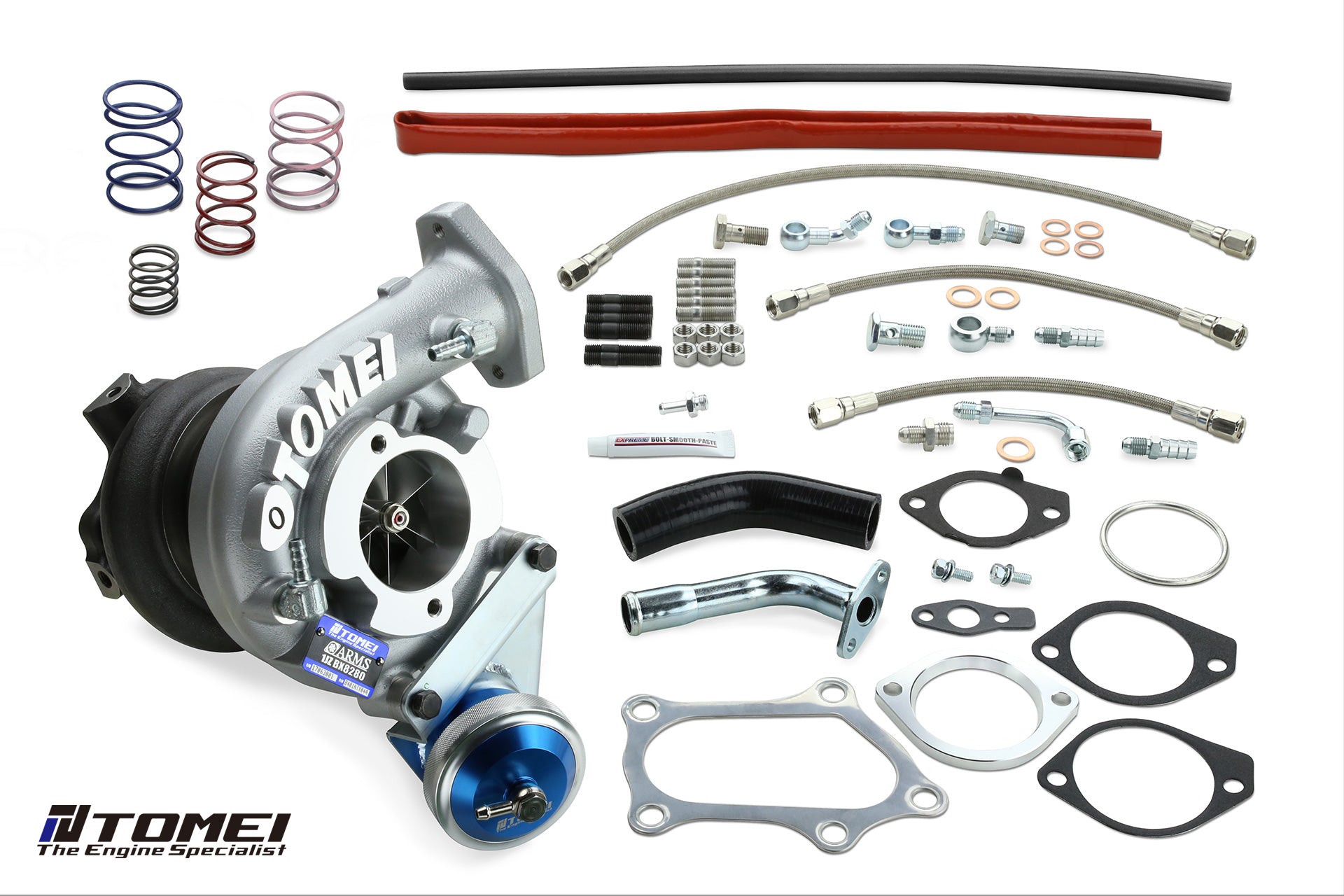

Tomei B/B Turbocharger Kit Arms BX8280 1JZ-GTE
Tomei B/B Turbocharger Kit Arms BX8280 1JZ-GTE
sku: 1WDUC | mpn: TB403A-TY04A
Regular price
$1,602.00
Regular price
$1,780.00
Sale price
$1,602.00
Shipping calculated at checkout.
Low stock: 4 left
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
Part Number: TB403A-TY04A
| TARGET HP (HP) | 450 | |
|
BEARING TYPE |
Ball Bearing | |
|
INITIAL BOOST SETTING (kgf/cm2) |
1 | |
| COMPRESSOR WHEEL | TURBINE WHEEL | |
|
ⒶIND(mm) |
61.4 | 67 |
|
ⒷEXD(mm) |
82 | 58.8 |
| Trim | 56 | 77 |
| Blades | 6/6 | 9 |
| Material | A2618 | K418 |
| Production | CNC BILLET | CAST |
|
COMPRESSOR HOUSING |
TURBINE HOUSING |
|
|
IND(mm) |
62.4 | 47.89 |
|
EXD(mm) |
45.46 | 1JZ |
| A/R | 0.54 | 0.67 |
