Dorman Direct-fit Sensor

Application Summary: Infiniti 2019-11, Nissan 2020-10

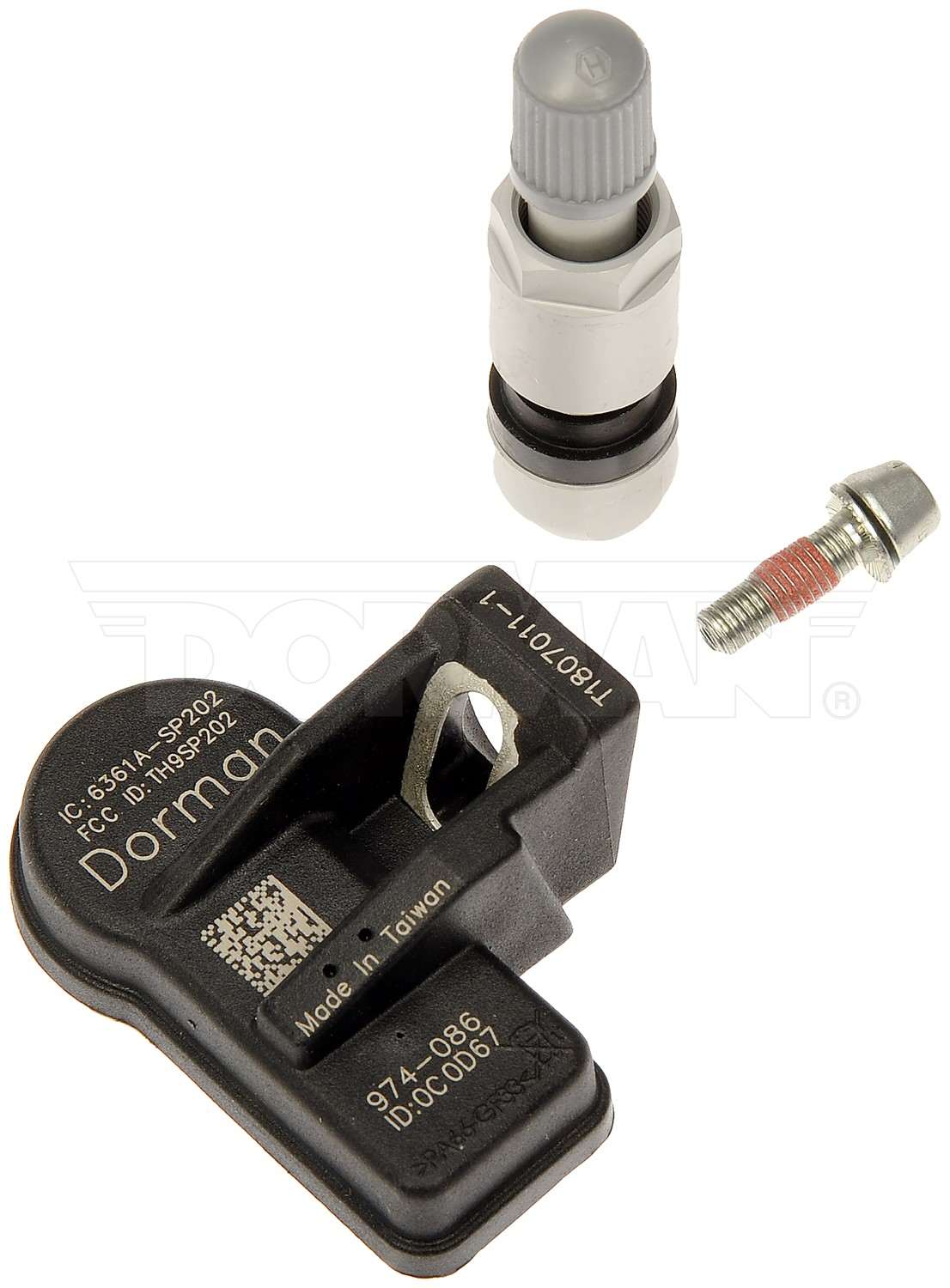

Dorman's Tire Pressure Monitoring System (TPMS) Sensor features a unique two-piece design that allows for replacement of the valve stem independently of the sensor. The sensor also offers an adjustable angled stem, so an exact fit is ensured. Likewise, proper function is ensured: though the look and color of the sensor may vary from the factory-installed one, the internal electronics are customized for your specific vehicle, and will provide the same service as the original.

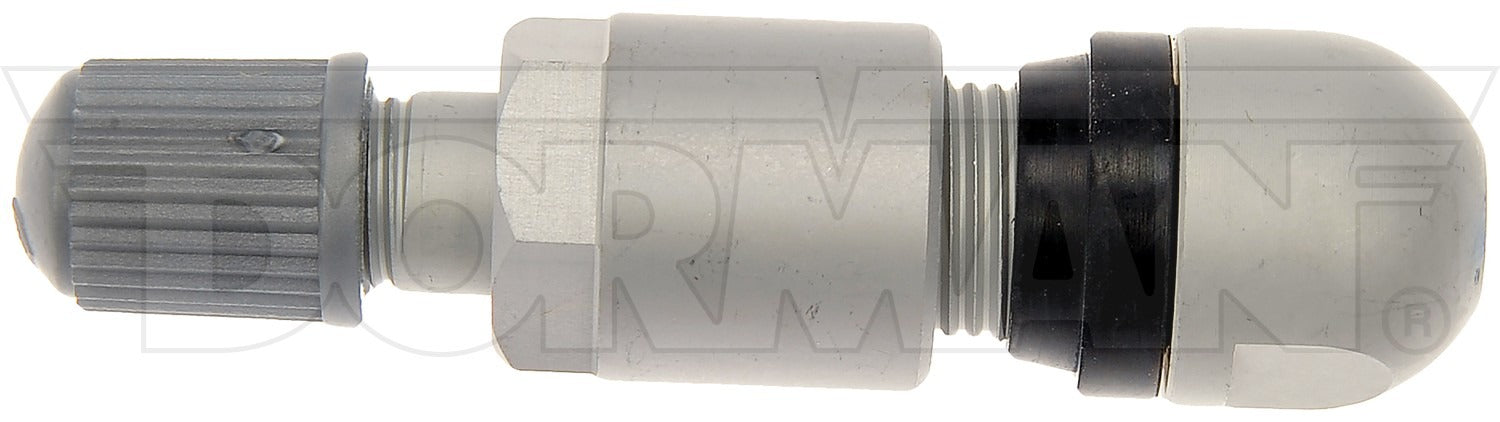

• Replaceable aluminum valve stem is anodized for long-lasting corrosion resistance-and may be serviced separately from the entire unit
• Comes with stem unit, grommet, washer, and hex nut for a complete installation
• Sensors are designed to accommodate installation angles from 5 to 26 degrees
• Dorman sensors work with all existing Tire Pressure Monitoring System (TPMS) tools

Product Specifications

• Activation Type: Magnetic
• Frequency: 315 Mhz
• Gasket or Seal Included: No
• Housing Material: Plastic
• Maximum Pressure Reading: 40 PSI
• Monitor Type: Direct
• Mounting Hardware Included: No
• Mounting Location: Wheel Valve Stem Hole
• Mounting Method: Clamp In
• Package Contents: 1 Tire Pressure Monitor Sensor
• Package Quantity: 1
• Packaging Type: Box
• Power Source: Battery
• Real Time Pressure Signal Transmission: Yes
• Universal Or Specific Fit: Universal
• Valve Color: Silver
• Valve Length: 0.50 In.

Vehicle Fitments:
