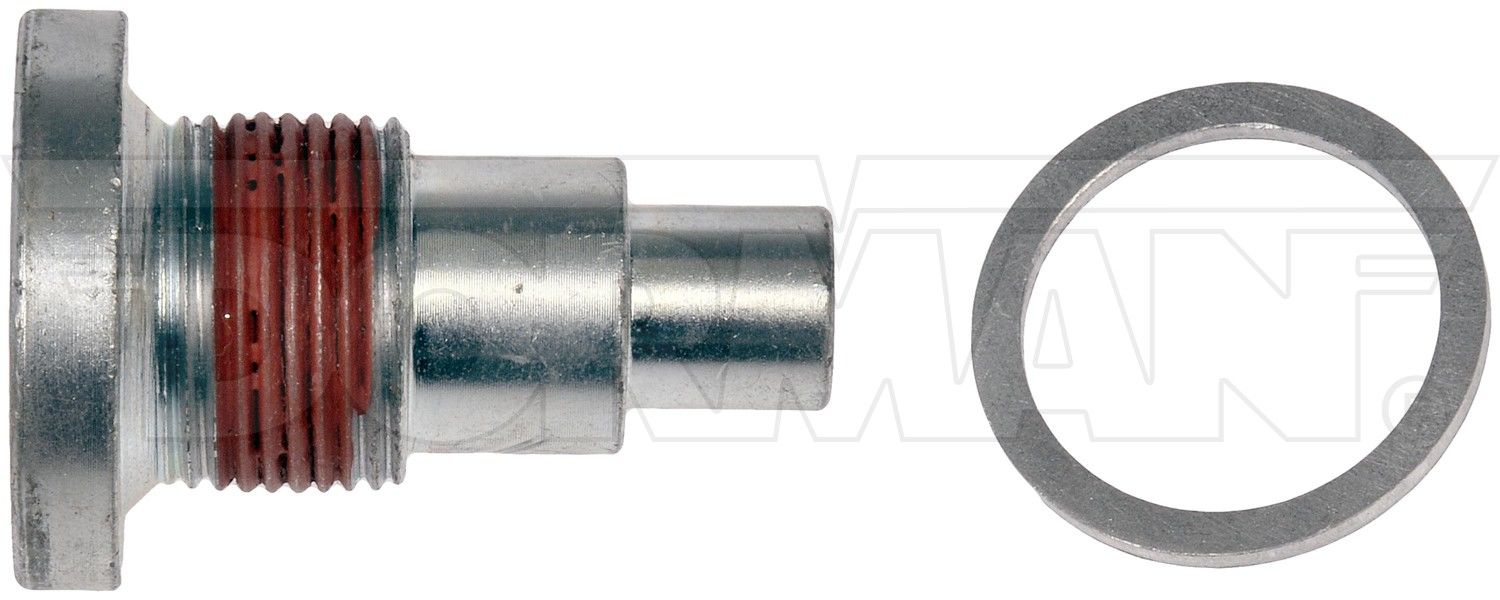

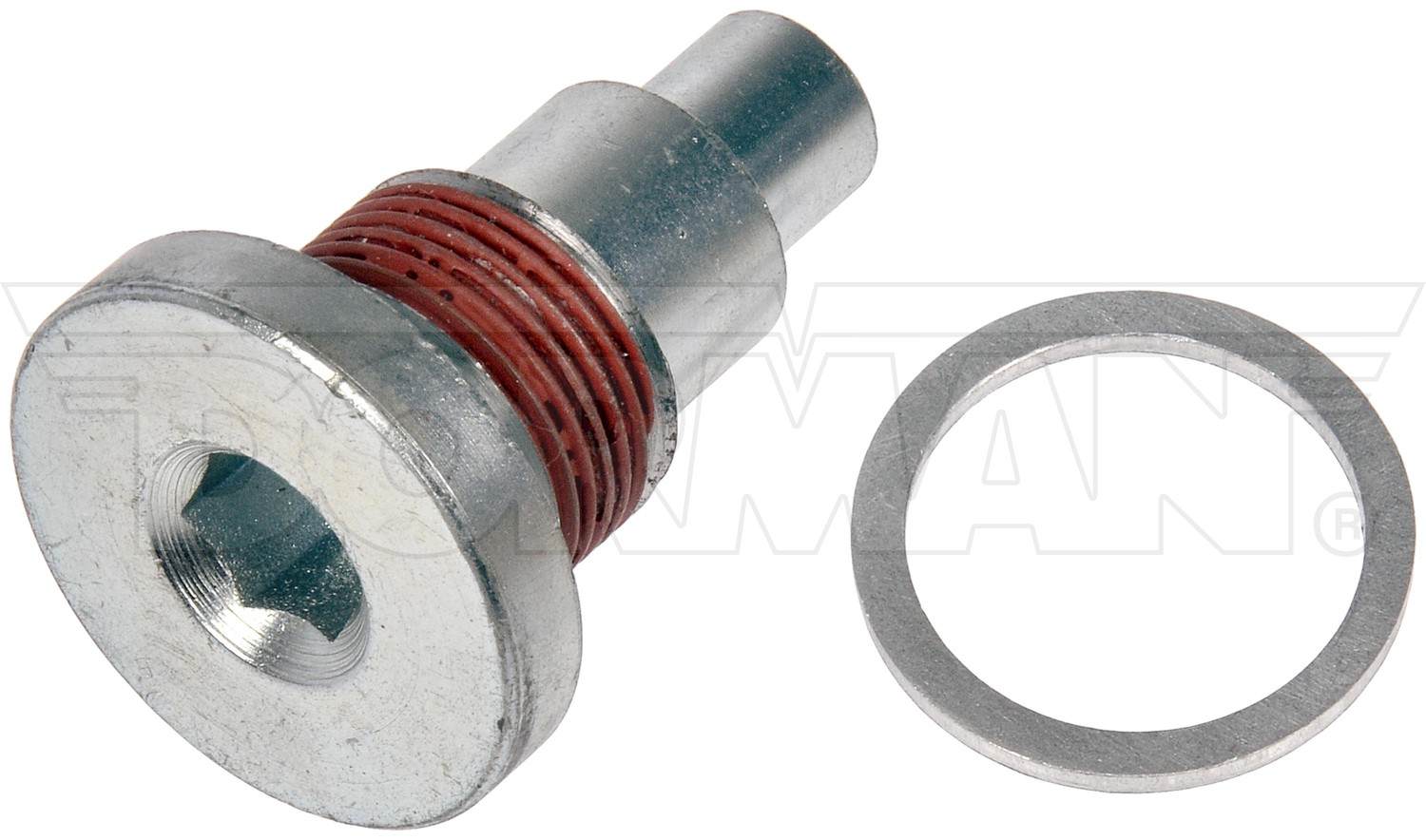

Dorman Timing Chain Guide Bolt

The timing guide bolt secures the timing chain guide in place, ensuring that your vehicle's engine and its components run smoothly and reliably. The Original design requires labor-intensive drilling and tapping to remove the original bolt. Dorman's OE FIX reduces labor time by eliminating the need to remove the cylinder head during installation, which significantly reduces repair costs and saves money. Plus, Dorman's direct replacement timing guide bolt is engineered to stronger specifications over the original part for a longer service life.

• Direct replacement for a proper fit every time
• Includes all necessary components for a complete repair
• Coated with clear chromate for corrosion resistance
• This part has undergone vehicle try-on testing for conformance to product standards and quality

Specifications

• Bolt Grade: Class 8.8 Fastener
• Finish: Zinc, Clear Chromate
• Head Tool Measurement: 10 mm
• Head Type: Allen Head
• Integral Washer Inside Diameter: 24 mm
• Length: 46.4mm
• Material: Class 8.8 Fastener
• Package Contents: 1 Bolt, 1 Washer
• Package Quantity: 1
• Packaging Type: Box
• SAE or Metric: Metric
• Selling Package Quantity UOM: Piece
• Thread Diameter: 22mm
• Thread Pitch: 16.93
• Thread Type: Metric Coarse

Application: General Motors 2017-00, Saab 2010-03

Vehicle Fitments:
