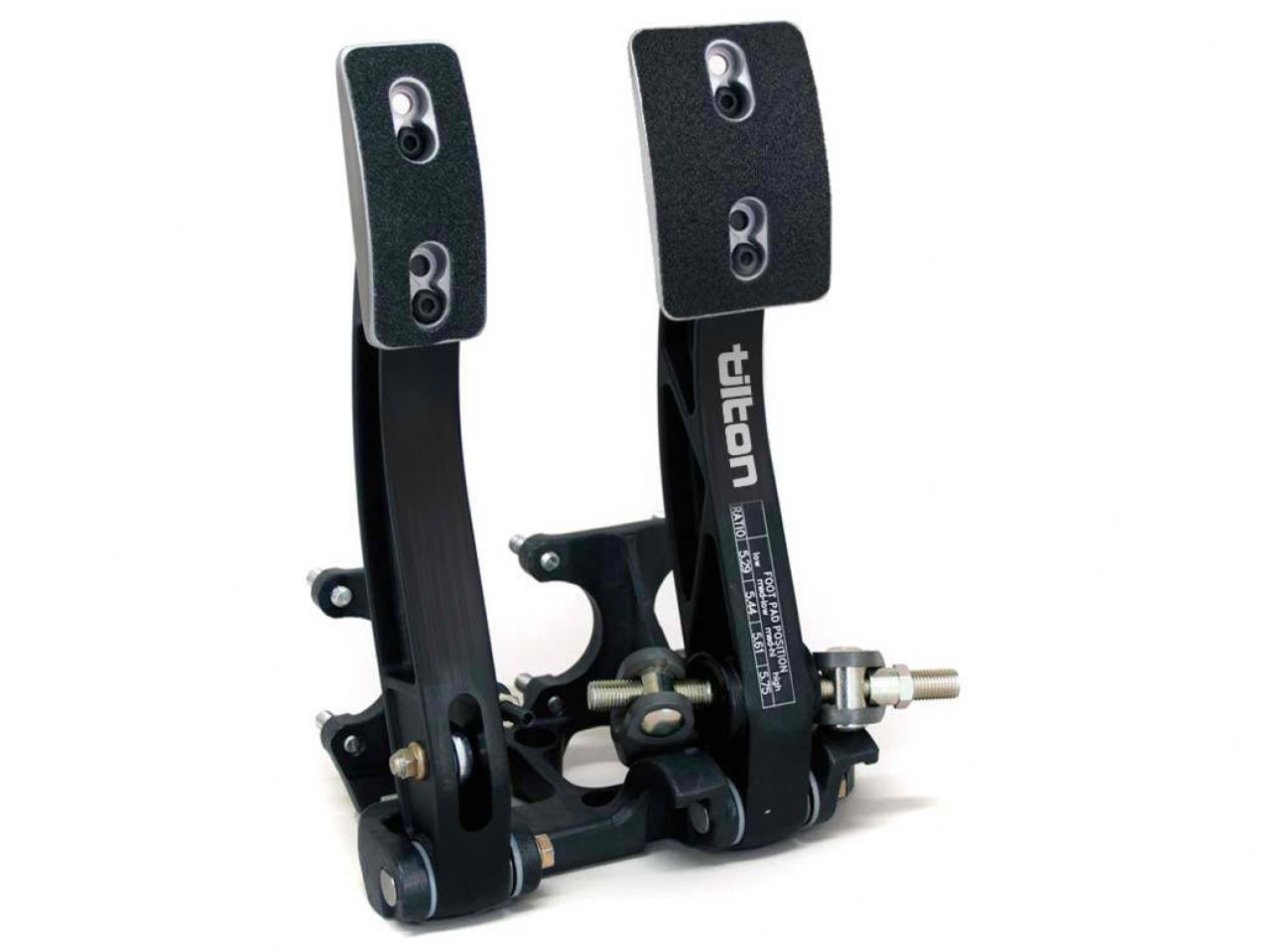

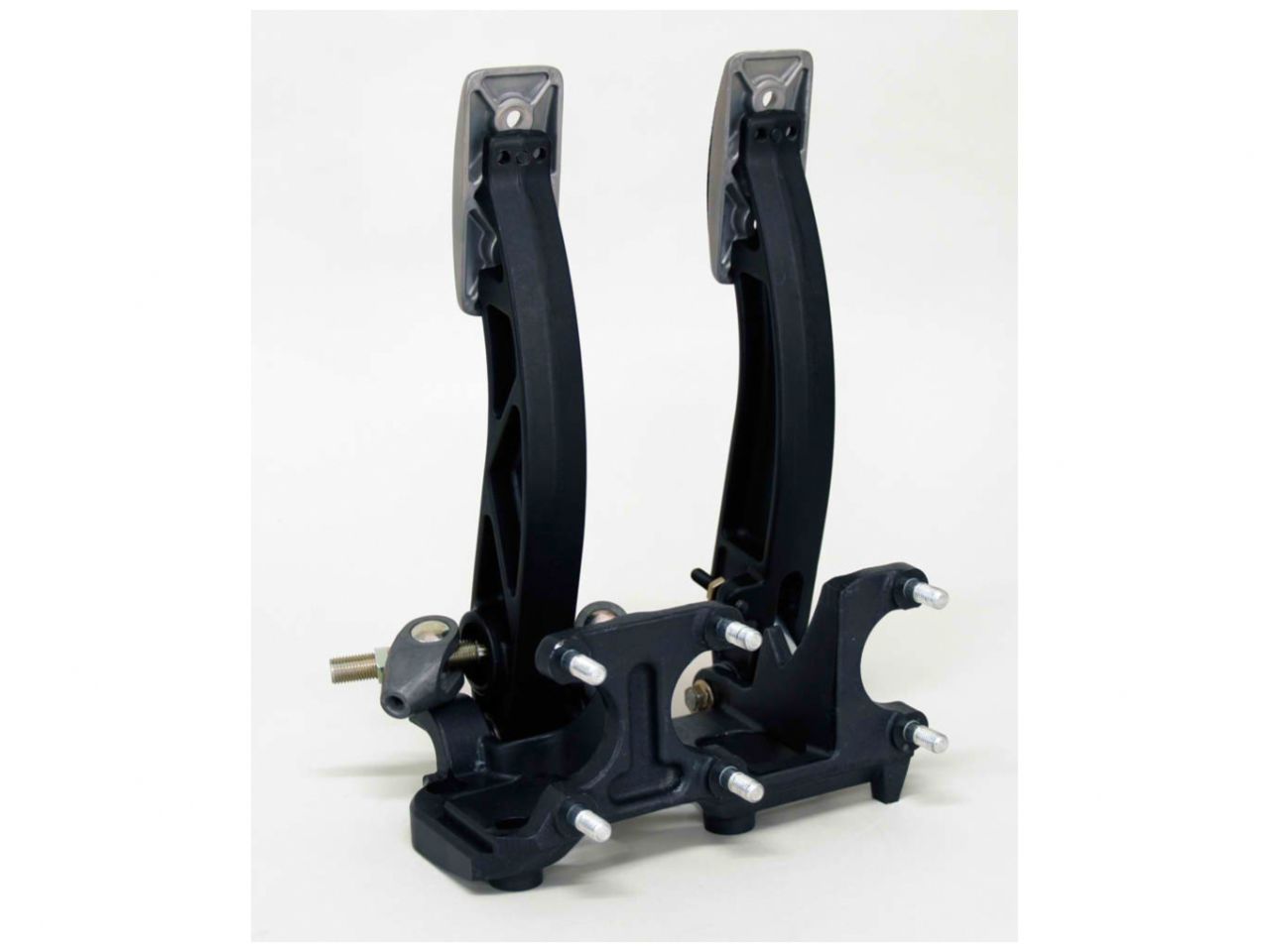

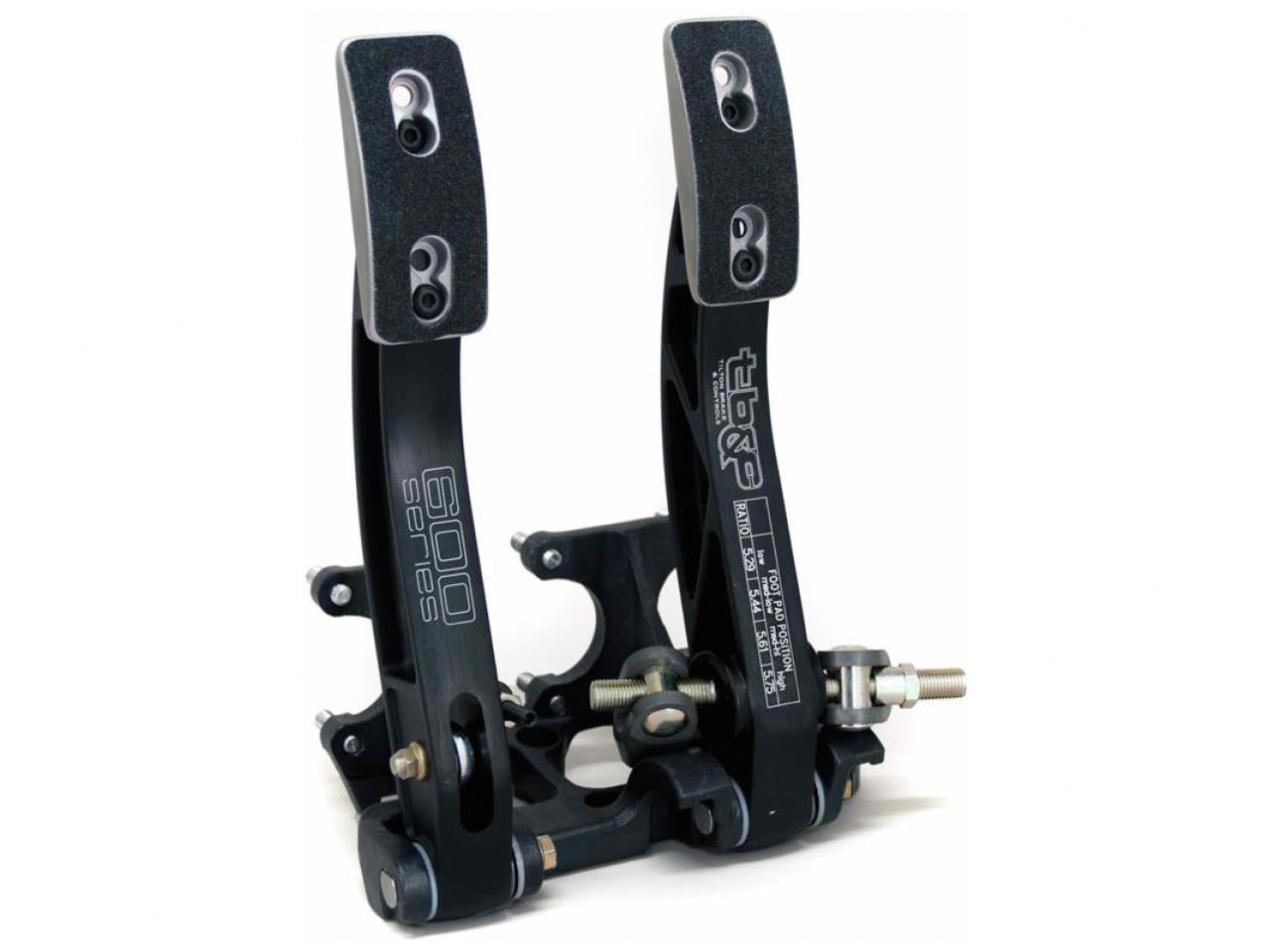

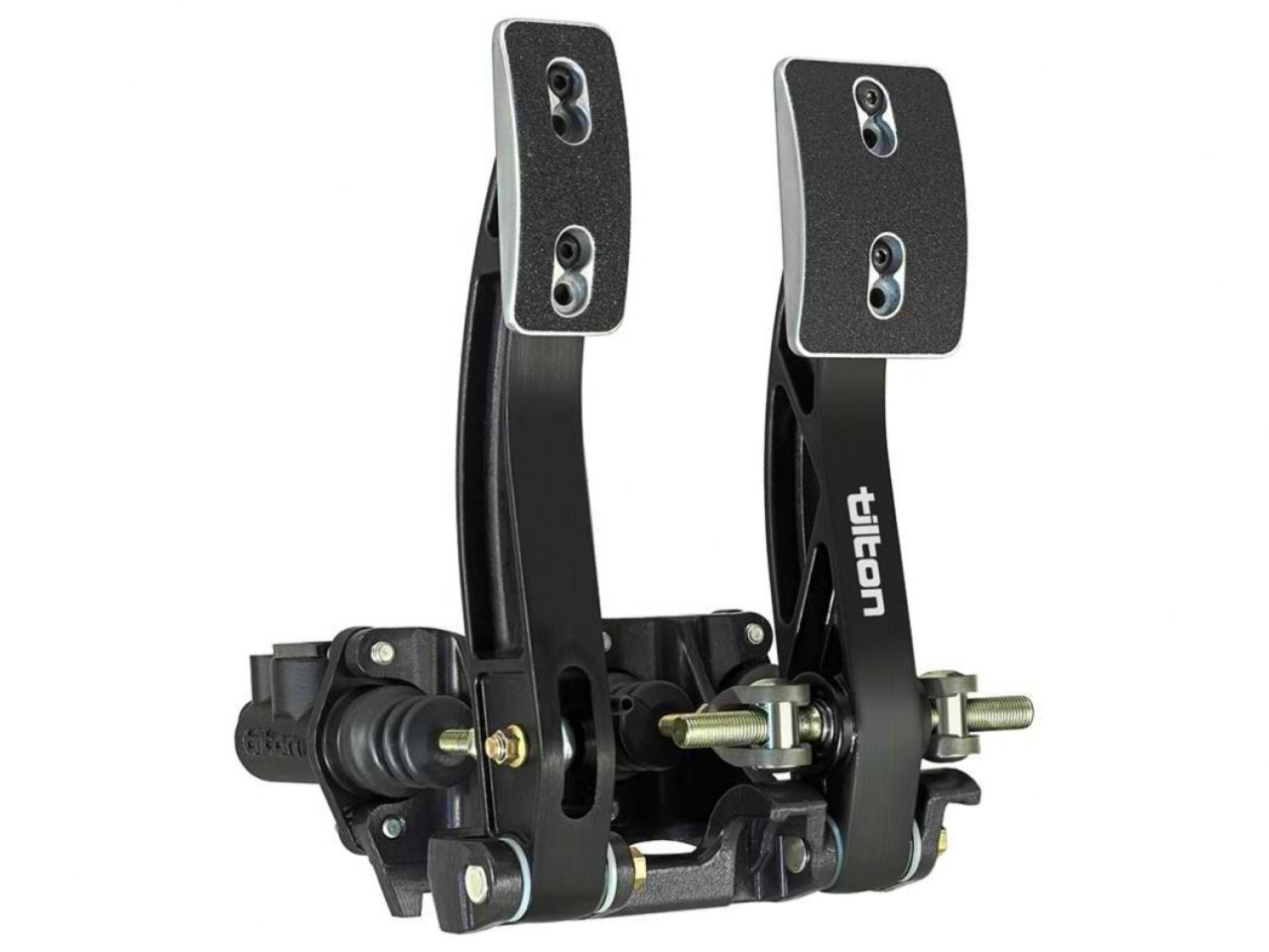

Tilton Engineering 600-Series 2-Pedal Floor Mount Assembly
Tilton Engineering 600-Series 2-Pedal Floor Mount Assembly
sku: 14QYR | mpn: 72-604
Regular price
$361.26
Regular price
$425.00
Sale price
$361.26
Shipping calculated at checkout.
Low stock: 4 left
Emissions
This is not an emissions item.
Quantity
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
Tilton's 600-Series pedal assemblies feature traditional fixed-mount master cylinder and balance bar technology and provide excellent performance at competitive prices. Pedal assemblies are available in floor-mount, firewall-mount and overhung configurations.
Features:
- Forged aluminum pedals with adjustable (vertical & horizontal) foot pads and anti-slip surfaces.
- Adjustable pedal ratios (5.29:1, 5.44:1, 5.61:1, 5.75:1) enable the brake pedal to be tuned to driver preference without having to change master cylinder bore size.
- Large diameter 7/16"-20 balance bar provides maximum rigidity. PTFE coated aluminum clevises for increased durability and reduced friction.
- Pedal pivots feature wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease stiction.
- Lightweight aluminum frame features guide "ramps" to reduce balance bar tipping, decreasing friction and improving brake repeatability.
- Adjustable clutch pedal stop prevents clutch over-stroking.
Specifications
Mounting Location: Floor
Pedal Material: Forged aluminum
Weight: 4.6 lbs (2.1 kg)
Pedal Material: Forged aluminum
Weight: 4.6 lbs (2.1 kg)
