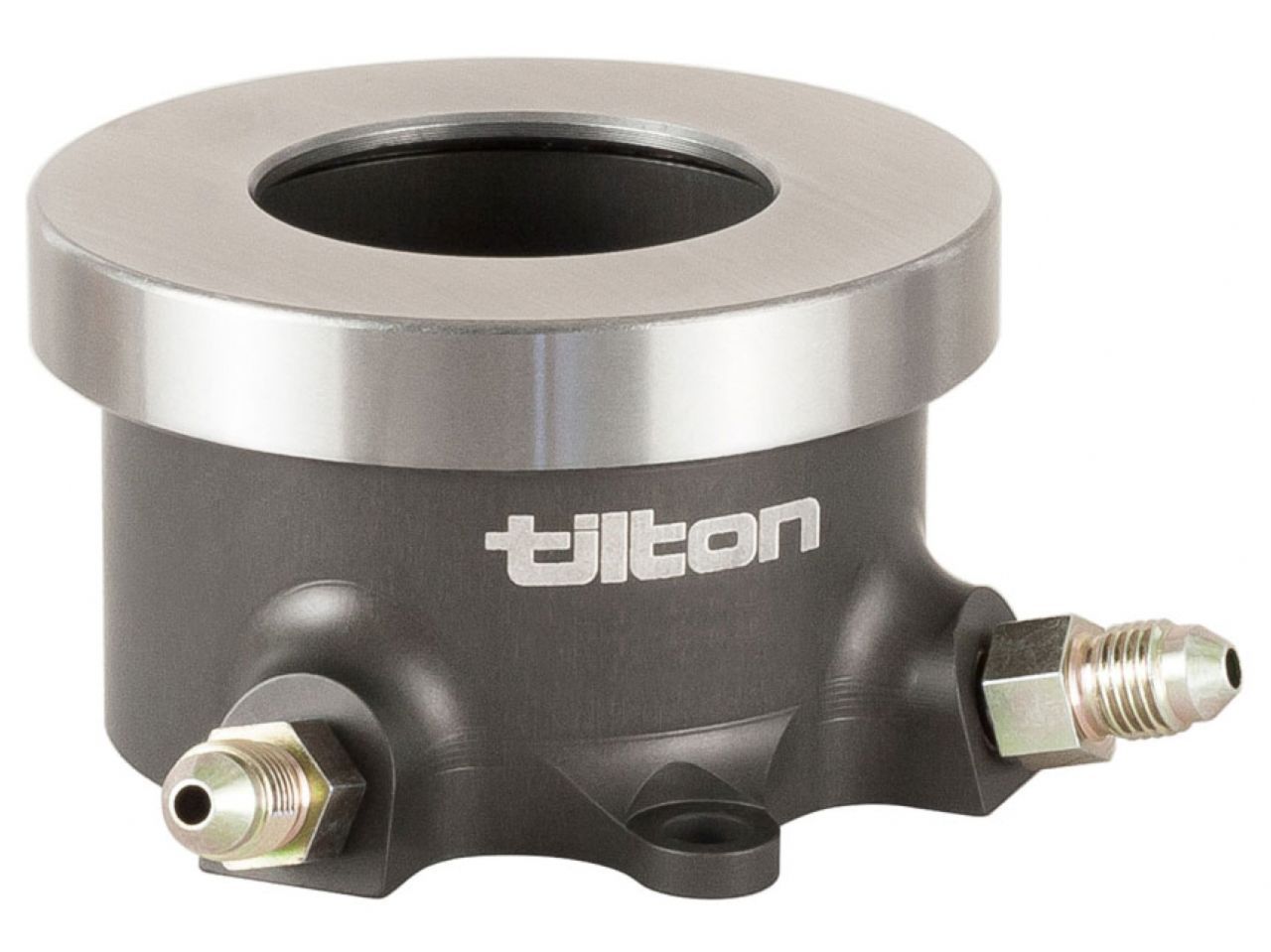

Tilton Engineering Hydraulic Universal, Flat Face BRG, 1.79 TLL

Tilton's 8100-Series hydraulic release bearing (also known as a hydraulic throwout bearing) features a flat-face contact bearing. Ideal for 8.5? - 11.0? bent-finger clutches, the 8100-Series hydraulic release bearing is optimal for low-profile bulkhead-mounting inside the transmission or bellhousing.

Using the latest technologies, Tilton HRBs are treated with a durable, low-friction coating, created specifically for our use on HRBs. This coating aids in the long-wearing durability and high-performance they are known for.

For proper seal tension, Tilton has created a unique multi-edged quad-tension seal, to ensure consistent feel, long term wearability, and lasting reliability. Seals have been tested to hundreds of thousands of actuations without failure, which is why this technology is built into every Tilton HRB.

The resilient orange seal is your guard against unwanted HRB bore damage.

Using the highest quality components, Tilton bearings are tested extensively for long life durability.

Coupling high-quality, durable bearings with a constant contact design, your system is always ready to engage.

As your clutch wears, Tilton HRBs compensate to maintain the same pedal feel, shift after shift.

Specifications

Mount: 2-bolt pattern

Weight: .95 lbs

Application: 8.5? - 11.0? clutches

Overall height: 1.79? (45.5mm)

Contact: 1.71? - 3.03? (43.4mm - 77.0mm)

Bearing type: Flat-face

Body and piston material: Billet aluminum

Piston area: 1.215 in2 (784mm2)

Maximum stroke: .700? (17.8mm)

Ports: AN-3 (3/8?-24)

Included in kit: AN-3 fittings (2)

Typical applications: Low-profile bellhousing mount, often with adapter
