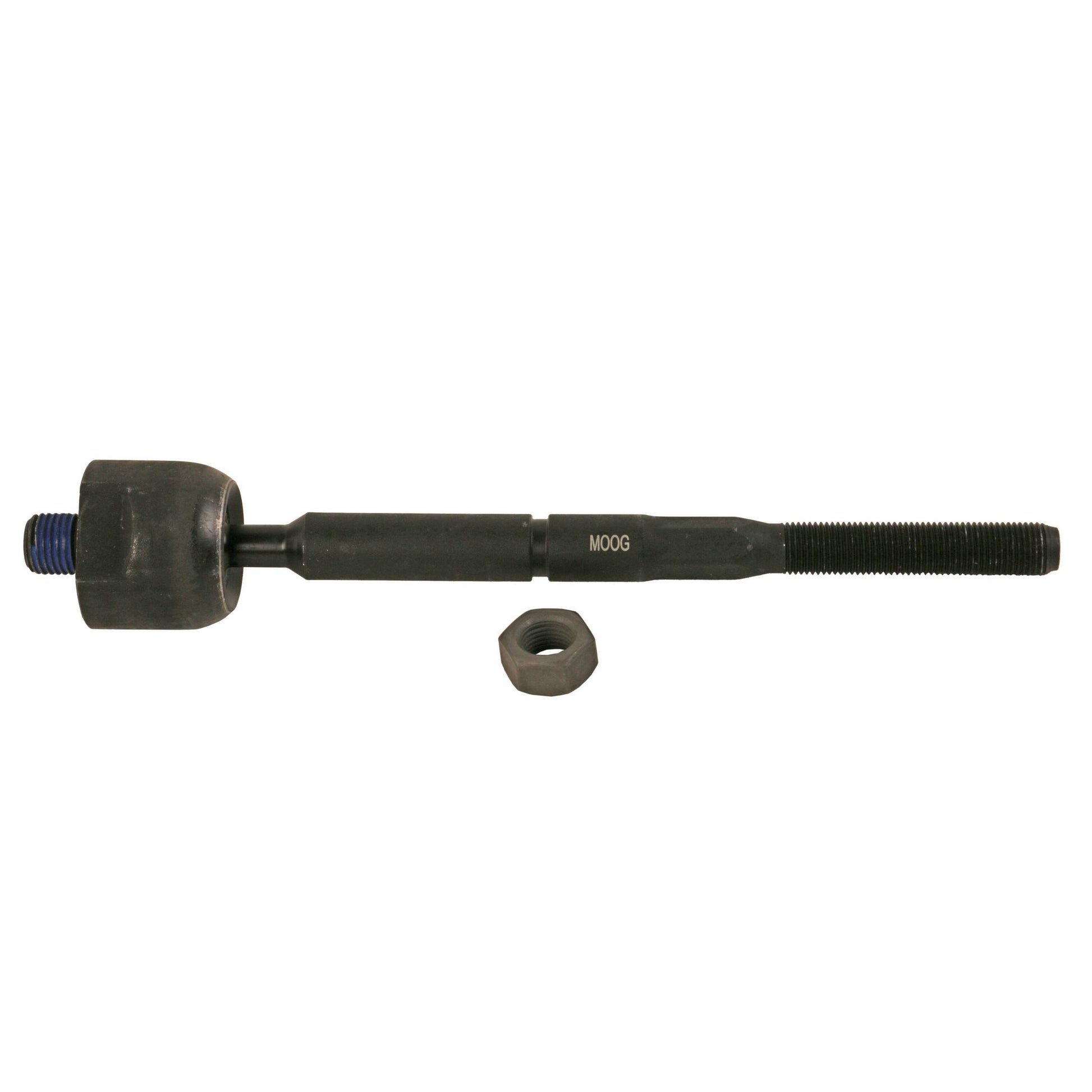

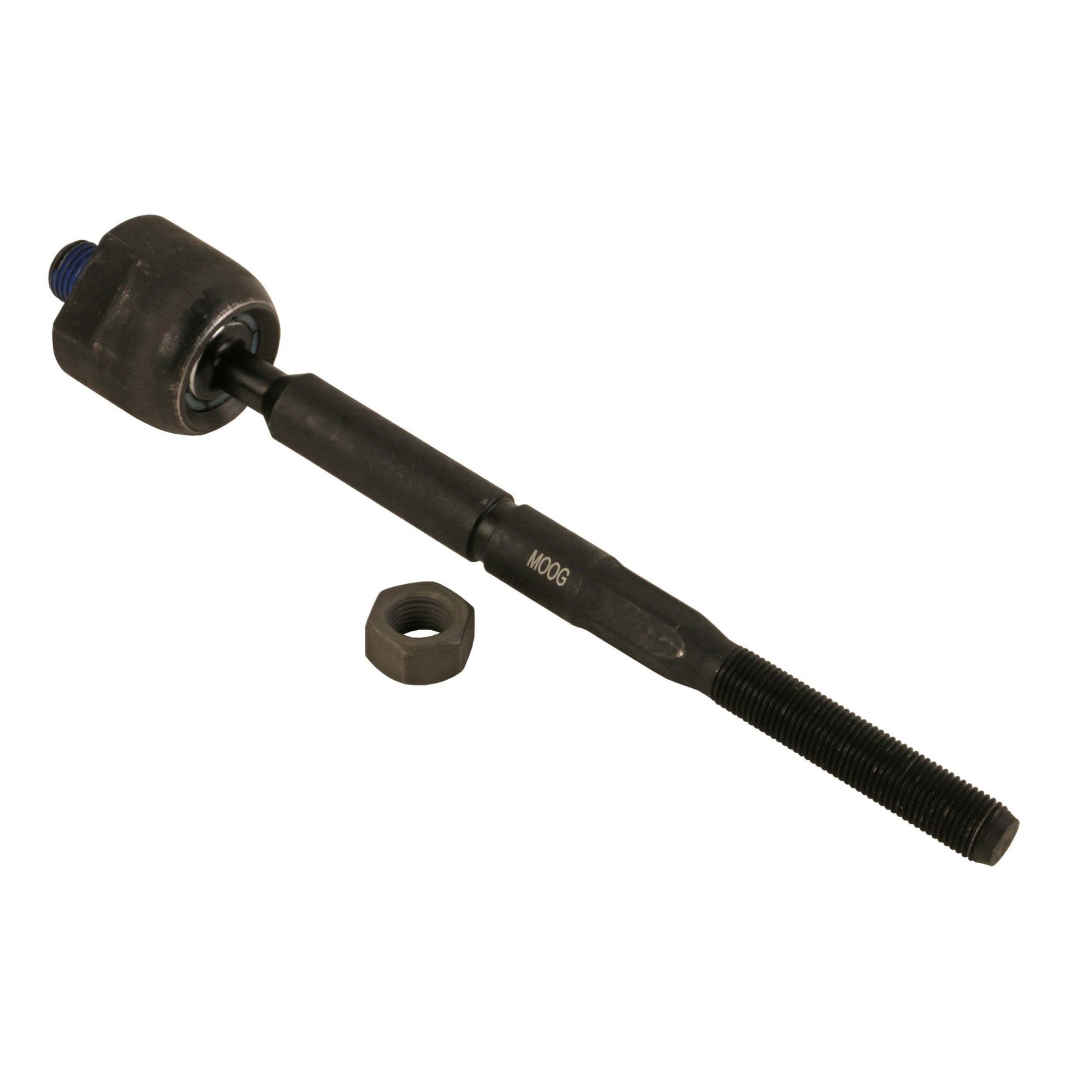

Moog Tie Rods
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear
- Exclusive cover plate protects against contaminants leaking into the bearing surface
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
Specifications:
Tie Rods
| Length (in) | 8.510 |
| Outer Tie Rod Thread | M12 X 1.25-6G RH |
| Shaft Diameter (in) | 0.594 |
| Rack End Thread | M14 X 1.5-6G RH |
| Rack End Type (Male / Female) | MALE |
| End 2 Thread Diameter (MM) | 14.0 |
| End 2 Thread Pitch (MM) | 6.0 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015 - 2018 | Chevrolet | City Express | LT, LS |
| 2019 | Nissan | LEAF | Base |
| 2019 - 2022 | Nissan | LEAF | S Plus, SL Plus, SV Plus |
| 2018 - 2022 | Nissan | LEAF | S, SV |
| 2018 - 2019 | Nissan | LEAF | SL |
| 2013 - 2021 | Nissan | NV200 | S, SV |
| 2014 - 2021 | Nissan | NV200 | Taxi |
| 2013 - 2016 | Nissan | Sentra | FE+S |
| 2013 - 2014 | Nissan | Sentra | FE+SV |
| 2017 - 2019 | Nissan | Sentra | SR Turbo, Nismo |
| 2013 - 2019 | Nissan | Sentra | SV, Advance, Exclusive, SR, Sense, SL, S |
Moog Tie Rods
Sale price$35.99 USD
