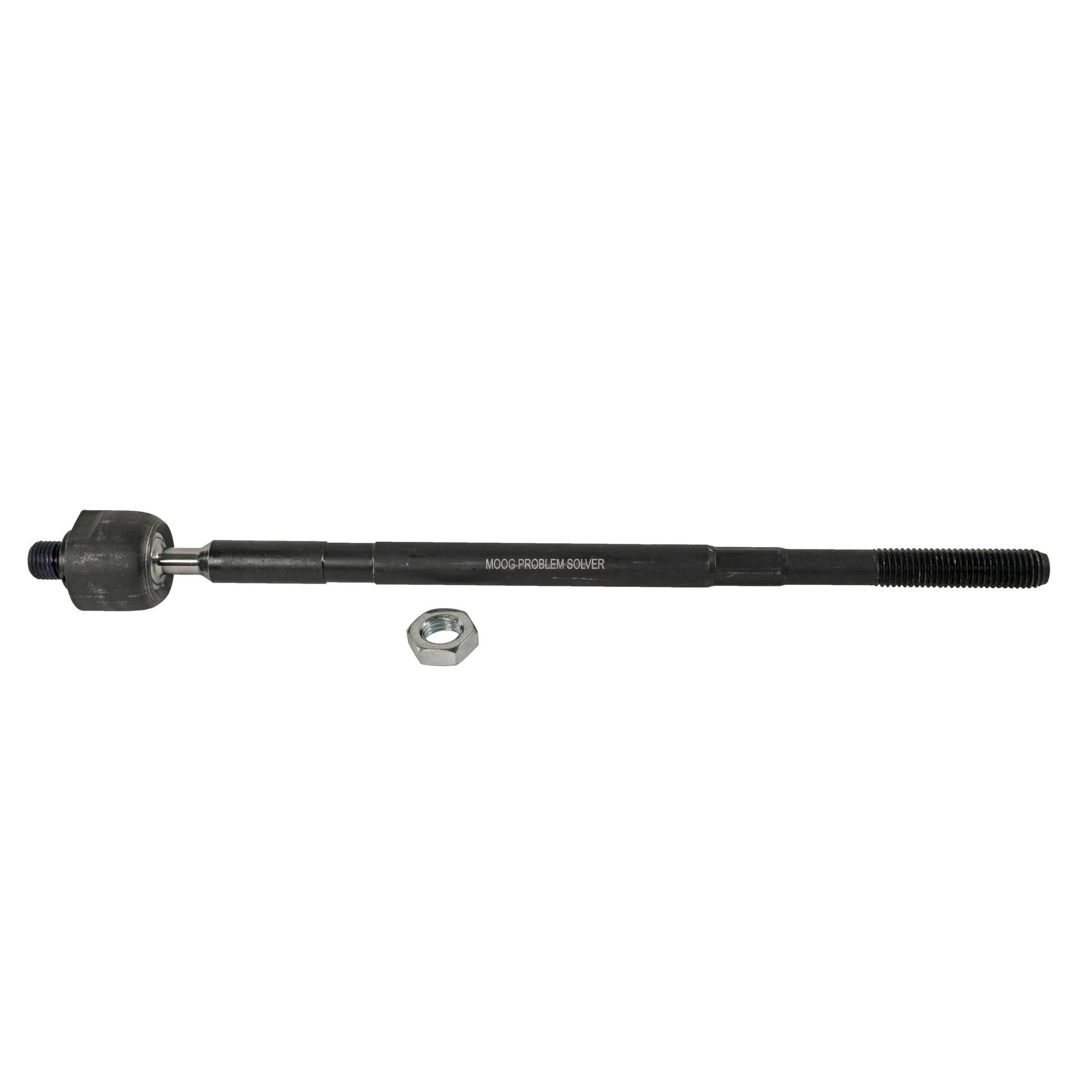

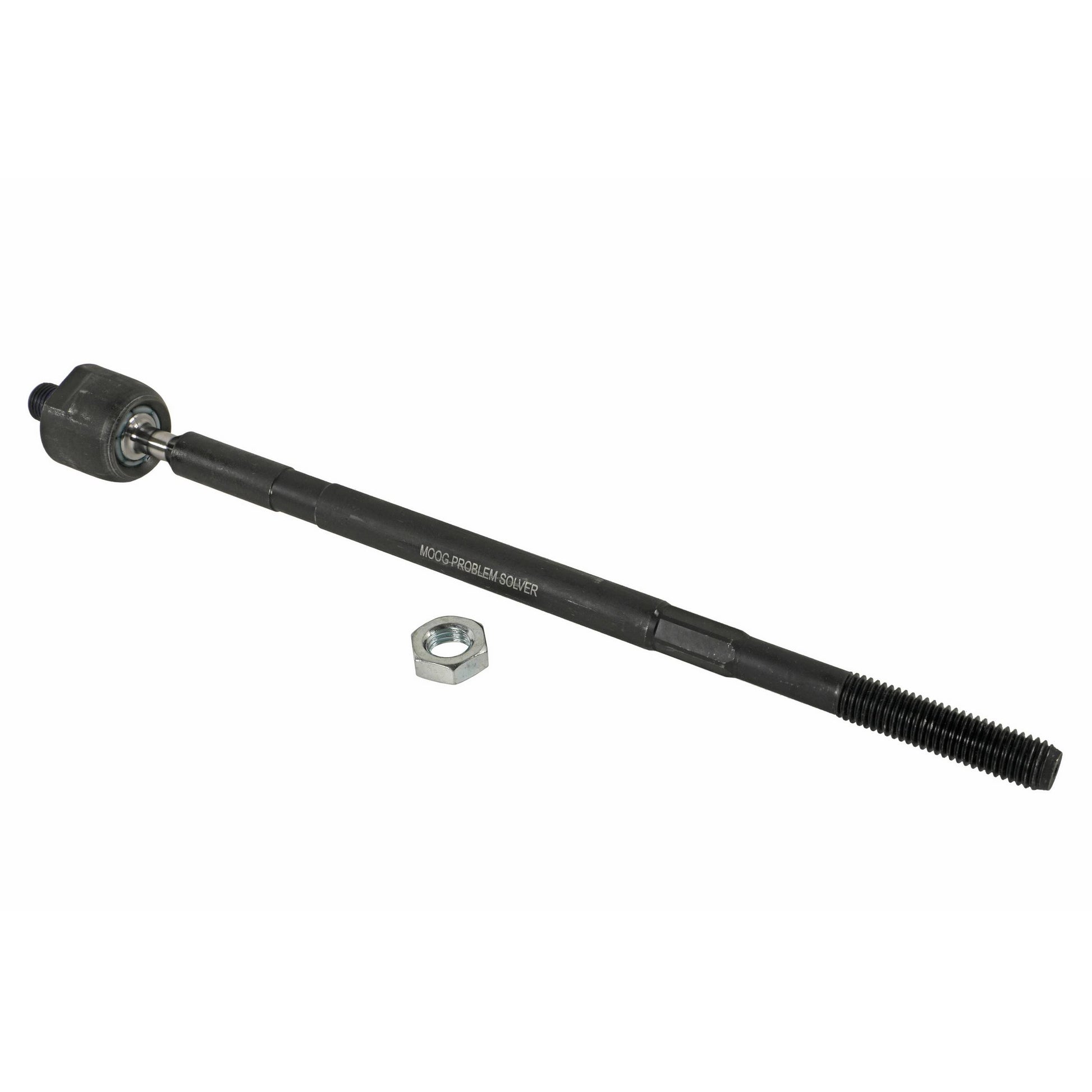

Moog Tie Rods
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear
- Exclusive cover plate protects against contaminants leaking into the bearing surface
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
Specifications:
Tie Rods
| Length (in) | 13.354 |
| Outer Tie Rod Thread | M14 X 2.0 RH |
| Shaft Diameter (in) | 0.557 |
| Rack End Thread | M14 X 1.5 RH |
| Rack End Type (Male / Female) | MALE |
| End 2 Thread Diameter (MM) | 14.0 |
| End 2 Thread Pitch (MM) | 1.5 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2011 - 2012 | Ford | Transit Connect | Electric |
| 2010 - 2013 | Ford | Transit Connect | XL, XLT |
| 2011 - 2013 | Ford | Transit Connect | XLT Premium |
Moog Tie Rods
Sale price$46.25 USD
