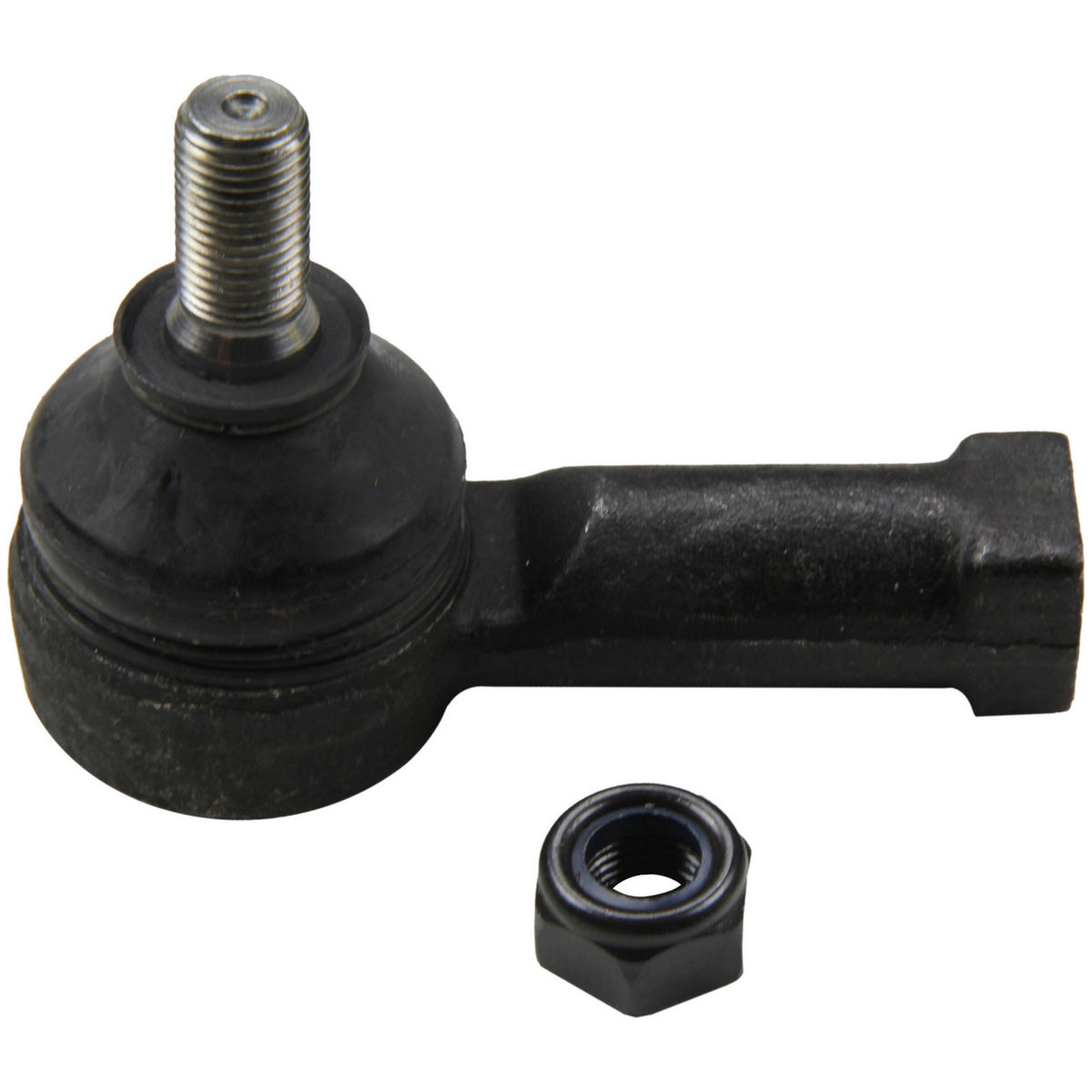

Moog Tie Rod Out Hyundai 95-99
Tie Rod End
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
- Loose or worn chassis parts can lead to premature tire wear.
- Exclusive cover plate protects against contaminants leaking into the bearing surface.
- Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear.
- Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
- Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part.
- Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength.
Tie Rods Specifications
Greasable: Yes
Stud Center to End (in): 3.070
Rod Thread: M14 X 1.50
Configuration: STRAIGHT
Rod Type (Male / Female): FEMALE
Stud Diameter Dimension (top in.): 0.527
Stud Diameter Dimension (bottom in.): 0.593
Stud Thread: M10 X 1.25
Rack End Thread: M10 X 1.25
Dust Boot Included: Yes
End 1 Thread Diameter (MM): 14.0
End 1 Thread Pitch (MM): 1.5
End 1 Thread Direction: R
End 2 Thread Diameter (MM): 10.0
End 2 Thread Pitch (MM): 1.25
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1995 - 2004 | Hyundai | Accent | GL, Base |
| 2005 | Hyundai | Accent | GLS |
| 1997 - 2003 | Hyundai | Accent | GS |
| 1998 | Hyundai | Accent | GSi |
| 1996 - 2005 | Hyundai | Accent | GT |
| 1995 - 2002 | Hyundai | Accent | L |
| 1999 | Hyundai | Elantra | GL |
| 1999 - 2006 | Hyundai | Elantra | GLS |
| 2001 - 2006 | Hyundai | Elantra | GT |
| 2006 | Hyundai | Elantra | Limited |
| 1997 - 2004 | Hyundai | Tiburon | Base |
| 1997 - 1999 | Hyundai | Tiburon | FX |
| 2005 - 2008 | Hyundai | Tiburon | GS, SE |
| 2003 - 2008 | Hyundai | Tiburon | GT |
| 2007 - 2008 | Hyundai | Tiburon | GT Limited |
| 2008 | Hyundai | Tiburon | GTP |
| 2004 - 2009 | Kia | Spectra | EX, LX |
| 2004 | Kia | Spectra | GS, LS, Base, GSX |
| 2008 | Kia | Spectra | LX Premium, LX Convenience |
| 2005 - 2009 | Kia | Spectra | SX |
| 2005 - 2006 | Kia | Spectra5 | Base |
| 2008 - 2009 | Kia | Spectra5 | LX |
| 2008 | Kia | Spectra5 | LX Convenience |
| 2007 - 2009 | Kia | Spectra5 | SX |
Moog Tie Rod Out Hyundai 95-99
Sale price$31.76 USD
