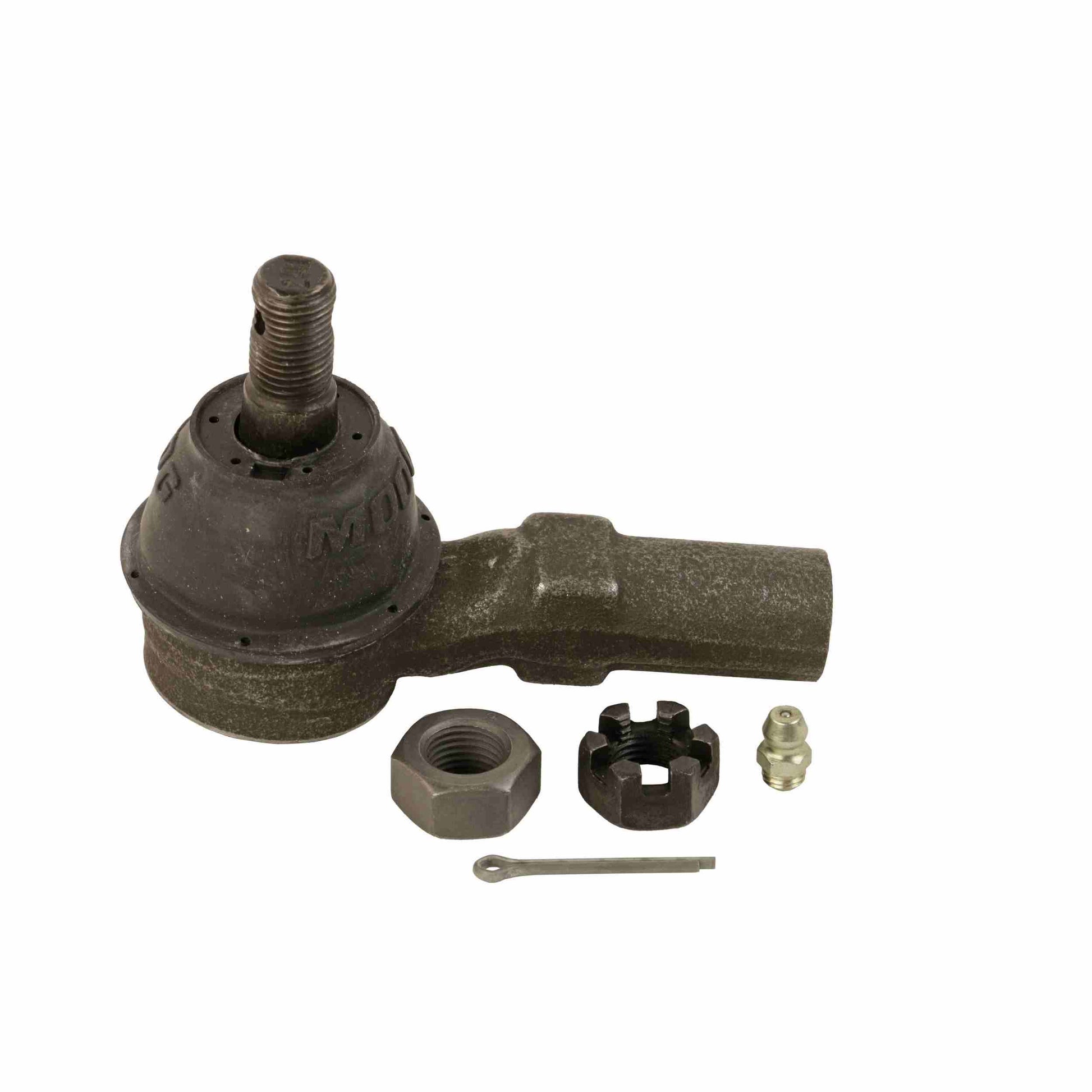

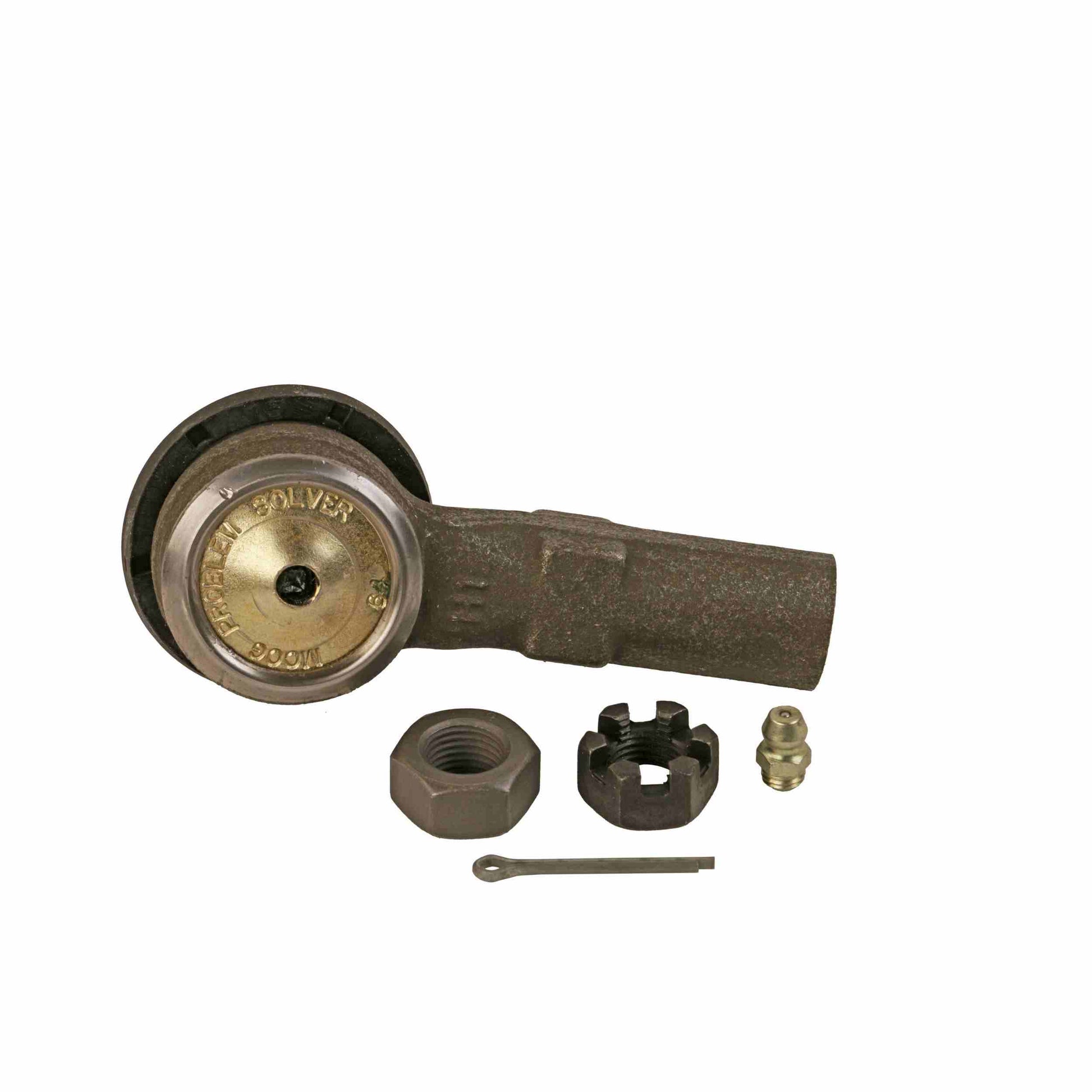

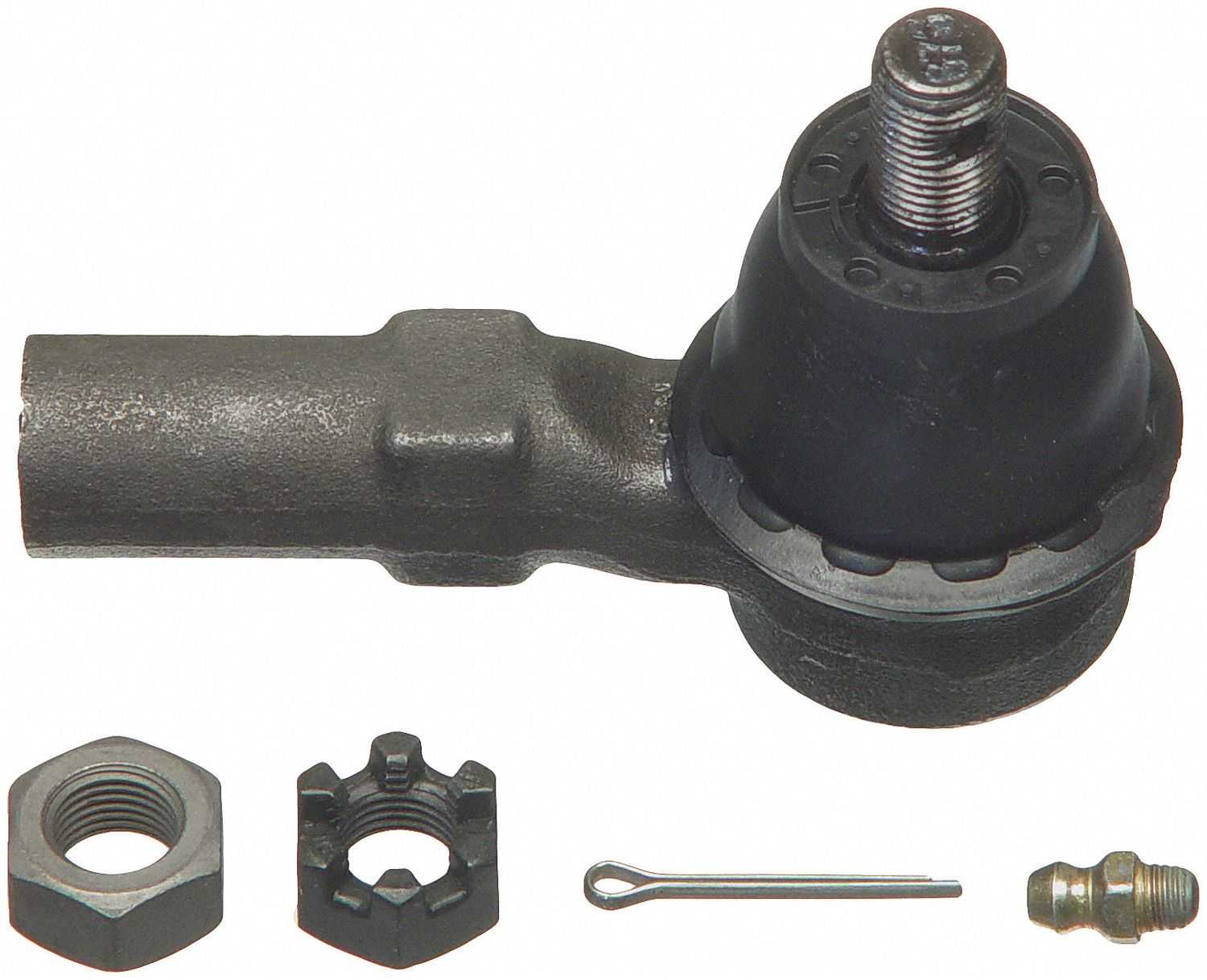

Moog Tie Rod Out Escort 91-96

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
Loose or worn chassis parts can lead to premature tire wear
Exclusive cover plate protects against contaminants leaking into the bearing surface
Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
Specifications
Tie Rods
Greasable: Yes
Stud Center to End (in): 3.120
Rod Thread: M12X1.25
Configuration: STRAIGHT
Rod Type (Male / Female): FEMALE
Stud Diameter Dimension (top in.): 0.571
Stud Diameter Dimension (bottom in.): 0.584
Stud Thread: M12X1.25
Rack End Thread: M12X1.25
Specification Image Reference: OUTERTIEROD.tif
Dust Boot Included: Yes
End 1 Thread Diameter (MM): 12.0
End 1 Thread Pitch (MM): 1.25
End 1 Thread Direction: R
End 2 Thread Diameter (MM): 12.0
End 2 Thread Pitch (MM): 1.25
Tie Rods
Greasable: Yes
Stud Center to End (in): 3.120
Rod Thread: M12X1.25
Configuration: STRAIGHT
Rod Type (Male / Female): FEMALE
Stud Diameter Dimension (top in.): 0.571
Stud Diameter Dimension (bottom in.): 0.584
Stud Thread: M12X1.25
Rack End Thread: M12X1.25
Specification Image Reference: OUTERTIEROD.tif
Dust Boot Included: Yes
End 1 Thread Diameter (MM): 12.0
End 1 Thread Pitch (MM): 1.25
End 1 Thread Direction: R
End 2 Thread Diameter (MM): 12.0
End 2 Thread Pitch (MM): 1.25
Applications
Ford Escort 2003-1991 Outer
MercuryTracer1999-1991Outer
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
1995 - 1997 | Ford | Escort | Aust, Mid, Equi |
1991 - 1997 | Ford | Escort | Base |
1997 | Ford | Escort | Deportivo Equi, Deportivo |
1991 - 1996 | Ford | Escort | GT |
1995 | Ford | Escort | GT Equippe |
1994 | Ford | Escort | Lujo |
1991 - 2000 | Ford | Escort | LX |
1991 - 1995 | Ford | Escort | LX Sport |
1992 - 1993 | Ford | Escort | LX-E |
1998 - 2002 | Ford | Escort | SE |
1993 - 1997 | Ford | Escort | Sport |
2000 - 2003 | Ford | Escort | ZX2 |
1998 - 1999 | Ford | Escort | ZX2 Hot Coupe, ZX2 Cool Coupe, ZX2 Tipico, ZX2 Equi, SE Equi |
1999 - 2000 | Ford | Escort | ZX2 S/R |
1997 - 1999 | Mercury | Tracer | GS |
1991 - 1996 | Mercury | Tracer | LTS, Base |
1991 - 1999 | Mercury | Tracer | Trio, LS |

Moog Tie Rod Out Escort 91-96
Sale price$33.21 USD
