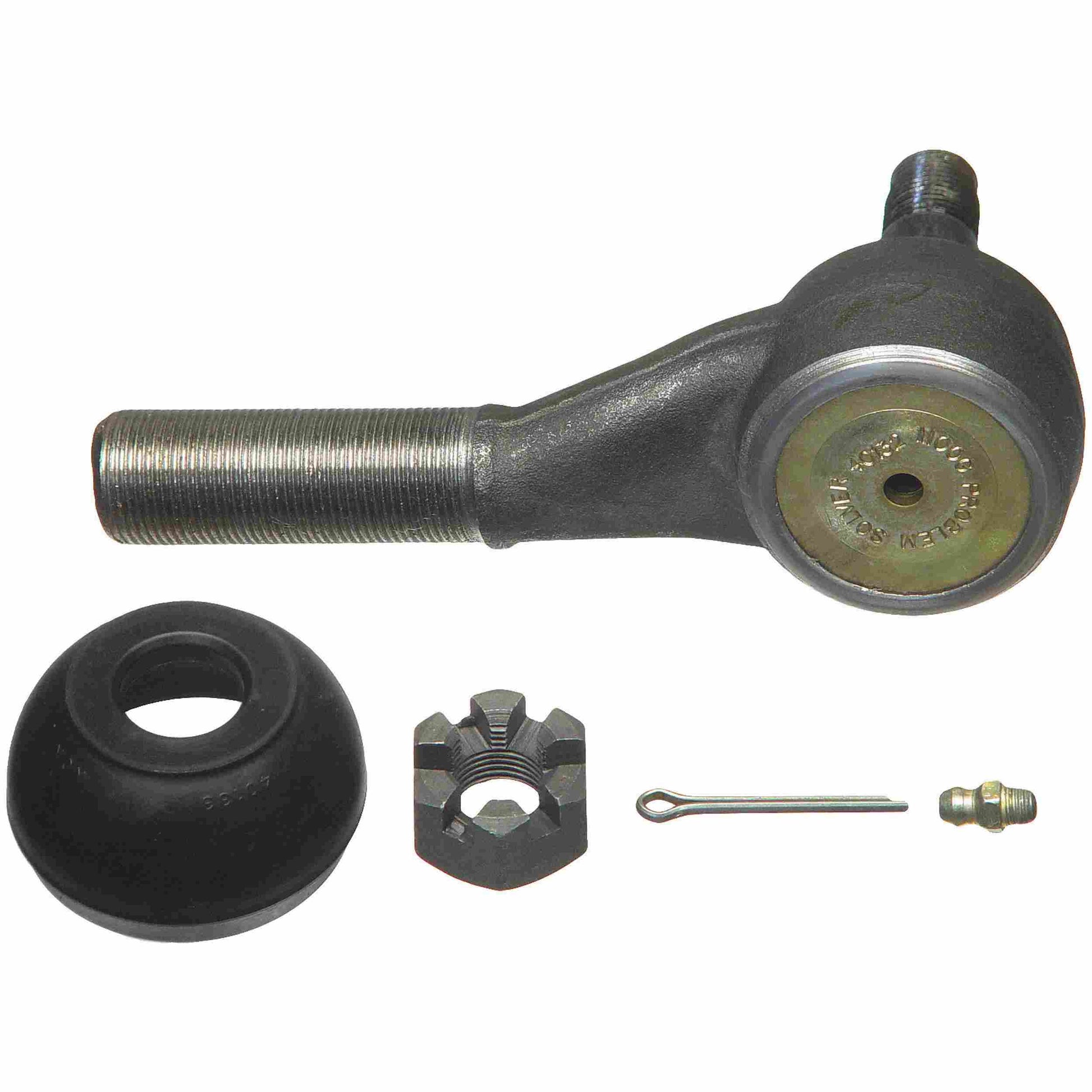

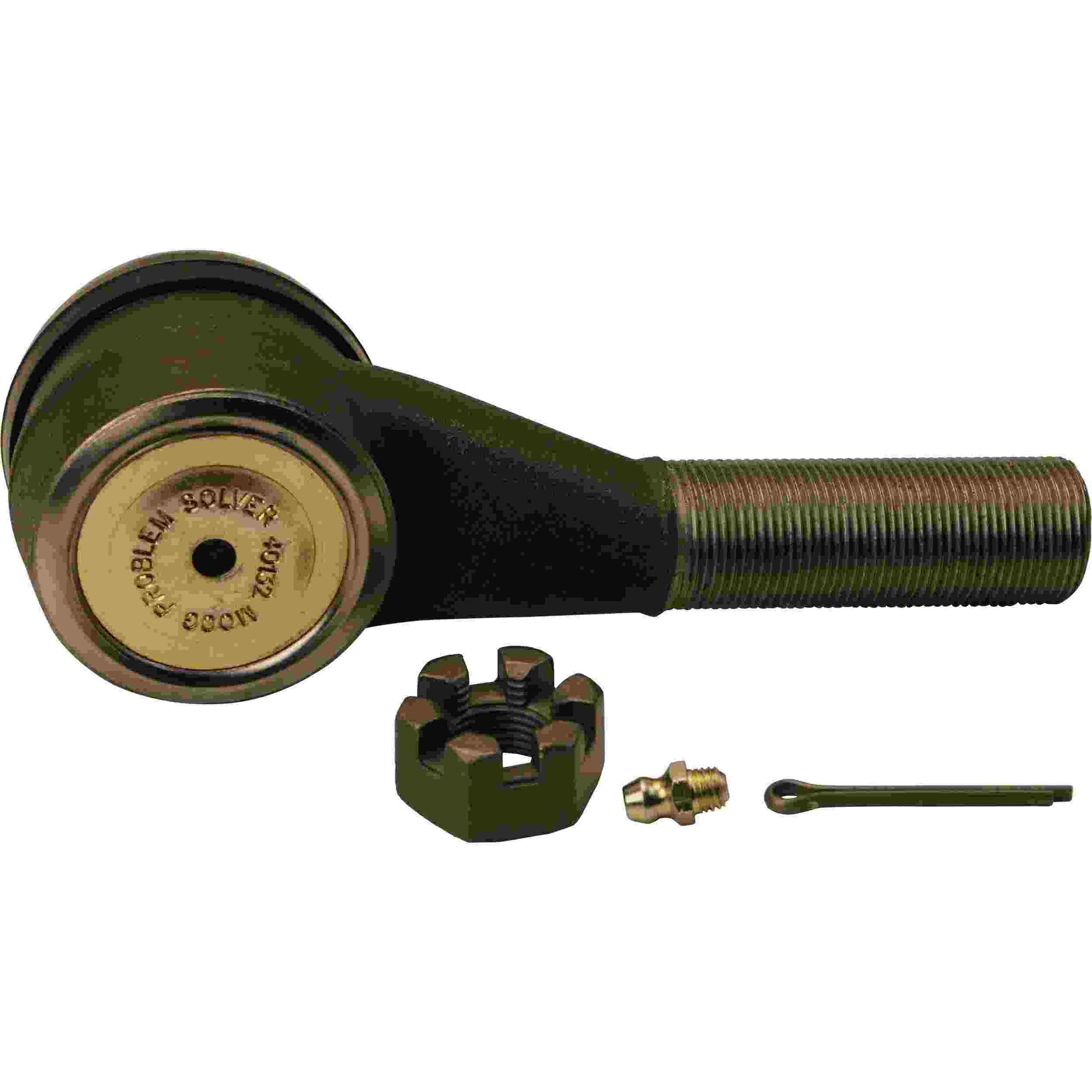

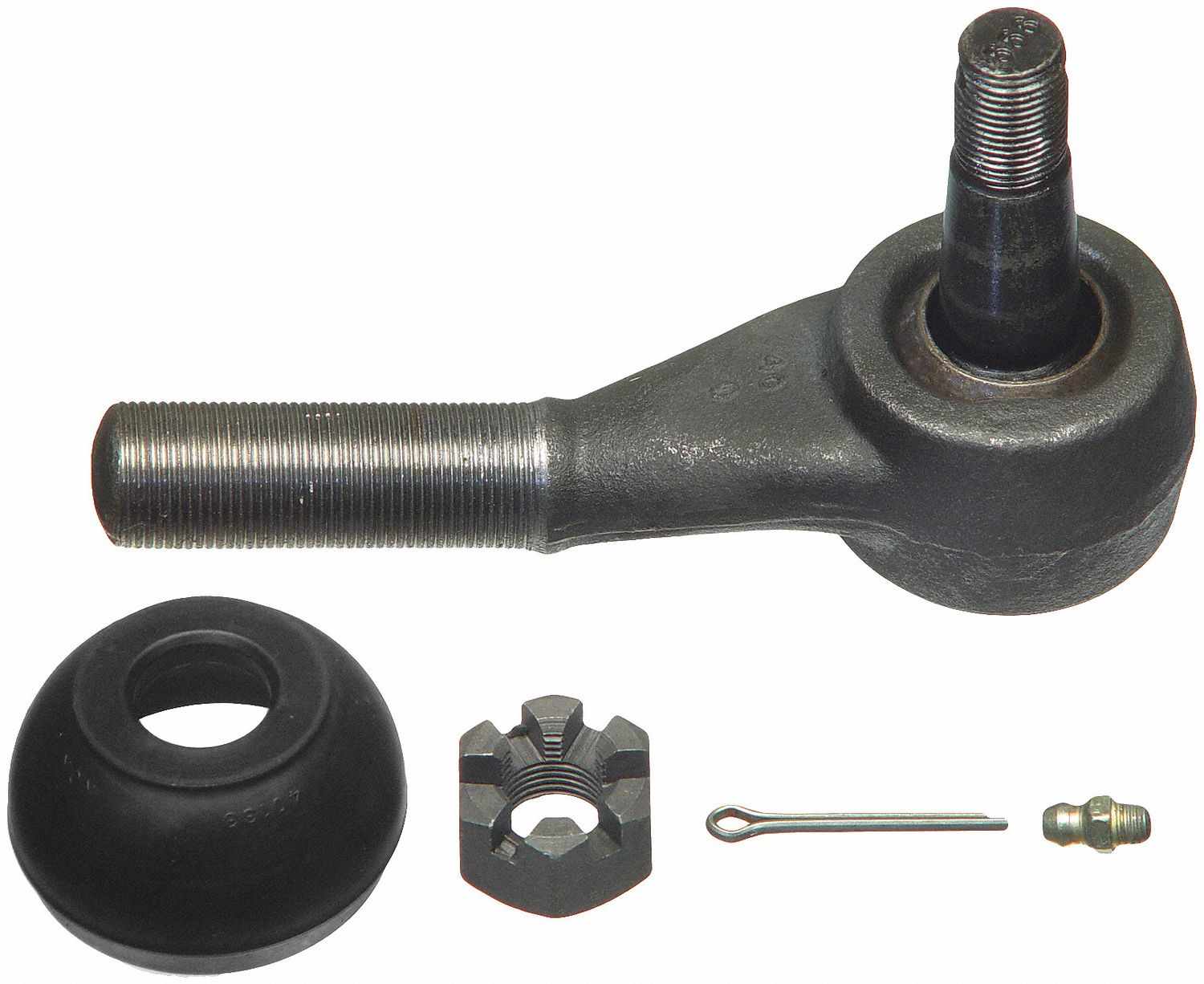

Moog Tie Rod Out Dodge TRK 79-96

MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.

Loose or worn chassis parts can lead to premature tire wear

Exclusive cover plate protects against contaminants leaking into the bearing surface

Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear

Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer

Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part

Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength

Specifications
Tie Rods
Stud Center to End (in): 4.980
Rod Thread: .875-18R
Rod Type (Male / Female): MALE
Stud Diameter Dimension (top in.): 0.664
Stud Diameter Dimension (bottom in.): 0.776
Stud Thread: 5/8"-18
Specification Image Reference: OUTERTIEROD.tif
End 1 Thread Diameter (IN): 0.875
End 1 Thread Direction: Clockwise
End 1 Threads Per Inch: 18

Dodge B250 1994 Outer
Dodge B2500 1998-1995 Outer
Dodge B300 1980-1979 Outer
Dodge B350 1994-1981 Outer
Dodge B3500 1998-1995 Outer
Dodge CB300 1980-1979 Outer
Dodge Ram 2500 Van 2003-1999 Outer
Dodge Ram 3500 Van 2003-1999 Outer
Plymouth PB300 1980-1979 Outer
Plymouth PB350 1983-1981 Outer
