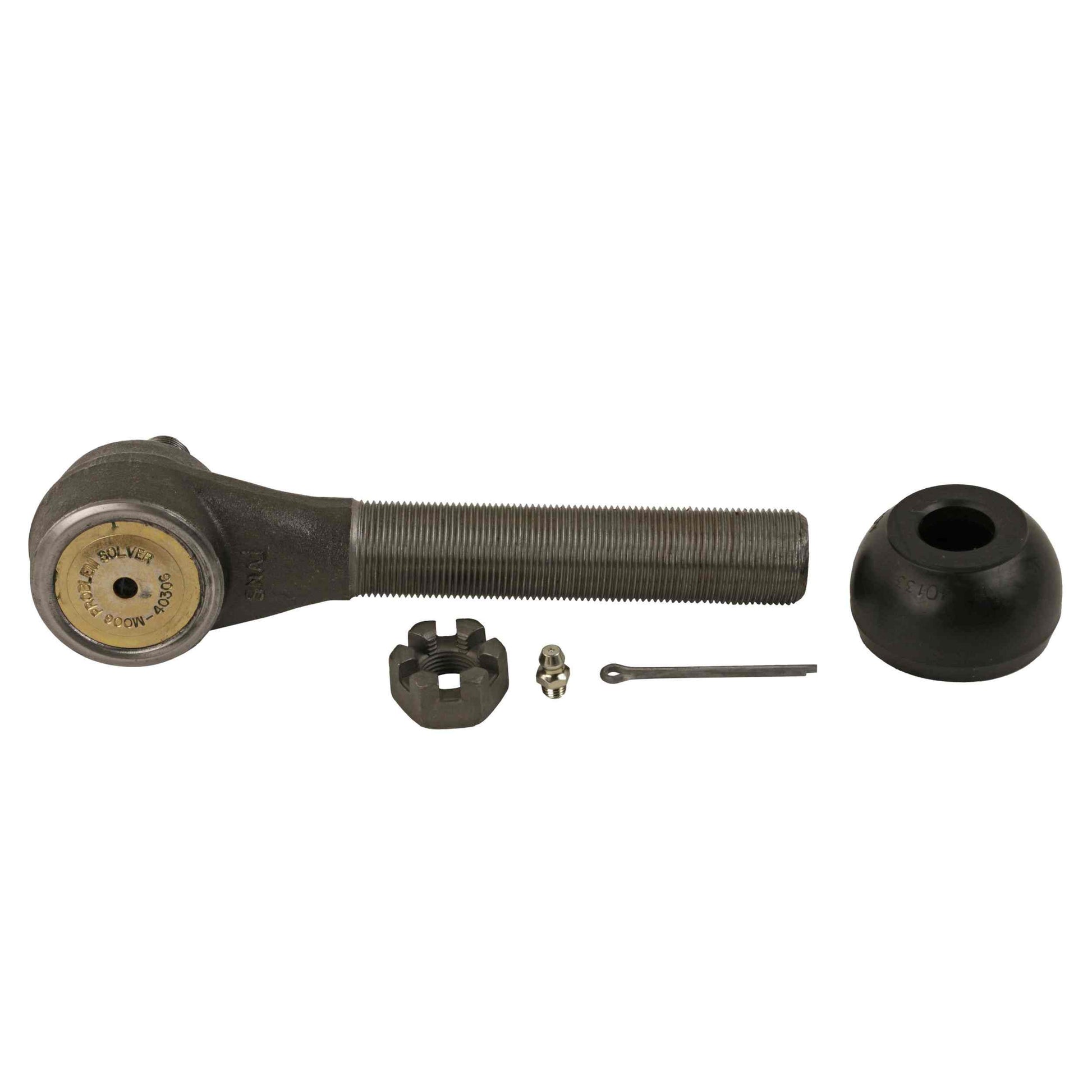

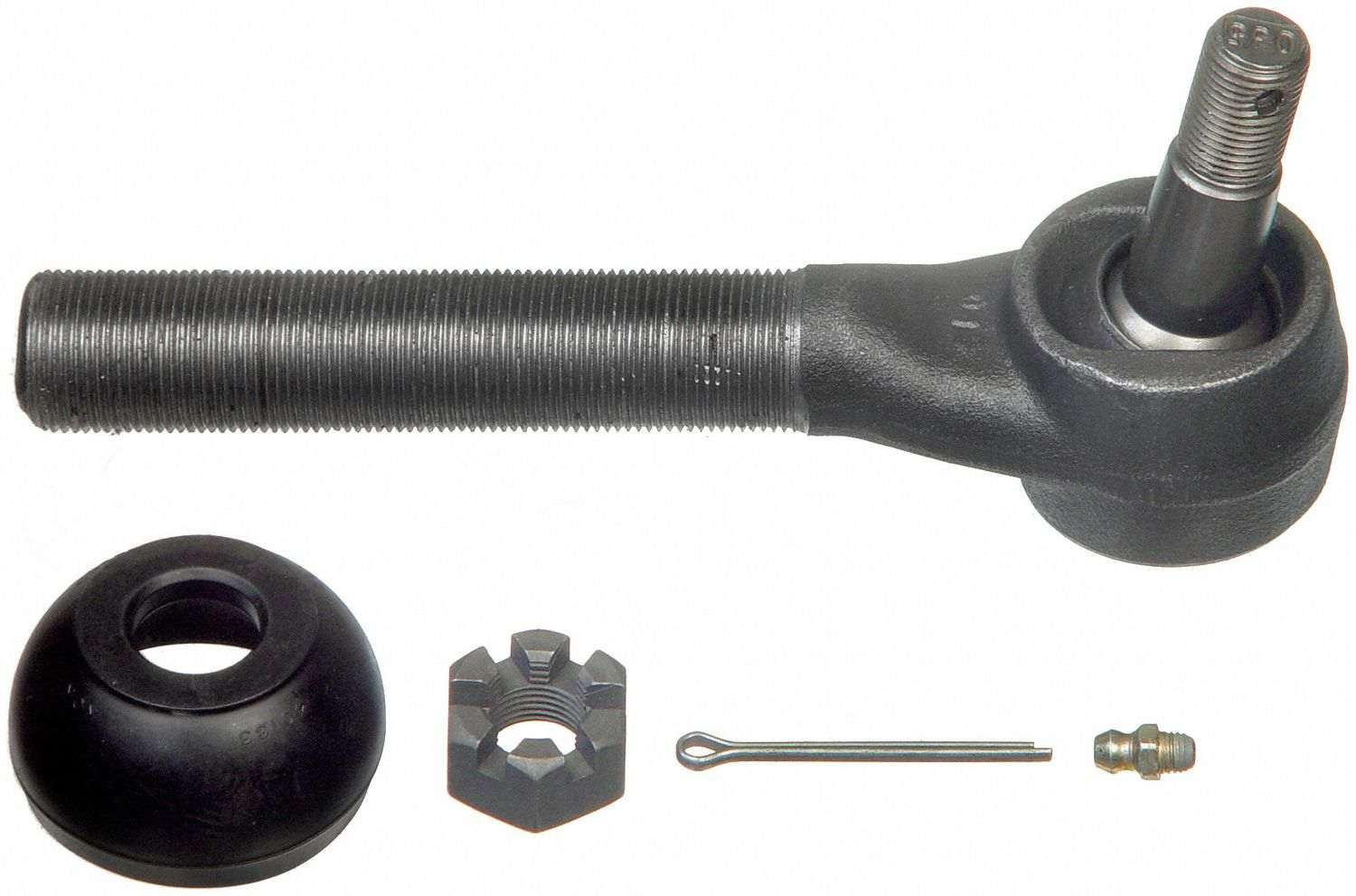

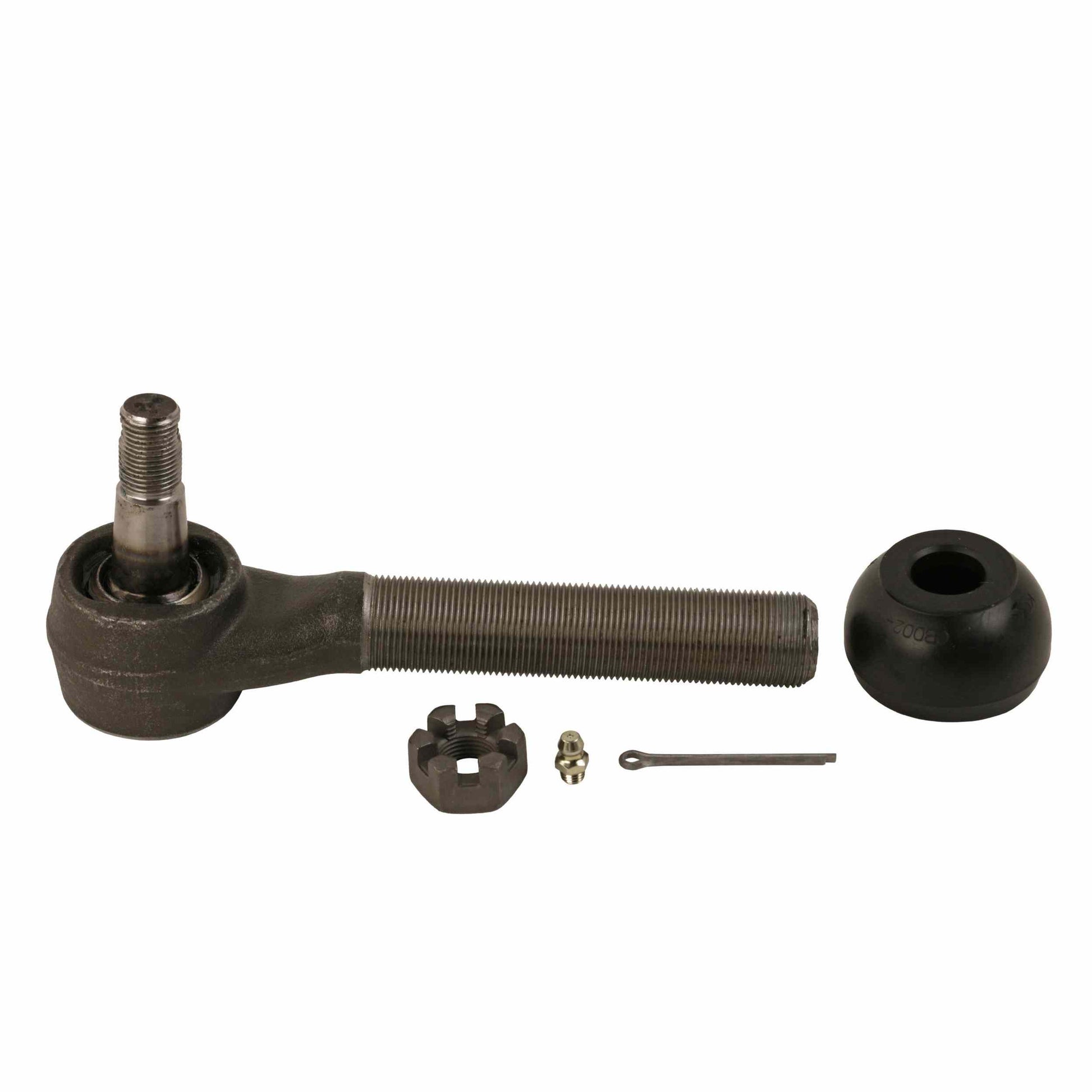

Moog Tie Rod Out C/GM TK 91-96
MOOG® Problem Solver® products incorporate proven design and engineering features for like-new steering, ease of installation and longer life. MOOG is the preferred steering and suspension brand of professional technicians and NASCAR crew chiefs.
Loose or worn chassis parts can lead to premature tire wear
Exclusive cover plate protects against contaminants leaking into the bearing surface
Greaseable socket design allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
Patent pending Sunoloy coated metal bearings provide smooth stud swing technicians and drivers prefer
Patented cover plate design allows for tighter tolerances vs traditional designs for a more durable part
Powdered metal gusher bearing design enables grease to flow through bearing to stud for reduced friction and enhanced strength
Specifications
Tie Rods
Stud Center to End (in): 6.820
Rod Thread: 1.0-16L
Rod Type (Male / Female): MALE
Stud Diameter Dimension (top in.): 0.675
Stud Diameter Dimension (bottom in.): 0.780
Stud Thread: 5/8"-18
Specification Image Reference: OUTERTIEROD.tif
End 1 Thread Diameter (IN): 1.000
End 1 Thread Direction: Counterclockwise
End 1 Threads Per Inch: 16
Tie Rods
Stud Center to End (in): 6.820
Rod Thread: 1.0-16L
Rod Type (Male / Female): MALE
Stud Diameter Dimension (top in.): 0.675
Stud Diameter Dimension (bottom in.): 0.780
Stud Thread: 5/8"-18
Specification Image Reference: OUTERTIEROD.tif
End 1 Thread Diameter (IN): 1.000
End 1 Thread Direction: Counterclockwise
End 1 Threads Per Inch: 16
Applications
ChevroletC3500HD2002-1991
GMCC3500HD2002-1991
ChevroletC3500HD2002-1991
GMCC3500HD2002-1991
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
1994 - 2000 | Chevrolet | C3500 | Base |
1999 - 2000 | Chevrolet | C3500 | LS |
1991 - 1992 | Chevrolet | C3500 | Scottsdale |
1991 - 1998 | Chevrolet | C3500 | Silverado, Cheyenne |
1991 - 2002 | Chevrolet | C3500HD | Base |
1994 - 2000 | GMC | C3500 | Sierra SL, Sierra SLT |
1991 - 2000 | GMC | C3500 | Sierra SLE |
1991 - 1993 | GMC | C3500 | Sierra, Sierra SLX |
1991 - 2002 | GMC | C3500HD | Base |
Moog Tie Rod Out C/GM TK 91-96
Sale price$90.14 USD
